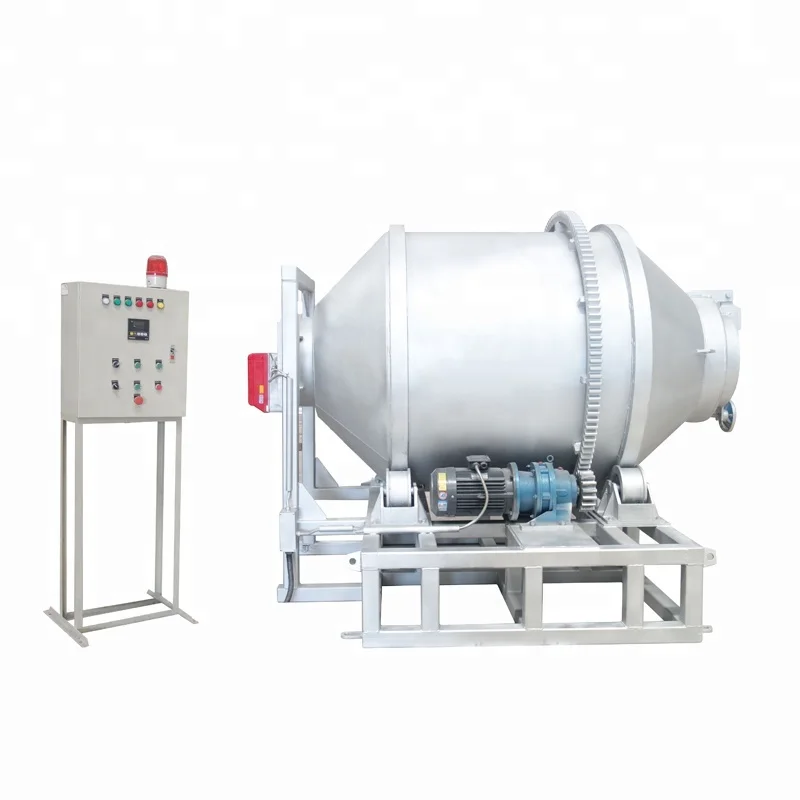

High Performance Gas Fired Rotary Furnace Oven For Melting Lead Powder
- Category: >>>
- Supplier: Wuxi Wondery Trading Co. Ltd.
Share on (60835643560):
Product Overview
Description
Product Description
Product Application
The furnace body is of an oval shape. The two sides of the hearth are built with once-forming refractory material with a high strength. The furnace lining is comprised of refractory layer, heat preservation layer, and heat insulation layer. The hearth is built with high strength once-forming casting material. The hearth is equipped with one fire blocking ring which could prolong the flame stay period, increase melting speed and reduce energy consumption. The furnace has the features of high performance, air tightness, high strength, and long service life. The heat preservation layer and insulation layer are both of ceramic fiber material. The furnace has a fast temperature rising speed, a good heat preservation, and a low energy consumption.
The burning system is comprised of the fan, the solenoid valve, the igniter, and the flame monitor. Connect the burner with power, and the burner will work.
Furnace For Melting Lead
SPECIFICATIONS FOR High Performance Gas Fired Rotary Furnace Oven For Melting Lead Powder | ||||||
Gas Fuel | Burner type | gas burner | 2 sets | |||
Gas max flow | m3/ton lead | 40-50 | ||||
Gas supply pressure | Mpa | less than 0.1 | ||||
Temperature Control System | Max furnace temperature | °C | 1000 | |||
Temperature rising speed | °C/hour | approx 300 | ||||
Temperature uniformity | °C | ±30 | ||||
Furnace body | Capacity | Kgs | 1000 | |||
Rotary speed | m/min | 10~12 | ||||
Lining material | mm | Grade one high alumina bricks, and ceramic fiber heat preservation layer | ||||
Detailed Images

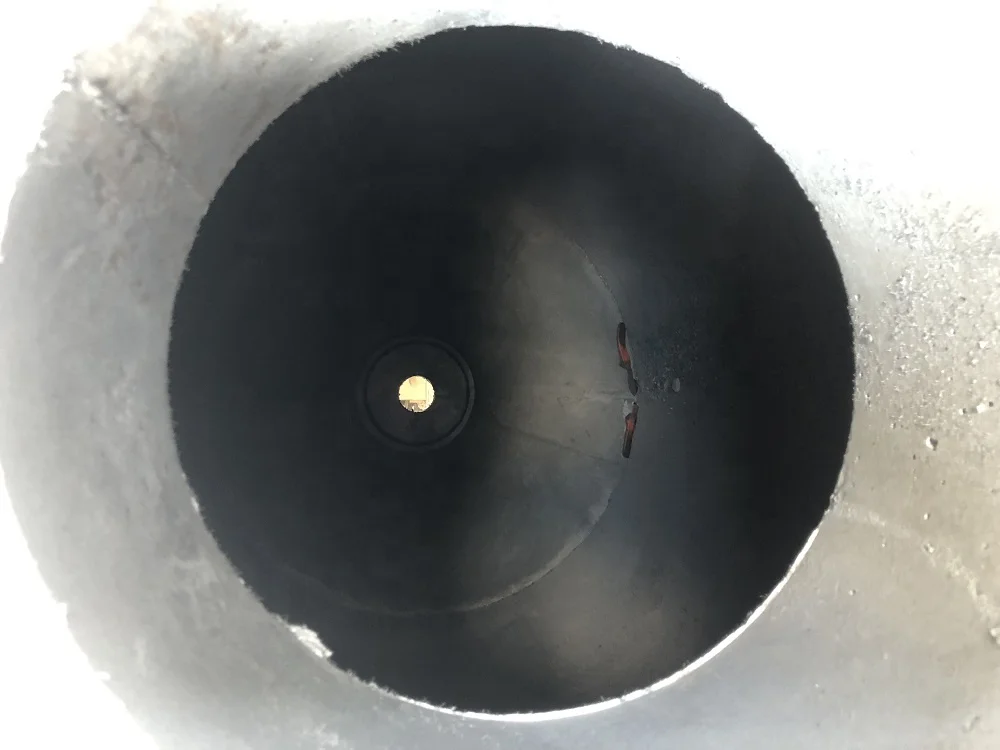

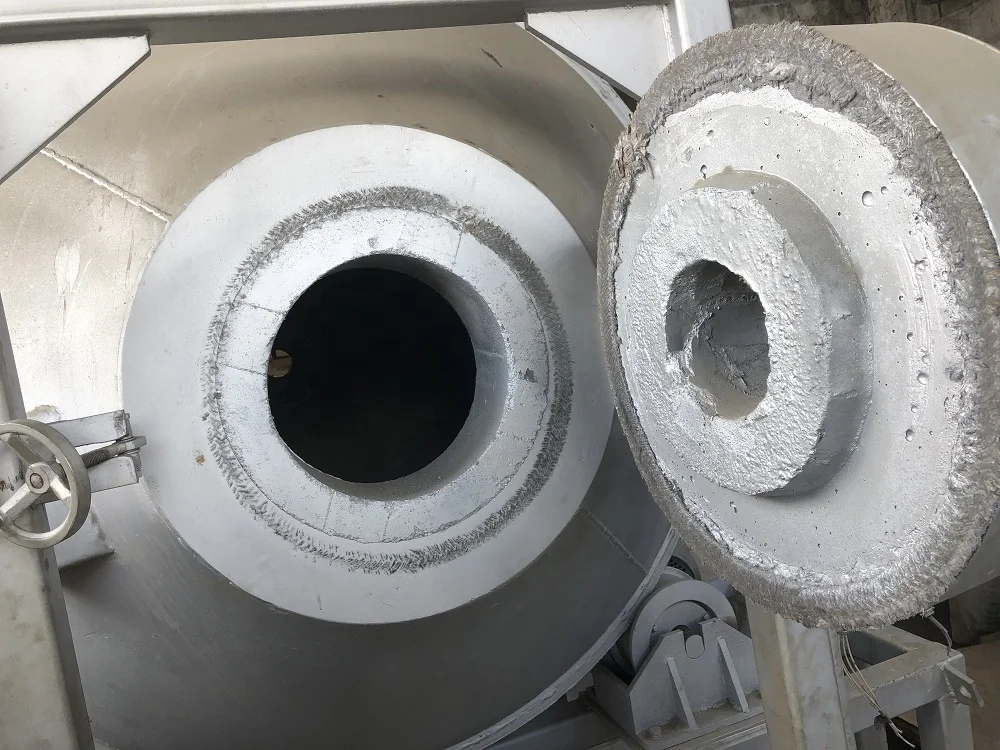

Furnace lining
Name: Zinc Powder Rotary Melting Furnace
Brand: WONDERY
Original: China
The furnace hearth is built with once-forming casting material with a high strength. The life service is more than 5 years.
Furnace For Melting Lead
Our Product Scope
Our company supplies the oil fired or gas fired zinc powder rotary melting furnaces, oil or gas fired zinc powder rotary melting furnace, gas oir oil fired aluminum scrap melting furnaces, reveberatory aluminum melting furnace, continuous aluminum melting furnae, aluminium melting furnace crucible melting furnace, aluminum liquid transfer ladles, aluminum ladle preheater, electric aluminium melting furnace, electric aluminium holding furnace, gas fired aluminum holding furnace, box type resistance furnace, etc.
furnace for melting lead furnace for melting lead furnace for melting lead furnace for melting lead
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the furnace, training how to use the furnace.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Volume | 10 m³ | |
Weight | 3ton | |
Packaging Details | The normal package is plywood box. Fumigating is not needed.If container is too tigher,we will use pe film for packing or pack it according to customers special request. furnace for melting lead furnace for melting lead furnace for melting lead | |
