Product Overview

Description

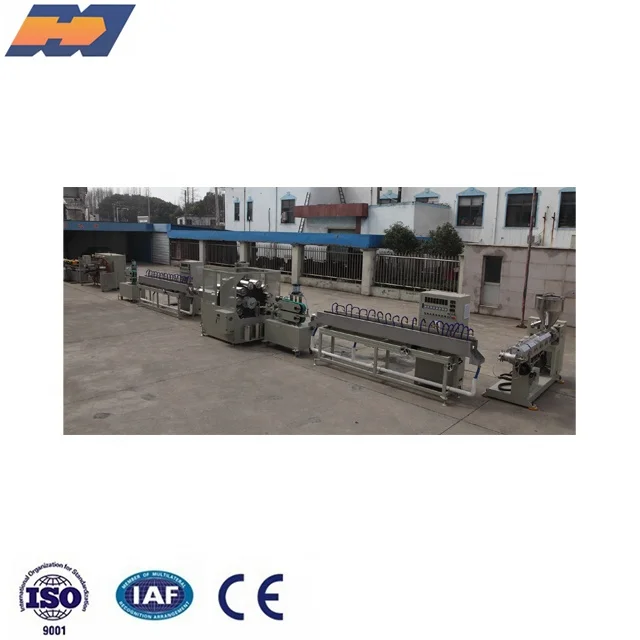

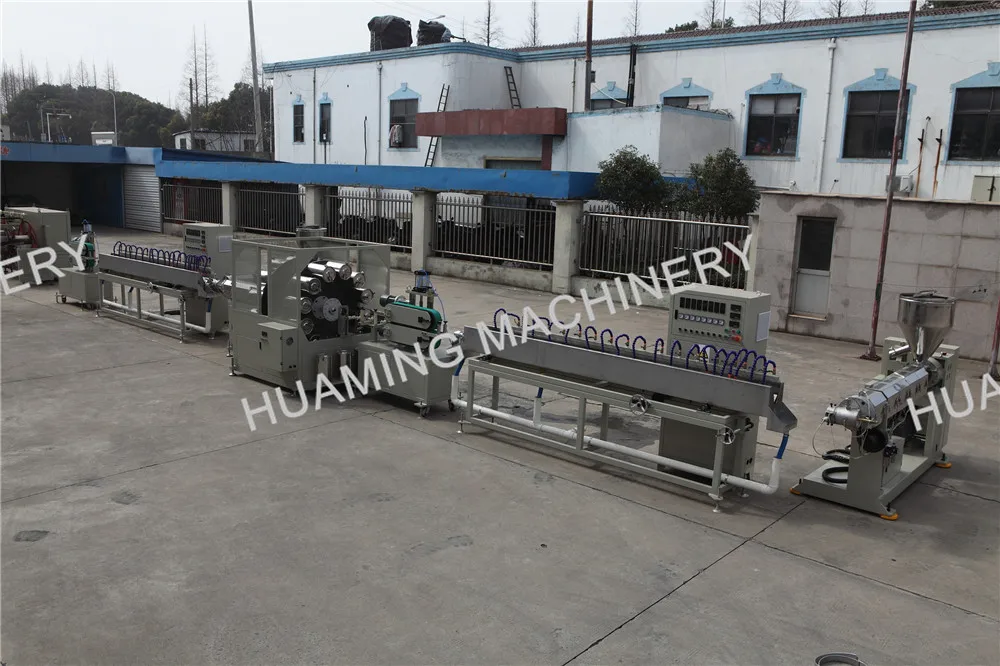

PVC fiber reinforced hose production line





1. Usage & scope of application

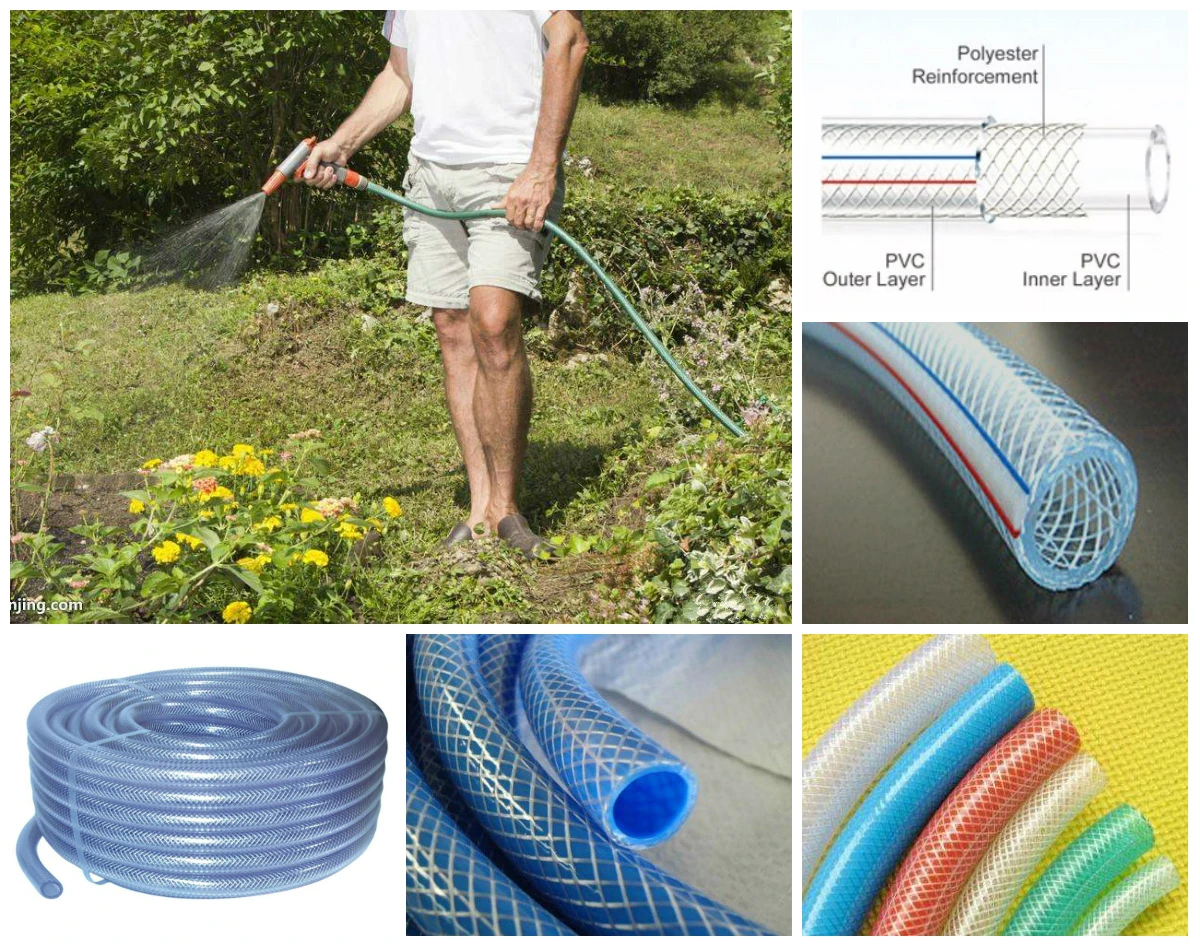

PVC fiber reinforced hose produced by this line is also called PVC net hose or snake skin hose. It is suit for transportation of low or middle pressure gas and corrosive gas. It has been widely used in machinery, coal mine, chemical industry, agriculture irrigation, garden or lawn irrigation, building, civil (solar water heaters, gas cylinders) and other fields.It is also widely used for garden and lawns watering now.



Characteristics of PVC Fibre Hose:
It is flexible, transparent, durable, non-toxic, without odor, anti-erosion and adaptable to high pressure condition. By adding colorful symbol lines on the surface of the hose, it looks more beautiful.

Temperature: -10℃ ~65℃



2. Process flow chart of PVC pipe production line

Main production process:

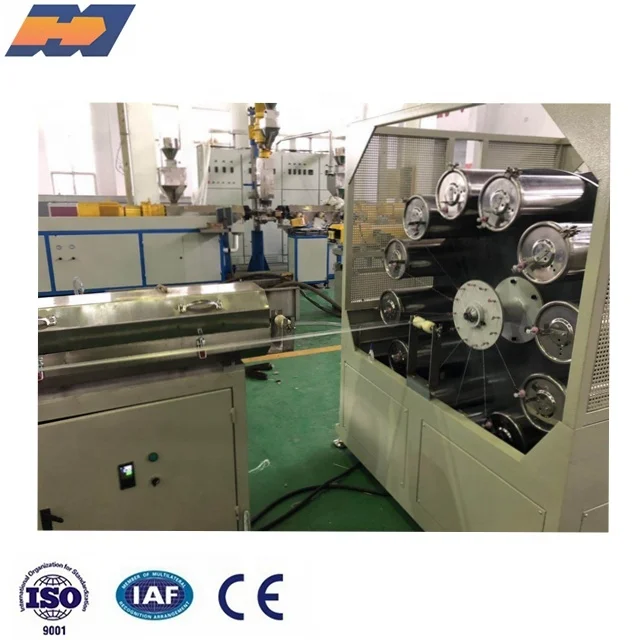

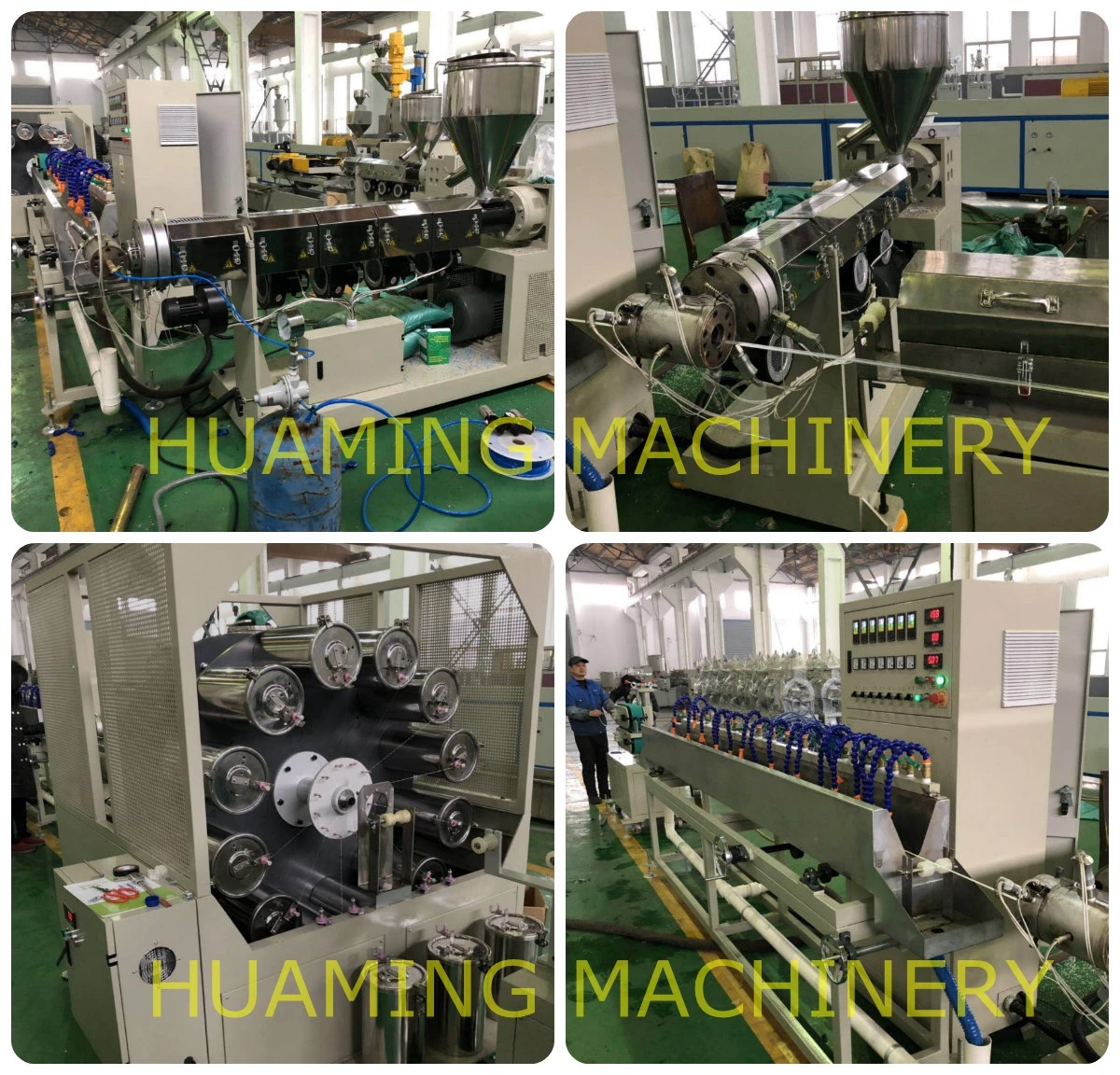

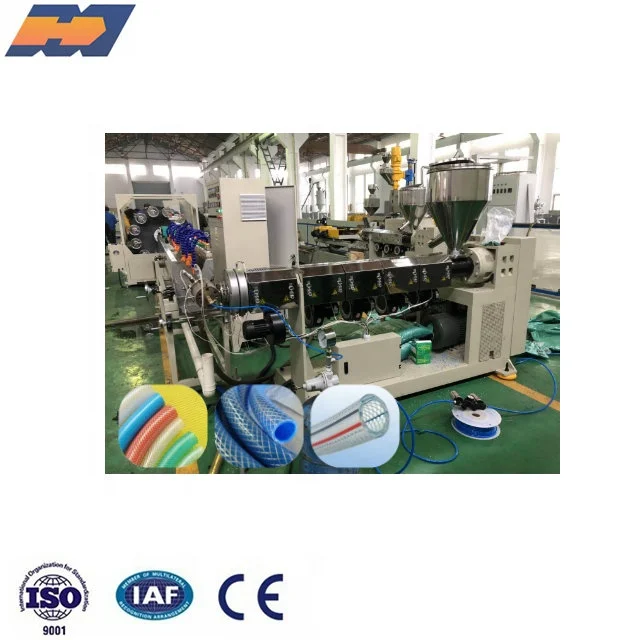

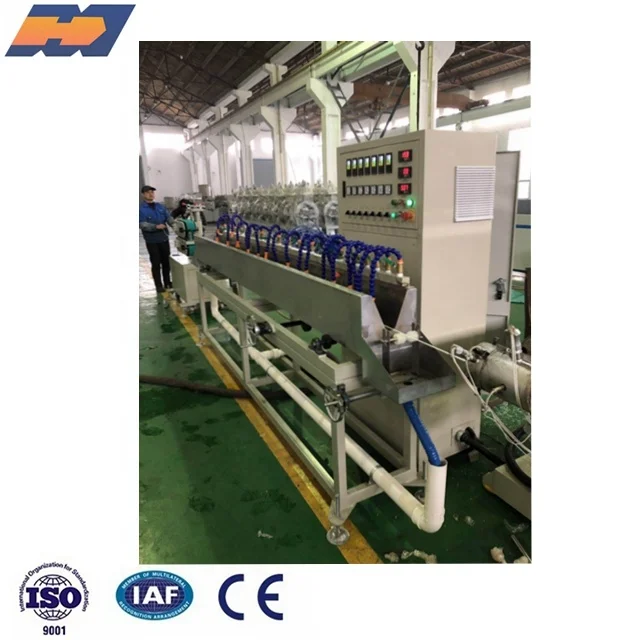

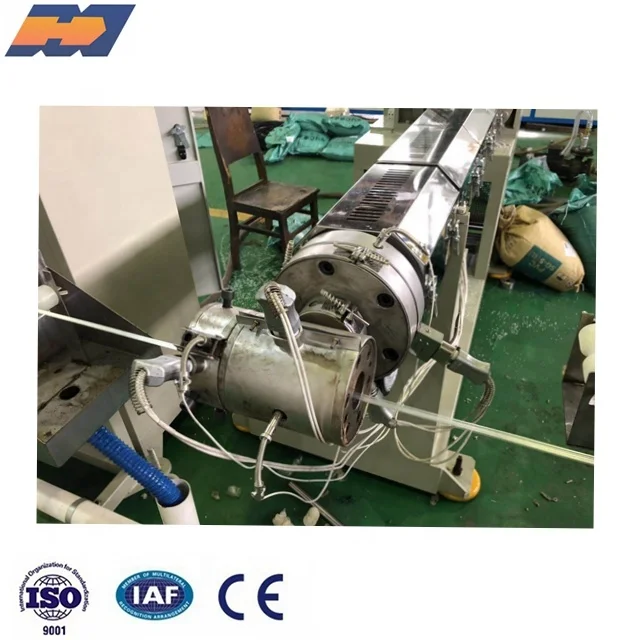

Inner PVC Pipe Extrusion → Cooling and Traction → Fiber Rope Weaving → Out PVC Pipe Extrusion → Cooling → Haul-off machine → Winding



3. Technical Parameters



Model	HM45	HM55	HM65	HM75
Extruder(2 sets)	SJ45/30	SJ55/30	SJ65/30	SJ75/30
Pipe diameter(mm)	6-16	8-25	12-50	20-50
Output(kg/h)	20-40	30-60	40-80	60-110
Installed power(kw)	35	42	50	65
