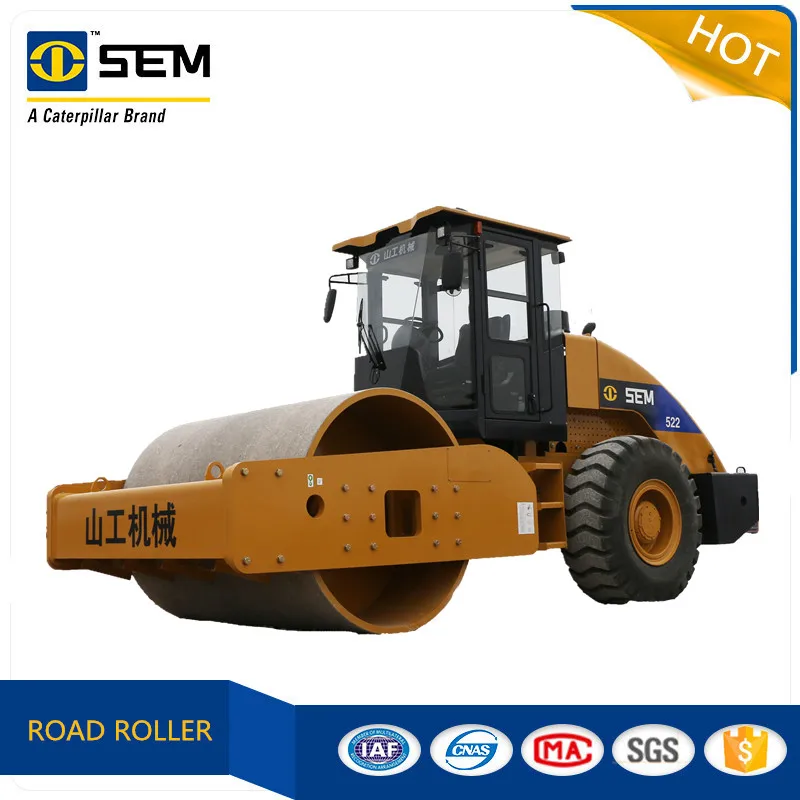

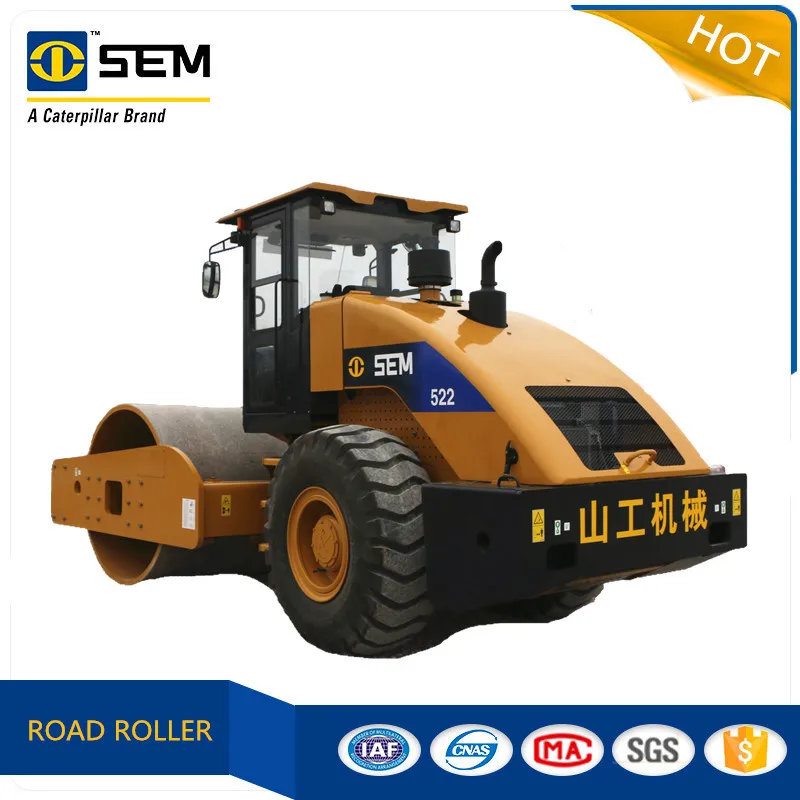

New single drum soil compactor SEM 518 520 522 low price road roller
Product Description
Jinan Tengde Equipment Co,. LTD was found in 2000 in Jinan, is a agent company of CQL. It is located in Jinan, the provincial capital of Shandong province, mainly engaged in wheel loader, bulldozer, roller, motor grader machine and components of SEM brand sales and after- sale service. After over ten years of experience, Jinan Tengde Equipment Co,. LTD now has a considerable scale and has been rated as the ten outstanding agents of Shandong.
SEM 518 road roller--from CQL, worth your trust
Vibe Pod Design
Eccentric vibe pod design, extends system life by 50%
Steel shot moving inside closed eccentric block, stable and reliable vibe amplitude, reduces impact to motor, prolongs maintenance period of vibratory system
Completely sealed eccentric gear eliminates contamination, prolongs bearing life
Cooling System
Isolated modular cooling system
Suction style fan pulls low temperature air through the radiator, providing superior cooling capability
Optional high ambient cooling system allows the machine to work in ambient temperature up to 50 ℃
Shunt tank provides constant system pressure and provides easy visual check of coolant level
Vibratory Hydraulic System
Closed center hydraulic system
Improves efficiency by 20% over the open center system
Reduces oil contamination, prolongs life of hydraulic system
Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
Powertrain
Electronically controlled transmission
Easier to shift, reduces operator fatigue and improves working efficiency
High reliability
Axle equipped with Proportional Torque differential (PTD)
PTD controls torque applied to the wheels based on ground conditions, improves overall traction
Grade ability is 34% compared to competitors’ at 30%
Optimized transmission ratio, 1st gear has higher travel speed
Dashboard
Vibratory Frequency Meter
Continuously displays machine compaction frequency
Operator may select appropriate frequency to avoid excessive compaction
Three Level Alarm System
Machine will diagnose system issues and notify the operator with 3 levels of warning indicator lights and audio alarms
Key Features
Application/Versatility
Applications include road, railway, airfield and industry yard compaction
Optional diamond shape pad-foot roller for compacting clay soils
Optional square shape pad-foot roller for compacting sandy materials
High efficiency
50mm drum, compaction performance is 10%~15% better than competitors
Isolated modular cooling system, works in ambient temperature of 43 ℃
Reliability
Vibration system utilizes an eccentric vibe pod design, extends life up to 50%
Closed center hydraulic system, world famous piston pump and motor
Electronically controlled transmission, easy and comfortable to operate
Operation
Digital frequency meter, monitors compaction frequency
Three level alarm system and Engine speed guage monitor machine performance
Tiltable Cab
SEM offers a tiltable cabin which provides more convenient maintenance of the pump, transmission, hose and electronic components
Hydraulic tiltable cab is optional
Product Parameters
Technical parameters of SEM518 road roller
Model
SEM518
Operating Weight
18000kg
Compaction
Vibration Frequency (High/Low)
30/28Hz
Amplitude (High/Low)
2/1mm
Excitation Force (High/Low)
327/188KN
Static Pressure
415N/cm
Engine
Rated Power
129kw
Speed
2000r/min
Fuel Tank Volume
262L
Hydraulic Oil Tank Volume
80L
Drum
Drum Width
2130mm
Drum Diameter
1600mm
Drum Thickness
40mm
Tires
Tires Type
20.5-25
Speed
F/R Ⅰ
2.98km/h
F/R Ⅱ
5.88km/h
F/R Ⅲ
9.60km/h
Swing Angle
±12°
Steering Angle
±33°
Outer Turning Radius
6350mm
Max. Gradeability
34%
Product Overviews

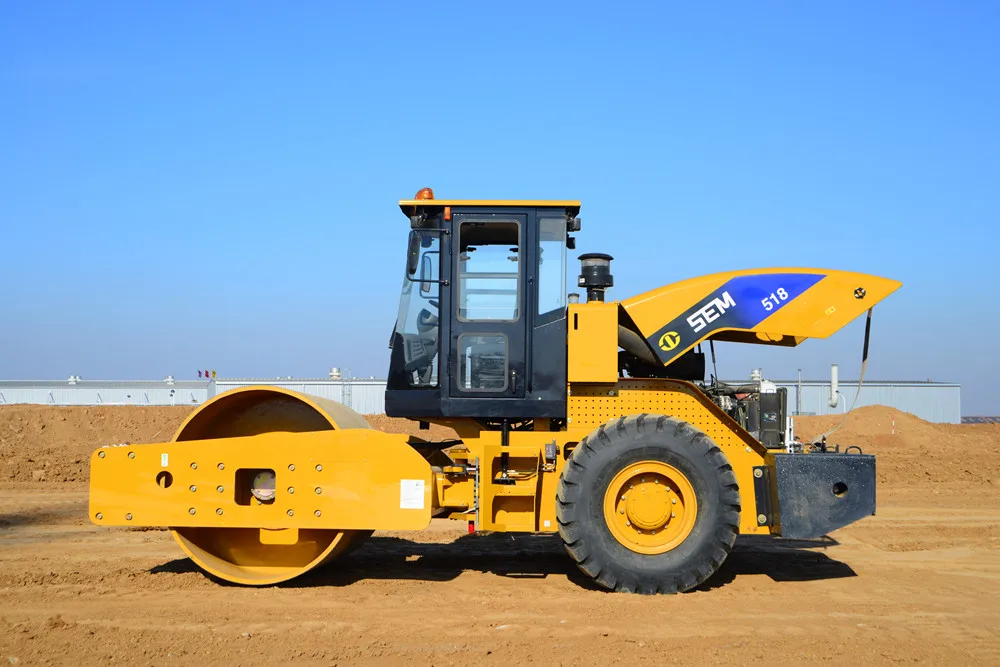

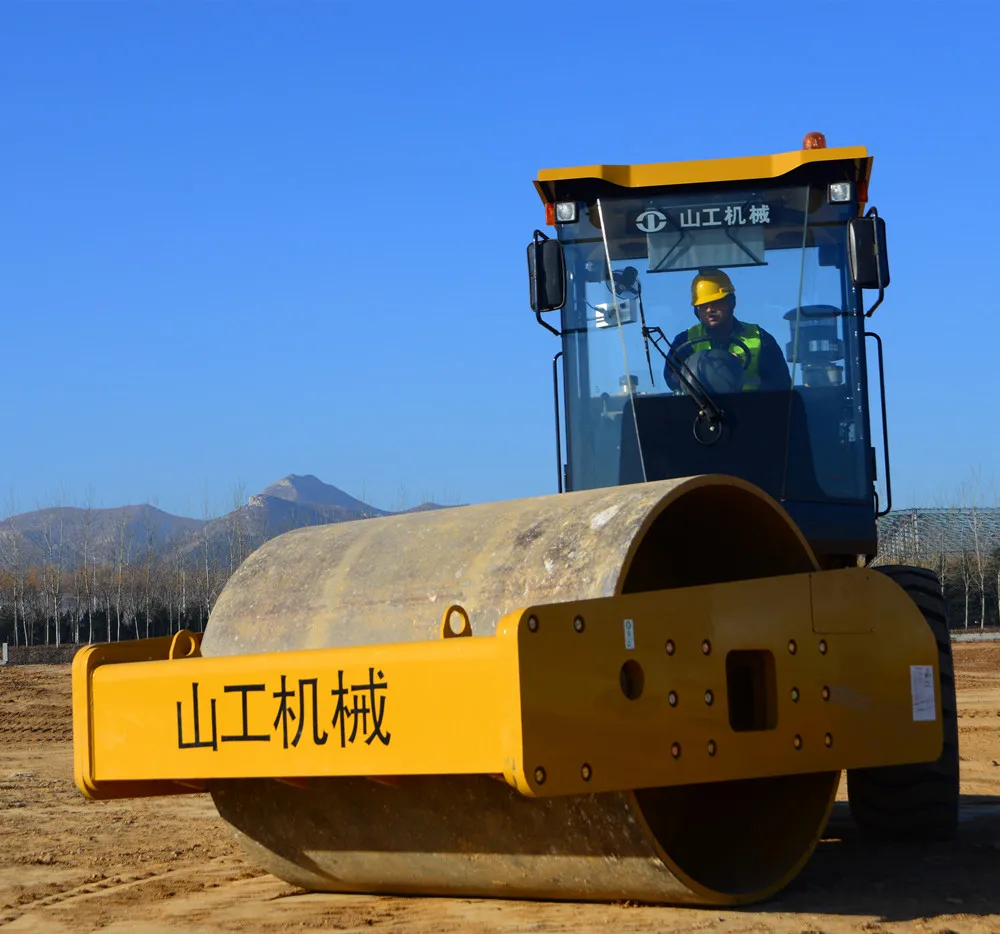

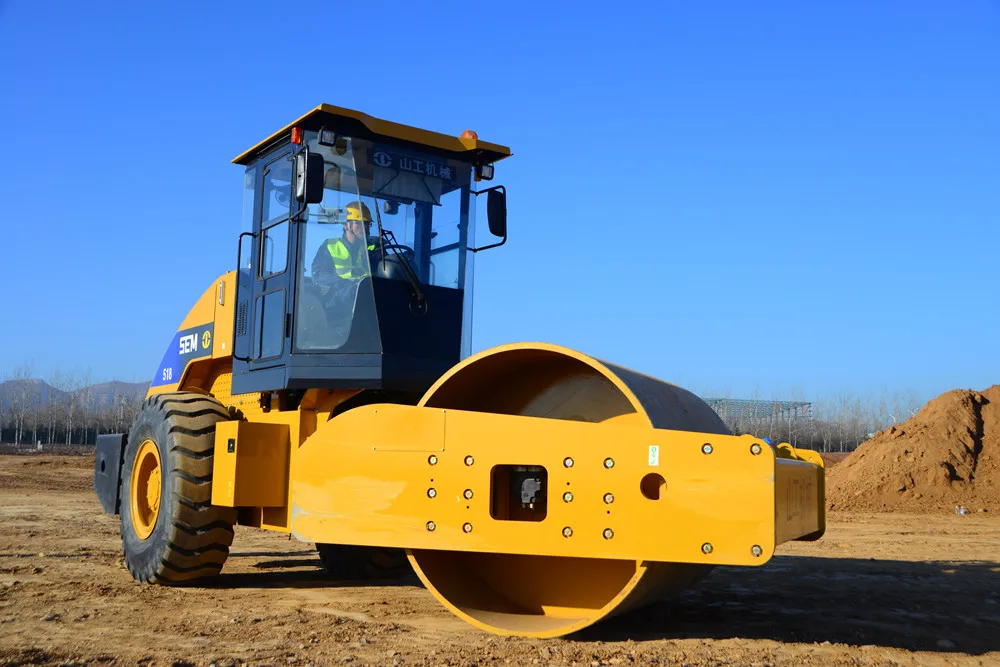

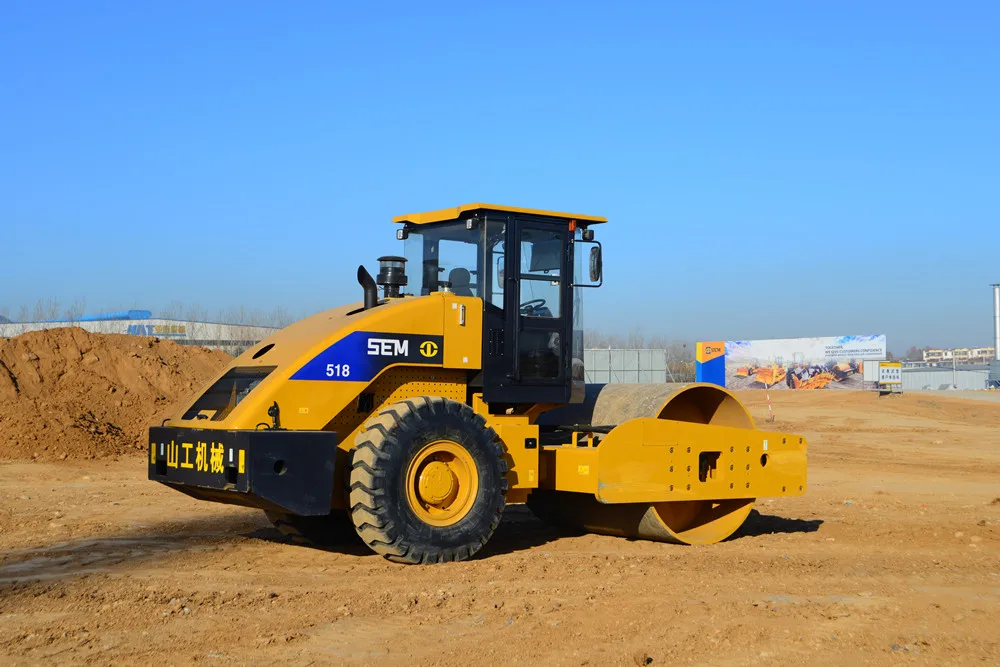

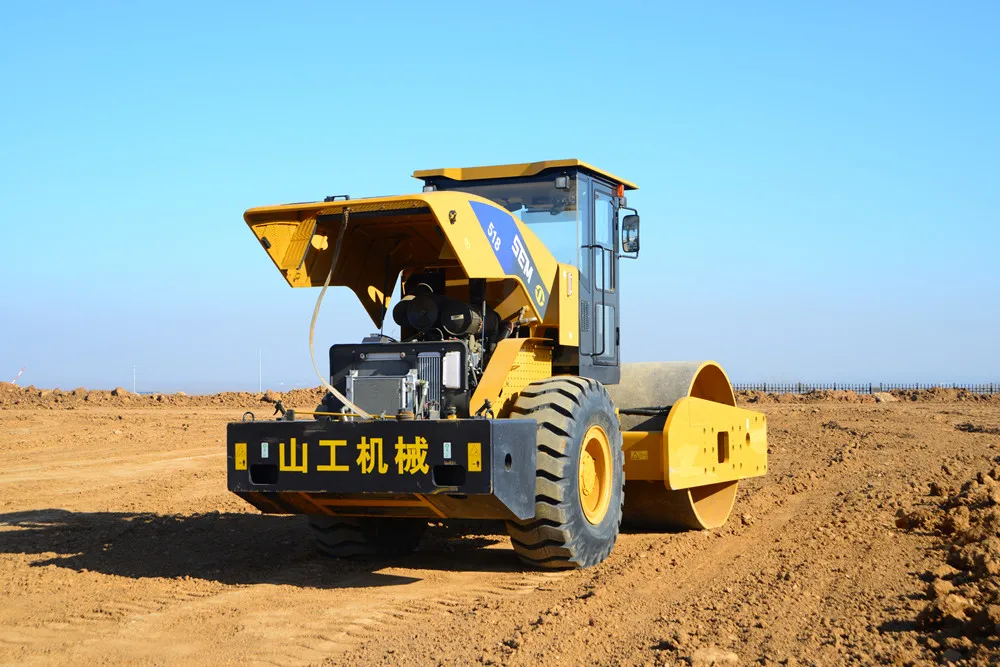

Pictures of SEM518 road roller
Certifications

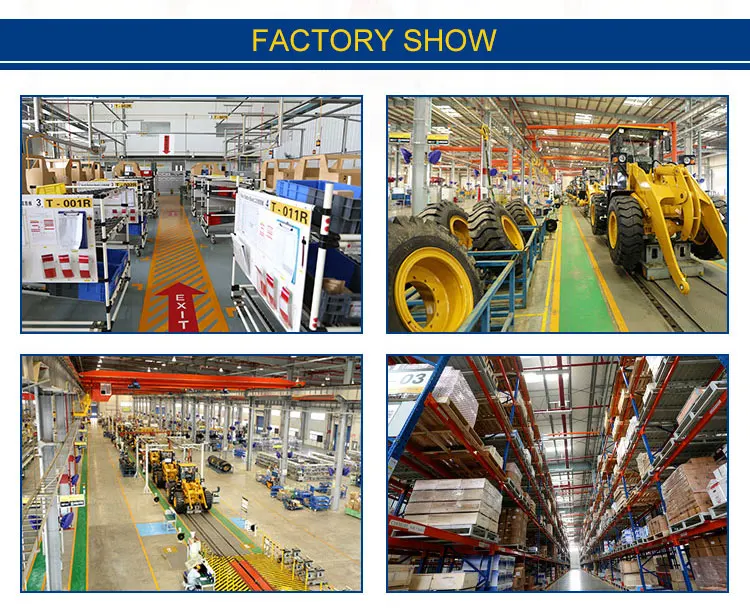

Factory show
Product Exhibitions
Payment and Delivery
Contacts
Frankie Zheng
Sales Department Manager
wechat:+8618100385956
whatsapp:+8618100385956
Please contact me directly to get the lowest price.
