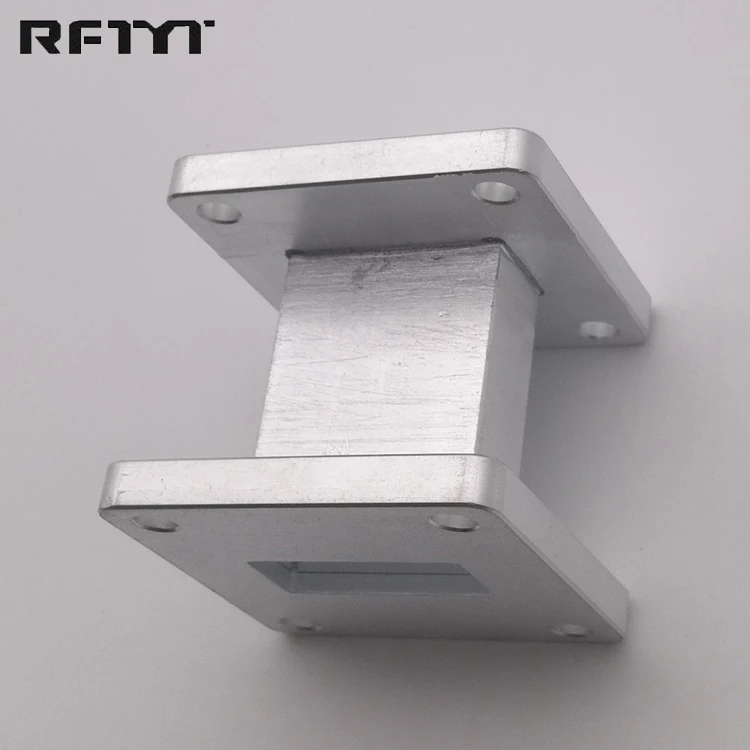

RFTYT China Supplier Microwave Straight Wireless Waveguide
Product Description
Product overview:
Straight waveguide is the basic component of waveguide feeder system. The waveguide types are rectangular, flat rectangular, medium flat rectangular, square, circular, single ridge and double ridge. The product frequency range covers 0.3-112 GHz. The typical standing wave VSWR in the full waveguide bandwidth is less than 1.05.
Straight waveguide is the basic component of waveguide feeder system. The waveguide types are rectangular, flat rectangular, medium flat rectangular, square, circular, single ridge and double ridge. The product frequency range covers 0.3-112 GHz. The typical standing wave VSWR in the full waveguide bandwidth is less than 1.05.
The basic materials of straight waveguide are copper, aluminum and surface treatment. There are silver plating, gold plating, nickel plating, passivation, conductive oxidation and so on. Direct reporting length, flanges, materials, surface treatment and electrical specifications can be customized according to user requirements.
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard
| Model | Waveguide Standard | Frequency Range(GHz) | VSWR |
| TYTJJ3LXA10 | BJ3(WR2300) | 0.32-0.49 | 1.05 |
| TYTJJ4LXA10 | BJ4(WR2100) | 0.35-0.53 | 1.05 |
| TYTJJ5LXA10 | BJ5(WR1800) | 0.41-0.62 | 1.05 |
| TYTJJ6LXA10 | BJ6(WR1500) | 0.49-0.75 | 1.05 |
| TYTJJ8LXA10 | BJ8(WR1150) | 0.64-0.98 | 1.05 |
| TYTJJ9LXA10 | BJ9(WR975) | 0.75-1.12 | 1.03 |
| TYTJJ12LXA10 | BJ12(WR770) | 0.96-1.45 | 1.03 |
| TYTJJ14LXA10 | BJ14(WR650) | 1.12-1.70 | 1.03 |
| TYTJJ18LXA10 | BJ18(WR510) | 1.45-2.20 | 1.03 |
| TYTJJ22LXA10 | BJ22(WR430) | 1.70-2.60 | 1.03 |
| TYTJJ26LXA10 | BJ26(WR340) | 2.20-3.30 | 1.03 |
| TYTJJ32LXA10 | BJ32(WR284) | 2.60-3.95 | 1.03 |
| TYTJJ40LXA10 | BJ40(WR229) | 3.30-4.90 | 1.03 |
| TYTJJ48LXA10 | BJ48(WR187) | 3.95-5.85 | 1.03 |
| TYTJJ58LXA10 | BJ58(WR159) | 4.90-7.05 | 1.03 |
| TYTJJ70LXA10 | BJ70(WR137) | 5.85-8.20 | 1.03 |
| TYTJJ84LXA6 | BJ84(WR112) | 7.05-10.0 | 1.03 |
| TYTJJ100LXA6 | BJ100(WR90) | 8.20-12.4 | 1.03 |
| TYTJJ120LXA6 | BJ120(WR75) | 10.0-15.0 | 1.03 |
| TYTJJ140LXA6 | BJ140(WR62) | 12.4-18.0 | 1.03 |
| TYTJJ180LXA6 | BJ180(WR51) | 15.0-22.0 | 1.03 |
| TYTJJ220LXA6 | BJ220(WR42) | 18.0-26.5 | 1.03 |
| TYTJJ260LXA6 | BJ260(WR34) | 22.0-33.0 | 1.03 |
| TYTJJ320LXA6 | BJ320(WR28) | 26.5-40.0 | 1.05 |
| TYTJJ400LXC12 | BJ400(WR22) | 33.0-50.0 | 1.1 |
| TYTJJ500LXC12 | BJ500(WR19) | 39.2-50.1 | 1.1 |
| TYTJJ620LXC12 | BJ620(WR15) | 19.8-75.8 | 1.1 |
| TYTJJ740LXC12 | BJ740(WR12) | 60.5-91.9 | 1.1 |
| TYTJJ900LXC12 | BJ900(WR10) | 73.8-112 | 1.1 |
| TYTDD150LXA16 | WRD150D24 | 1.5-3.6 | 1.1 |
| TYTDD200LXA16 | WRD200D24 | 2.0-4.8 | 1.1 |
| TYTDD250LXA16 | WRD250D30 | 2.6-7.8 | 1.1 |
| TYTDD350LXA16 | WRD350D24 | 3.5-8.2 | 1.1 |
| TYTDD475LXA16 | WRD475D24 | 4.75-11.0 | 1.1 |
| TYTDD500LXA16 | WRD500D36 | 5.0-18.0 | 1.1 |
| TYTDD580LXA16 | WRD580D28 | 5.8-16.0 | 1.1 |
| TYTDD650LXA16 | WRD650D28 | 6.5-18.0 | 1.1 |
| TYTDD750LXA16 | WRD750D24 | 7.5-18.0 | 1.1 |
| TYTDD840LXA16 | WRD840U24 | 0.84-2.0 | 1.1 |
| TYTDD110LXA16 | WRD110C24 | 11.0-26.5 | 1.1 |
| TYTDD180LXA16 | WRD180C24 | 18.0-40.0 | 1.1 |
| LX represents the length (as L200 indicates the length is 200mm). | |||
Forms are specify frequency range and other ranges available
