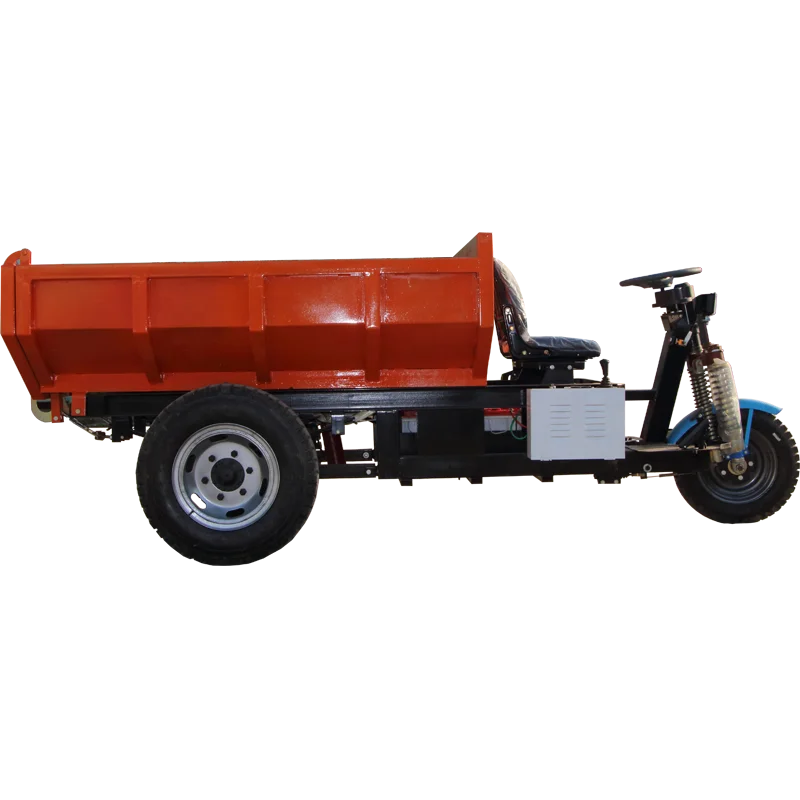

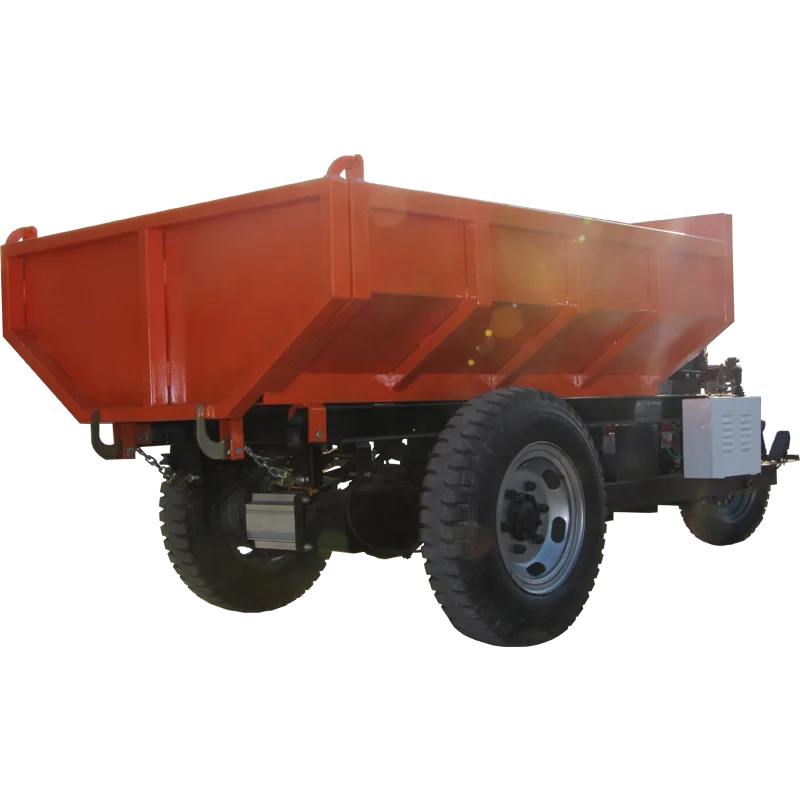

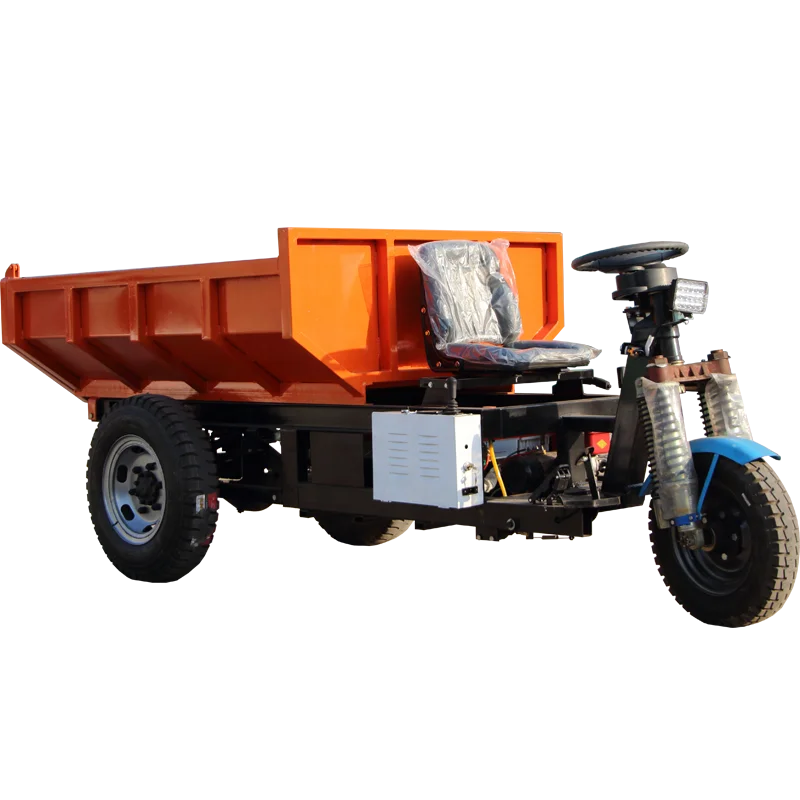

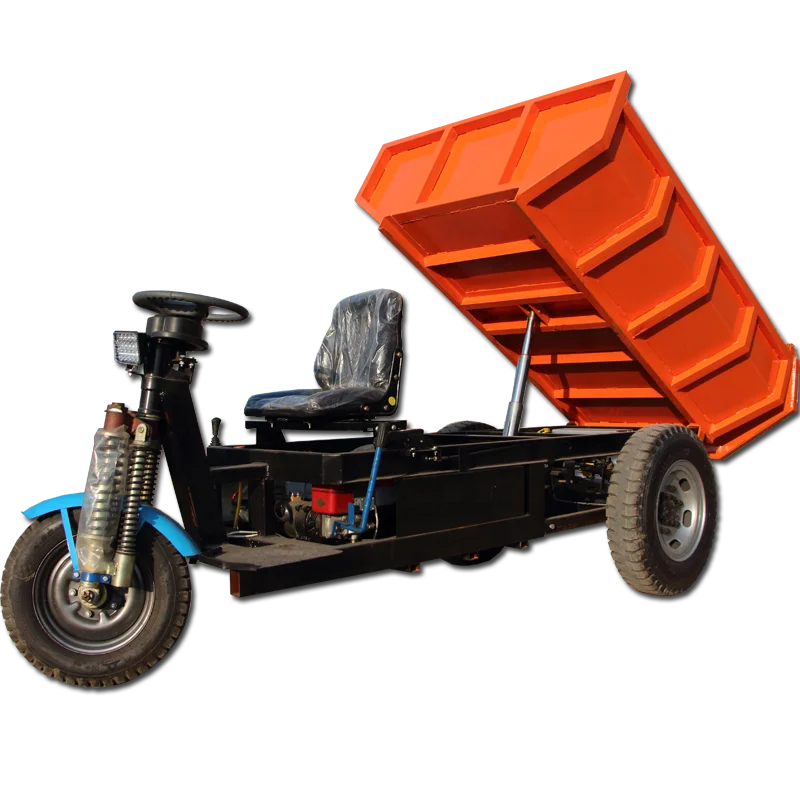

ZY190 moped tricycle / tok tok tricycles / tuk tuk tricycle
- Category: >>>
- Supplier: Gongyi Xiaoyi Jinwang Machinery Factory
Share on (60835846837):
Product Overview
Description
Product Description
2021 multinational 72v 7000W Motor cheaper Cargo Tricycle mini dump tricycles electric tricycle in market
Jinwang Machinery Factory responds to the national call, adopting to national trend, has always been more environmental protection, self-research and develop the pure electric product . At present, the main product of the factory is electric mine dump truck.
The 2021 multinational 72v 7000W Motor cheaper Cargo Tricycle mini dump tricycles electric tricycle in market is powered by electricity,mainly used in mining factories, brick factories, sanitation and cleaning and other places.
Main technical parameters | ||||||||
Model | ZY155 | ZY165 | ZY180 | ZY190 | ||||
Loading capacity | 1000Kg | 1500kg | 2000Kg | 3000Kg | ||||
Voltage | 48v | 60v | 72v | 72v | ||||
Overall sizes | 2600*900*1200mm | 3000*1100*1200mm | 3300*1200*1400mm | 3600*1200*1400mm | ||||
Cargo box sizes | 1500*1000*400mm | 1600*1000*500mm | 1800*1200*500mm | 2000*1200*500mm | ||||
Weight | 520Kg | 850Kg | 1000Kg | 1400Kg | ||||
Battery model | 180 | |||||||
Rear tire type | 450-14 | 500-14 | 600-16 | 700-16 | ||||
Front tire type | 400-12 | 450-14 | 450-14 | 450-14 | ||||
Work platform height | 600mm | 700mm | 720mm | 730mm | ||||
Operating speed | 15-25Km/h | |||||||
Charging time | First is 12h, normal 6h to 8h | |||||||
Working time | 10-12h | |||||||
Lifting motor power | 1000W | |||||||
Driving motor power | 1000w | 1500w | 3000w | 7000w | ||||
Advantage
1.No pollution,pure electric,high performance and low less
2.Easy to operate and maintain
3.Large load, small requirements for road conditions, good appearance

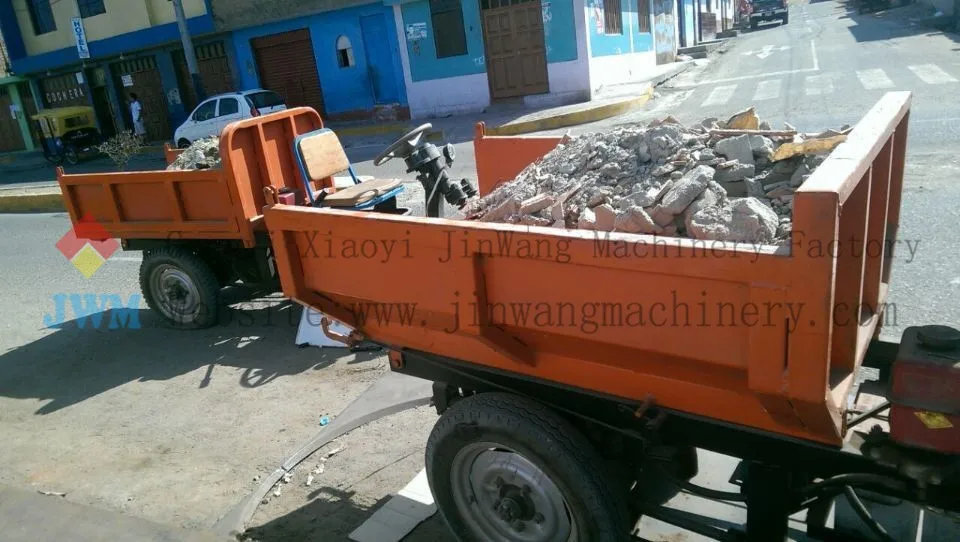

Application
2021 multinational 72v 7000W Motor cheaper Cargo Tricycle mini dump tricycles electric tricycle in market is the main mode of transportation for mining, brick transportation, and sanitation.

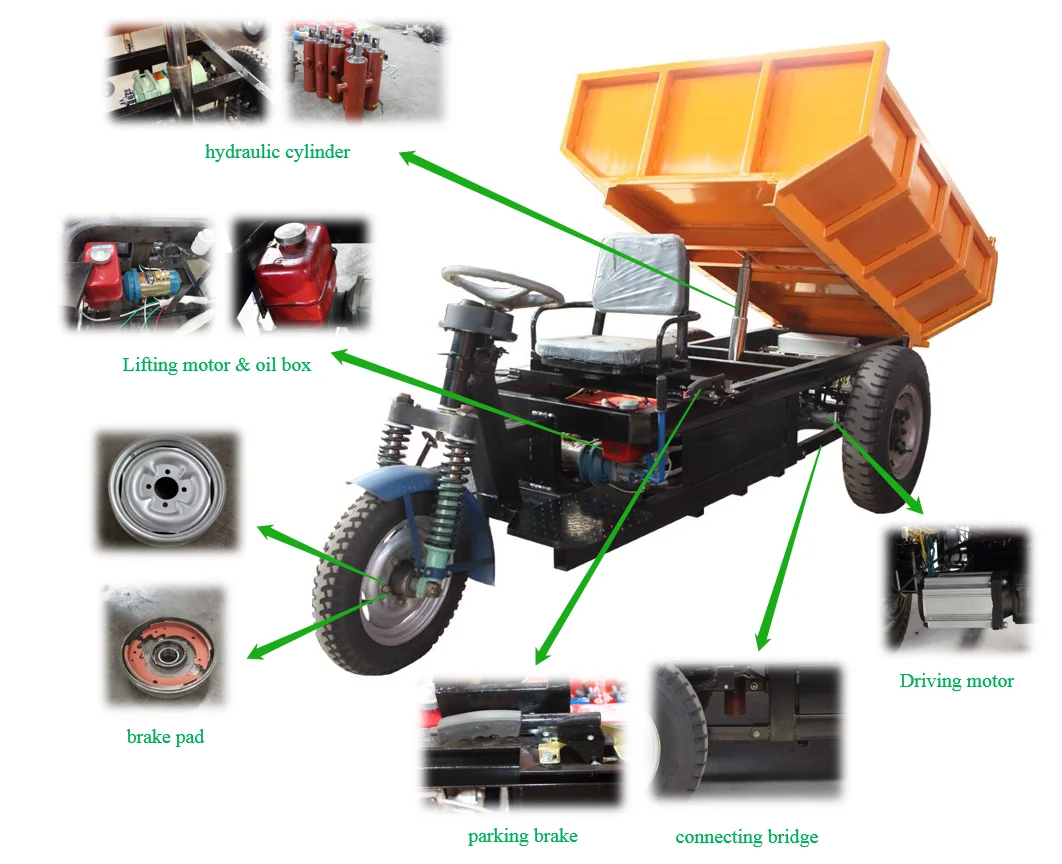

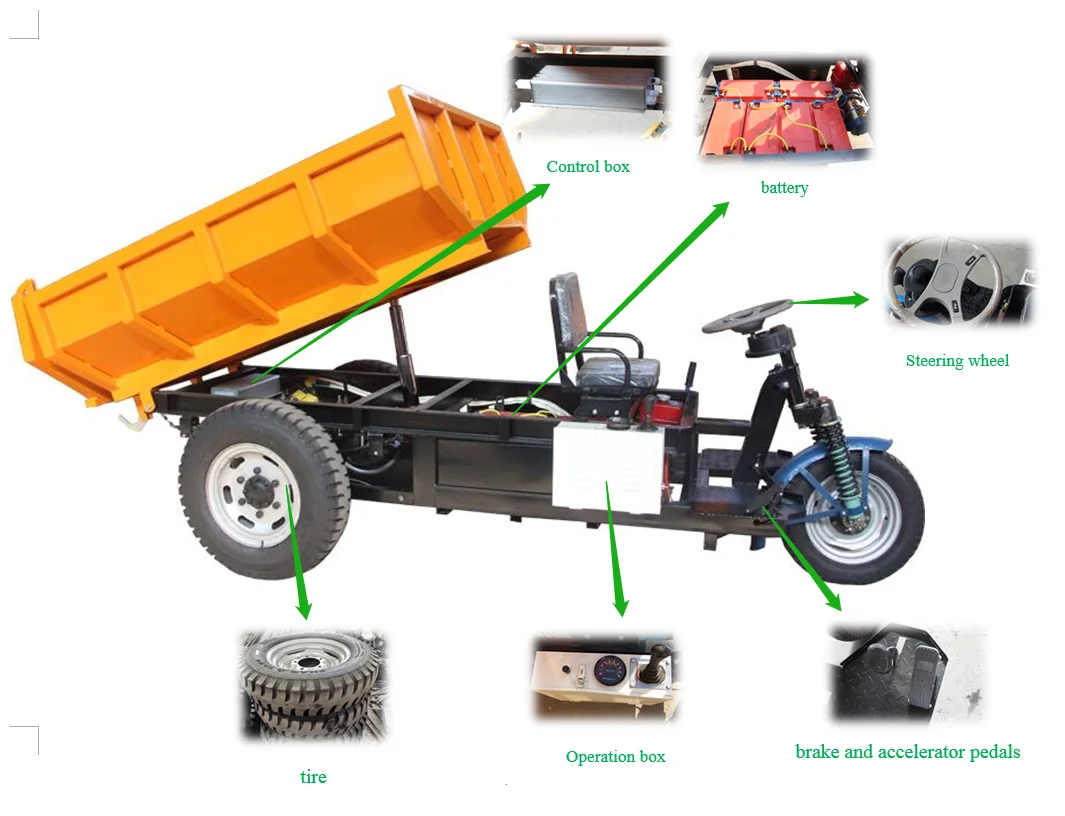

Detailed Images

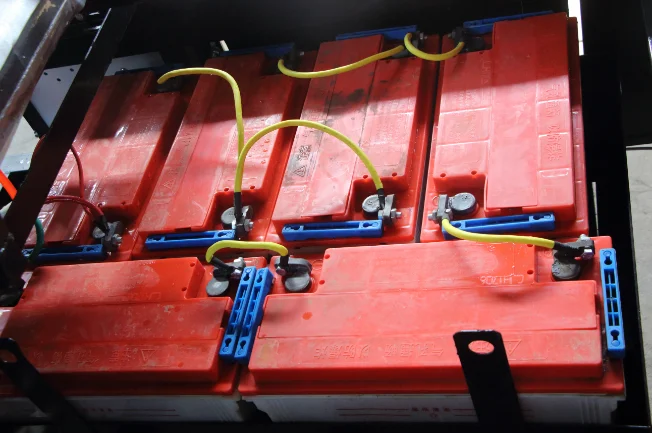

Battery
With a total of 72v (6 prices 100A )batteries as the power source, a high-performance traction battery is equipped. The primary charge can achieve continuous discharge of 10-12 hours. The battery capacity will not be reduced within two years of normal use(can be discharged and charged).After the first 12 hours of charging, each charge is 8 hours, the operating cost is 1/4 -1 / 5 of the fuel(diesel) transport vehicle.
Motor
Lifting motor(1000W)
standard high-quality DC motor,
Implement automatic lifting.

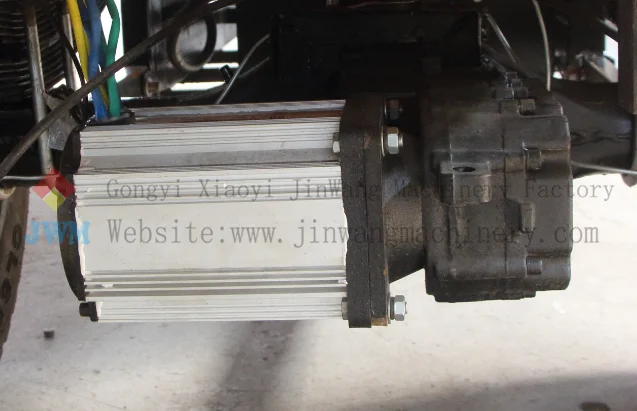

Driving motor(7000W)
drive the gearbox,to achieve variable speed ,
long mileage, high speed and steady speed

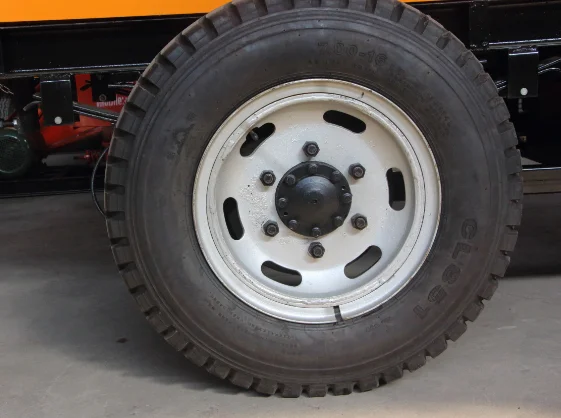

Tire
The factory adopts a high-quality brand of Chaoyang tire 450-14 model front tires and 700-16 model rear tires to use together, can support the body, buffer the external impact, withstand various deformation, load, force and high and low temperature effects.
Hydraulic system
Hydraulic cylinders
Raised to 3 knots ,with automatic lifting function.
1000w Hydraulic motor
Supply pressure to the hydraulic system.
control system
Get the dump up, pull your hands back. Conversely,hands forward.
Packing & Delivery
Less than container load
Less than or equal to 3 sets
full container load
Greater than 3 sets
Service & Warranty
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
Service in sale
* quantity and delivery on time.
*guarantee both quality.
After-Sales Service
* Training how to instal and use the machine.
* Engineers available to service overseas.
We adhere to the "high quality, high service, high standards" as the business philosophy, products sell well in the domestic and foreign markets.We sincerely hope to work with you for win-win cooperation and create a better tomorrow.
The warranty period is one year(provided that non-artificial damage and vulnerable surface damage).
About Us
Gongyi Xiaoyi Jinwang Machinery Factory was founded in 1996 and is located in the northern part of Yong 'an Road, Gongyi City, Henan Province,covers an area of 13,200 acres .It mainly operates various types of 2021 multinational 72v 7000W Motor cheaper Cargo Tricycle mini dump tricycles electric tricycle in market, mucking loaders, block making machines, forklifts, loaders, engines, and oil presses, packing machines, etc..
"Professional and high-quality" is our purpose. In the expansion of the domestic market at the same time, continue to open up the international market. Over the years, the products have been exported to the United States, Australia, Singapore, Malaysia, Myanmar, etc., and have obtained good reputation.
