XH W3012 W3012 digital temperature controller intelligent thermostat Regulator switch 10A 30 to 220 degree
- Category: >>>
- Supplier: Shenzhen Setsail Business Co. Ltd.
Share on (60835869574):
Product Overview
Description
XH-W3012 W3012 digital temperature controller intelligent thermostat Regulator switch

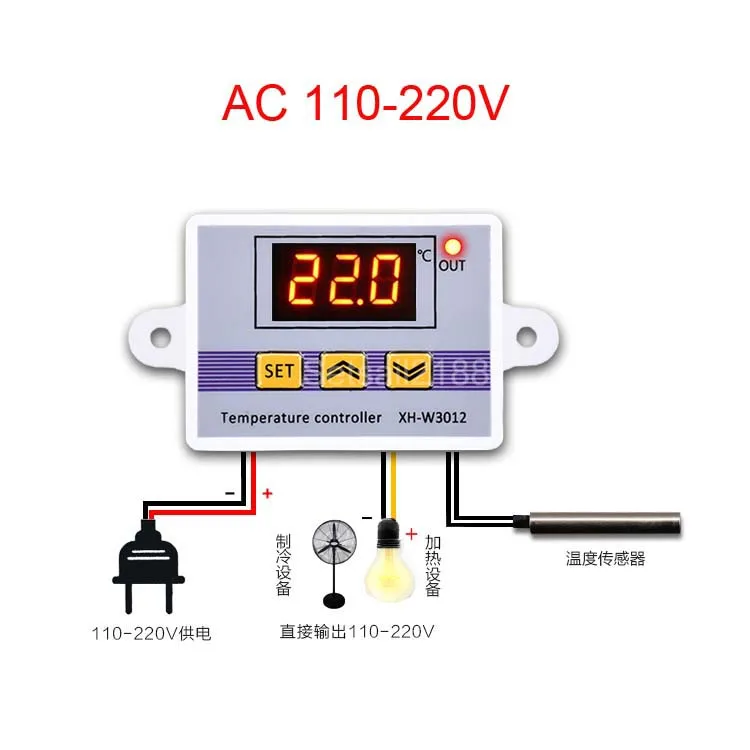

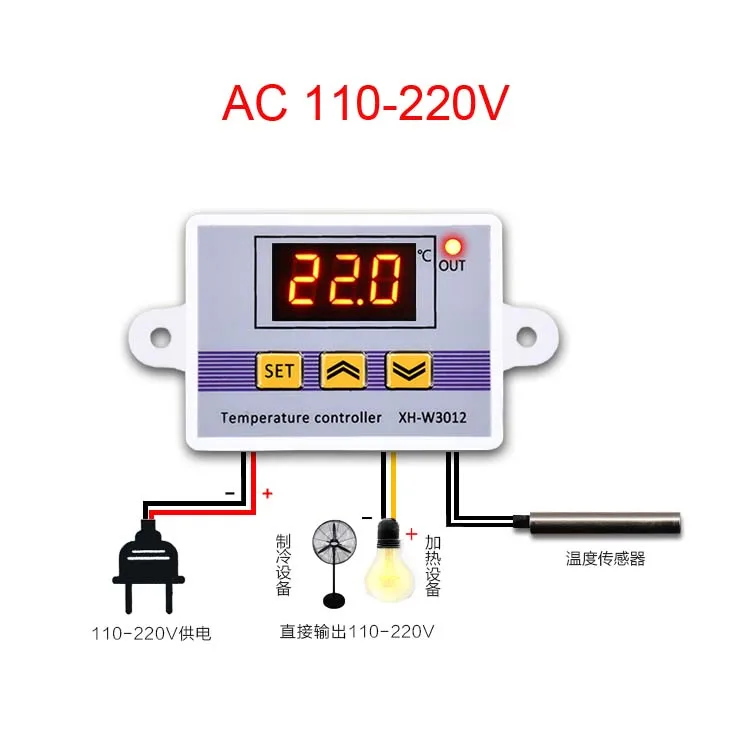

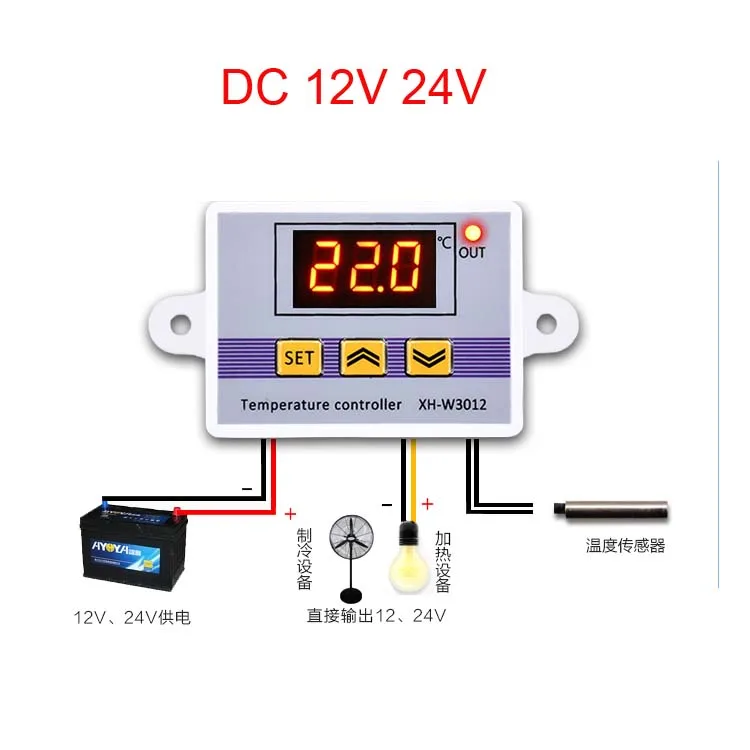

DC 12V 24V AC 110-220V 10A
We have -50℃~110℃/-30 to 220 degree version
Specification:
1.Temperature measurement, display; refrigeration, heating control.
2.Temperature setting upper and lower limits
3.Simple operation, suitable for seafood machines.
4.Easy to install
Feature:
Output Power: 12V-120W / 24V-240W / 220V-1500W Optional
Output Type: Relay directly output
Temperature testing range: -50℃~110℃/-30 to 220
Temperature Control range: -50℃~110℃/-30 to 220
Testing Temperature Precision: ±0.1℃
Control Temperature Precision: ±0.1℃
Output Current: ≤ 10A

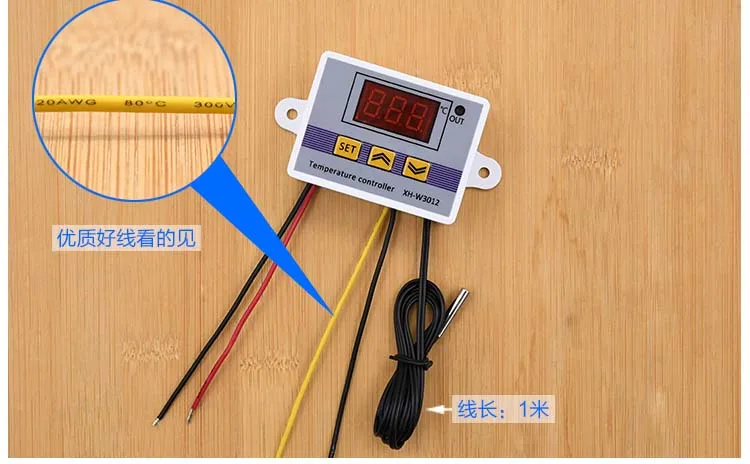

Testing Probe: 1 Meter waterproof probe
Input Power: DC12V /DC24V / AC110~220V Optional
Net weight: 50g

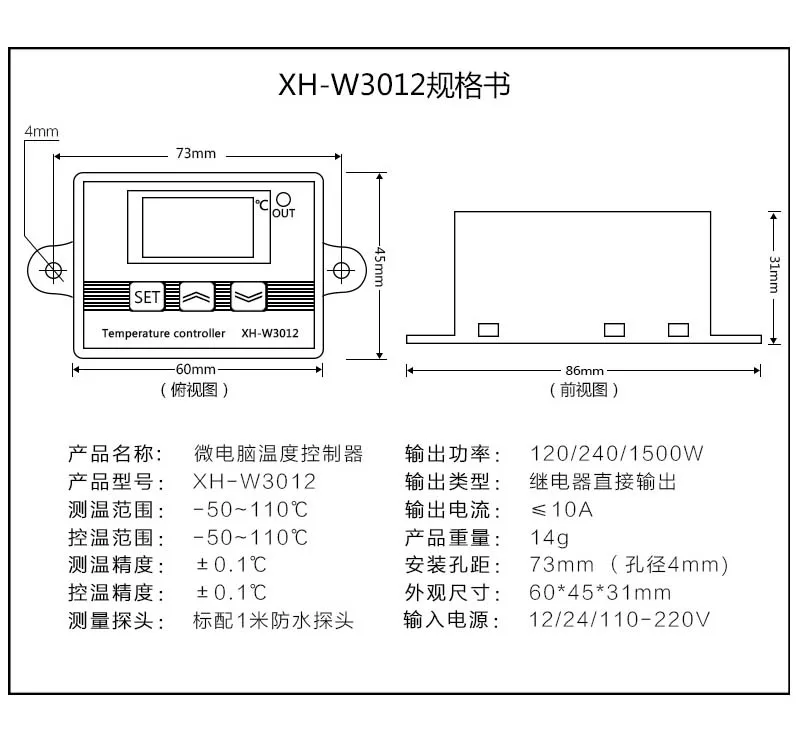

Installation hole distance: 73mm ( 4mm hole diameter)
Dimension: 60x45x31mm
cable:20AWG

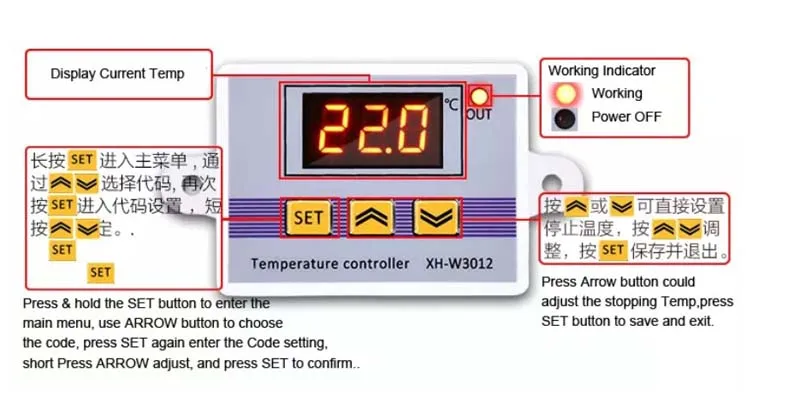

How to use:

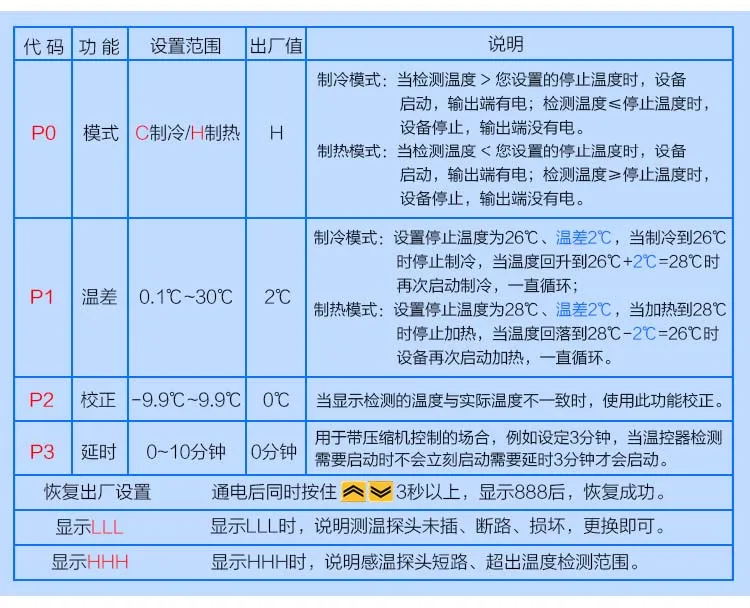

1. Press&hold the SET button to enter the main menu,ues ARROW button to choose the code setting,short Press ARROW adjust and press SET to confirm.
2. Press ARROW button adjust the stopping Temp,press the SET button to save and exit.
Package
1* W3012 digital intelligent temperature controller
1* 1m Thermostat Control Switch Probe
Our Services
Why choose us:
1.Fast shipment,most products are instock, we are in shenzhen,you can recieve package fast than other city.
2.We can give better price for most product.
3.We have many diffirent products,so you buy it together, don’t need choose more supplier.
4.Our employee is very professional,so we can give best service and fast reply.
FAQ
our mail products:voltmeter/ammeter/battery capacity tester/temprature controller meter
DC DC converter/relay module/amplifier/motor controller
Payment:we can accept paypal west union TT RMB payment
Shiping:we will send out package asap,it normal 3-7days,we can send by DHL Fedex UPS DPEX
EMS....
