Single Phase HEPA Industrial Vacuum Cleaner for Concrete Floor Grinding Metal Processing
- Category: >>>
- Supplier: Dongguan Villo Technology Inc.
Share on (60835899633):
Product Overview
Description

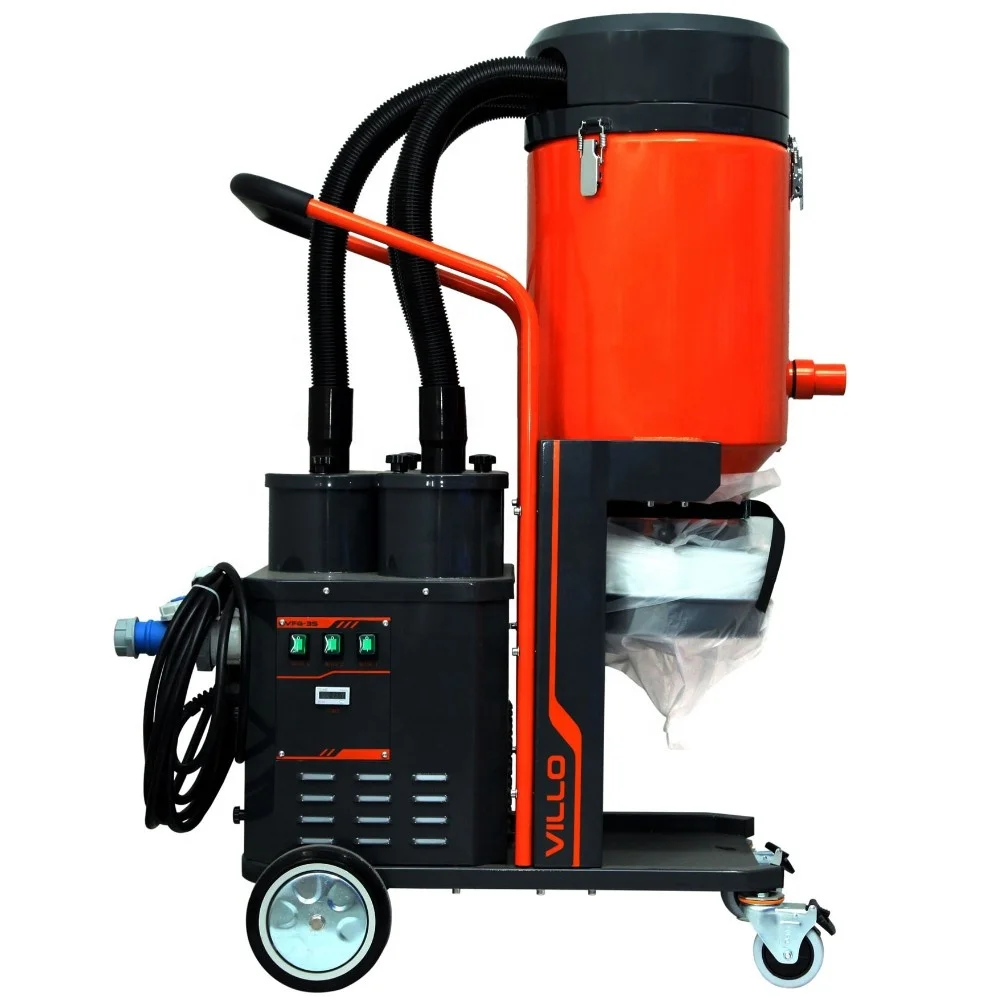

VFG-S Series Two-stage Filtration Industrial Vacuum Cleaner
Product description
VFG-S Series uses carbon brush motor with high pressure and adjustable air flow, Suitable for single phase high precision applications.
Applications
* Suitable for single phase working conditions. E-series are suitable for three phase working conditions.
* Suitable for hazardous dust (e.g. chemical dust (non-flammable and explosive), Silicon powder (concrete dust), carbon powder, fine metal dust), can effectively reduce the risk of secondary dust pollution.
* Suitable for precious metal dust collection, can effectively improve the efficiency of dust recycling.
VFG-S Series uses carbon brush motor with high pressure and adjustable air flow, Suitable for single phase high precision applications.
Applications
* Suitable for single phase working conditions. E-series are suitable for three phase working conditions.
* Suitable for hazardous dust (e.g. chemical dust (non-flammable and explosive), Silicon powder (concrete dust), carbon powder, fine metal dust), can effectively reduce the risk of secondary dust pollution.
* Suitable for precious metal dust collection, can effectively improve the efficiency of dust recycling.
Features
* Compact and mobile structure.
* Two-stage filtration for high filtration accuracy.* Two stage filtration with tapered filter cartridge and HEPA filter cartridge, which can filter 99.95% dust at 0.3 microns.
* Equipped with filter cleaning device for easy filter cleaning.
* Powerful carbon brush motors with independent controller
* Pressure gauge to detect filter clogging.
* Cassettes for easier dust cleaning. Avoid secondary pollution. (Length:22m)
Right elevation
Left elevation
Front elevation
Technology Parameters
Model | VFG-1S | VFG-2S | VFG-3S | VFG-40E | VFG-75E | VFG-86E | ||||
Voltage(V / Hz) | 230 / 50 | 380 / 50 | ||||||||
Power (kW) / (HP) | 1.2 / 1.7 | 2.4 / 3.4 | 3.6 / 5.1 | 4.0 / 5.5 | 5.5 / 7.5 | 7.5 / 10 | ||||
Max vacuum (mmH₂O) / (kPa) | 2400 / 23.5 | 2400 / 23.5 | 2400 / 23.5 | 2600 / 25.5 | 3000 / 29.5 | 2700 / 26.5 | ||||
Noise dB (A) | 80±2 | 85±2 | 88±2 | 78±2 | 83±2 | 83±2 | ||||
Dia. air inlet (mm) / (in) | Ø 50 / 2 | Ø 50 / 2 | Ø 50 / 2 | Ø 50 / 2 | Ø 75 / 3 | Ø 75 / 3 | ||||
Filter area (m² )/ (sq.ft) | 1.5 / 16.2 | 2.4 / 25.8 | 2.8 / 30.1 | 1.9 / 20.5 | 2.1 / 22.6 | 2.1 / 22.6 | ||||
Filter efficiency | >99.9% | >99.9% | ||||||||
Dimension [L*W*H] (mm) / (in) | 850*480*1200 / 31.5*18.0*47 | 860*580*1220 / 33.8*23.0*48 | 940*580*1370 / 37.0*23.0*55 | 980*650*1550 / 38.6*25.6*61 | 1270*730*1620 / 50*28.7*63.8 | 1270*730*1620 / 50*28.7*63.8 | ||||
Weight (kg) / (lb) | 62 / 121 | 80 / 176 | 90 / 198 | 139 / 306 | 170 / 375 | 180 / 397 | ||||
Product Configuration
Tapered filter cartridge
HEPA filter cartridge
Manual Air Pulse Filter Cleaning Device

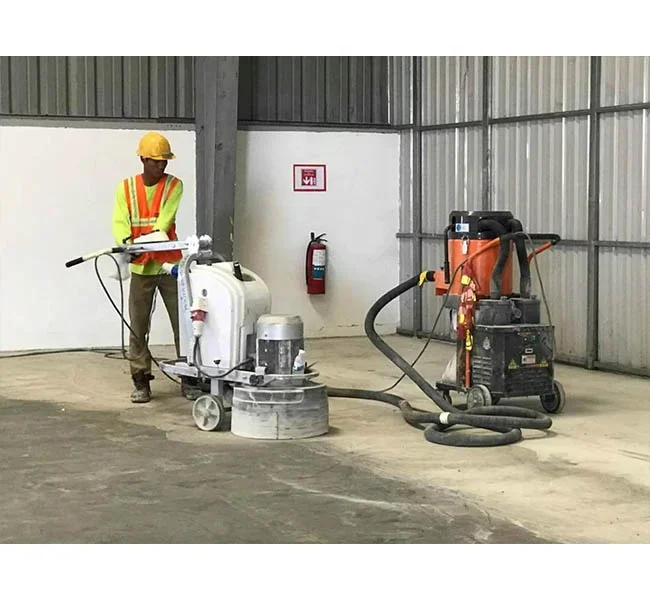

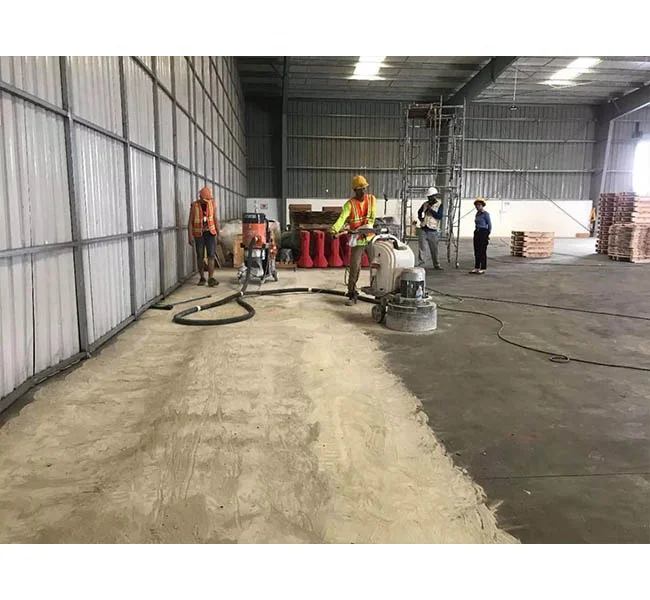

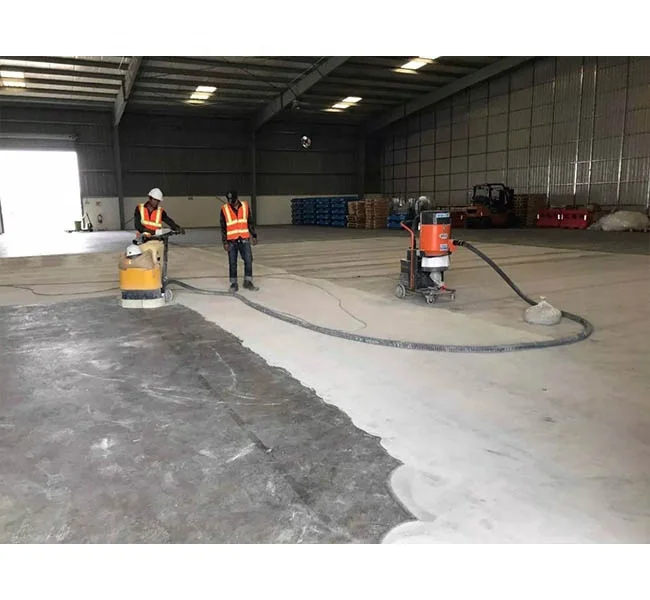

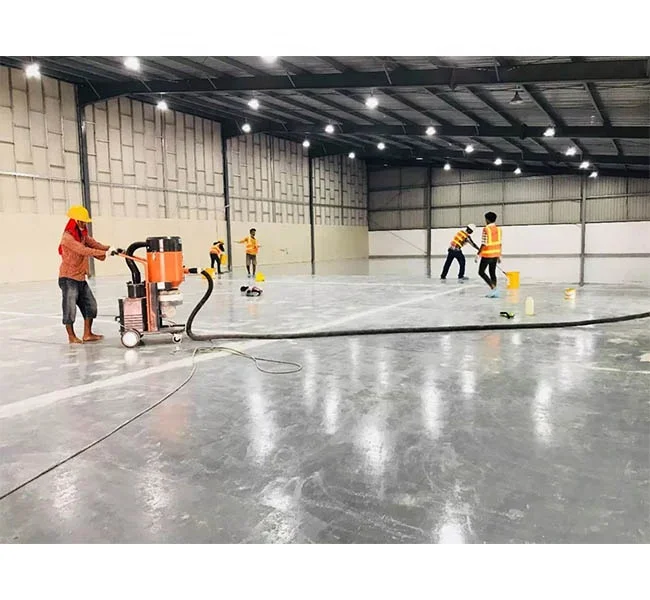

Successful Project
Related Products
VZF Series Air Pulse Jet Heavy Duty Industrial Vacuum Cleaner
VZS Series Heavy Duty Industrial Vacuum Cleaner
VFG-E Series Three Phase Cassettes Vacuum Cleaner
