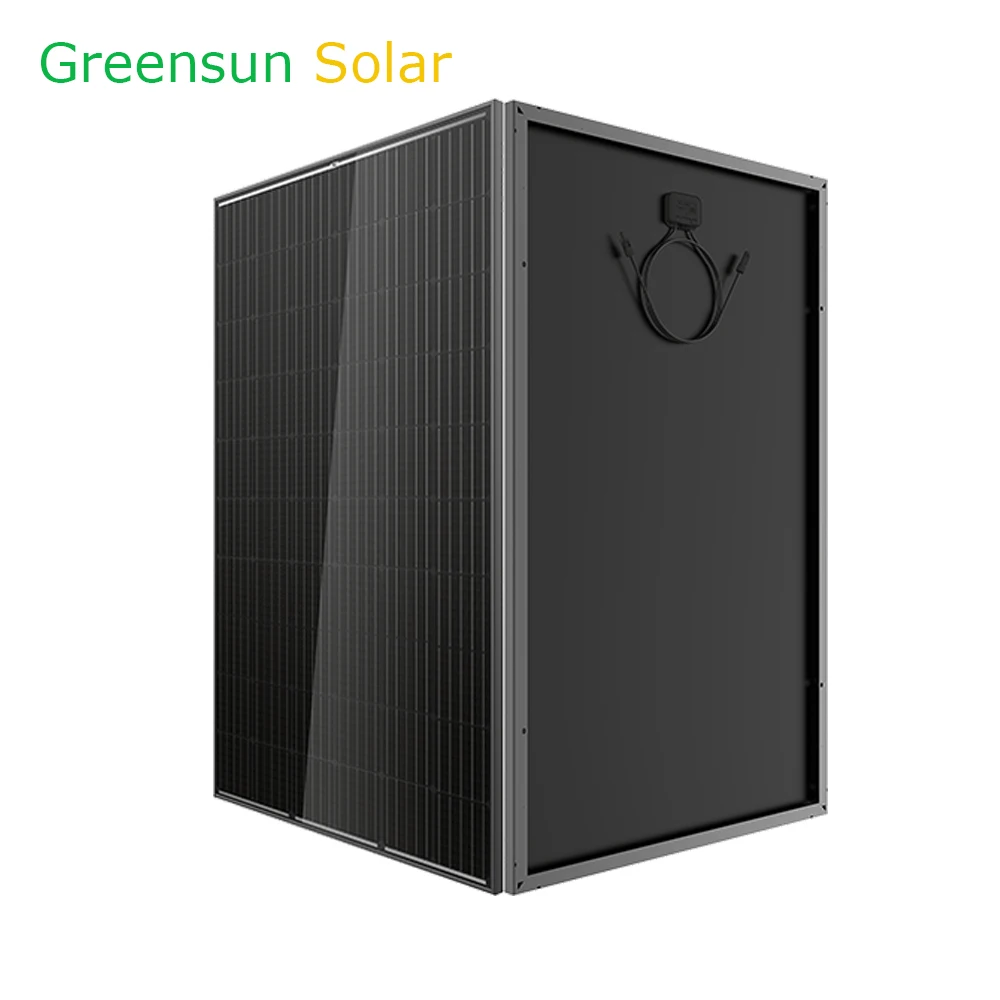

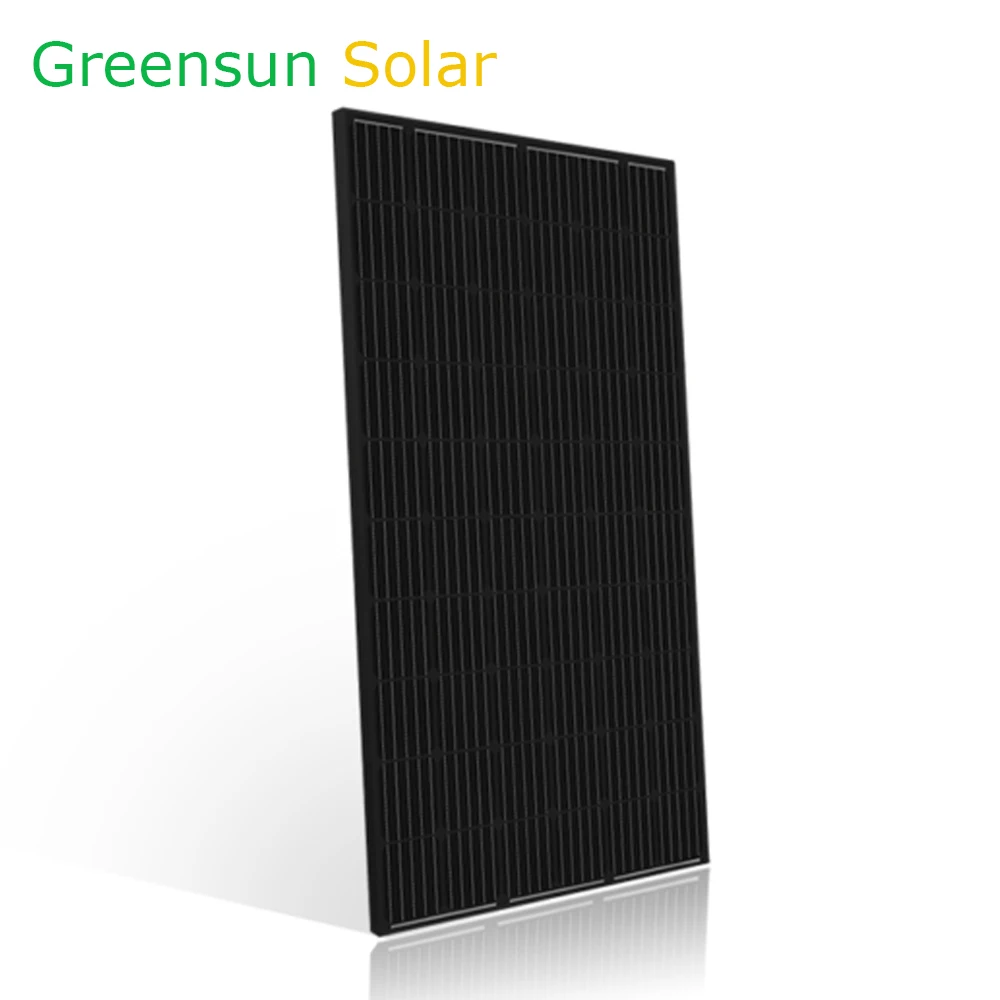

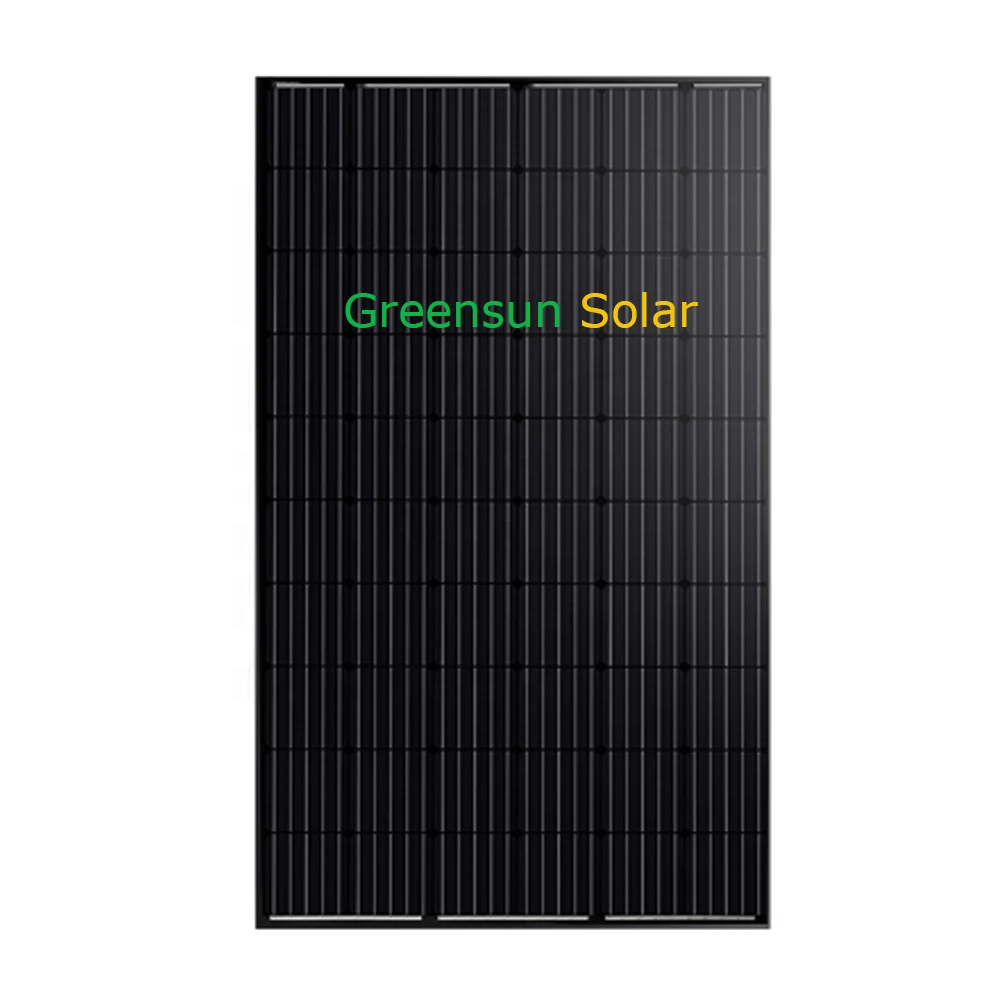

Greensun Solar All Black Solar Panels 280W 300W 320W 340W Price Sun Energy Power Solar Panel 340W for Sale
- Category: >>>
- Supplier: Hefei Greensun Solar Energy Tech Co. Limited
Share on (60835914984):
Product Overview
Description
Product Description
Model | GSM320-60/PR | GSM325-60/PR | GSM330-60/PR | GSM340-60/PR | |||
Rated Maximum Power(Pmax) [W] | 320 | 325 | 295 | 300 | |||
Open Circuit Voltage(Voc) [V] | 40.3 | 40.5 | 40.7 | 41.1 | |||
Maximum Power Voltage(Vmp) [V] | 33.21 | 33.41 | 33.61 | 34.01 | |||
Short Circuit Current(Isc) [A] | 10.12 | 10.20 | 10.28 | 10.44 | |||
Maximum Power Current(Imp) [A] | 9.62 | 9.73 | 9.82 | 10.00 | |||
Module Efficiency [%] | 17.4 | 20.0 | 220.3 | 18.3 | |||
Power Tolerance | 0~+5W | ||||||
Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | ||||||
Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | ||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | ||||||
STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | ||||||
Grade A Materials
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Trina Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box

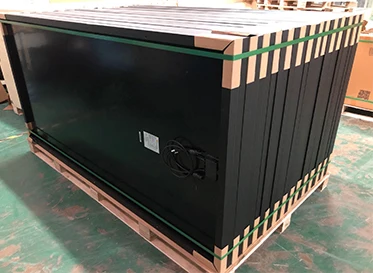

Outstanding sealabilityPacking & Transport
Container(60Cells solar panel) | 20'GP | 40'GP | 40'HC |
PCS/Pallet | 30 | 30 | 30 |
PCS/Container | 360 | 800 | 910 |
Container(72Cells solar panel) | 20'GP | 40'GP | 40'HC |
PCS/Pallet | 27 | 27 | 27 |
PCS/Container | 300 | 690 | 780 |
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation, Air transportation, Land transportation and Express.
Payment&Warranty
Payment Terms | EXW | 30% T/T in advance, paid the balance before shipment | |||||
FOB | |||||||
CNF | |||||||
CIF | |||||||
LC | L/C amount above 300,000 usd, we can accept L/C at sight | ||||||
West Union | Accpetable | ||||||
Delivery Time | 7~15days after receiving payment for one container | ||||||
Project

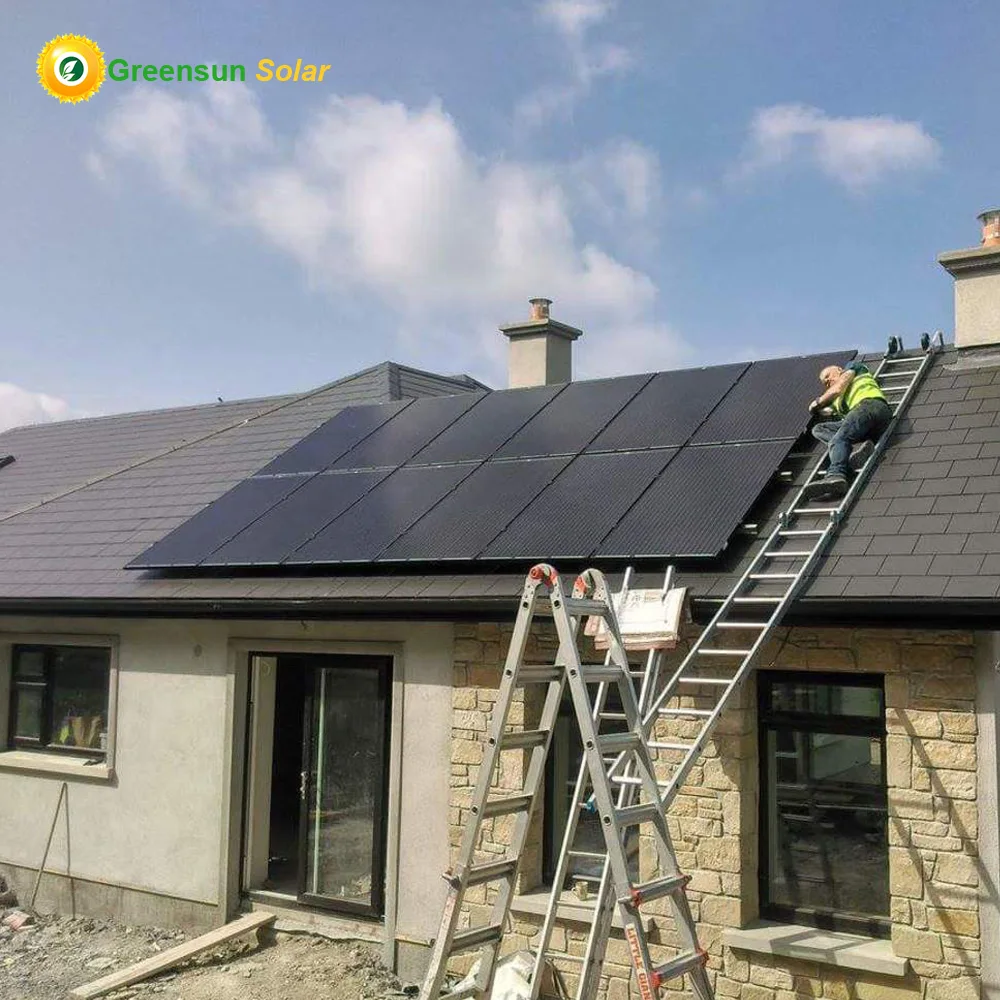

15KW Residential Solar Power System in Canada
600KW Solar Power Plant in USA
2MW Solar Power Plant in Germany

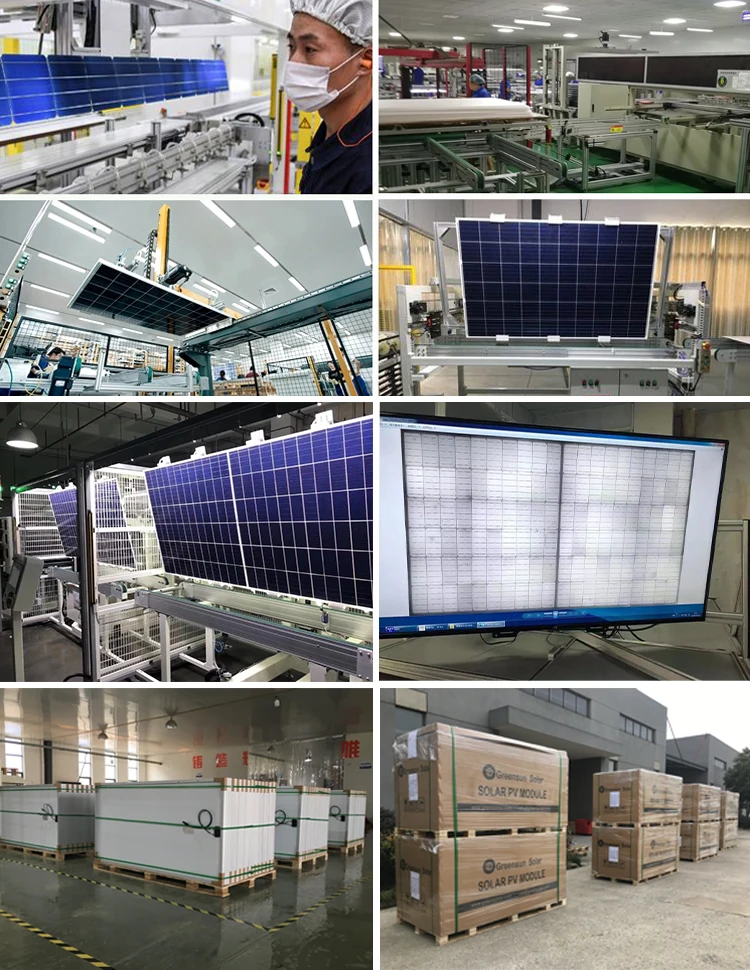

Factory
