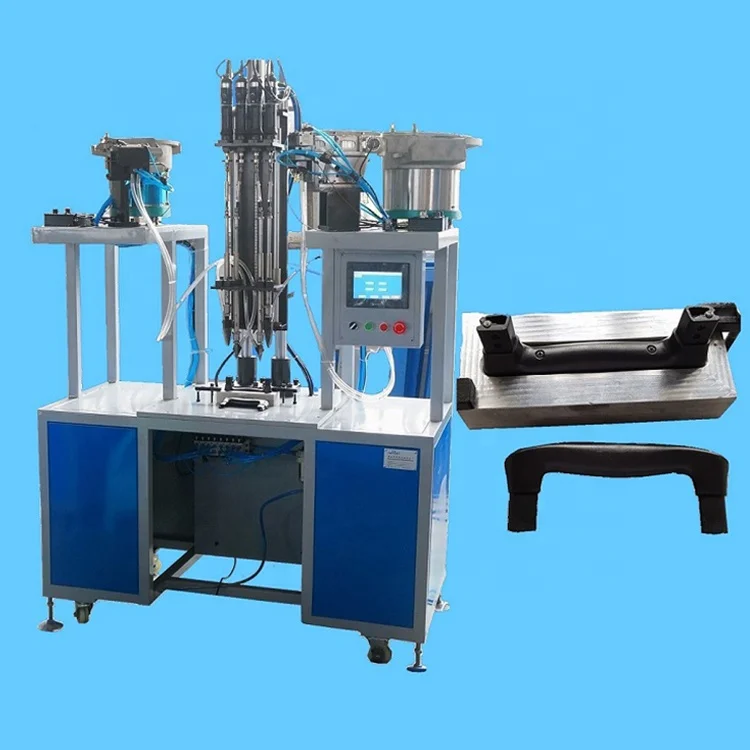

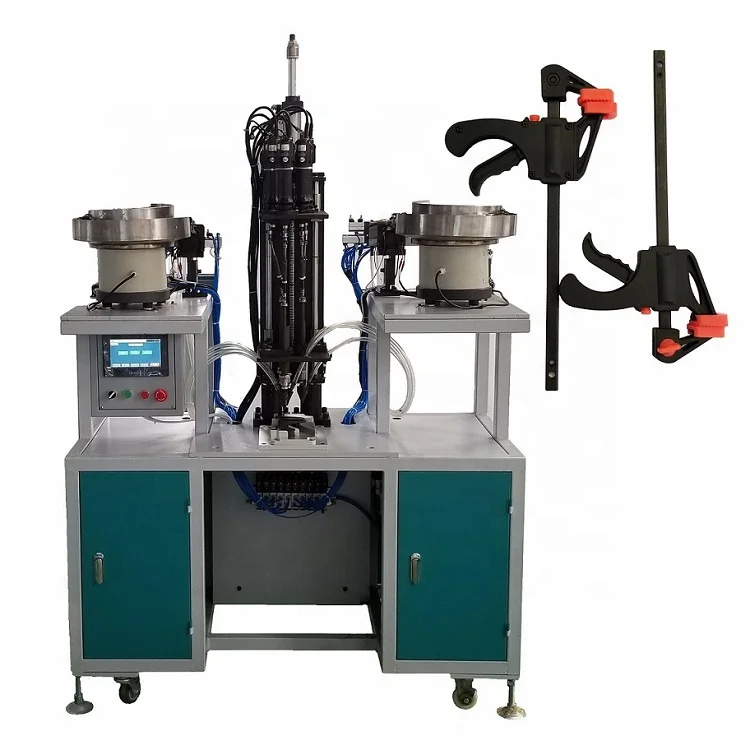

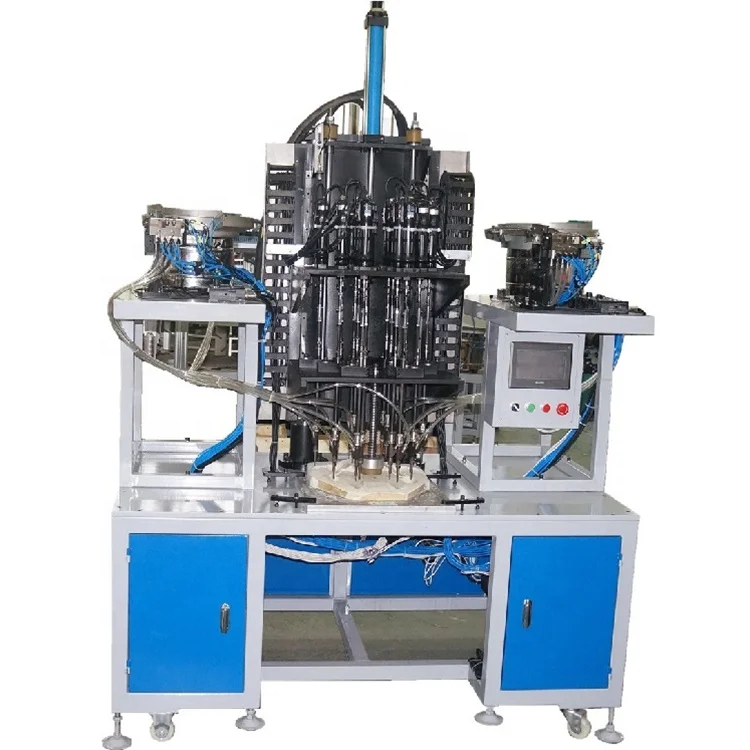

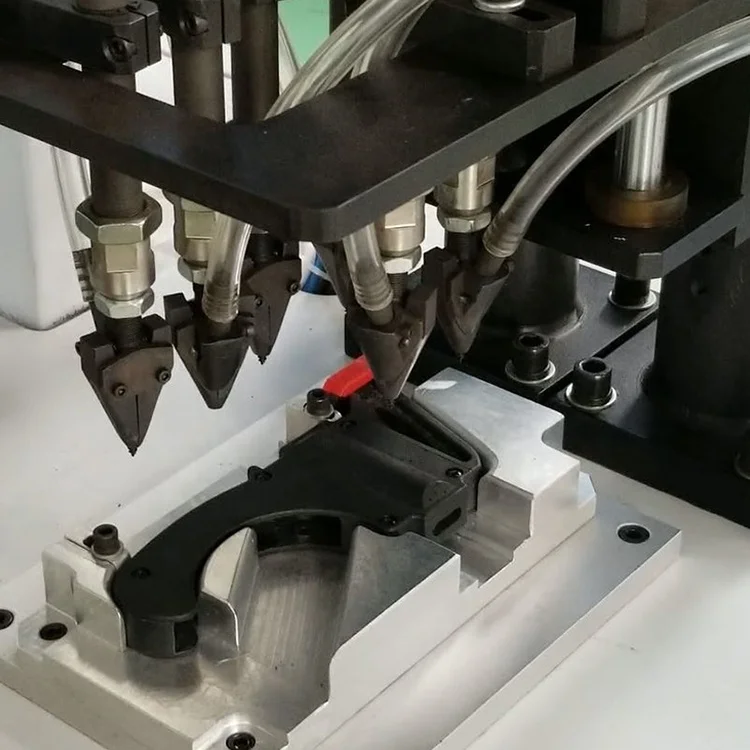

Good price Multi head screwdriver machine for fixing the screw

Product Overview

Description

Multi head screw driving machine

I. technical parameters

Efficiency:  2-4 second/piece

Screwing quantity: 6 pcs per time(customized)

Power supply: AC220V single-phase

Air Source: 0.6Mpa

Machine Dimension: 1600*1000*1600mm (L* W* H)

Weight: 340kgs

Control system: Siemens PLC+ Touchscreen

II. Description:

1. This machine is designed for fixing the screw of toys, the toys need to be placed by worker, each time will fixing 6 pcs screw.  one worker to operate one machine.

2. screw dropping with fiber check, guaranteed the number of screws.

3. With automatic clutch screw driver, when the screws arrive to the torque will automatically stop, can determine the locking screw sliding, floating and other defective products, and displayed on the screen.

4. screw universal in the case of tooth size unchanged, different length is ok
