48v to 5V/9V/12V 30W gigabit network PoE splitter

Product Description:

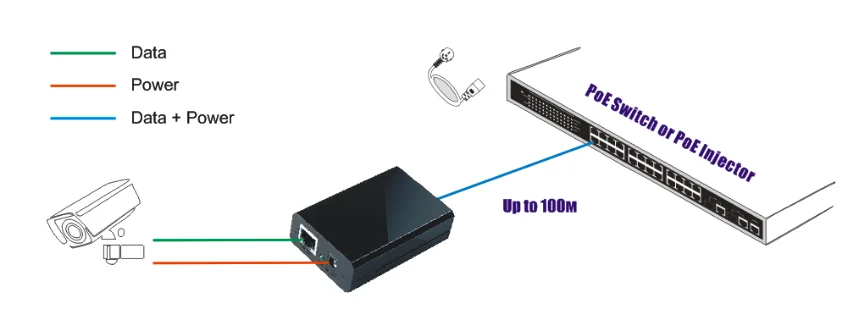

The PoE splitter splits the 48VDC over the RJ45 Ethernet cable into 5V/9V/12VDC power output. Support PoE applications in Gigabit Ethernet environments.
The modules compliant with IEEE 802.3at power classification and support PSE Alternative A and Alternative B connections. Maximum power output can reach 24W. Tiny size, 80mm (L) x 54mm (W) X 24mm (H), wide input voltage range, 36Vdc to 57Vdc and less external components needed one output decoupling capacitor.

l Complies with IEEE802.3af, IEEE802.3at.
l Support PoE applications in Gigabit Ethernet environments.
l Auto-Sensing Algorithm enables taking power from IEEE802.3at PSE.
l Splits the 48VDC power over RJ45 Ethernet cable into different DC output.
l Support wide input voltage range 36Vdc to 57Vdc.
l Maximum power output up to 24W.
l Adjustable output 5VDC/2A, or 9VDC/2A or 12VDC/2A.
l Thermal cut off.
l Short circuit protection.
l High efficiency DC/DC converter.
l LED indicators for power input indication.
l Plug-and-Play.
