Mobile Scissor Lift Underground Car Lift/ portable Hydraulic Car Lift

Product Overview

Description

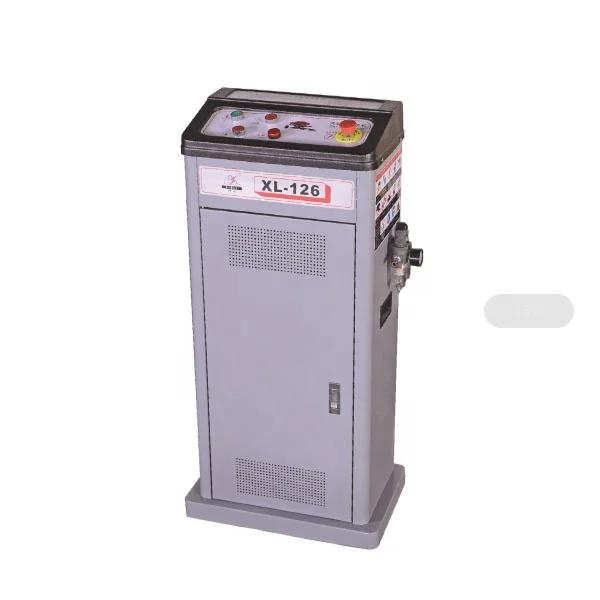

Flat scissor lift XL-126



Main parameters:

Items	Parameter	Items	Parameter
Rated load	4000kg	Motor Power	2.2KW
Rise Time	About 50s	Fall time	About 60s
Min height	390mm	Max lifting height	1700mm
Platform length	4300mm	Platform width	600mm

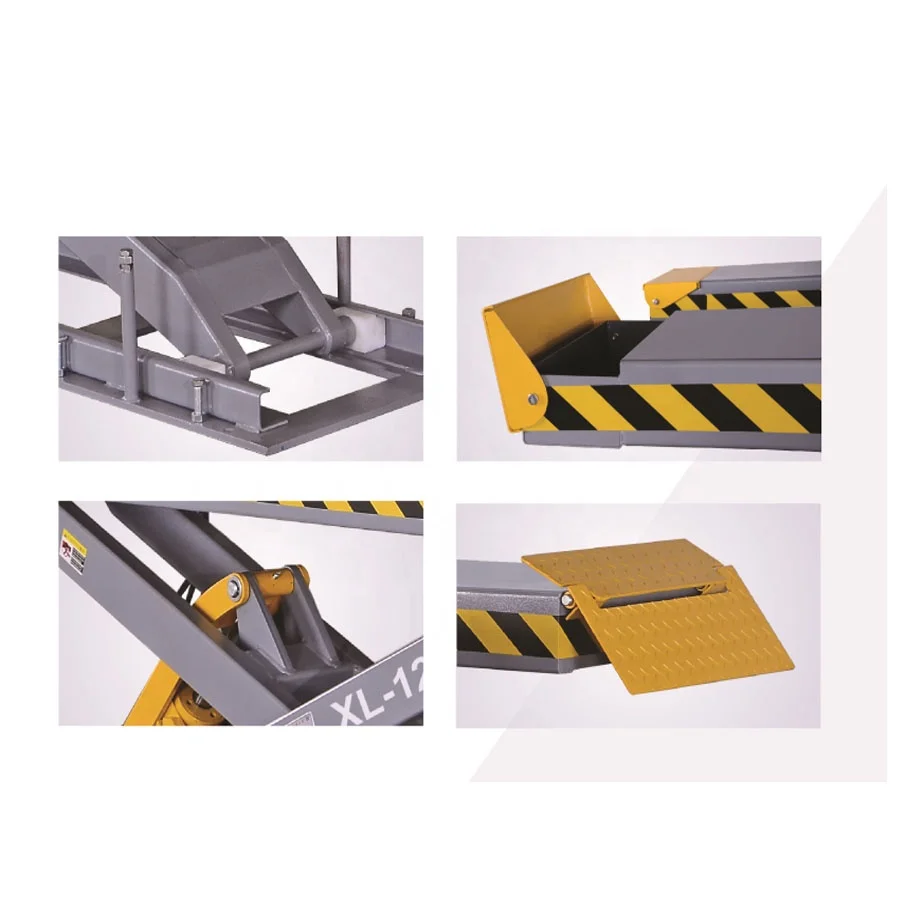

Features:

* Adapted to various car detection chassis, change engine oil.

* Imported hydraulic components, good synchronization performance.

* Each activity has a high quality self-slip oil bearing.

* Raw materials are used by regular brand manufacturers to ensure quality.

* Imported seals are used for the sealing of pistons and cylinder rods.

* Hydraulic and pneumatic unlocking mechanical double insurance to ensure safety.

* Electrical control uses 24VDC safety voltage, with falling alarm device, optional travel switch, safer operation.

* Adopting board control, the board is equipped with a surge suppression circuit, the terminal is marked with the load name and the work indicator is set.

* Self-lubricating with nylon slider, no noise, super wear-resistant.

* The cylinder is equipped with an explosion-proof valve to ensure safety.











Company informattion:

HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment

and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus/truck spray paint booth, preparation station, mixing

room, brake lathe, car bench and lifts. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.Our

company is accredited to the internationally recognized quality standards of  CE, ISO9001:2008.

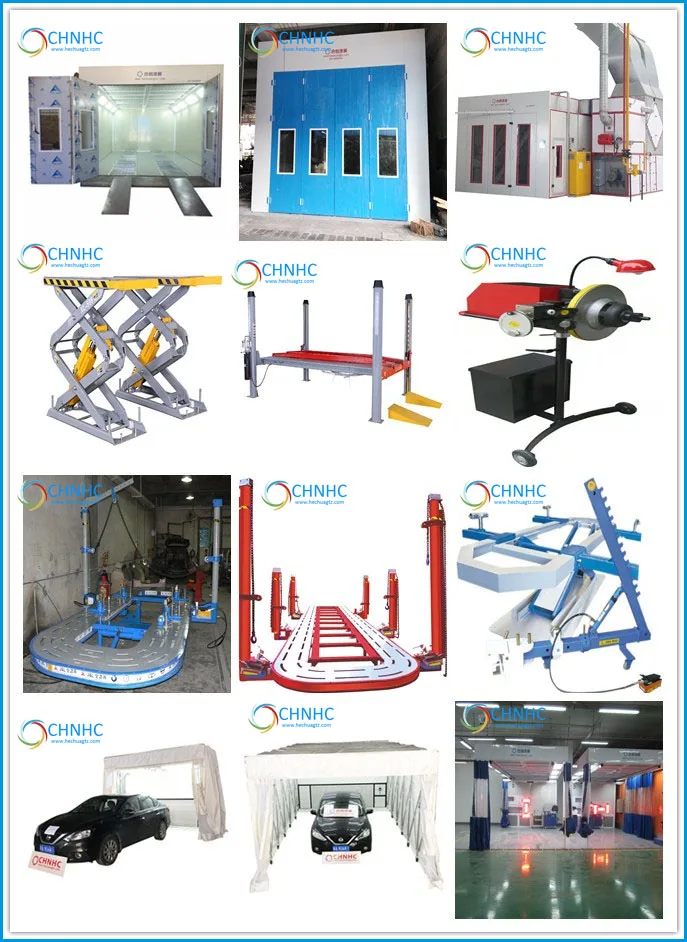

Ralated products:







Please send a inquiry to Zoe,or add wechat/whatsapp:+86 189 0220 1147
