Steering Angle Sensor TC24B10k

Product Overview

Description

Steering Angle Sensor  TC24B10k

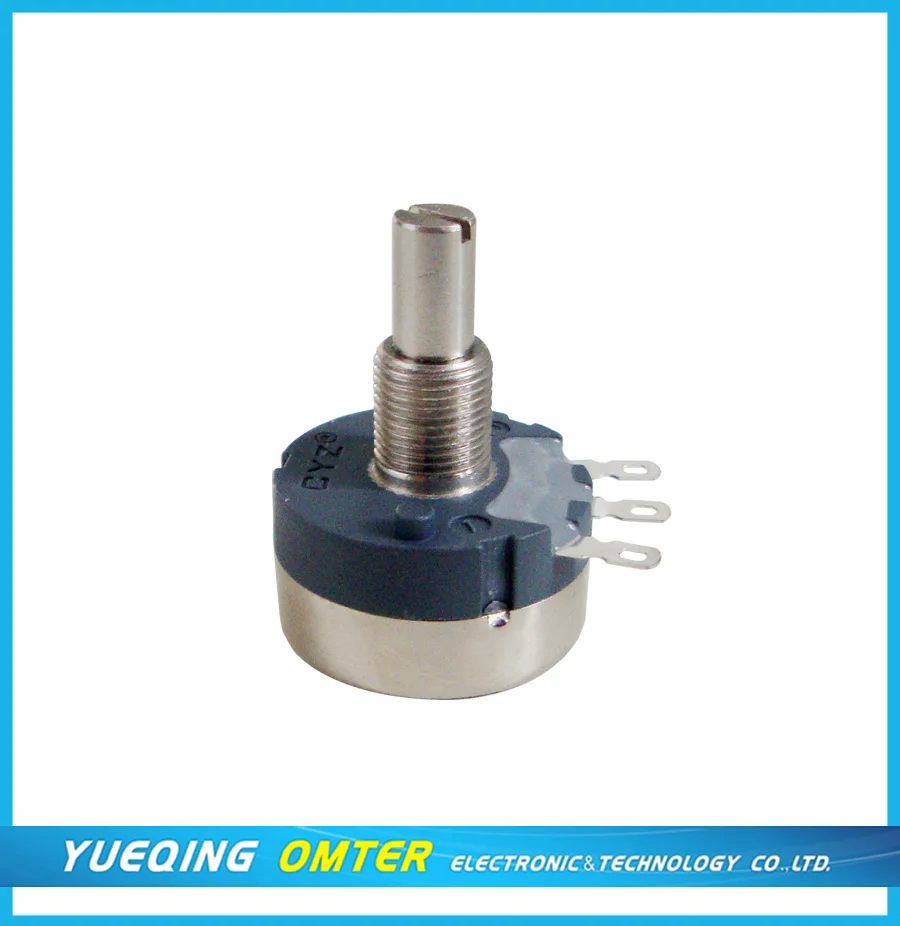

Detailed picture:





Mechanical parameter:

Total resistance	1KΩ-2MΩ
Resistance tolerance	±10%
Resistance pattern	B
Max operation voltage	AC:DC 200V; B: DC 315V
Power Rate	AC:0.25W  B: 0.5W
Power Rate	AC:0.25W  B: 0.5W
Weight	18g
Withstanding voltage	1 minute at AC 500V
Insulation resistance	100MΩ
Residual Resistance Value	Less than 3Ω
Welding heat resistance	350 oc, 3 second
Voltage resistance	AC1000V 1min
Total Rotation Angle	300±5(degree)
Rotation Torque	5~30 mN.m

Drawing:

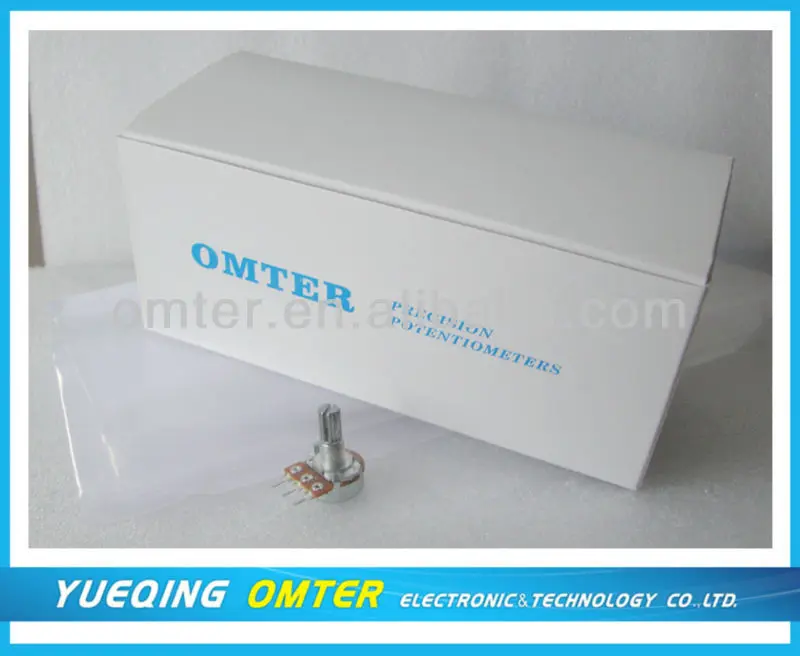

Package:



 Produce:

 Express delivery :
