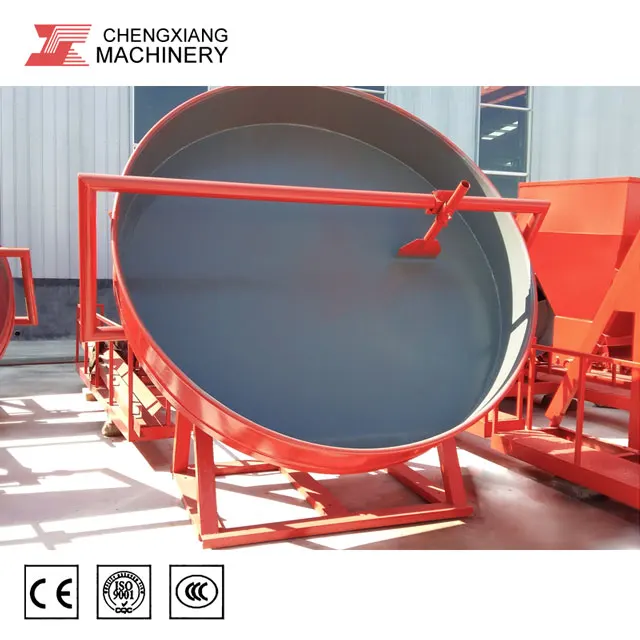

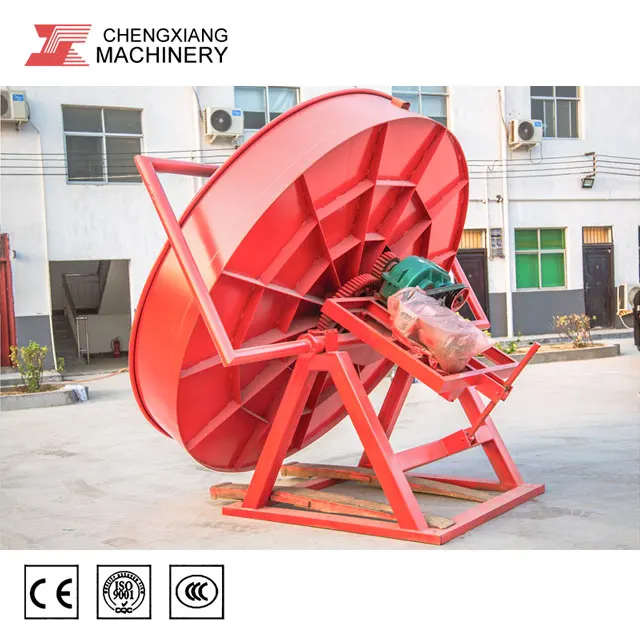

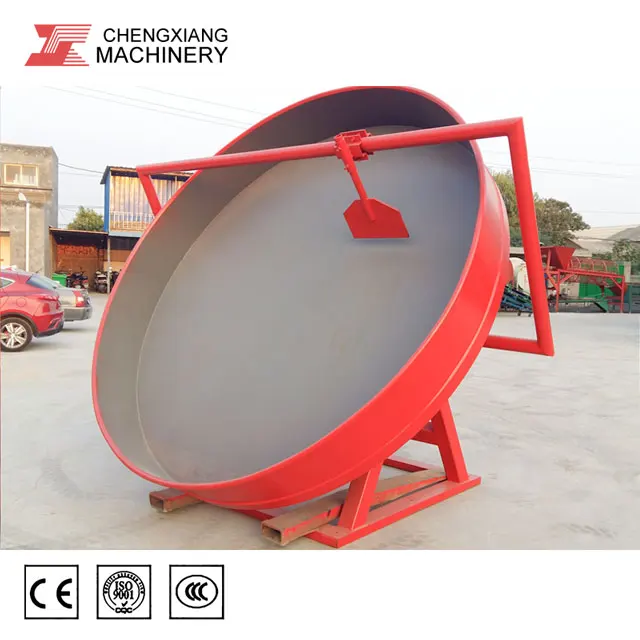

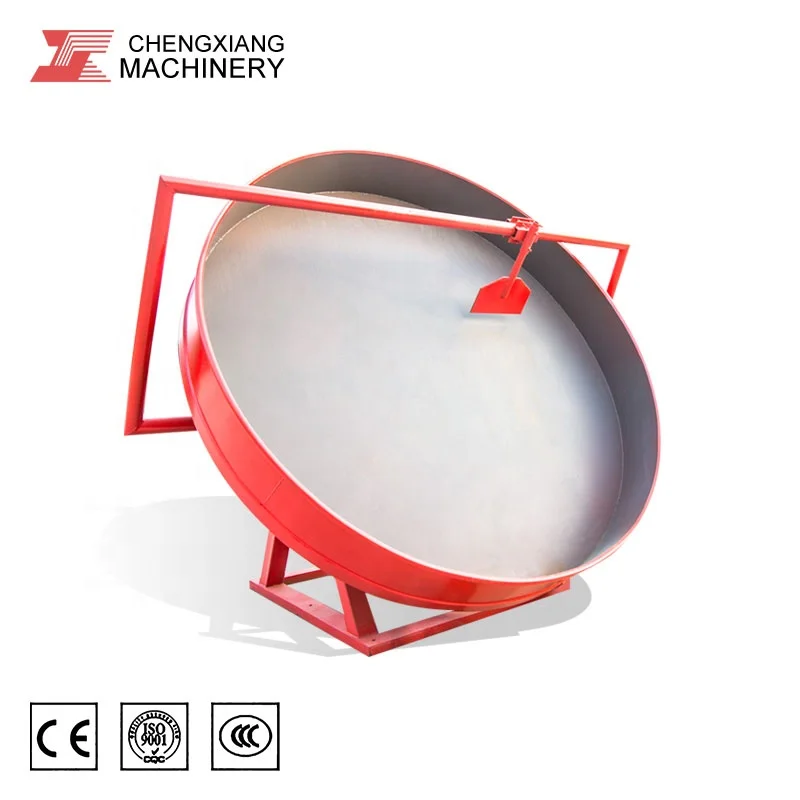

High quality disc type fertilizer granulator for making organic fertilizer
- Category: >>>
- Supplier: Zhengzhou Chengxiang Heavy Industry Machinery Co. Ltd.
Share on (60835980745):
Product Overview
Description
Working principle:Water spray device is installed above the disc, makes the water spray out like the mist. The materials flow into the rotating disc through conveyor belt or other equipment, and are carried to up while the disc rotates, then fall to the lowest place of the disc, meanwhile the water mist was added in, makes the raw materials granulated in the process of rotating along the disc and falls down, as the time goes, the granule gradually become bigger.
The disc granulator is designed with angle adjustment mechanism, it can adjust the tilt angle of the disc according to the size of the granule required, normally the tilt angle of disc can be adjusted from 35° to 50°. last, the granules which is qualified float above the tilt disk, as the disc rotating, throw the granules out along the disc tangent, flows into the feed bin of the belt conveyor and enter into next procedure. machine for make organic fertilizer
1 Chicken manure, cow dung, sheep manure, etc. various faeces.
2 Straw, distiller's grains, rice straw, humic acid and other plant residues.
3 Urea, ammonium sulphate, etc. compound fertilizer.
Product Parameter
1 The machine has a uniform granulation, the rate of finished products can reach more than 95%.
2 Because of the particularity of the thickness of material fiber, the rotary drum granulator has low ball forming rate, and the spiral teeth granulator can not produce materials with a nitrogen content of more than 8% (easy to stick to the wall).
3 This granulator overcomes the shortcomings of both. It can not only produce organic fertilizer, but also produce organic or inorganic mixed fertilizer., is indeed a low energy consumption and high quality granulating equipment.
4 The disc is welded with thickened carbon steel plate, its supporting equipment includes tug parts, tugs, transmission parts, wind heads and wind tails etc.
5 The machine is firm and durable, never shape changed. Together with the solid base design, it makes it run more smoothly.
6 The machine has advanced configuration, reasonable design, convenient operation, excellent performance, easy control, energy saving and nature-friendly.
Model Number | Diameter Of Disk (mm) | Height Of Edge(mm) | Speed ( min ) | Tilt Angle ( ° ) | Motor Power (Kw) | Capacity ( t/h ) |
Φ2.2 | 2200 | 360 | 15 | 35°-50° | 5.5 | 0.8-2.2 |
Φ2.5 | 2500 | 380 | 13.5 | 35°-50° | 5.5 | 1-2.5 |
Φ2.8 | 2800 | 400 | 13 | 35°-50° | 7.5 | 1-3.0 |
Φ3.0 | 3000 | 420 | 12.5 | 35°-50° | 11 | 2-5 |
Φ3.2 | 3200 | 450 | 12.5 | 35°-50° | 15 | 3-6 |
Technical Process
Working flow:Raw materials fermentation( compost turning machine). input ( If blocked, use chain crusher to deal with ) ---- granulation -- drying--cooling--screening (select the right sieving hole diameter)----finished granules---- the next process (optional equipment: 1, screening machine: the size of the granules will be more accurate.2,drying machine (to dry the finished fertilizer)3, cooling machine(fast cooling of finished fertilizers) 4, coating machine: make the appearance of the granules more good. 5, weighing and package: facilitate the sale and transportation of products.
Company Profile
Cheng Xiang Heavy Industry founded in 1995, located in xingyang industrial park, Zhengshang new district, zhengzhou city. The company, has standardized R&D department, and has accumulated many years of production experience, is oriented to realize the automation of fertilizer equipment, implements of design and manufacturing. The development aim of our company is to achieve the goal of intellegence, automation, mechanization of fertilizer machinery industry in China.
Our company's products are distributed in domestic provinces and regions in China, and have been exported to Russia, Vietnam, Thailand, Malaysia, Philippines, Myanmar and other countries etc. , enjoyed a certain popularity in the world.
