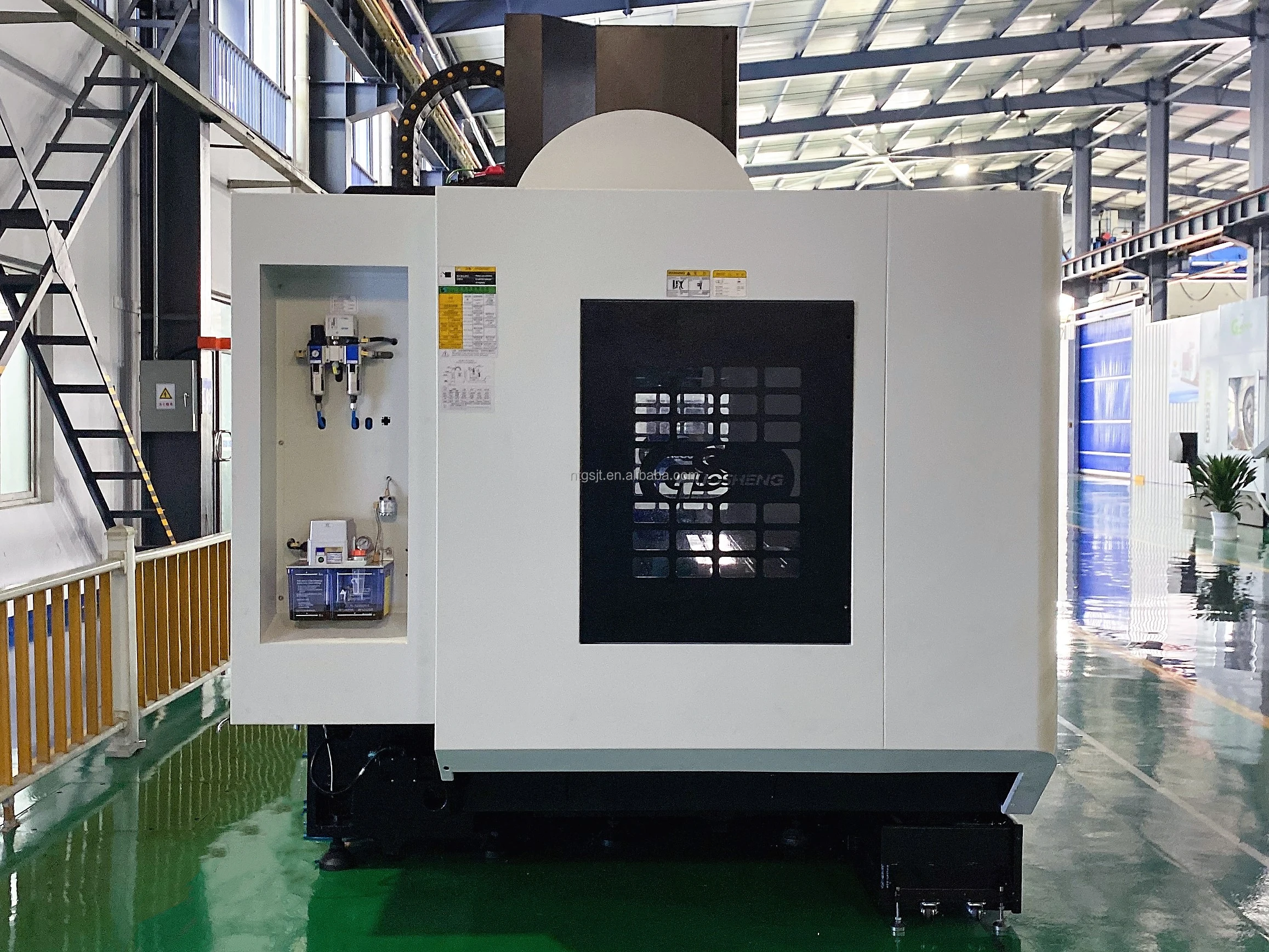

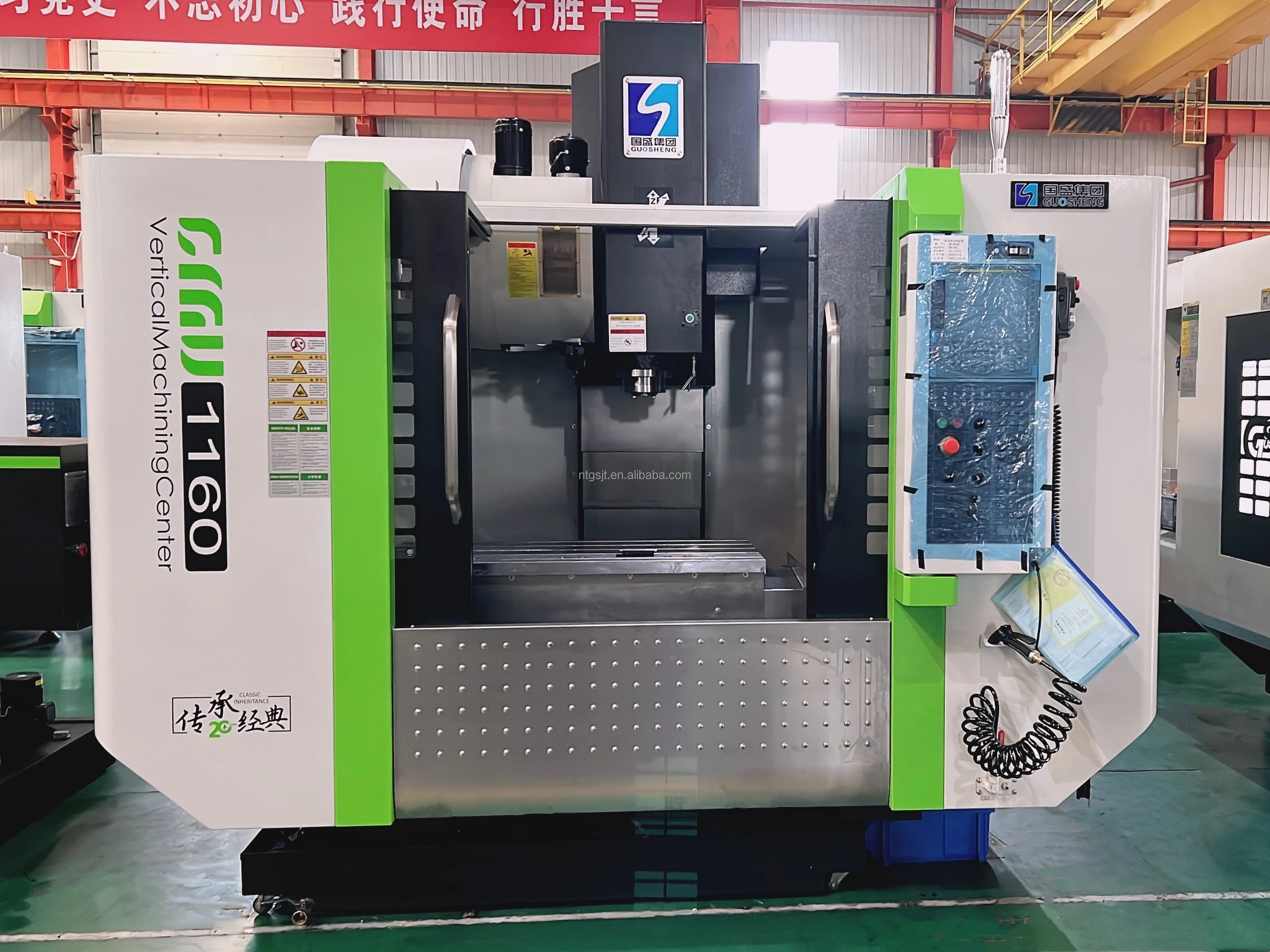

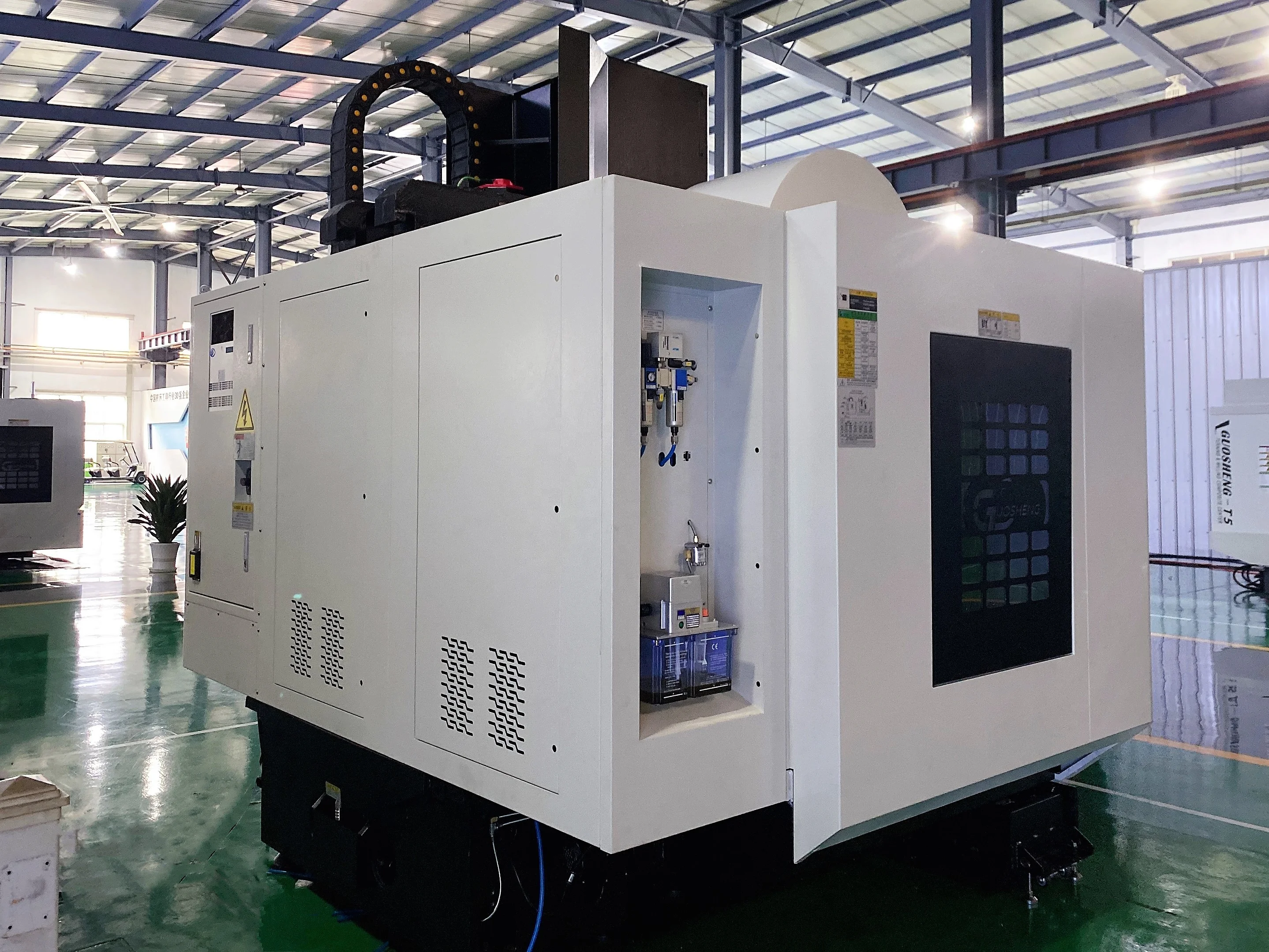

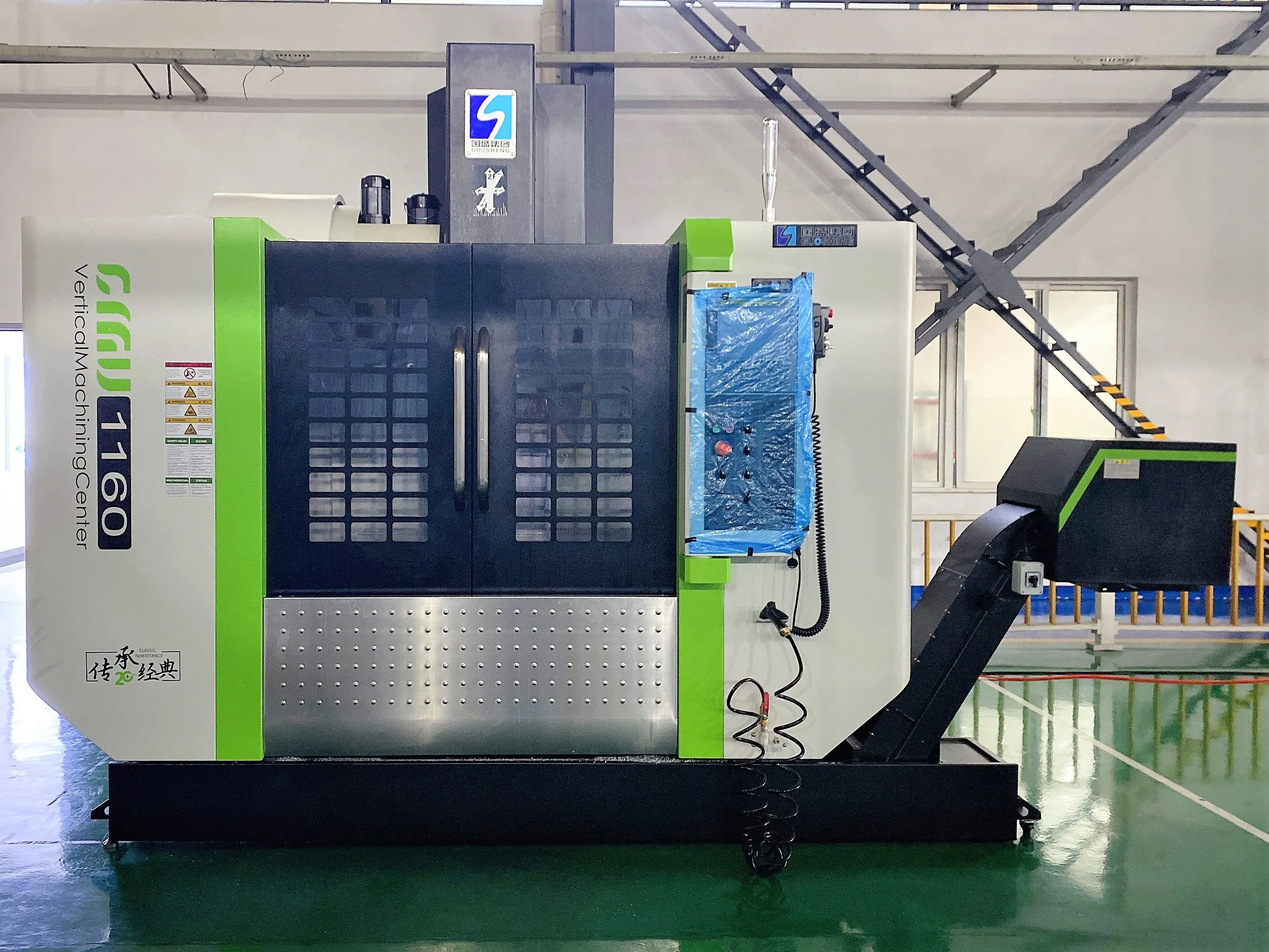

CMV1160 количество продукции металла cnc вертикальный фрезерный станок обрабатывающий центр
- Category: CNC Milling Machines >>>
- Supplier: Nantong Guosheng Intelligence Technology Group Co. Ltd.
Share on (60835983902):
Product Overview
Description
Product Description
Details Images
1. The span of Y-axis guide is widened to improve the rigidity of body support.
2. Increase the chip discharge slope, improve the chip discharge ability.
3. The chip discharge mouth is enlarged to improve the chip discharge ability.
4. Three-layer leak-proof design, at the same time with the guide to form a reverse clasp maze, not only prevent flying chip, but also prevent water leakage.
5. Lead rod bearing dustproof structure to improve service life.
6. Optimize the protection of knife storehouse to improve the maintainability.
Specification
Model | Unit | CMV1160 | ||
Travel | ||||
X-axis | mm | 1100 | ||
Y-axis | mm | 600 | ||
Z-axis | mm | 600 | ||
Spindle | ||||
Spindle speed | rpm | 8000 | ||
Spindle nose to worktable center | mm | 100-700 | ||
Spindle taper | BT40 | |||
Spindle motor | kw | 11/15 | ||
Max.torque of spindle | Nm | 52.5/95.5 | ||
Table | ||||
Table size | mm | 1200*600 | ||
Max. load on worktable | kg | 800 | ||
T groove width | mm | 5-18*120 | ||
Precision | ||||
Positioning accuracy | mm | 0.008 | ||
Repeated Positioning accuracy | mm | 0.005 | ||
Feed speed | ||||
Cutting speed X/Y/Z | m/min | 7 | ||
Rapid traverse speed X/Y/Z | m/min | 36/36/24 | ||
Tool magazine | ||||
Capacity of tool magazine | BT40-24T | |||
Others | ||||
Floor area (length*width*height) | mm | 2850*2350*3050 | ||
Weight | kg | 6500 | ||

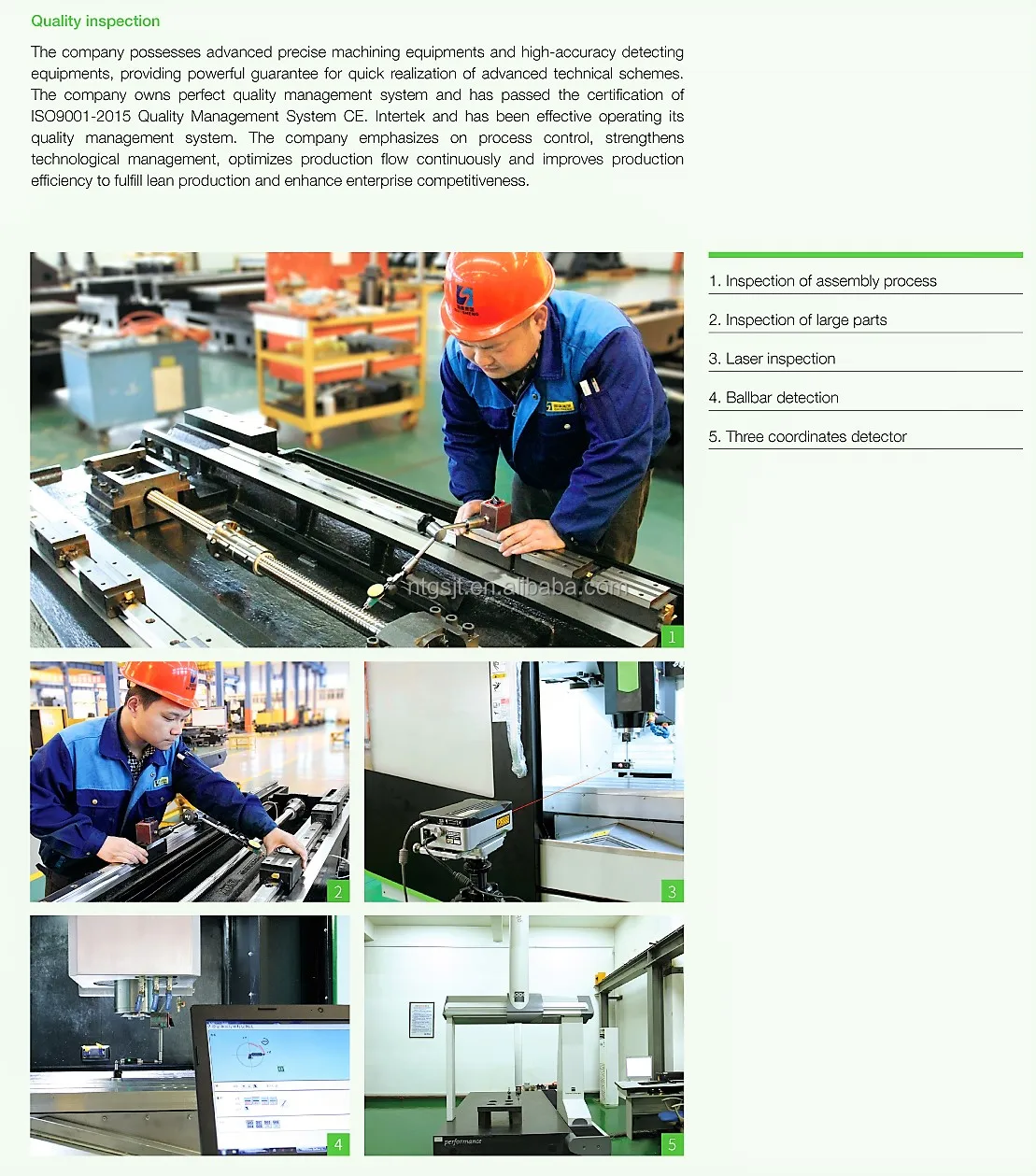

Quality control
Brand building
Company Profile
Nantong Guosheng Machinery & Power-Generating Group Co. Ltd. is specialized in producing the advanced CNC Horizontal
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 1999,sell to . There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Vertical Machine Center,Horizontal Machine Center,Horizontal Boring and Milling Machine Center,Gantry Machine Center,CNC Lathe
4. why should you buy from us not from other suppliers?
We have nearly 16 years in producing CNC machine tools .We have been cooperated with a lof of famous enterprises like : TOSHIBA Machine, HUSKY, DMG, BOMAG, SANDVIK, DAVIS-Standard, FOXCONN, TRUMPF, Schaeffer Group and so on .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
We are based in Jiangsu, China, start from 1999,sell to . There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Vertical Machine Center,Horizontal Machine Center,Horizontal Boring and Milling Machine Center,Gantry Machine Center,CNC Lathe
4. why should you buy from us not from other suppliers?
We have nearly 16 years in producing CNC machine tools .We have been cooperated with a lof of famous enterprises like : TOSHIBA Machine, HUSKY, DMG, BOMAG, SANDVIK, DAVIS-Standard, FOXCONN, TRUMPF, Schaeffer Group and so on .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
