New Arrival Baofeng Ham radio BF 555s UHF Handheld Transceiver

Product Overview

Description

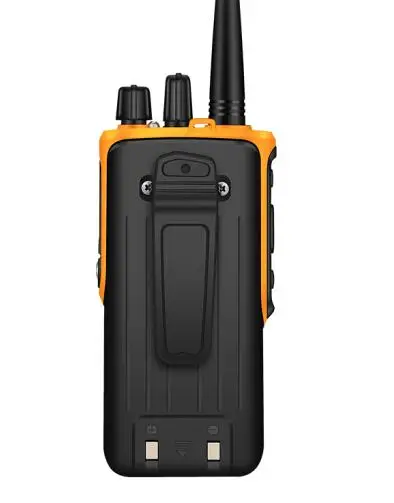

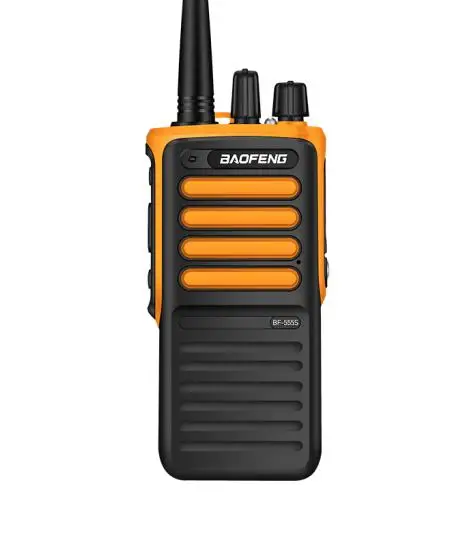

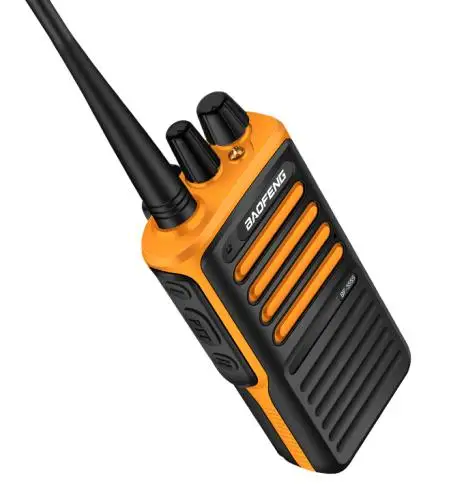

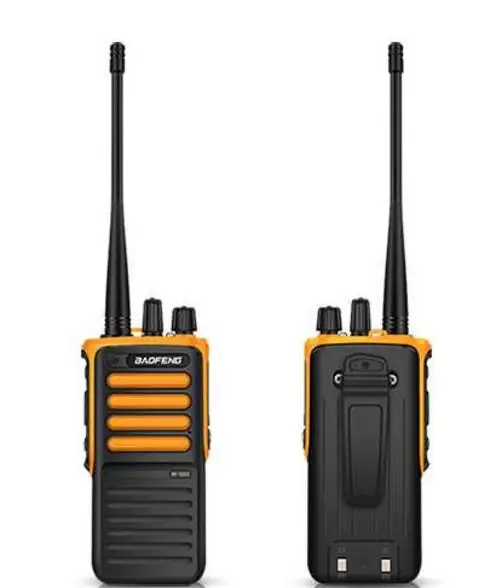

New Arrival BAOFENG BF-555s handheld transceiver



Frequency range : UHF 400-470MHZ
up to 16 channels
Chinese/English language
50 Groups CTCSS ,105 Groups of standard DCS
Time-out-time (TOT)
Battery saving function
Alarm function
USB rapid charger
Programmable by PC

ESPECIFICACIONES TECNICAS
General :
Frequency range : UHF 400-470MHZ
Memory channels : 16
Operation voltage : 3.7V DC
Frequency stability : ±2.5ppm
Antenna Impedance:50Ω
Dimensions (L×W×H) :110*60*30MM

Transmitter

RF Power : <5W
Maximum deviation (W/N) :≤5KHz/≤2.5KHz
Spurious emission : ≤5KHz/7.5uw
Adjacent channel power : ≤65dB/≤-60dB
SNR (W/N) :≥-45dB /≥-40dB
QT/DQT(W/N):0.7±0.1KHz /0.4±0.1KHz
Modulation sensitivity :8-12mV
Transmission current : ≤1.2A


Receiver

Sensitivity : -122dBm (12dB SINAD)
Audio power : 0.4w (8R load)
Audio distortion : ≤10%
Intermediation (W/N) : ≥65dB/ ≥60dB
Clutter suppression : ≥65dB
Receiver current : ≤380mA
