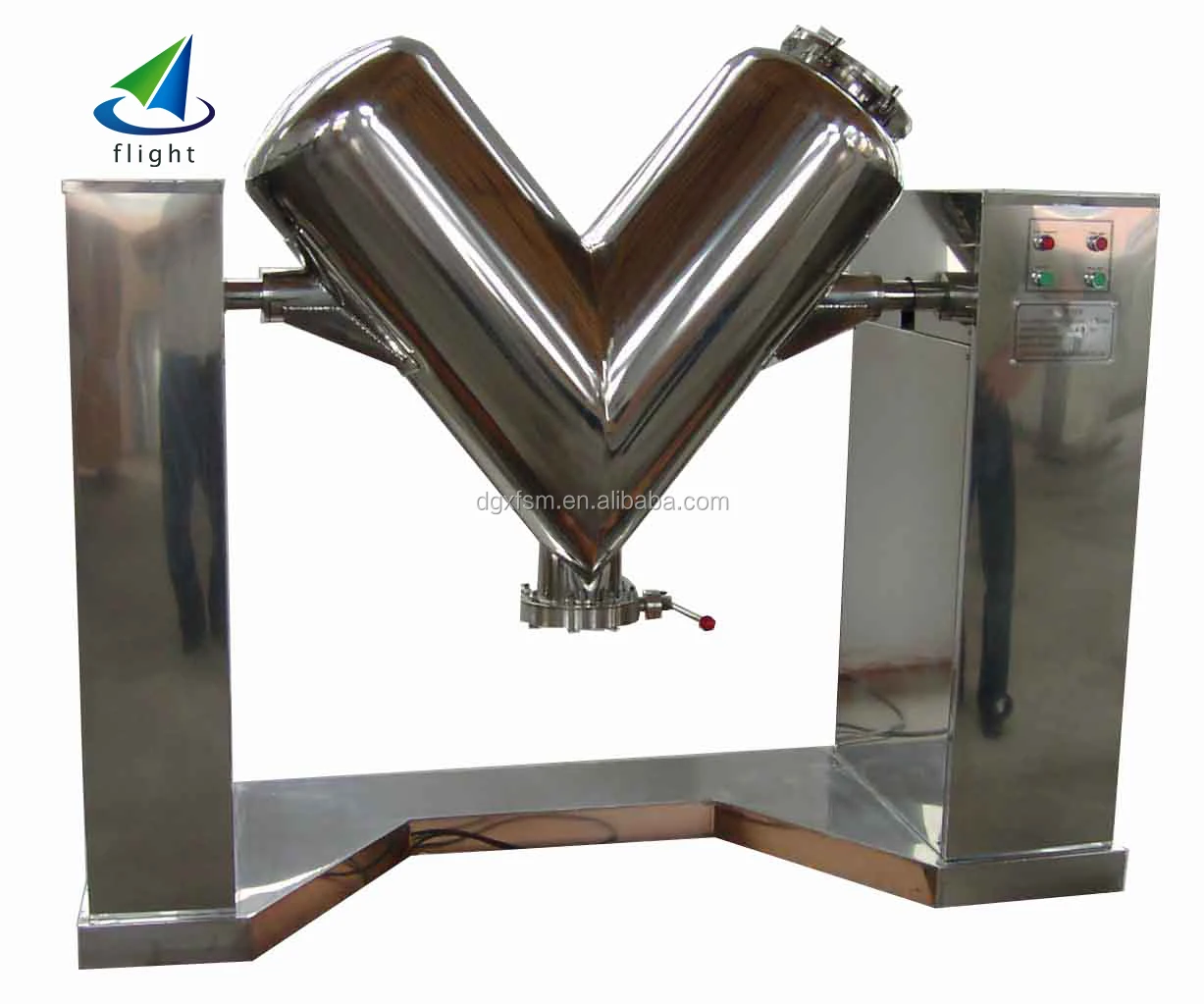

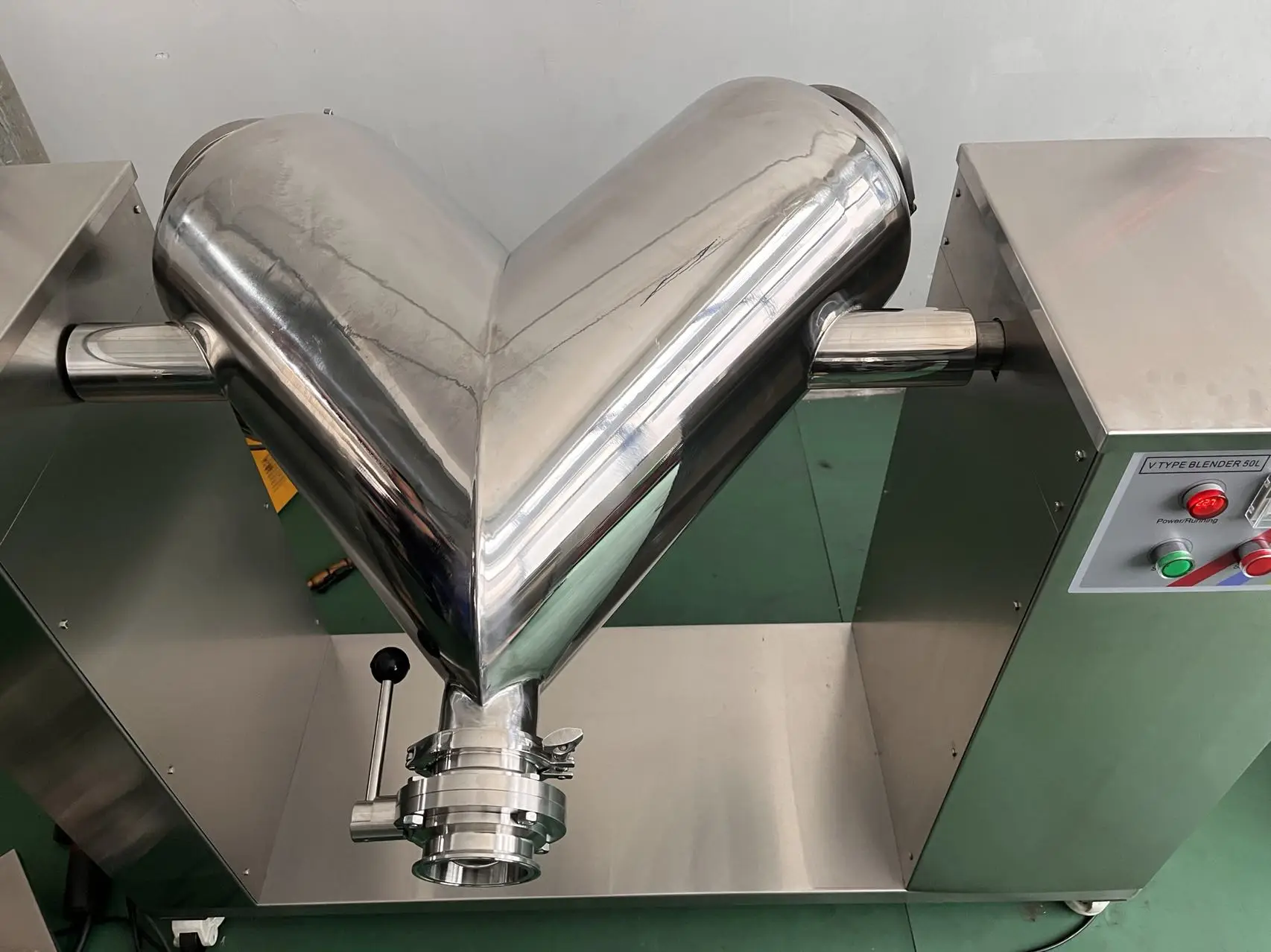

V Shape Mixer for Foundation Creamade of 304 stainless steel with CE certificate
- Category: >>>
- Supplier: Dandong Flight Trading Co. Ltd.
Share on (60835999482):
Product Overview
Description
mixer model
——MIXER MODEL——
Product Description
This machine is suitable for pharmacy and other industries, used for mixing the dry granule materials.
This machine adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle. Using stainless steel material, prevent the mixing materials from being polluted.
The inside and outside of machine are polished. Mixing the materials evenly and apply to a wide range of fields. It also can be equipped with the compulsory mixer, which is according to the users’ demand. It is suitable for smaller powder, blocks and the material that contain a certain mixture of water. In addition, the machine is also equipped with a timing device; you can control the material mixing time.
—feature—
1. Compact structure, operation simple, maintenance convenience.
2. All parts contact with materials are all made of high quality stainless steel, and the inside wall and outside wall of the mixing vat are mirror polished, easy to wash, no pollution, meet the GMP standard.
3. The machine adopts V type asymmetric mixing vat to compound, no dead angle, no
accumulation of materials, high speed, and short mixing time, high uniform mixing.
4. Running steady, no noise
5. Operator can use vacuum charging and disc valve discharge port, realized no dust
operation.
6. The machine is equipped with a timing device, it can set mixing time to realize
automatic stop
VH100B | VH200B | VH300B | VH500B | VH1000B | |
Full volume (L) | 100 | 200 | 300 | 500 | 1000 |
0.4 | 0.4 | 0.4 | 0.4 | 0.4 | |
Max charging quantity(kg) | 50 | 100 | 150 | 250 | 500 |
Overall size (L x W x H)(mm) | 1900x 800x 1190 | 2010x 850x 1440 | 2220x 900x 1470 | 2400x 950x 2480 | 2800x 1000x 2880 |
350 | 450 | 500 | 600 | 800 | |
Diameter of feed port(mm) | 250 | 300 | 300 | 300 | 400 |
Diameter of discharge port(mm) | 80 | 100 | 100 | 150 | 150 |
15 | 15 | 15 | 13 | 10 | |
Power (KW) | 1.1 | 1.5 | 1.5 | 1.5 | 3.0 |
Model | VH1500B | VH2000B | VH2500B | VH3000B |
Full volume (L) | 1500 | 2000 | 2500 | 3000 |
Coefficient of charge (%) | 0.4 | 0.4 | 0.4 | 0.4 |
Max charging quantity(kg) | 750 | 1000 | 1250 | 1500 |
Overall size (L x W x H)(mm) | 3000x 1100x 3110 | 3200x 1200x 3350 | 3400x 1300x 3800 | 3600x 1400x 3850 |
Diameter of mixing vat (mm) | 900 | 1000 | 1100 | 1200 |
Diameter of feed port(mm) | 400 | 400 | 400 | 400 |
Diameter of discharge port(mm) | 200 | 200 | 200 | 200 |
Rotary speed of vat (r/min) | 10 | 10 | 8 | 8 |
Power (KW) | 3.0 | 5.5 | 7.5 | 7.5 |
Flow Chart
——Flow Chart——
Our advantages
Products advantages | 1. We always give top priority to quality 2. Strictly guarantee the precision of parts error 3. Reasonable processing technology coupled with advanced processing equipment |
Trade advantages | 1.Our company is a Gold Supplier on Alibaba. So we can provide Escrow Service on Alibaba. 2.Our company can do Trade Assurance Order for customers on Alibaba. |
Custom made advantages | 1.The company independent research and development, custom design exclusive for the series of products. 2. Mutual benefit with the best quality and service, and sincerely hope that friends from various circles at home and abroad sincere cooperation and mutual benefit and win-win situation. |
