M18 4 Pin Connector Short Housing Inductive Proximity Sensor Switch 5Vdc/12V/24VDC NPN/PNP NO NC Output IP67 Waterproof (IBEST)

Product Overview

Description

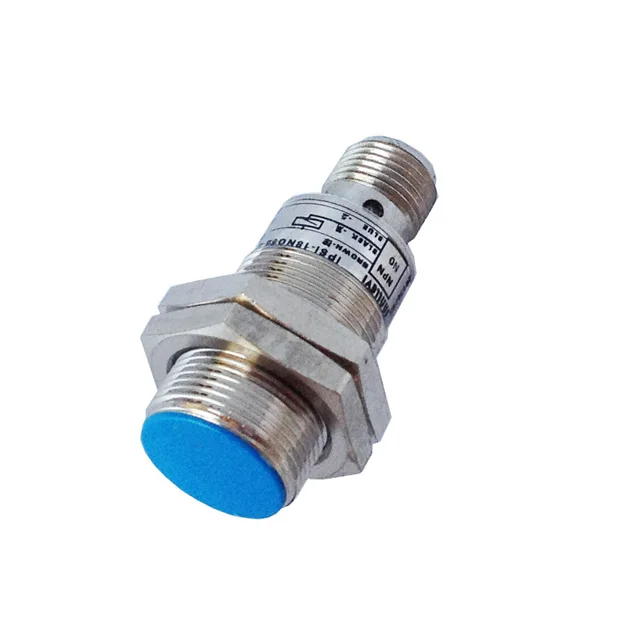

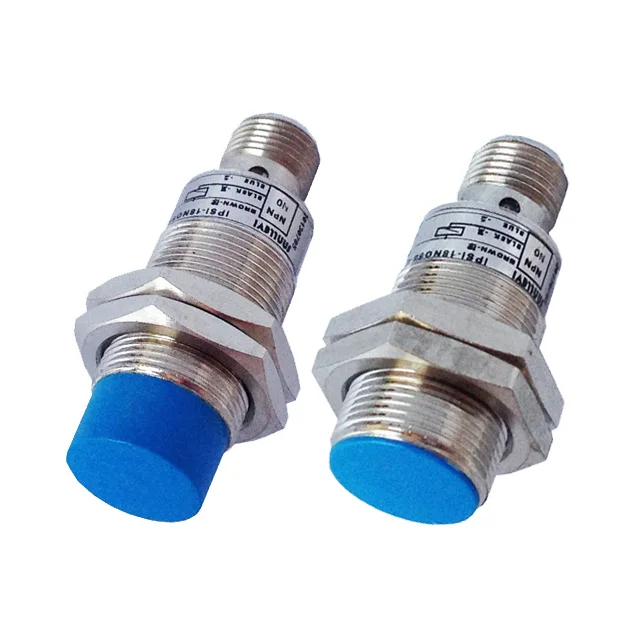

IBEST M18 Short Body Inductive Proximity Sensor/Switch

Connector Type / NPN or PNP NO+NC Output



1. Features :

--     Inductive proximity sensor, style: cylinder, diameter: 18mm.

--     Short body or short housing=35mm, nickled plated brass housing.
--     Detect Distance: Unshielded 5mm or shielded 8mm type . (Extended distance is available, Flush 7-8mm or non-flush 9-10mm)
--     DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type

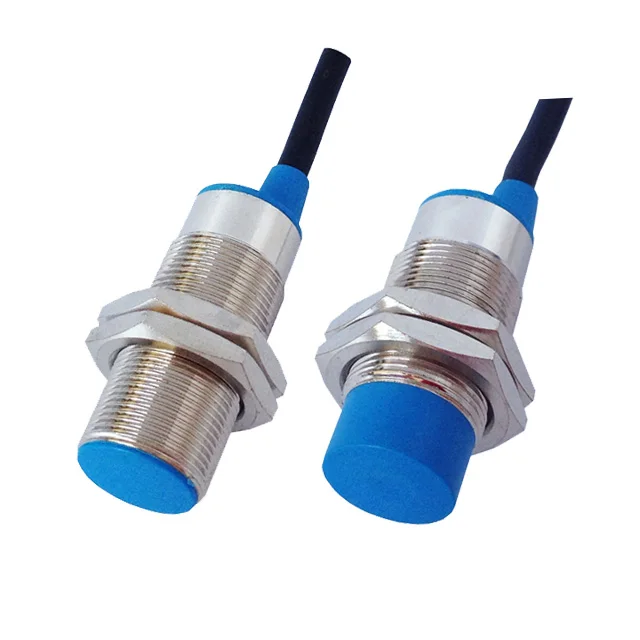

--     Connection mode: with 2 meter PVC cable. (M12 connector type is available also)

--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals.
--     Over load, short circuit protection , against polarity reversal.
--      IP ratings: IP67.

--      Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .

--      Reliable quality to replace famous brands .

2.Ordering code:



Model NO.	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-18PO5B-S	PNP NO	5mm,shielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-18PC5B-S	PNP NC	5mm,shielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-18POC5B-S	PNP NO+NC	5mm,shielded	≤200mA	DC 10~30V	DC 4 Wire
IPS-18NO5B-S	NPN NO	5mm,shielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-18NC5B-S	NPN NC	5mm,shielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-18NOC5B-S	NPN NO+NC	5mm,shielded	≤200mA	DC 10~30V	DC 4 Wire
IPS-18PO8B-S	PNP NO	8mm,unshielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-18PC8B-S	PNP NC	8mm,unshielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-18POC8B-S	PNP NO+NC	8mm,unshielded	≤200mA	DC 10~30V	DC 4 Wire
IPS-18NO8B-S	NPN NO	8mm,unshielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-18NC8B-S	NPN NC	8mm,unshielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-18NOC8B-S	NPN NO+NC	8mm,unshielded	≤200mA	DC 10~30V	DC 4 Wire
IPSI/L-18PO5B-S	PNP NO	5mm,shielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18PC5B-S	PNP NC	5mm,shielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18POC5B-S	PNP NO+NC	5mm,shielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18NO5B-S	NPN NO	5mm,shielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18NC5B-S	NPN NC	5mm,shielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18NOC5B-S	NPN NO+NC	5mm,shielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18PO8B-S	PNP NO	8mm,unshielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18PC8B-S	PNP NC	8mm,unshielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18POC8B-S	PNP NO+NC	8mm,unshielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18NO8B-S	NPN NO	8mm,unshielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18NC8B-S	NPN NC	8mm,unshielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-18NOC8B-S	NPN NO+NC	8mm,unshielded	≤200mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)

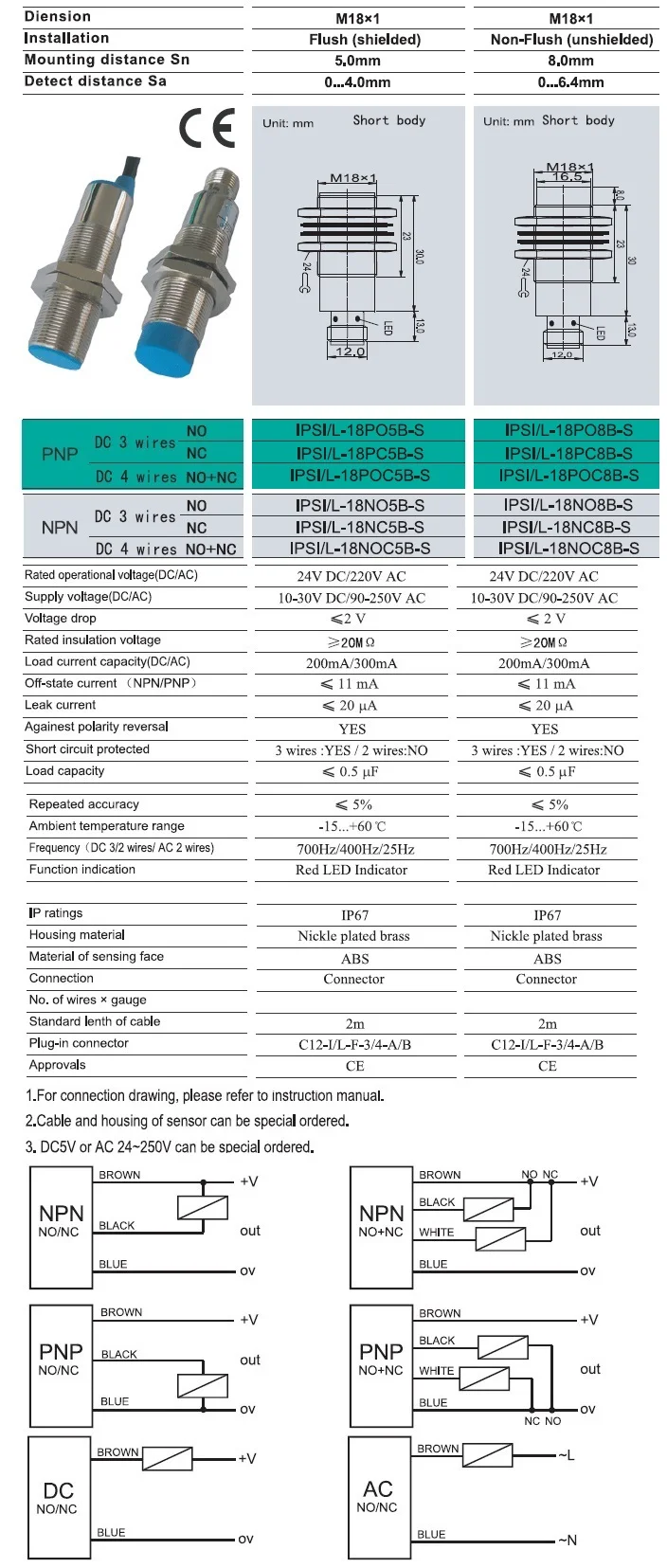

3. Technical Specifications:

Property project Specific parameter Mounting distance shielded: 5mm / unshielded : 8mm (Or  special extended distance) Sensing distance shielded: 0-4.5mm / unshielded : 0-7.2mm Power supply DC 10-30V / AC 90-250V Frequency DC:  ≤800Hz / AC:≤20Hz Current output DC:≤ 200mA / AC: ≤ 300mA Ambient temperture -15-+65 C Protection DC:Over-Load & short circuit protection. IP rating IP67 Water Spray Resistant



4. Dimensions:
