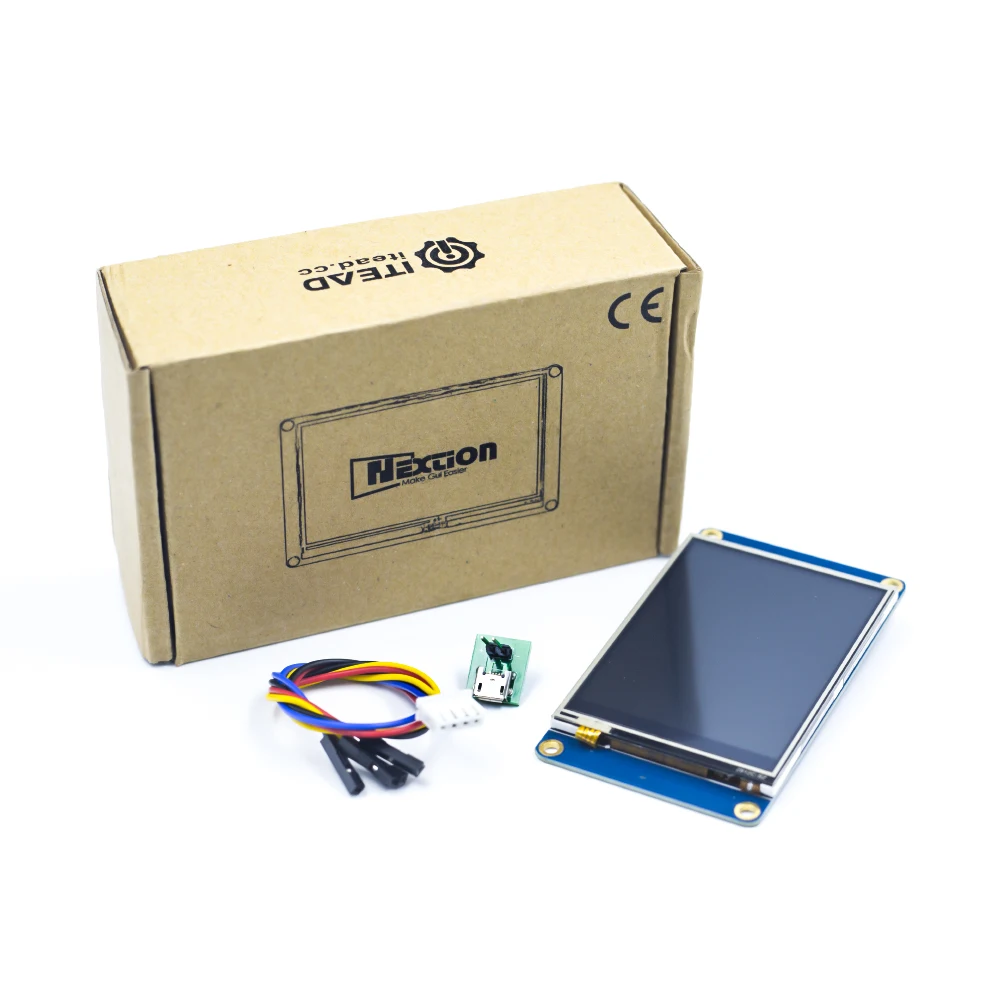

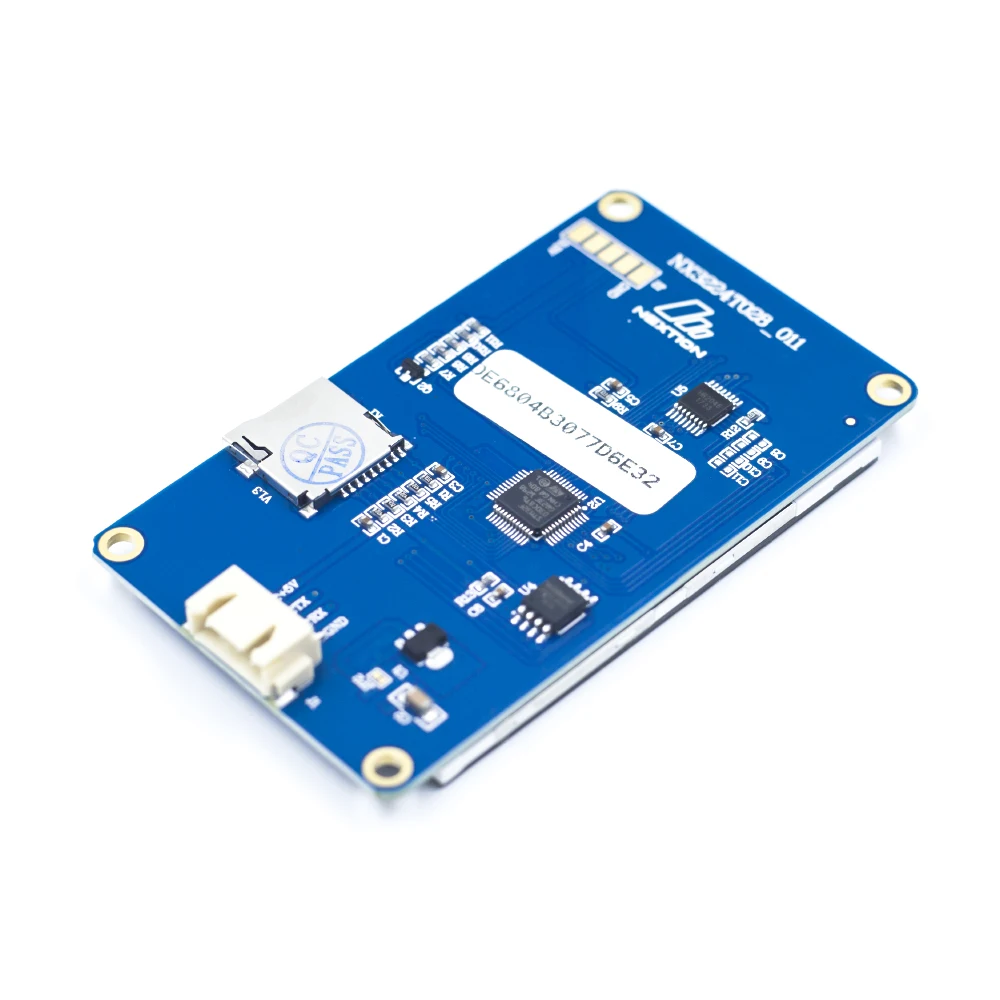

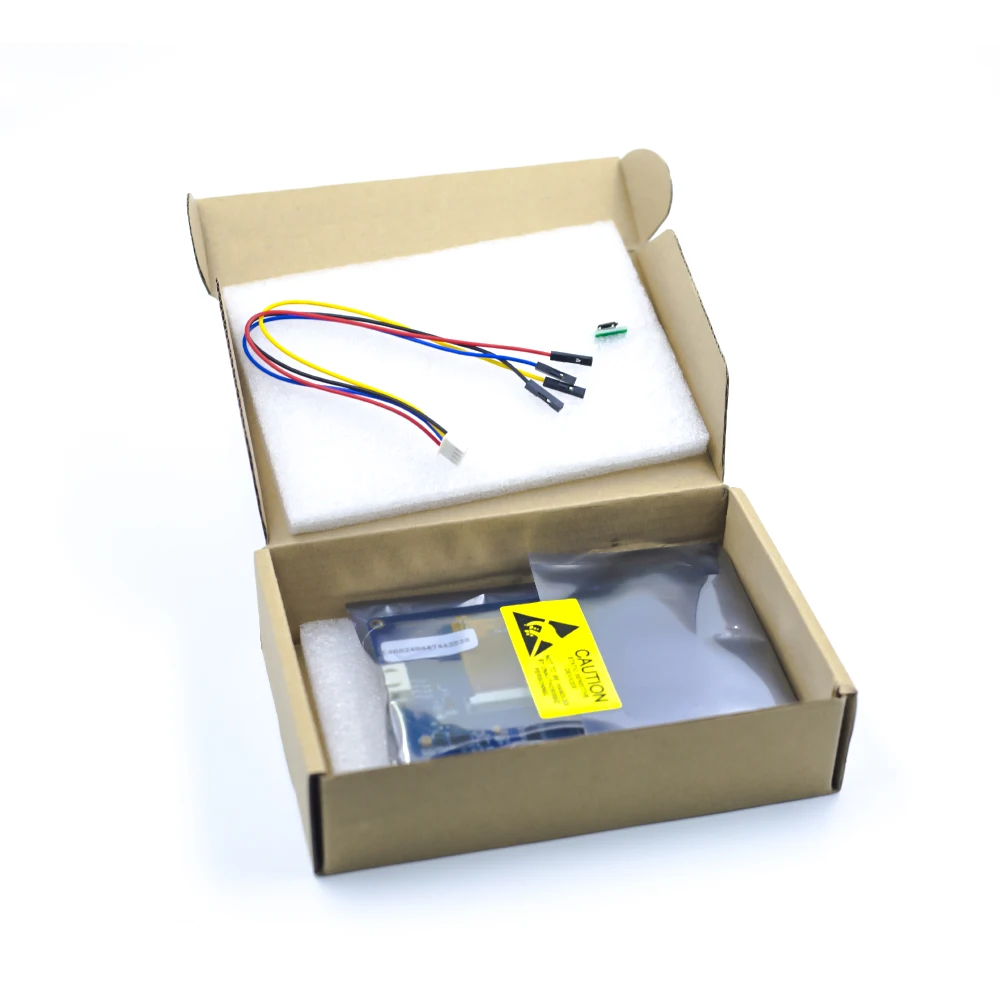

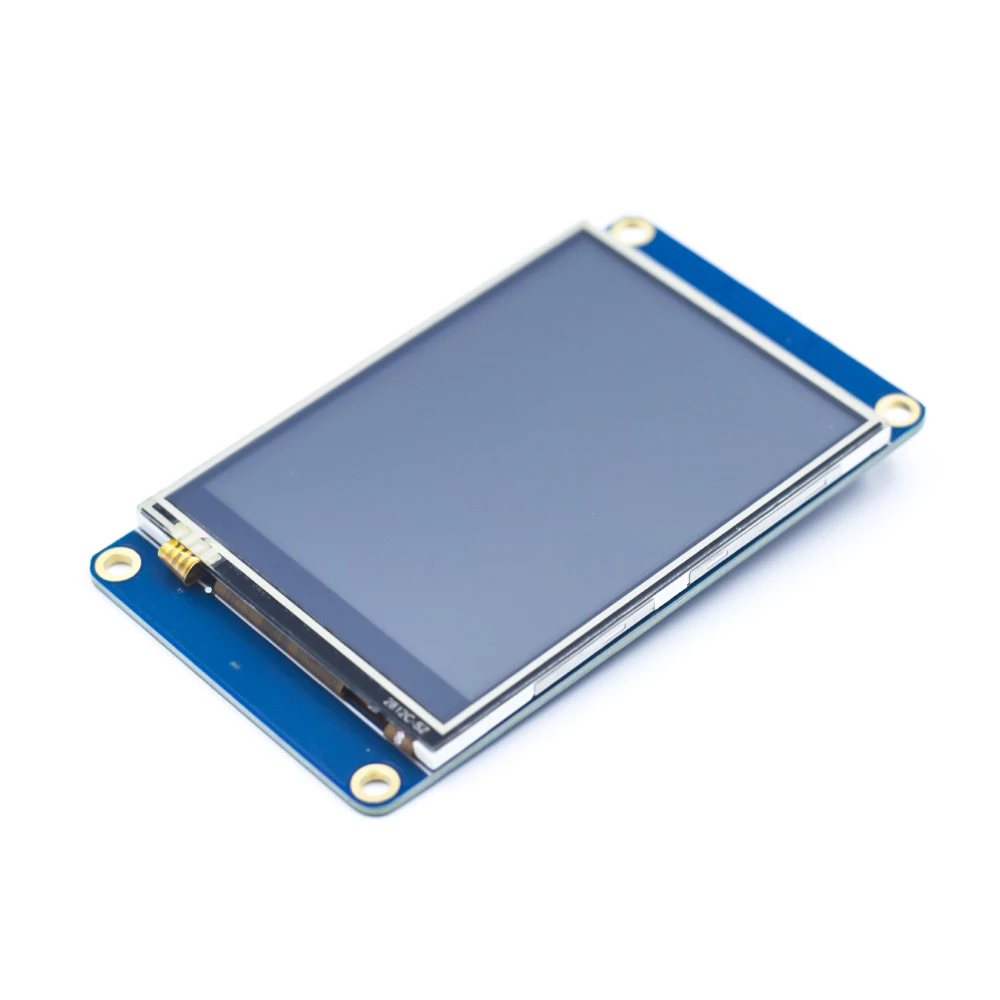

2,8 дюймовый NX3224T028 HMI английский ядро SPI TFT LCD 320*240 сенсорный экран дисплей

Overview:

NX3224T028 is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. NX3224T028 is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube NX3224T028 includes a hardware part (a series of TFT boards) and a software part . The NX3224T028 TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, NX3224T028 editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt NX3224T028 family HMI to existing projects. Users just need to provide it a UART.

NX3224T028 is a powerful 2.8'' HMI, which is member of NX3224T028 family. Features include: a 2.8" TFT 320x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.


Features:

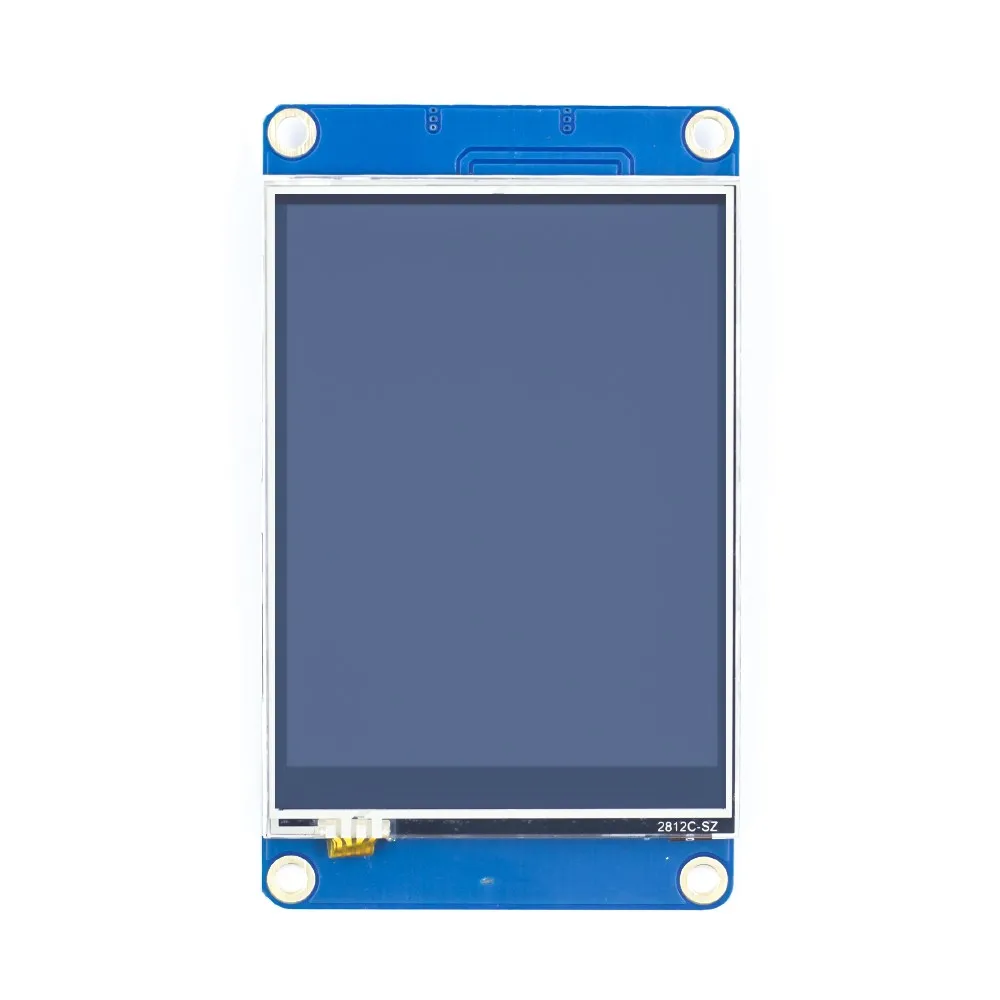

320 x 240 Resolution

RGB 65K true to life colours

TFT Screen with integrated 4-wire Resistive Touch Panel

Easy 4 pin interface to any TTL Serial Host

4M Flash memory for User Application Code and Data

On board micro-SD card for firmware upgrade

Visual Area:57.6mm(L)×43.2mm(W)

Adjustable Brightness:0~180 nit, the interval of adjustment is 1%

5V65mA power consumption

Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.

Powered directly off the Raspberry Pi, no external power supply is required
