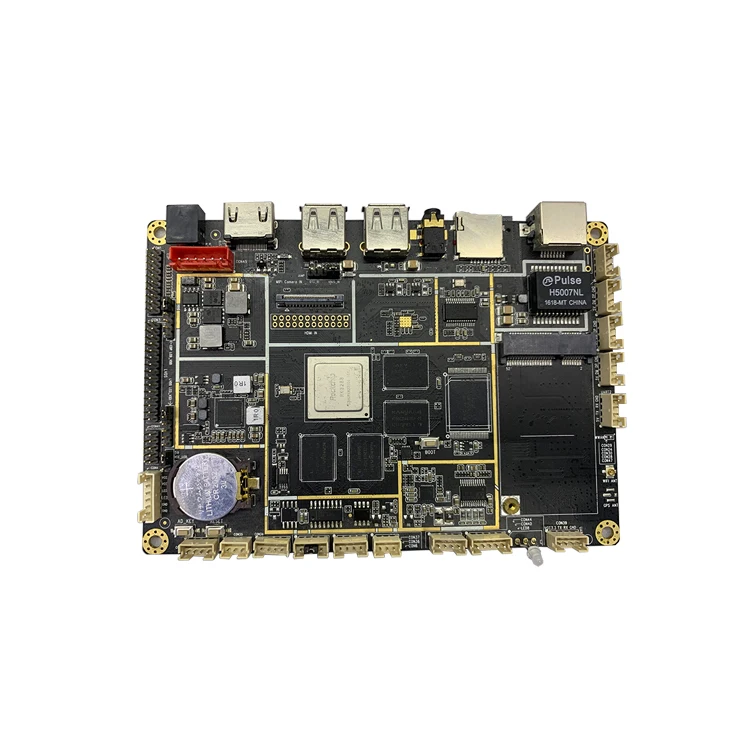

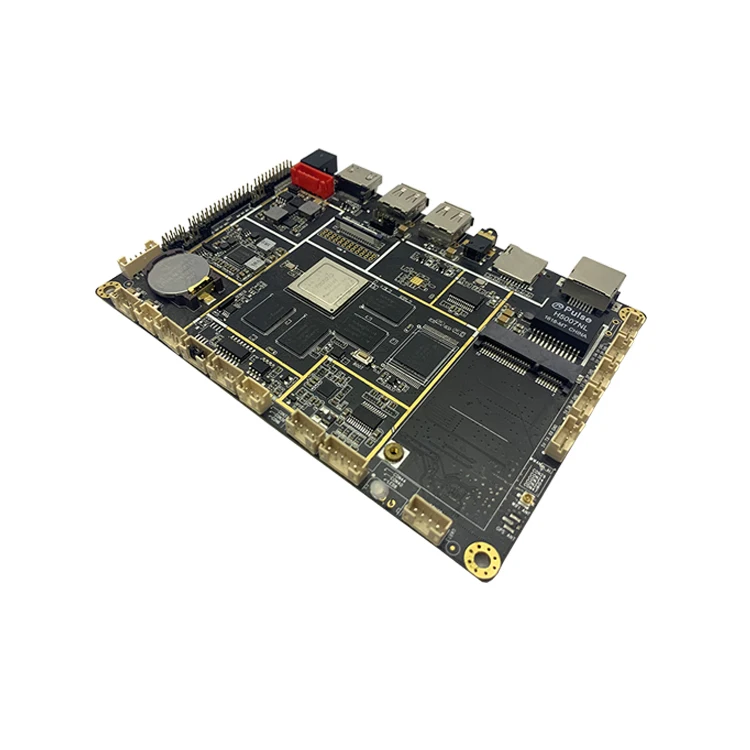

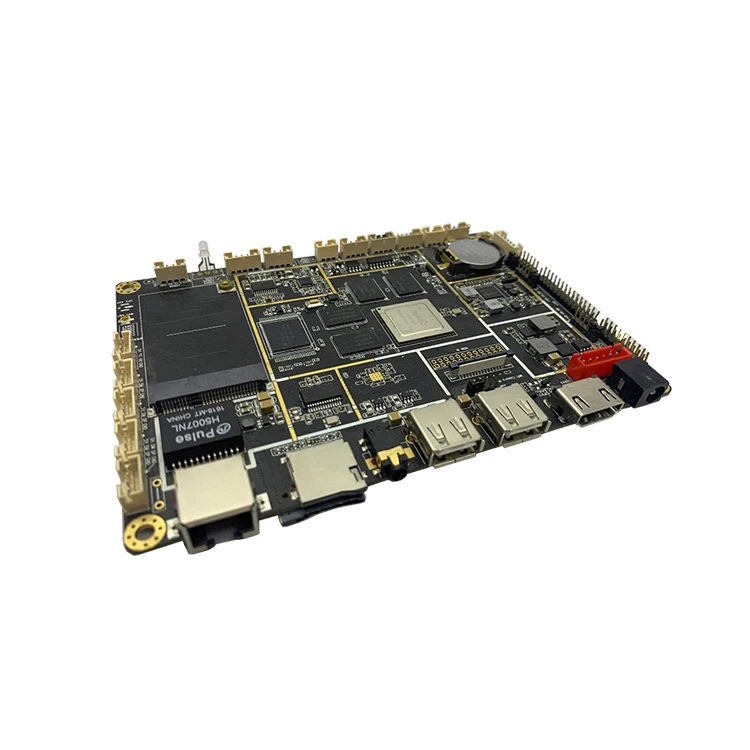

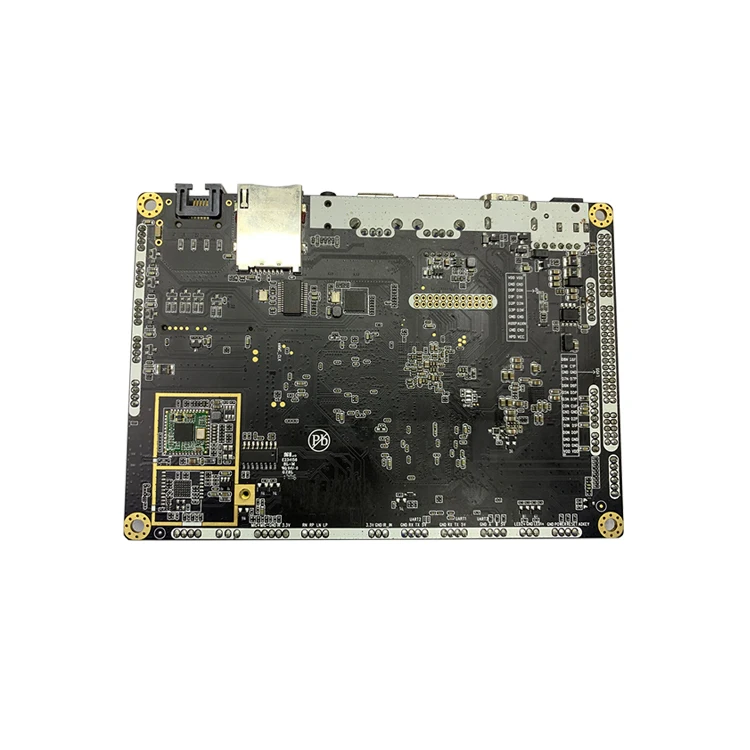

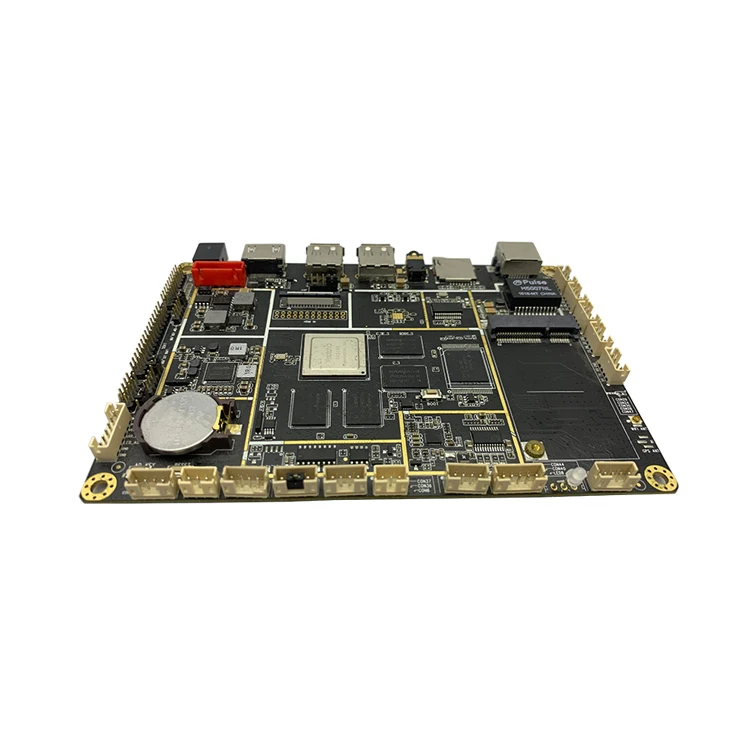

rockchip rk3399 pcb circuit board , android PCBA service Android TV BOX RK 3399/ RK 3288 pcb board
- Category: >>>
- Supplier: Shenzhen DYC Electronic Technology Co. Ltd.
Share on (60836057944):
Product Overview
Description
RK 3399
Basic information of RK 3399:
Application used:
1.VR, game integrated machine, advertising machine, industrial control panel, etc.
2. Industry control, network player, intelligent treadmill, digital signs, face recognition, cash register, vehicle terminal.
3.Android 8. 1 OS support 4 GB DDR3, eMMC 64 GB support camera, light sense 4G network and SSD hard drive.
4.Support 4K 60FPSN HDMI 1.4U H.265 digital power amplifier, loudspeaker output IR output digital MICIN.
5.Support 7-40 inch EDP, MIPI LCD, rechargeable, touch screen, serial port, headset, network card.

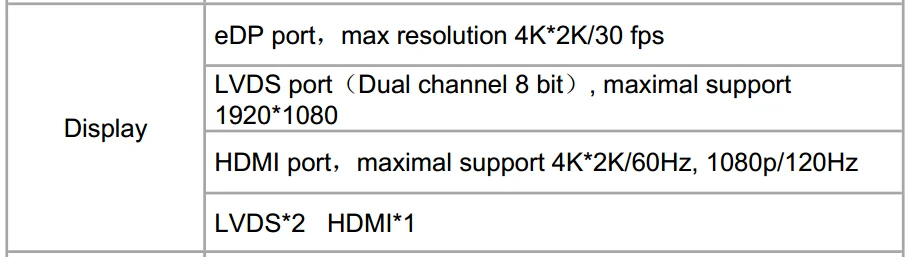

Port informations:
Services:
We provide RK 3399 PCBA board, or the full products of RK 3399 with OEM, Relayout of the 3399 PCBA board, software update, prototype etc.
RK 3288 Main board
RK 3288 Service:
RK 3288 main board, RK 3288 redesign, custom design hardware, interface~
Basic information:
PCB dimension: 146mm* 102 mm
PCB thickness: 1.8 mm

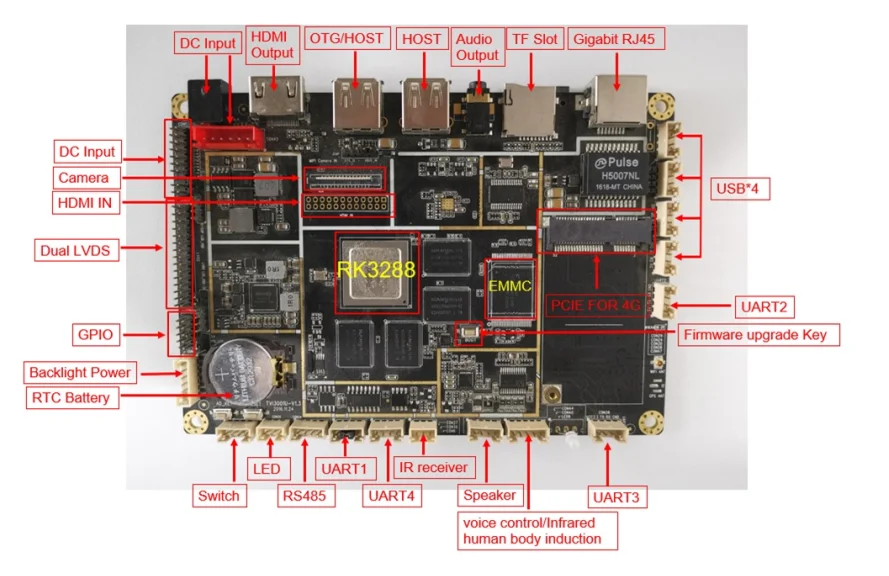

Interface Schematic diagram
About DYC
DYC 2007-2018, 11 YEARS PCB PCBA ONE STOP SERVICE
| Established time | Aug 2007 |
| Number of emplooyes | 250 |
| Factory area | 15,000 sqm |
Location: 6,7 floor, Yuxing Second7 floor, Yuxing Second industrial park, xixiang, Bao'an district, Shenzhen. | Near by shenzhen airport, 15 minutes. |
| Near by Hongkong airport, 74 km. | |
| Near by shekou terminal, 22 km. | |
| Fabrication | 8 million spot SMT/day. |
| Certification | ISO9001-2008, CE, RoHS. |
| Sales avenue | 0.3 billion |
6 SMT Lines, 2 DIP lines, 2 end-products assembly lines
DYC services
PCBA manufacture
PCBA CAPACITY
| Max size of pcb board | 500* 400mm |
| Max thickness | 3mm |
| Min thickness | 0.5mm |
| Min chip | 1005 |
| Max SMD components weight | 100g |
| Max part height | 25 mm |
| Max part size | 150*150 mm |
| Min pin space | 0.3mm |
| Max BGA components space | 0.3mm |
| Max BGA components space | 0.3mm |
| Max SMD accuracy | 25um@ IPC |
| SMD capacity | 8 Million point/day |
How to make your PCBA
Strength of PCBA manufacture
FAQ:
Q: What should i provide to get one PCB quotation?
A: Gerber file, PCB technical, quantity and bom list.
Q: Will you check my files before production?
A: Yes, our engineer will check your gerber file and BOM list to avoid any mistake.
Q: What's the lead time for PCBA?
A: 8-10 days for sample, 15-20 days for bulk order.
Q: My budget is limited, can you provide solutions to save cost ?
A: Yes, we can. For example: Replace the DIP components with SMD components, so it can narrow the PCB board size to save cost. Relayout the pcb to reduce the size, it can save cost, Also we can recommend you alternative components.
Q: Do you have any other special discount ?
A: Yes, we provide free panel, free test and free packaging.
