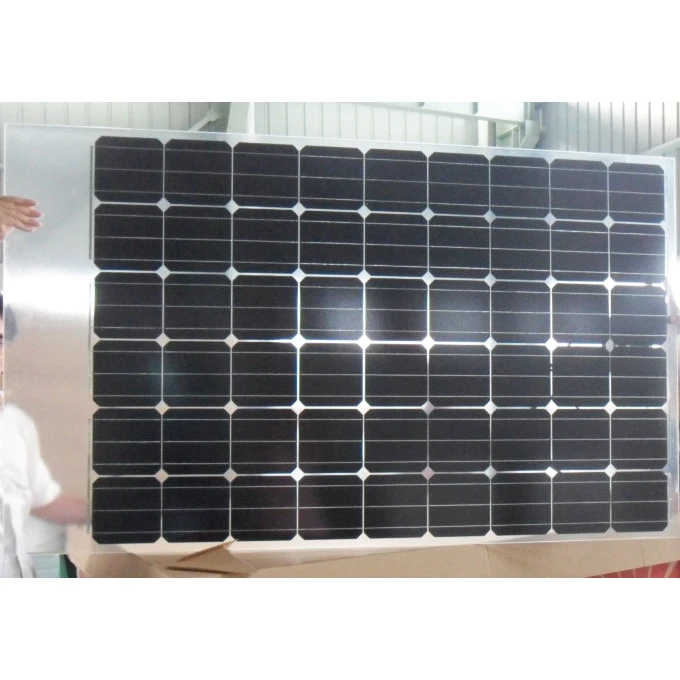

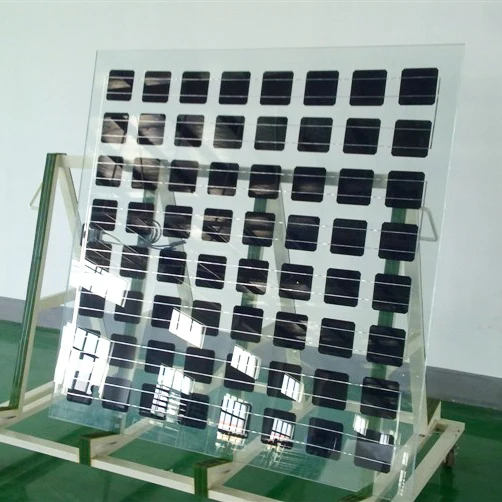

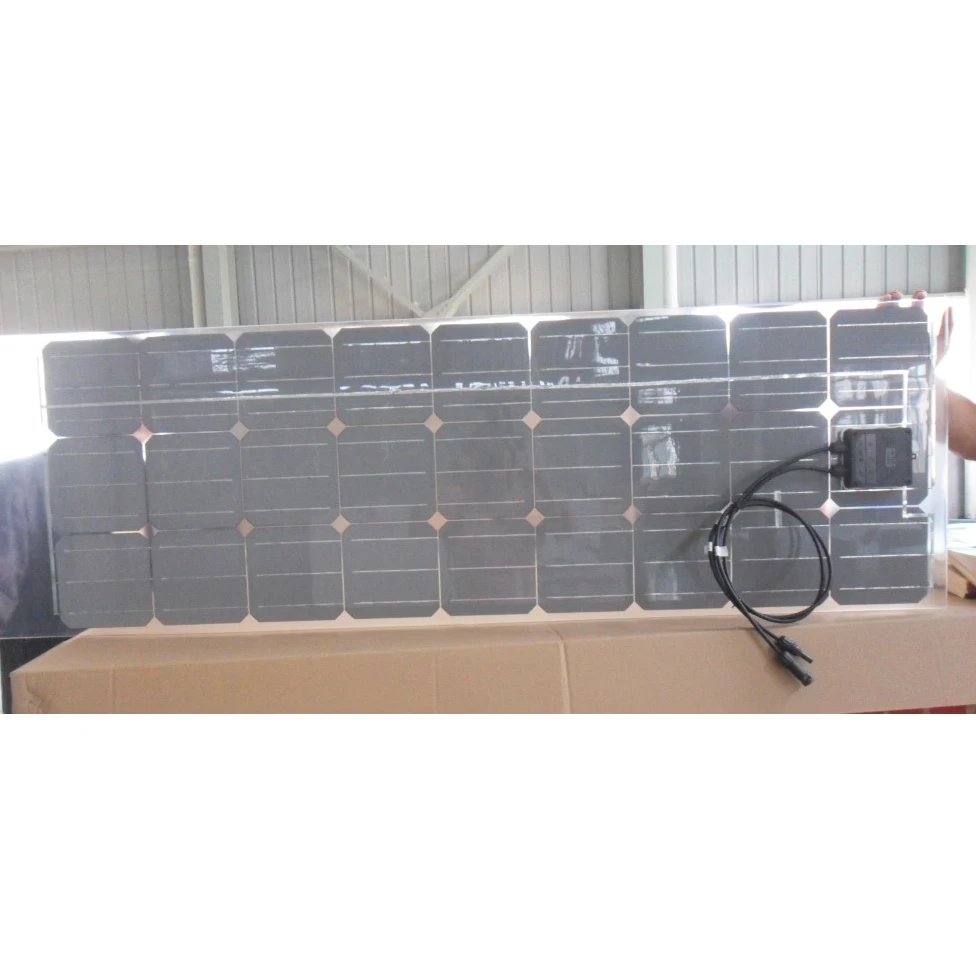

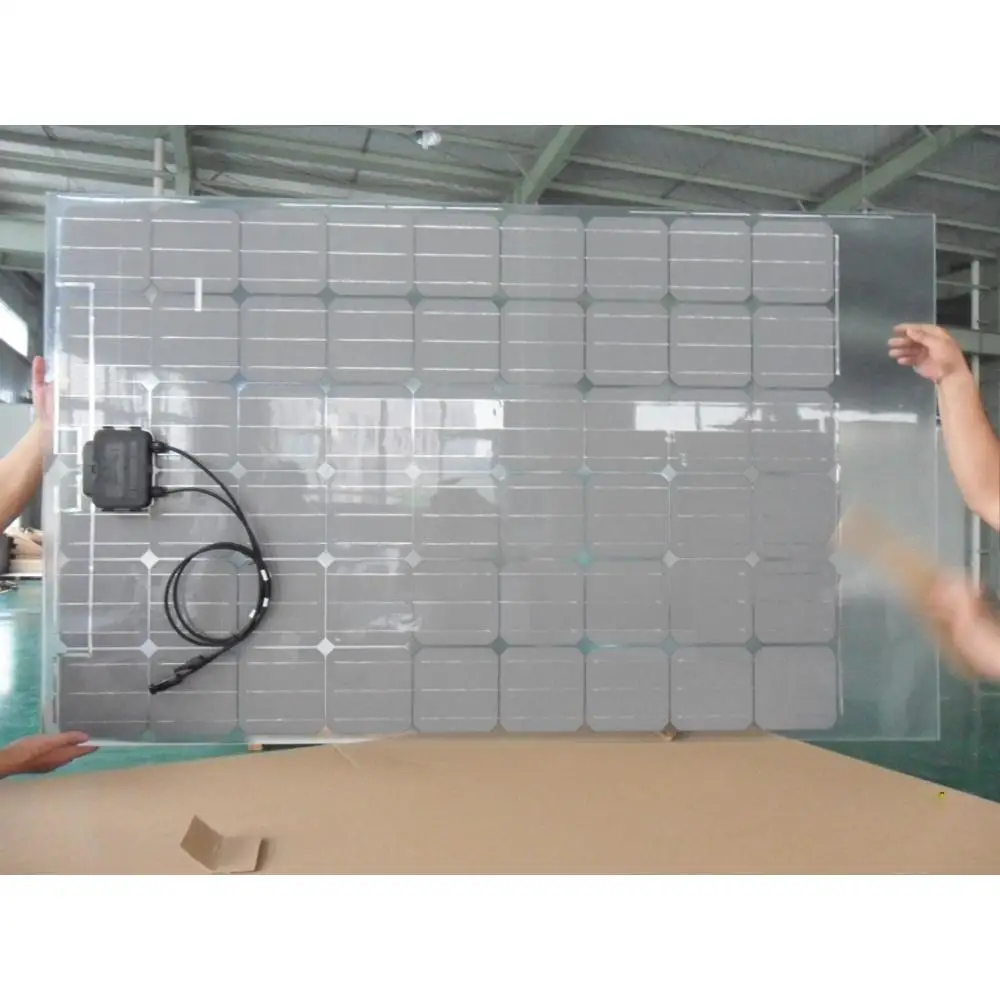

Yangtze transparent glass solar panel 340w 345w 350w 355w 360w
- Category: >>>
- Supplier: Hefei Yangtze Solar Power Co. Ltd.
Share on (60836109170):
Product Overview
Description
Product Description
Yangtze transparent glass solar panel 340w 345w 350w 355w 360w
| Model | YS340M-72 | YS345M-72 | YS350M-72 | YS355M-72 | YS360M-72 |
| Rated Maximum Power at STC | 340W | 345W | 350W | 355W | 360W |
| Maximum Power Voltage (Vmp) | 37.1V | 37.5V | 37.8V | 38.7V | 38.4V |
| Maximum Power Current (Imp) | 9.26A | 9.28A | 9.29A | 9.17A | 9.39A |
| Open Circuit Voltage ( Voc) | 47.0V | 47.2V | 47.3V | 47V | 48.3V |
| Short Circuit Current (Isc) | 9.81A | 9.82A | 9.82A | 9.69A | 9.84A |
| Module Efficiency | 17.04% | 17.29% | 17.54% | 18.3% | 18.37% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||
| Mechanical Parameters | |||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | ||||
| No. of Cells | 72 (6x12) | ||||
| Dimension | 1950*986*7mm | ||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||
| Junction Box | IP65&IP67 Rated | ||||
| Output Cable | Section Size: 4mm² , Length: 900mm | ||||
| Frame | Anodized Aluminum Alloy | ||||
| No. of Bypass Diodes | 3&6 | ||||
| Connector | MC4 Compatible | ||||
| Working Conditions | |||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) / 600V(UL) | ||||
| Operating Temperature | -40°c~+85°c | ||||
| Maximum Series Fuse | 15A | ||||
| NOCT | 45±2°c | ||||
| Application Class | Class A | ||||
| Temperature Coefficient | |||||
| Temperature Coefficient of Pmax | -0.40%/°c | ||||
| Temperature Coefficient of Voc | -0.30%/°c | ||||
| Temperature Coefficient of Isc | +0.05%/°c | ||||
Packaging & Shipping
Company Information
♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) , CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
