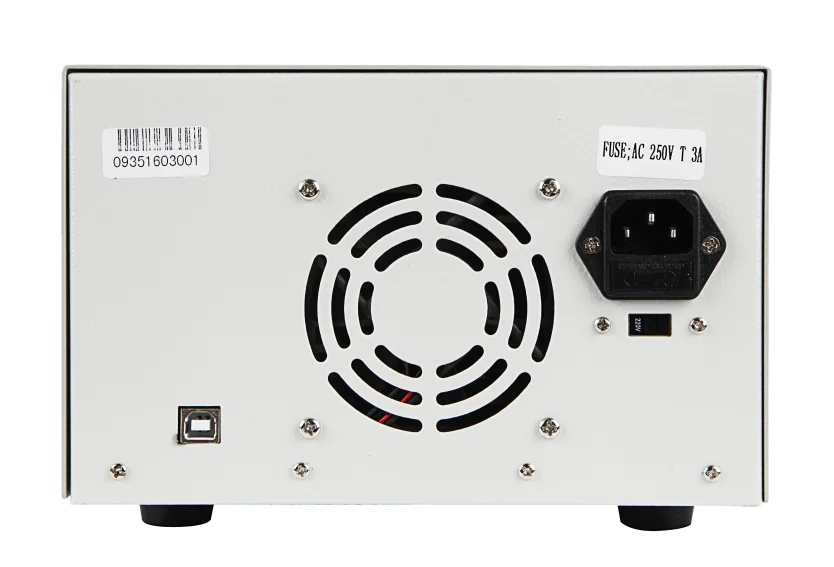

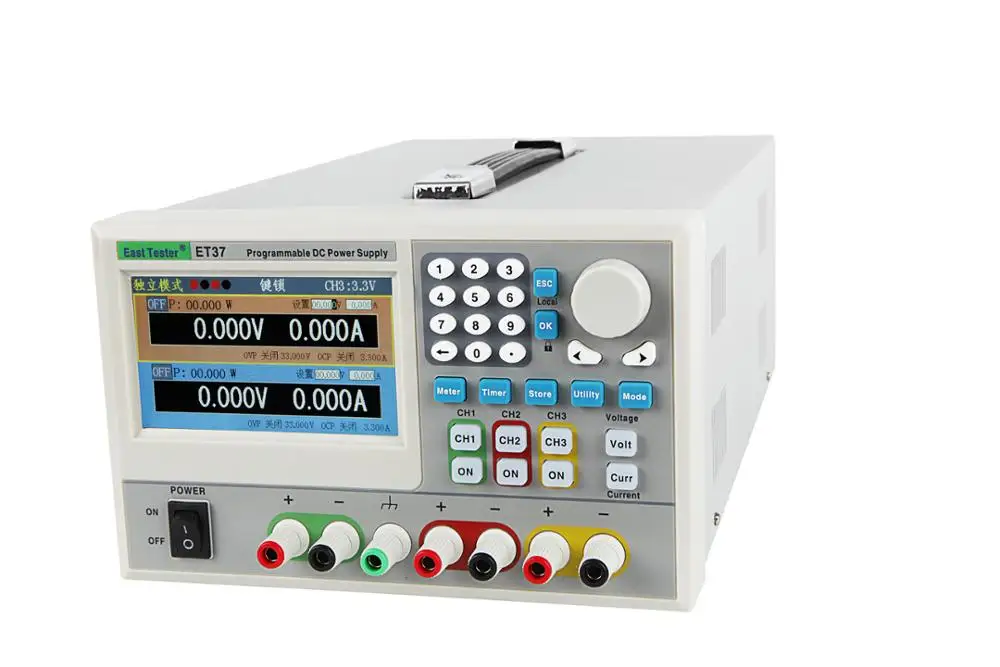

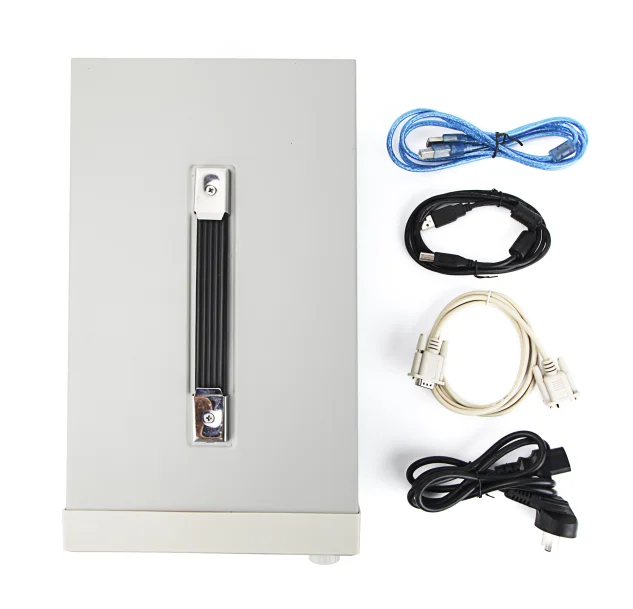

ET3731 30V 5A digital DC power supply with usb interface
ET3731 30V 5A digital DC power supply with usb interface
ET3731 30V 5A digital DC power supply with usb interface
ET3731 30V 5A digital DC power supply with usb interface
ET3731 30V 5A digital DC power supply with usb interface

ET3731 30V 5A digital DC power supply with usb interface

Share on (60836110384):


Price:

Quantity:


Product Overview

Description


Product Description

ET37 Series Programmable Power Supply


Main features:


4.3" TFT LCD screen;
Wave-form display supported, real-time display of curves of output voltage and current changes;
Simple operating system, and straight-forward interface, for easy mastering;
Independently adjustable output; 1-channel (ET372X)/2-channel (ET372X), adjustable output 30V/3A, 1-channel fixed output with adjustable 2.5V/3.3V/5V positions; a maximum total output power up to 195 W;
Four output modes: independent/dual output/series/parallel connection, providing wider output range, with a maximum output voltage up to 60V, and a maximum output voltage up to 6A;
High precision and high definition;
Low output ripple and noise;
Excellent load regulation and linear regulation;
Timed output function supported, up to 112 groups;
Save and Recall function, up to 10 sets of parameter configuration;
USB device interface provided, supporting SCPI remote command control;
Over-voltage/over-current protection functions, flexible setting of over-voltage and over-current parameters, effective protection of loads;
Secondary over-temperature protection, for double over-temperature protection by software and hardware;
Smart fan speed control, regulating fan speed according to working condition, which effectively reduce fan noise;
Protection for output polarity reversal
Keyboard lock, to prevent misoperation.



\t
More Options For ET37 Series (Can click )
\t\t
\t\t
\t
ET3731
\t
USD 240-400
\t
ET3738
\t
USD 280-460
\t
Model
\t
ET3721
\t
  ET3728
\t
ET3731
\t
ET3738
\t
Maximum power
\t
105W
\t
155W
\t
195W
\t
305W
\t
Channel number
\t
2 (CH1 variable, CH2 fixed)
\t
3 (CH1, CH2 variable, CH3 fixed)
\t





DC output

(0°C-40°C)
\t
Voltage/current(Rated value)
\t
CH1:0~30V,0~3A
\t
CH1:0~30V,0~5A
\t
CH1,CH2:0~30V,0~3A
\t
CH1,CH2:0~30V,0~3A
\t
Over-voltage/over-current protection
(maximum settable range)
\t
CH1:10mV~33V,10mA~3.3A
\t
CH1:10mV~33V,10mA~5.5A
\t
CH1,CH2:10mV~33V,10mA~3.3A
\t
CH1,CH2:10mV~33V,10mA~5.5A
\t
2.5V/3.3V/5V

Fixed output
\t
Current output 0~3A(ET3721, 3731, ),Or 0~1A(ET3728, 3738 );
Output precision: <5% ; Load regulation: ≤15*minimum scale interval;
Linear regulation: ≤5*minimum scale interval ;
Ripple and noise (20Hz~7MHz): ≤2mVrms;
Overload: 3A(ET3721, 3731 ),or 0~1A(ET3728 ,3738 );
(Parameters of the fixed position are all listed. The parameters below apply to the variable positions of the voltage.)
\t
Linear regulation rate (±output percentage + quantity of minimum scale interval(s))
\t
Voltage
\t
≤0.01%+2
\t
Current
\t
≤0.01%+3
\t
Load regulation rate (±output percentage + quantity of minimum scale interval(s))
\t
Voltage
\t
≤0.01%+2
\t
Current
\t
≤0.05%+3
\t
Tracking operation (±output percentage + quantity of minimum scale interval(s))
\t
Tracking error
\t
/
\t
≤0.5%+10 of Master
\t
Parallel regulation rate
\t
Linear
\t
/
\t
≤0.01%+5
\t
Load
\t
/
\t
≤0.01%+5
\t
Series regulation rate
\t
Linear
\t
/
\t
≤0.01%+10
\t
Load
\t
/
\t
≤0.02%+10
\t
Ripple and noise (20Hz~-7MHz)
\t
Voltage
\t
≤1mVrms
\t
≤1mVrms
\t
Current
\t
≤1.5mArms
\t
≤1.5mArms
\t
Programming/backward reading resolution
\t
Programming
\t
Voltage
\t
0.03%+10
\t
0.03%+10
\t
Current
\t
0.3%+10
\t
0.3%+10
\t
Backward reading
\t
Voltage
\t
0.03% +10
\t
0.03% +10
\t
Current
\t
0.3% +10
\t
0.3% +10
\t
 Load transient response time
\t
It takes less than 50 μs for the output current to change from full load to half load, or from half load to full load and for the output voltage to recover to 15mV.
\t
Stability (±output percentage + quantity of minimum scale interval(s))
\t
Voltage
\t
≤0.02%+10
\t
≤0.02%+10
\t
Current
\t
≤0.1%+1
\t
≤0.1%+1
\t
Temperature coefficient (±output percentage + quantity of minimum scale interval(s))
\t
Voltage
\t
≤0.02%+10
\t
\t
≤0.02%+10
\t
\t
Current
\t
≤0.02%+10
\t
\t
≤0.02%+1
\t
\t
Other
\t
Command processing time
\t
<200ms
\t
Cooling method
\t
Fan cooling
