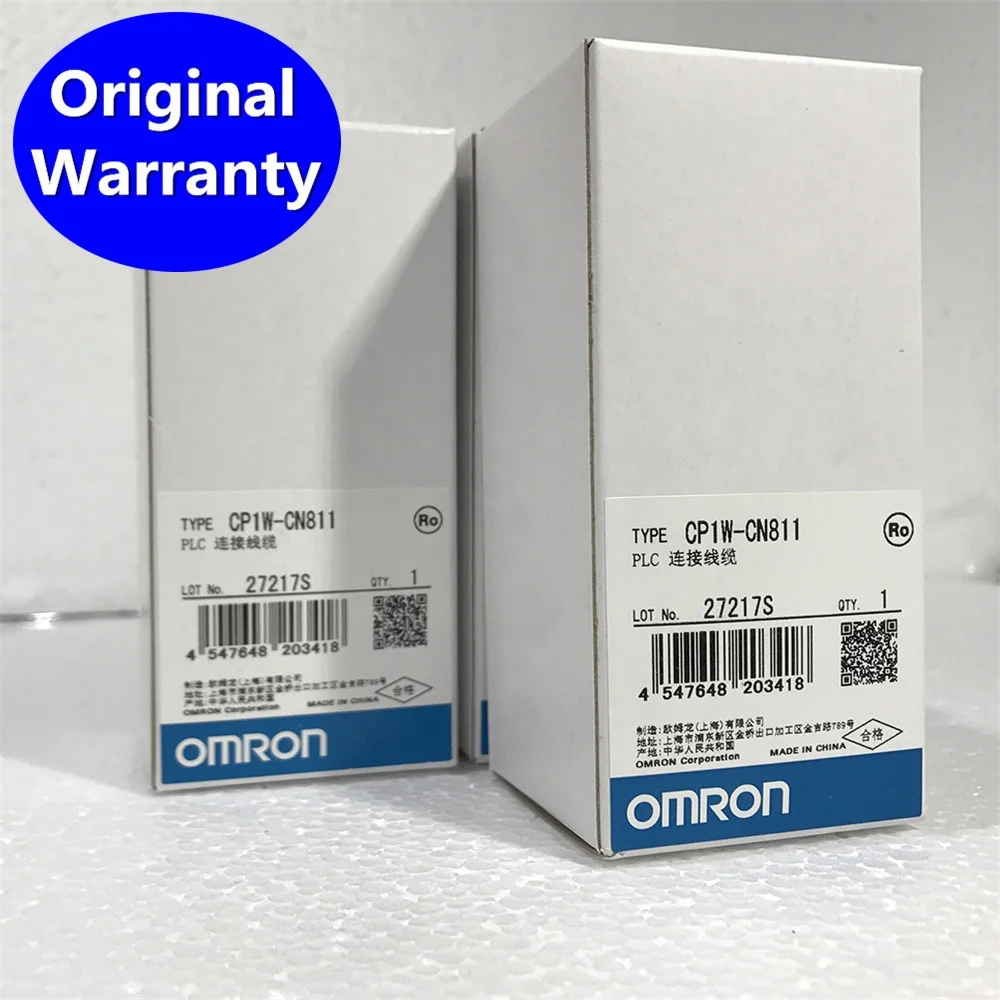

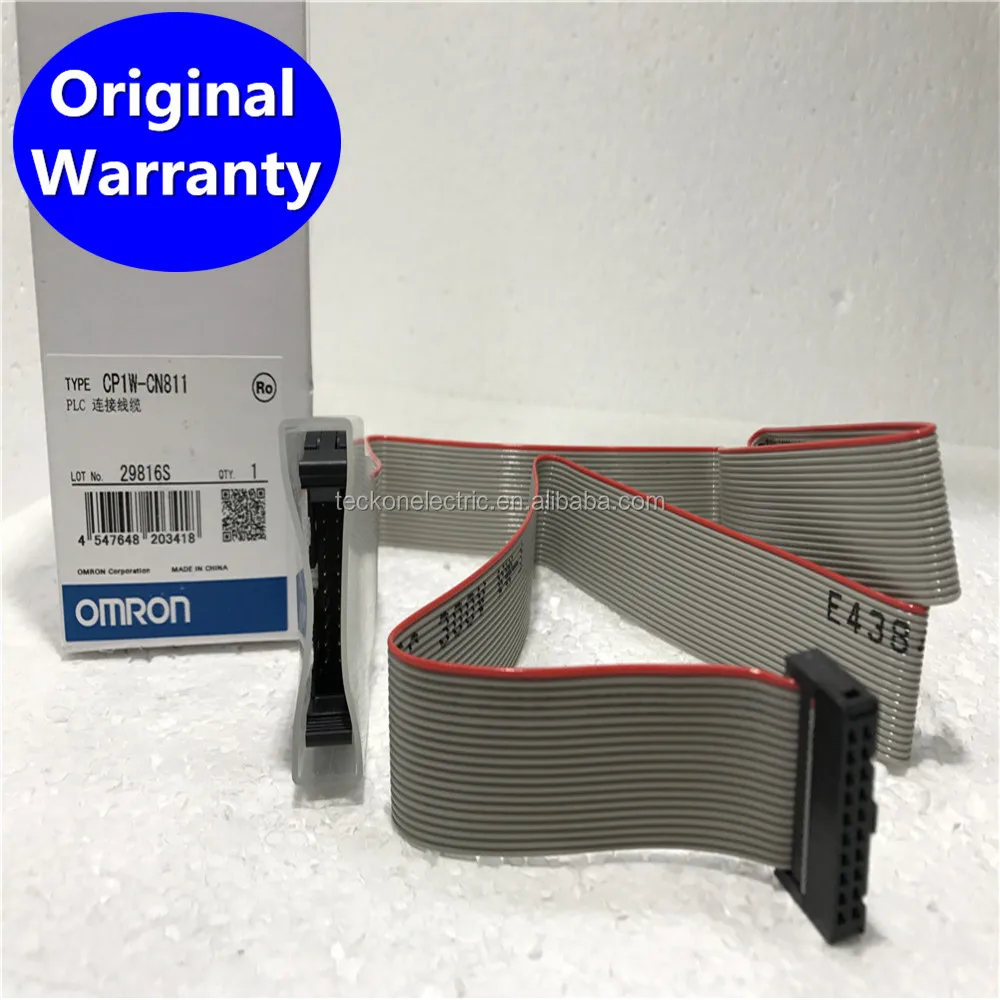

CP1W CN811 80cm controller cable New & Original PLC Extension Connect Cable IN STOCK
- Category: >>>
- Supplier: Teckon Electric (Shanghai) Co. Ltd.
Share on (60836123577):
Product Overview
Description
New & Original Omron PLC Extension Connect Cable CP1W-CN811 IN STOCK
Options for CPU Units
| Name | Specifications | Model | Standards |
| RS-232C Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-CIF01 | UC1, N, L, CE, KC |
RS-422A/485 Option Board | CP1W-CIF11 | UC1, N, L, CE, KC | |
RS-422A/485 (Isolated-type) Option Board | CP1W-CIF12 | UC1, N, L, CE, KC | |
Ethernet Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-CIF41 | UC1, N, L, CE, KC |
Analog Input Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-ADB21 | UC1, N, L, CE, KC |
| Analog Output Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-DAB21V | UC1, N, L, CE, KC |
| Analog I/O Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-MAB221 | UC1, N, L, CE, KC |
| LCD Option Board | Can be mounted only in the CPU Unit Option Board slot 1. | CP1W-DAM01 | UC1, N, L, CE, KC |
| Memory Cassette | Can be used for backing up programs or auto-booting. | CP1W-ME05M | UC1, N, L, CE |
https://teckonelectric.en.alibaba.com/search/product?fsb=y&IndexArea=&CatId=&SearchText=cp1w
Expansion Units
| Product Name | Inputs | Outputs | Output type | Model | Standards | |
| Input Unit | 8 | -- | 24VDC Input | CP1W-8ED | U, C, N, L, CE, KC | |
| Output Units | -- | 8 | Relay | CP1W-8ER | ||
| Transistor (sinking) | CP1W-8ET | |||||
| Transistor (sourcing) | CP1W-8ET1 | |||||
| -- | 16 | Relay | CP1W-16ER | N, L, CE, KC | ||
| Transistor (sinking) | CP1W-16ET | |||||
| Transistor (sourcing) | CP1W-16ET1 | |||||
| -- | 32 | Relay | CP1W-32ER | N, L, CE, KC | ||
| Transistor (sinking) | CP1W-32ET | |||||
| Transistor (sourcing)Transistor (sourcing) | CP1W-32ET1 | |||||
| I/O Units | 12 | 8 | Relay | CP1W-20EDR1 | U, C, N, L, CE, KC | |
| Transistor (sinking) | CP1W-20EDT | |||||
| Transistor (sourcing)Transistor (sourcing) | CP1W-20EDT1 | |||||
| 24 | 16 | Relay | CP1W-40EDR | N, L, CE, KC | ||
| Transistor (sourcing) | CP1W-40EDT | |||||
| Transistor (sourcing)Transistor (sourcing) | CP1W-40EDT1 | |||||
Analog Input Unit | 4CH | -- | Input range: 0 to 5V, 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA | Resolution: 1/6000 | CP1W-AD041 | UC1, N, L, CE, KC |
| Resolution: 1/12000 | CP1W-AD042 | UC1, N, CE, KC | ||||
| Analog Output Unit | -- | 2CH | Output range: 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA | Resolution: 1/6000 | CP1W-DA021 | UC1, N, L, CE, KC |
| -- | 4CH | Resolution: 1/6000 | CP1W-DA041 | |||
| Resolution: 1/12000 | CP1W-DA042 | UC1, N, CE, KC | ||||
| Analog I/O Unit | 4CH | 4CH | Input range: 0 to 5V, 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA Output range: 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA | Resolution: 1/12000 | CP1W-MAD44 | UC1, N, CE, KC |
| 4CH | 2CH | Resolution: 1/12000 | CP1W-MAD42 | |||
| 2CH | 1CH | Resolution: 1/6000 | CP1W-MAD11 | UC1, N, L, CE, KC |
| Temperature Sensor Unit | 2CH | -- | Sensor type: Thermo couple (J or K) | CP1W-TS001 | UC1, N, L, CE, KC | |
| 4CH | -- | Sensor type: Thermo couple (J or K) | CP1W-TS002 | |||
| 2CH | -- | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS101 | |||
| 4CH | -- | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS102 | |||
| 4CH | -- | Sensor type: Thermo couple (J or K) 2 channels can be used as analog input. Input range: 1 to 5V, 0 to 10V, 4-20mA | CP1W-TS003 | UC1, N, CE, KC | ||
| 12CH | -- | Sensor type: Thermo couple (J or K) | CP1W-TS004 | |||
CompoBus/S I/O Link Unit | 8 | 8 | CompoBus/S slave | CP1W-SRT21 | UC1, N, L, CE, KC | |
