Product Overview

Description

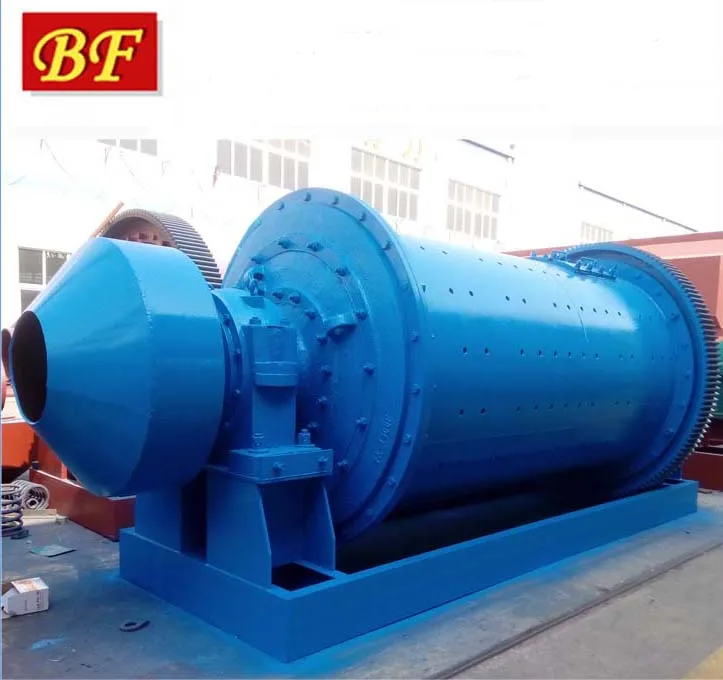

Ball Mill

Product Application

Ball mill is widely used in mining, smelting,road,building material and chemical. It is the key equipment for grinding after the crush process.The mill consists of feeding device, driving assembly, rotating assembly,bearing unit,discharging assembly and foundation unit.There are two discharging type: wet grid ball mill and dry grid ball mill.

BALL MILL
ITEM
Capacity(TPH)
Power(KW)
Weight(T)
ZTMY(G)0909
0.22-1.07
7.5
4.7
ZTMY(G)0912
0.29-1.43
11
5.1
ZTMY(G)0918
0.24-2.14
18.5
6.1
ZTMY(G)0921
0.2-2.9
18.5
7.3
ZTMY(G)0930
0.37-3.6
22
11.5
ZTMY(G)1212
0.2-2.9
22
8.2
ZTMY(G)1216
0.3-4
30
9.4
ZTMY(G)1224
0.26-6.15
45
11.7
ZTMY(G)1228
0.3-6.5
55
12.9
ZTMY(G)1535
2.8-9
80
19.1
ZTMY(G)18330
4-20
130
30.3
ZTMY(G)18360
9-44
245
43.2
ZTMY(G)2130
6.5-36
180
49.1
ZTMY(G)2136
7.8-43.2
210
55.1
ZTMY(G)2145
8.5-55.1
245
64.2
ZTMY(G)2150
9-60
280
65.2
ZTMY(G)2436
10-90
320
66.5
ZTMY(G)2442
11-95
380
69
ZTMY(G)2724
7-82
245
82.9
ZTMY(G)2736
10-110
380
96.9
ZTMY(G)2740
11-120
475
99.1
ZTMY(G)2742
12-130
475
102
ZTMY(G)2745
12-135
500
109
ZTMY(G)3236
74-86
630
144.2
ZTMY(G)3240
75-90
630
153
ZTMY(G)3245
95-110
1000
163
ZTMY(G)3645
110-170
1250
200
ZTMY(G)3660
130-230
1600
230

Main Features

(1) Save energy: bush bearing is replaced by rolling bearing, friction resistance being greatly lowered down, easy to be started. It's energy is lower 10-15% than the old one.

(2)Large capacity: for the outlet disk and the checked liner are adopted, the capacity is higher 20% than the cone ball mill.

(3)The discharging port slurry surface is low, slurry flow through rapidly, decrease ore over-grinding.

(4)Load of ball is large, big balls, small balls be loaded in, and small balls can't be discharged, and can form good working conditions.

Certifications
Detailed Images

Cylinder

Name: cylinder

Brand: JINPENG

Original: CHINA

We used the best quality steel plate and casting cover, feeding parts, discharging parts, motor and transmission for the ball mill

Transmission division

Name: transmission division
Brand: JINPENG
Original: China
The transmission division made for the Material  45# Steel plate

Motor and Reducer

Name: Motor and Reducer
Brand: Xima
Original: China
The motor is the best quality factory and is effective for mine equipment

Other spares for Ball Mill

Name: Linear
The material made for ZgMn13.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2700*3600
Weight
96.9T



Packaging Details
The normal package is nude packaging . we will pack it machine according to customers special request.
