Electric Pipe Cutting And Beveling Machine Cold Cut aotai ISD Model Huawei Split frame
- Category: >>>
- Supplier: Shanghai Huawei Welding & Cutting Machine Sales Co. Ltd.
Share on (60836173318):
Product Overview
Description
Electric Pipe Cutting And Beveling Machine Cold Cut aotai
ISD Model Huawei Split frame
Product Description
It is an external mounting type machine suitable for processing at working site and where with danger of explosion.
| Order NO. | Model NO. | Power supply V/HZ | Beveling range | Thickness of cutting wall | Input power | turnplate speed | Weight |
| HW5550 | ISD-150 | AC220/50 | 65-150 | ≤20 | 2000 | 16 | 4 |

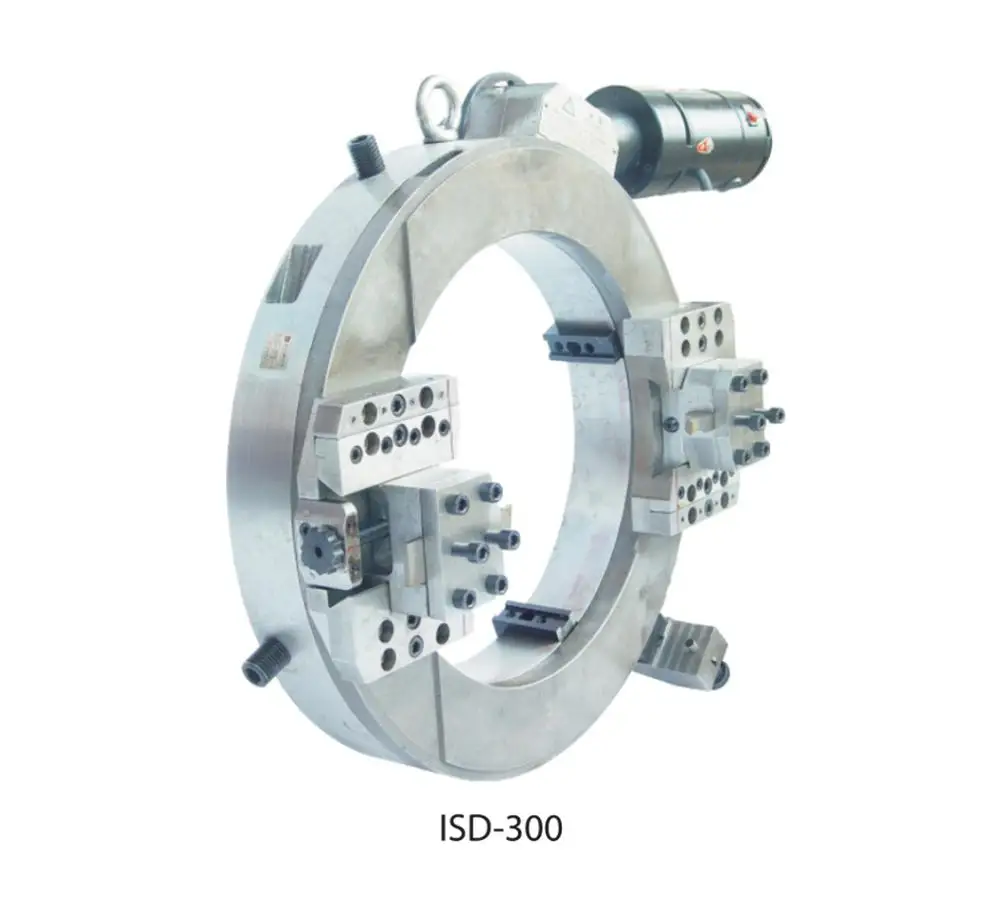

| HW5551 | ISD-300 | AC220/50 | 150-300 | ≤20 | 2000 | 13 | 9 |
| HW5552 | ISD-450 | AC220/50 | 300-450 | ≤20 | 2000 | 10 | 17 |
| HW5553 | ISD-600 | AC220/50 | 450-600 | ≤20 | 2000 | 8 | 15 |
| HW5554 | ISD-750 | AC220/50 | 600-750 | ≤20 | 2000 | 7 | 10 |
| HW5555 | ISD-900 | AC220/50 | 750-900 | ≤20 | 2000 | 6 | 12 |
| HW5556 | ISD-1050 | AC220/50 | 900-1050 | ≤20 | 2000 | 5 | 14 |

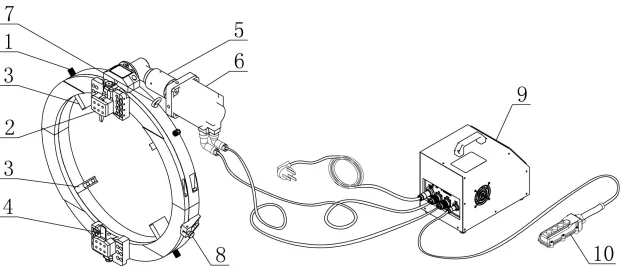

1)chuck screw:The screws are distributed all around of annulus. Adjust the distance one by one until the pipe is locked.
2)blade carrier of groover:There are two blade carriers. One is used for equipping groove blade, another is used for equipping cut-off blade.
3)tension block:There are four kinds of block and any kind has four pieces. You can choose suitable block according to the diameter. These blocks have the ranges of diameter,
which are shown on surface of the block.
4)cut-off blade
5)planet reducer casing parts
6)motor
7)hanging ring
8)feeder lever:The machine stops feeding when the lever is put outward and feeding when the lever is on the low order.
9)Serve motor control box
10)remote controller
2)blade carrier of groover:There are two blade carriers. One is used for equipping groove blade, another is used for equipping cut-off blade.
3)tension block:There are four kinds of block and any kind has four pieces. You can choose suitable block according to the diameter. These blocks have the ranges of diameter,
which are shown on surface of the block.
4)cut-off blade
5)planet reducer casing parts
6)motor
7)hanging ring
8)feeder lever:The machine stops feeding when the lever is put outward and feeding when the lever is on the low order.
9)Serve motor control box
10)remote controller
