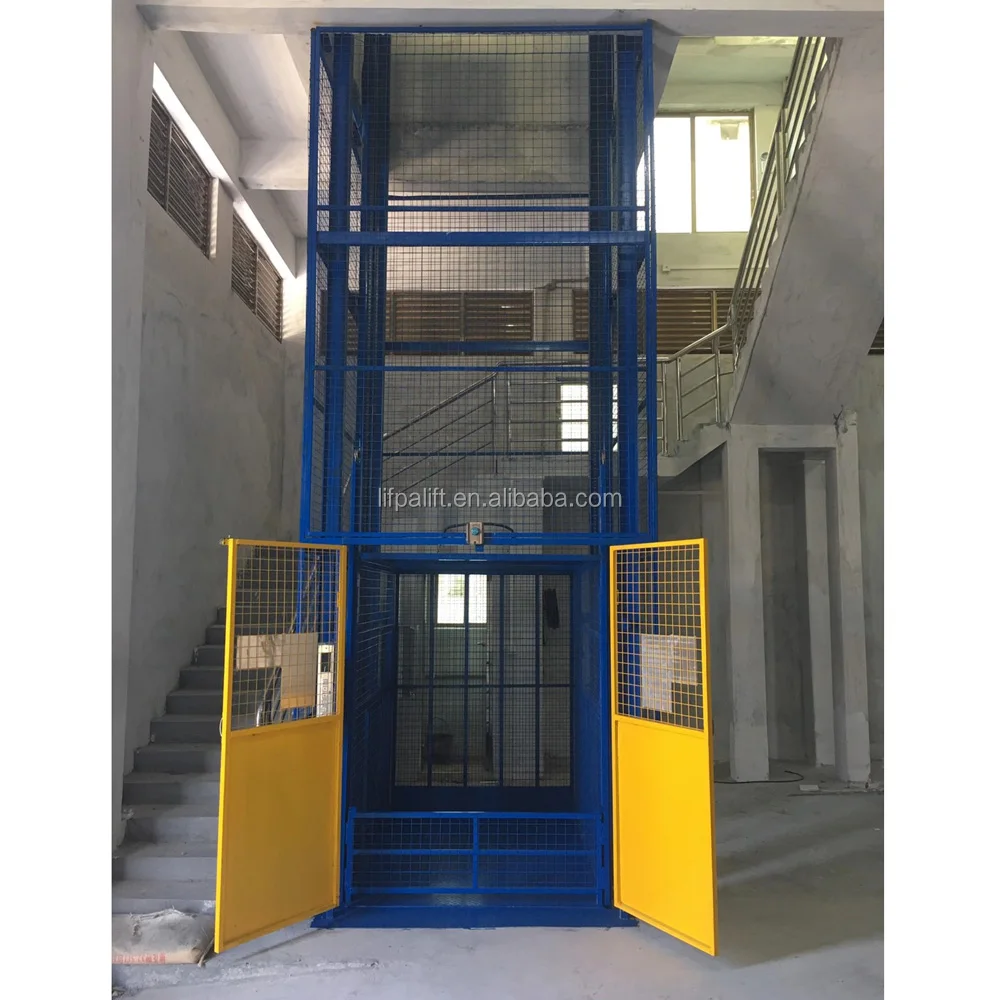

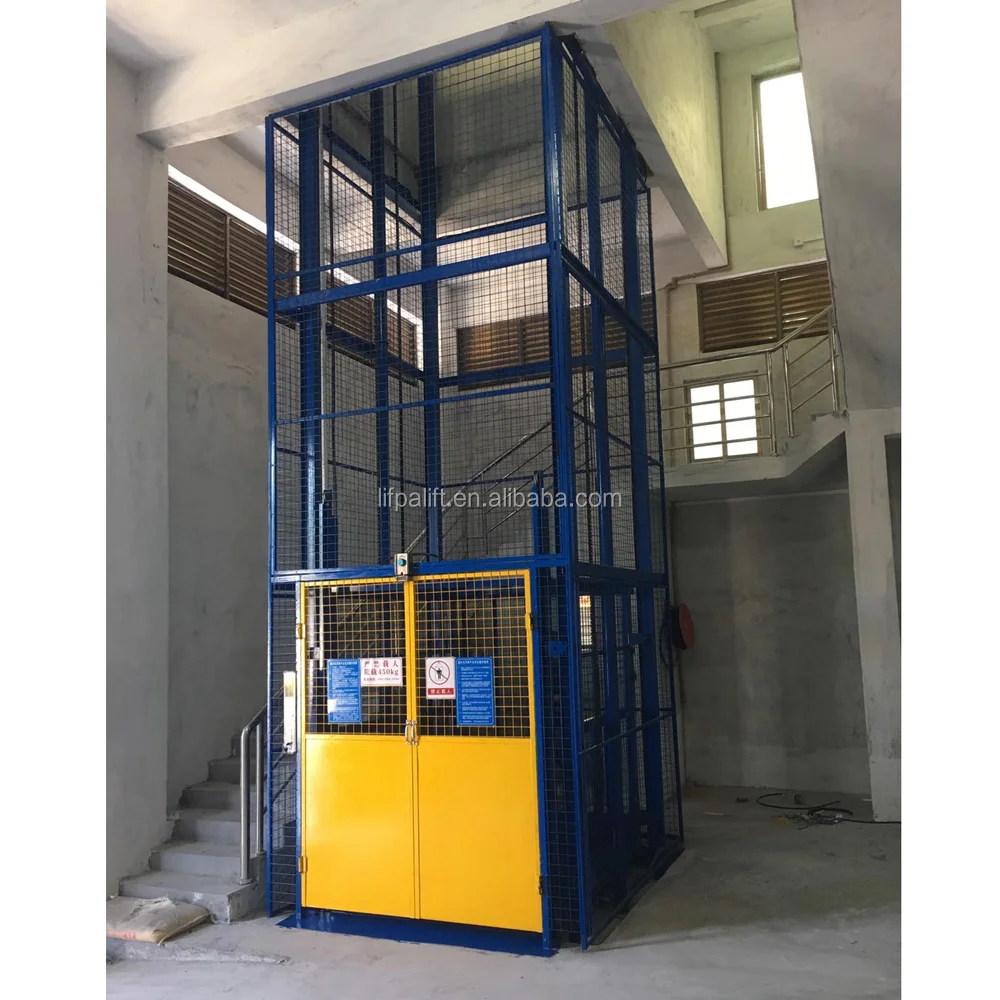

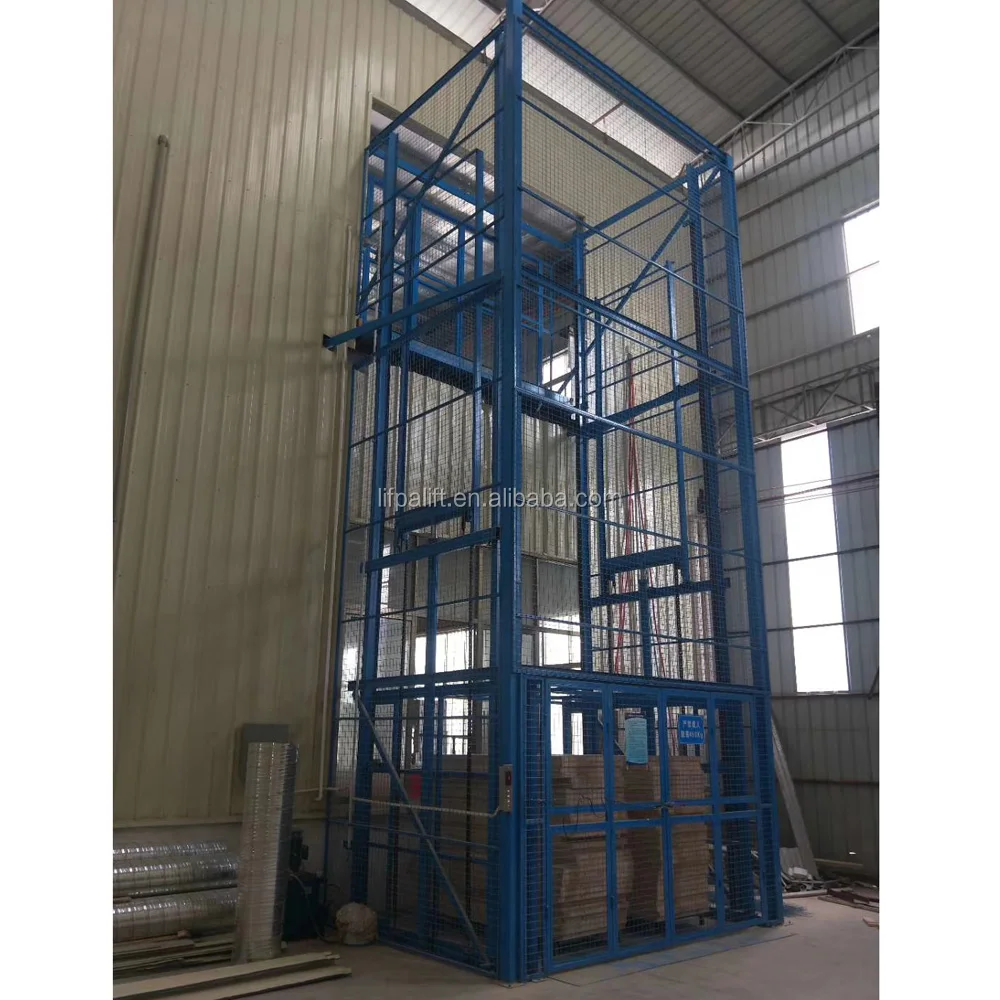

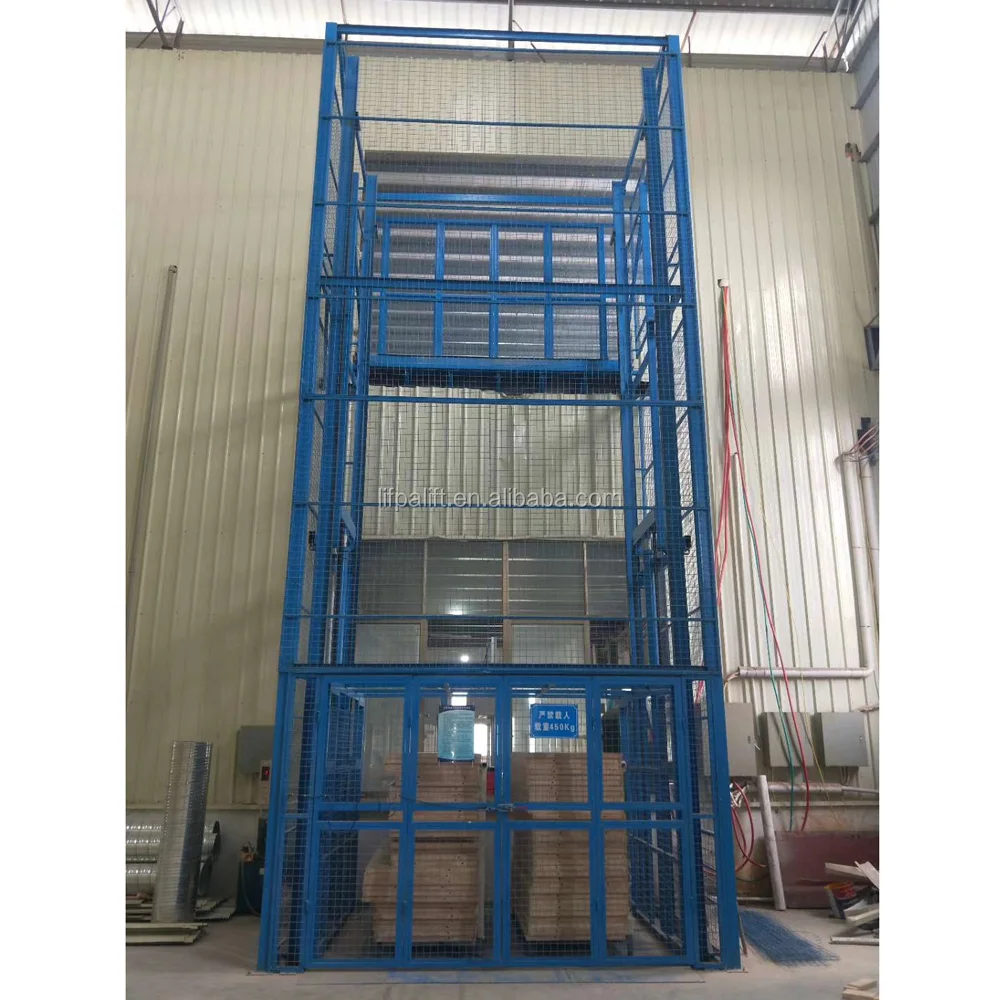

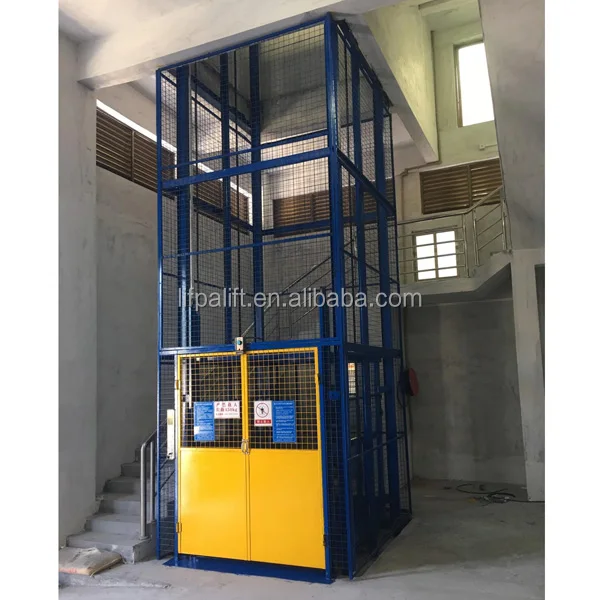

500kg Hydraulic Small Building Mini Elevator Used Cargo Elevator for Sale

Product Overview

Description

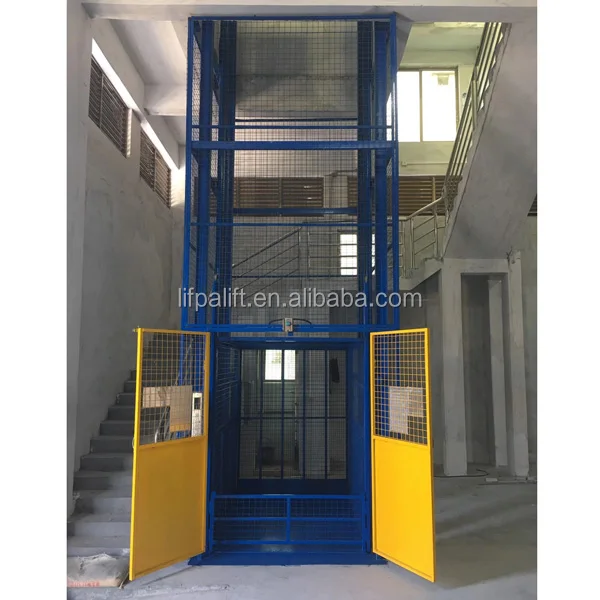

Real Pictures









Product Highlights





• LIFPALIFT's exclusive Assembled Positional-Rollers.







• 3D Drawing for the Rollers-design.







• Up to 8 sets of Rollers ensure working stably.





Features & Benefits

• LIFPALIFT's exclusive Assembled Positional-Rollers provides lifting and lowering stably

• Same or Through loading & unloading configuration

• Standard equipped Steel Wire Ropes provides addtional strength and safety

• Emergency stop button fitted to all control stations

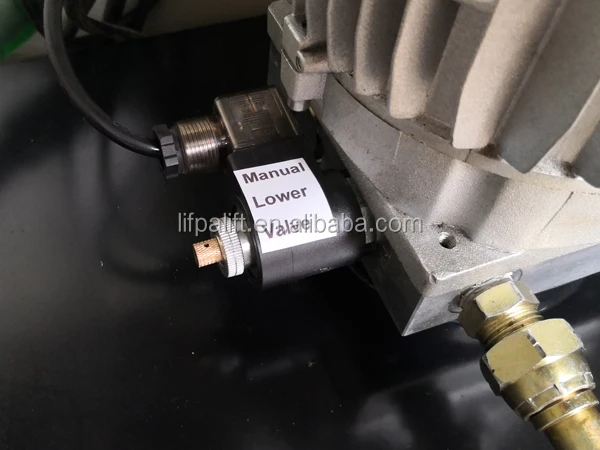

• Manual Lower Valve

• Floor mounted, no pit required

• Comprehensive O&M manual in English version

• AC 110/220/380/460V, 50/60Hz power supply

• Custom size and specs available





Standard Safety Features





• Standard equipped Steel Wire Ropes for addtional safety.







• Emergency stop button fitted to all control stations.







• Standard equipped Manual Lower Valve.





Standard Equipment

• Power station with Protection Cabinet

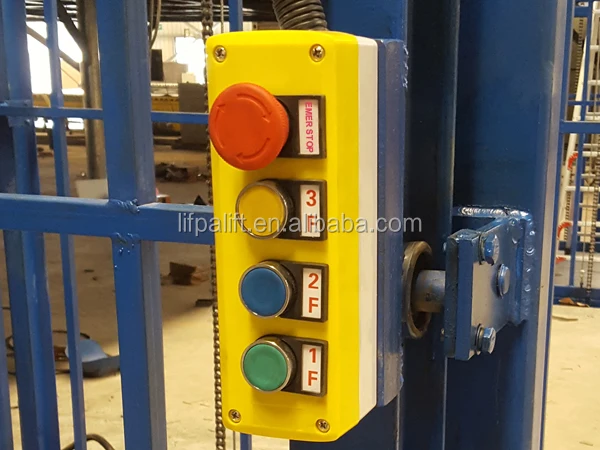

• Push-button control station

• 2000mm high platform guardrails on non-loading sides

• Comprehensive Installation / O&M manual in English version

• Same side or Through Loading





Optional Equipment

• Bespoke platform sizes

• Hydraulic Synchronous Valve for unbalance loading

• Trolley stop barriers on platform

• Working flashing alarm beacon

• Safe gates fitted with mechanical interlocks

• 2000mm high double gates at each floor

• Safe gates with Hazard warning safety signs

• Clad enclosure

• American/UK/European standard power input

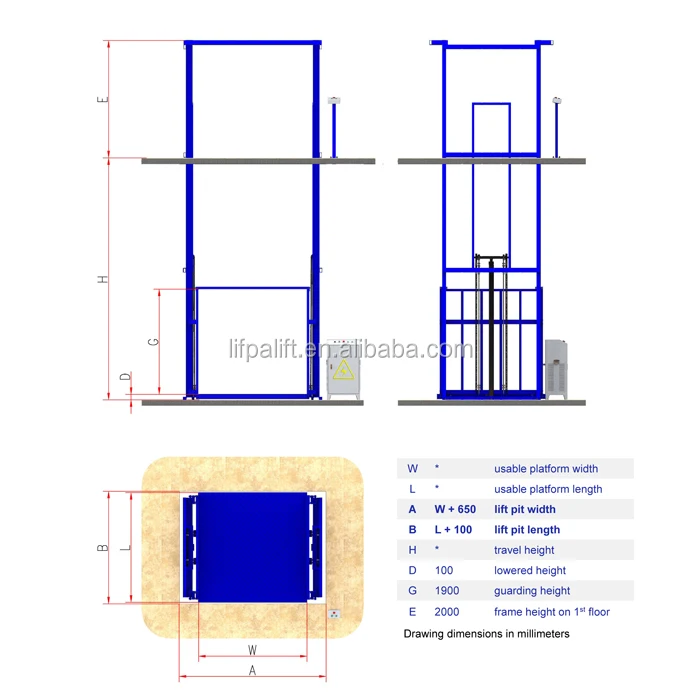

Main Parameters

Model		GL-1041-1820-A	GL-1070-1820-A
capacity	kg	1000	1000
no. of stops		2	3
travel height	mm	4100	7000
lowered height	mm	100	100
power input	V	AC 110 - 380	AC 110 - 380
lift motor	kW	3.0	3.0
lift speed - w. o. load	mm/s	95	90
lowered speed - w. o. load	mm/s	80	80
loading & unloading side		Same or Through
