Mechanical timer TB118N battery operated 150hours 15A 110/230V 24 hour timer switch
- Category: Timers >>>
- Supplier: Wenzhou Elsine Electric Co. Ltd.
Share on (60836184339):
Product Overview
Description

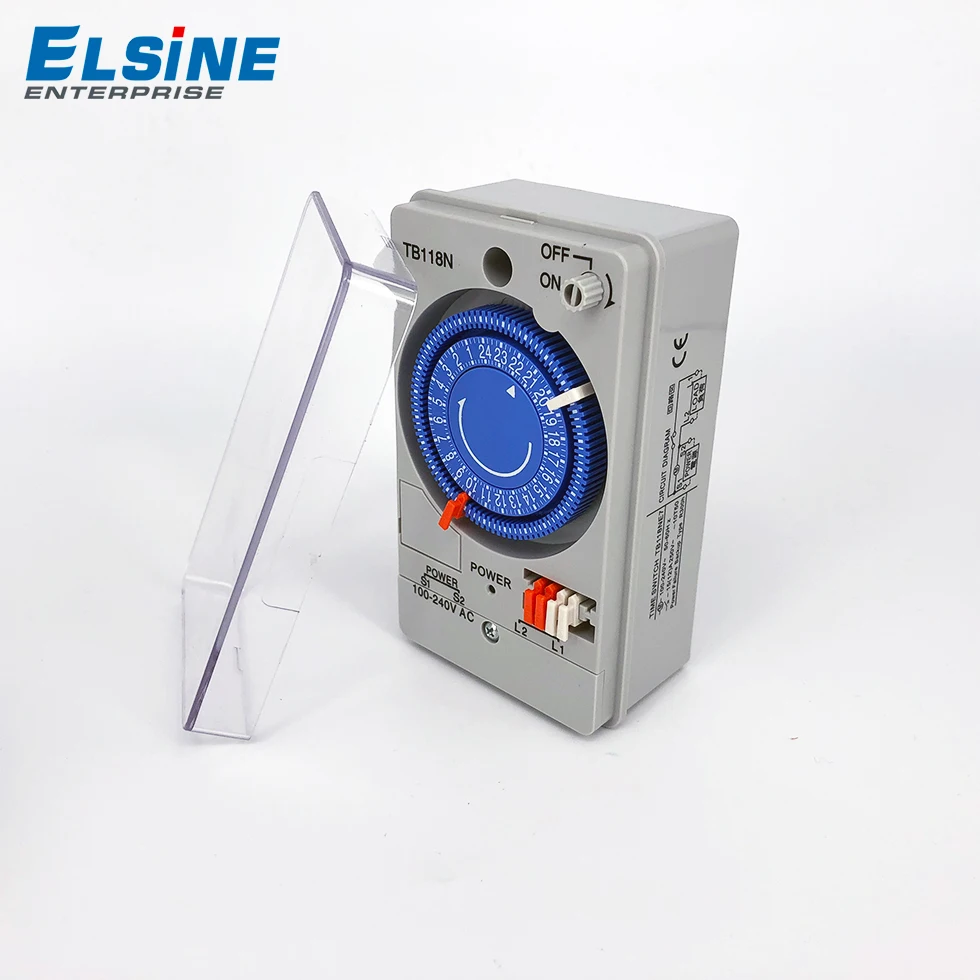

Mechnical timer TB118N battery operated 150hours 15A 110/230V 24 hour timer switch
Product Description
Application:
Timer switch is a kind of time-controller, mainly applied in controlling variety
of electrical equipment automatically in a cycling way.
It’s easy to operate, and widely used in controlling system, such as mechanical equipments,advertisements lamp box, breeding, irrigation,Lighting, water heater,agriculture facilities, broadcasting equipment, home appliance
Technical data:
Type | TB118N |
Rated Voltage | 100~240VAC |
Allowable Operating Voltage | 85~260VAC |
Frequency | 50~60Hz |
Driving Method | Quartz Motor |
Power Failure back-up time | 150h(at 20℃) |
Time Precision | ±5s/month(at 25℃) |
Cycle | 24h |
Power Consumption | 2W |
OUTPUT | |
Circuit Quantity | 1 circuit |
Circuit Configuration | Same Circuit(voltage-applied contact output) |
Contact Configuration | Single Pole, Single-through |
Manual ON/OFF | With ON/OFF Switch |
Contact Capacity | |
Resistance | 250VAC 15A |
Incandescent Lamp | 250VAC 15A |
Induction(cosφ=0.6) | 250VAC 12A |
Motor(cosφ=0.6) | 220VAC 1500W |
Operation Time Setting | |
Method | Setting pin fitting(red:ON, white:OFF) |
Minimum Setting Unit | 15 min Unit |
Minimum Setting Interval | 30 min Interval |
Number of Operations | 6 for standard,Max.48 |
Ambient Operating Temperature | -10℃~50℃ |
Ambient Operating Humidity | 85%RH,or less(no condensing) |
Pollution Degree | 2 |
Overvoltage Category | III |
Classification | 1BSTU |
Outline dimension:
Related Products
Packaging & Shipping
Company Information
Certifications
FAQ
Q 1. What's the payment term?
A. We accept T/T, L/C, Western Union, Cash
Q 2. What's the delivery time ?
A. Usually it would take about 25 days for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
Q 4. What kind of product quality your factory offer?
A. We offer most competitive prices with best quality, copper coil with silver contact.
Q 5. Do you accept OEM and ODM business?
A. We do,for OEM service please send us your authorization, also your quantity should large enough.
Q 6. Could you offer certificate of origin?
A. We can prepare relative documents to foreign affairs office or other office to apply the certificate.
Q7. What kind of certificate you have ?
A. Our company already achieve ISO, and for products, we have CE, SEMKO,CB, BSI, GS, TUV, VDE.
