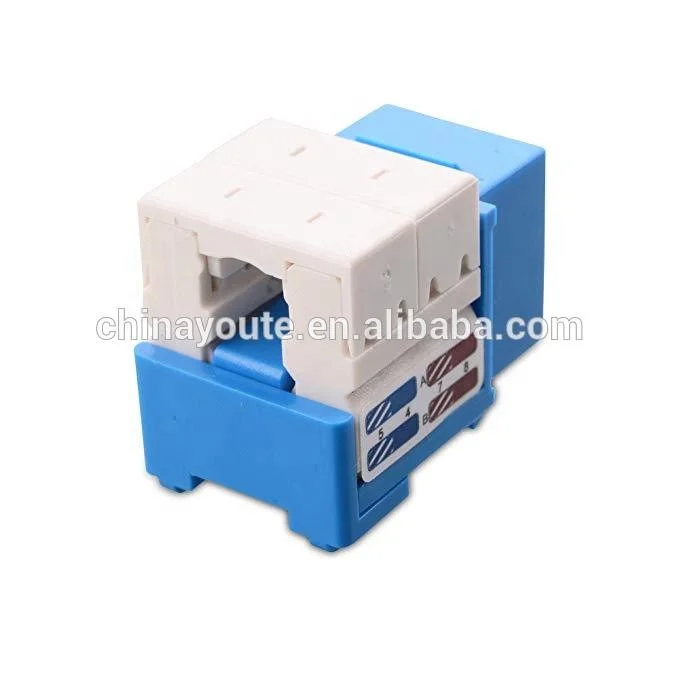

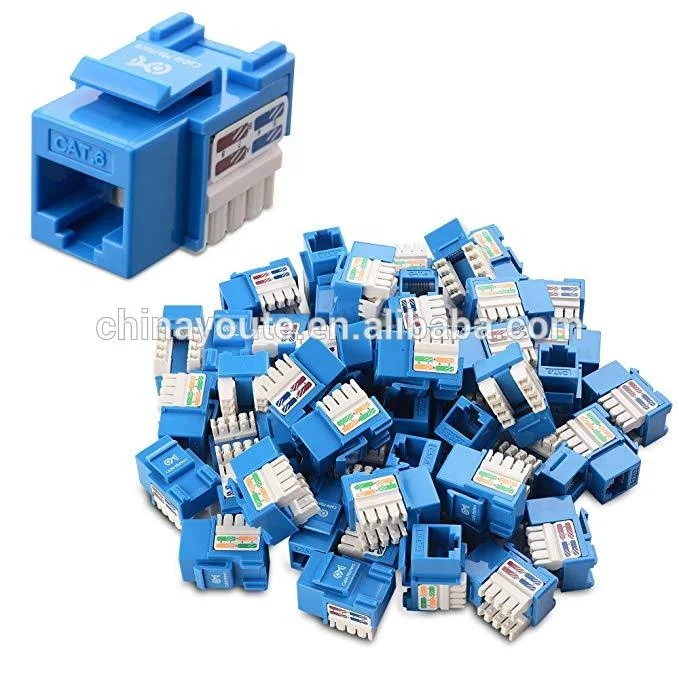

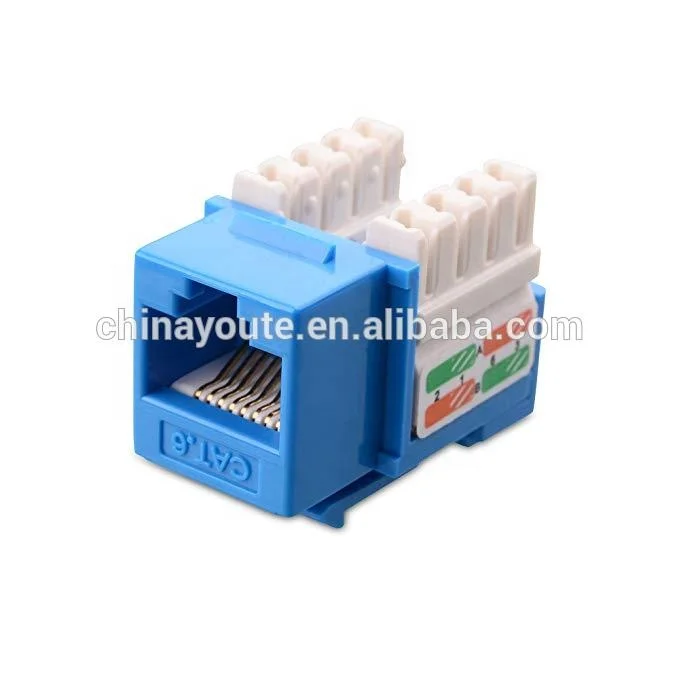

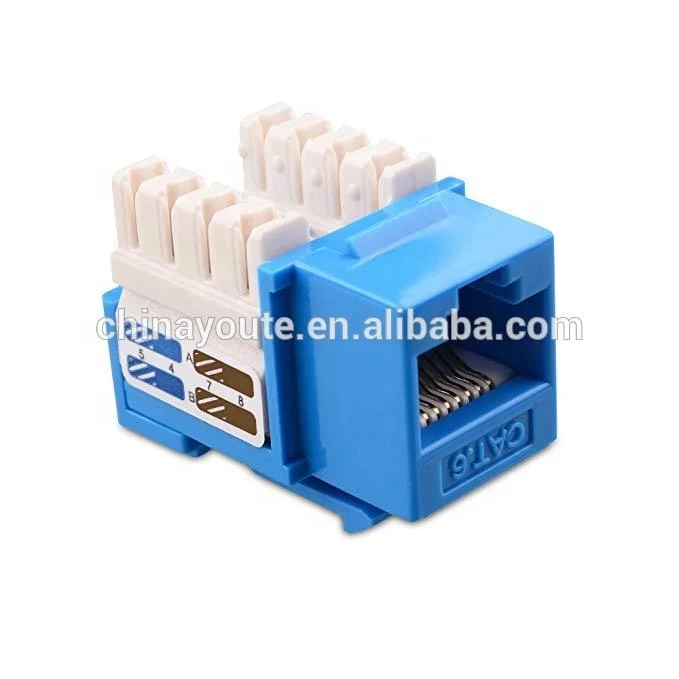

180 Degree Commscope Keystone Jack Amp Keystone Jack

Electrical:

1,Voltage Rating :125 VAC  RMS

2,Current Rating : 1.5AMP

3,Contact  Resistance:11 systimax keystone jack lliohs MAX

4,Insulation Resistance:1 000 megohms   MIN  500 VDC

5,Dielectric Strength :750   VAC   RMS    60Hz ,1 MIN

Environment:

1,Storge: -40~ 85°c            2,Operation: 0~70°c

2.  Operation: 0°TO 70°

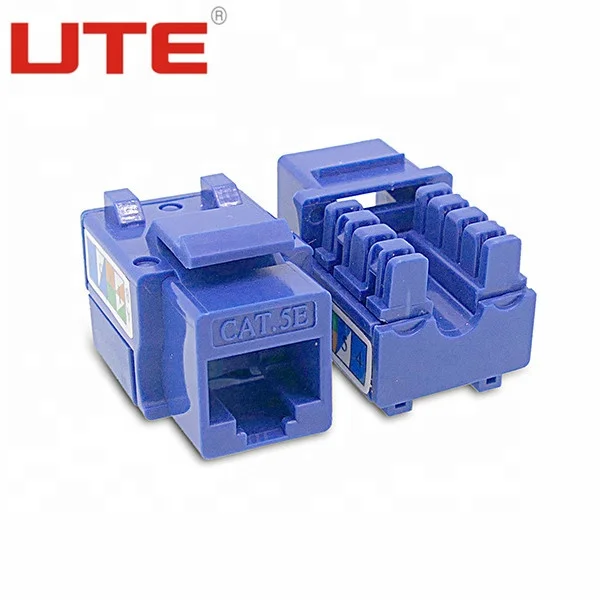

     Conform to TIA/EIA 568B Category 5e

     Mates with modular plug conforming to FCC part 68, Subpart F.

Machanical:

1,Housing Material: PC-UL90V-0

2,Insert Material: Fame Retardancy  ABS UL90V-0

3,PCB Material: FR-4, T=1.6mm

4,Contact Material: Phosphor Bronze Stamp Pin ,T=0.30mm

5,IDC Contact Material: Phosphor Bronze ,T=0.50mm with TIN Plating

6,RJ45 Jack:IFE:750 times MIN.

7,IDC Life :200 times MIN.

8,Wire:AWG 24-26

9,Tia Cat.6 Perm Link Test: Worst Pair NEXT Margin ≥3dB

10,Retentiveness of insertion structure:50N 60±5s

Q: how long Delivery time ?

A: RJ45/RJ11 Series: 12~20 days

SFP Series: 25~30 Days USB Series: 7~15 days

Pin Header/Female Pin header

Connector: 7~15 days

SATA/HDMI Series: 7~15 days

Q: How can I get quotation?

A:It is helpful for us to recommend the right item if we know your detail requirements

(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).

Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

Q: Can I have samples?

A: Samples are available for evaluation.

Q: Is OEM & ODM available?

A: OEM&ODM are welcome.
