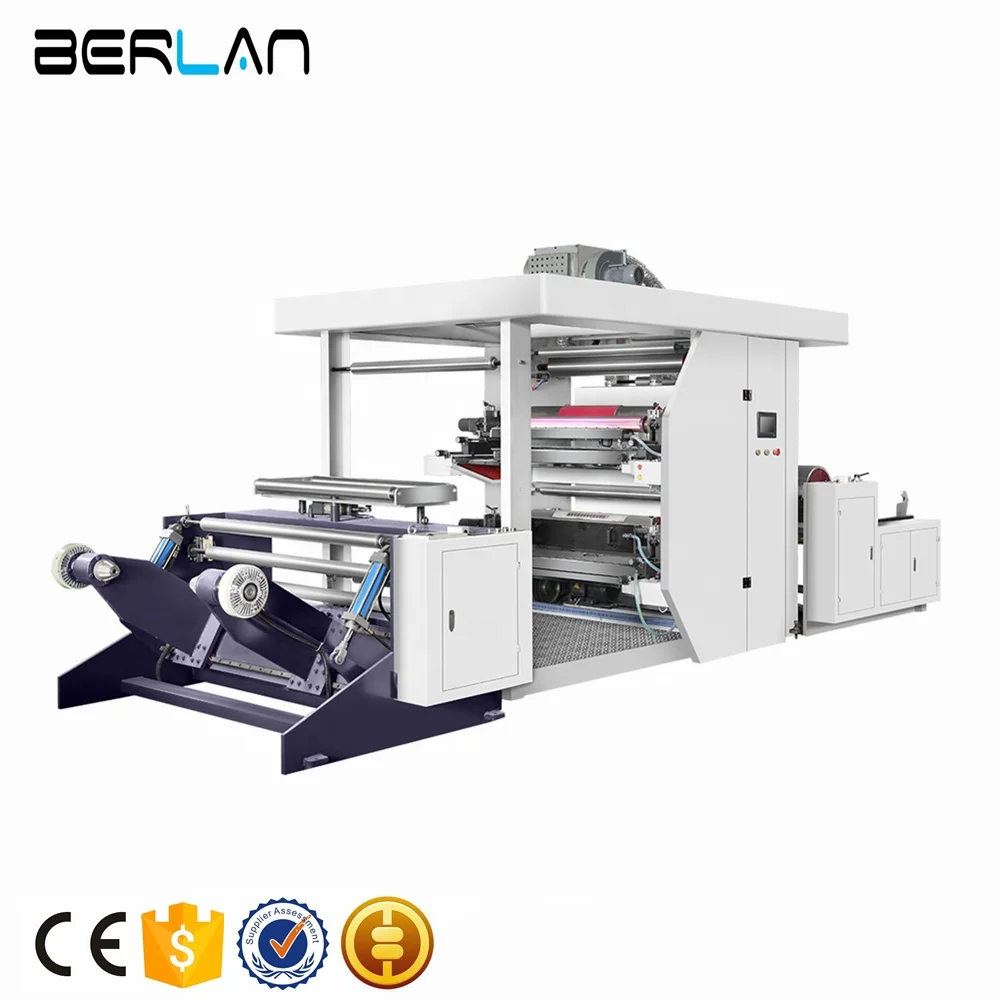

ZYT-Series 4 Color Flex Printing Machine For Paper Roll/Label/Paper Cup
ZYT-Series 4 Color Flex Printing Machine For Paper Roll/Label/Paper Cup

ZYT Series 4 Color Flex Printing Machine For Paper Roll/Label/Paper Cup

Share on (60836213133):


Price:

Quantity:


Product Overview

Description


Product Description
USAGE

ZYT-Series Printer Is Roll To Roll Flexo Printing Machine ,Suit For Printing Paper ,PP Woven Fabric ,Nonwoven Fabric & Bopp,Opp Plastic Film, etc.

Detailed Images


1.Whole machine adopt synchronous belt link with high precision hardened planetary gear gearbox to drive each printing cylinder.

2.Machine have large space for material guiding after printing ,make sure ink drying and material cooling to get good printing effect.


3.Equipped with PLC system to control whole machine & host motor adopt frequency control


4.Equipped with ink circular system ,each color adopt one set reducer motor independently control ink guiding.


5.Shaftless unwinder with auto lift & lower by air cylinder control

Parameter
\t
Model
\t
ZYT-4C-800
\t
ZYT-4C-1000
\t
ZYT-4C-1200
\t
Max.Materail Width(mm)
\t
800mm
\t
1000mm
\t
1200mm
\t
Max.Printing Width(mm)
\t
760mm
\t
960mm
\t
1160mm
\t
Max.Unwinding Diameter(mm)
\t
1000mm
\t
1000mm
\t
1000mm
\t
Max.Rewinding Diameter(mm)
\t
1000mm
\t
1000mm
\t
1000mm
\t
Printing Length
\t
228-1000mm
\t
228-1000mm
\t
228-1000mm
\t
Color Register Precision
\t
≤±0.15mm
\t
≤±0.15mm
\t
≤±0.15mm
\t
Printing speed
\t
5-100m/min(According to material condition)
\t
5-100m/min(According to material condition)
\t
5-100m/min(According to material condition)
\t
Printing Plate Thickness
\t
2.28mm(According to client requirement)
\t
2.28mm(According to client requirement)
\t
2.28mm(According to client requirement)
\t
Host Motor Power
\t
4KW
\t
5.5KW
\t
5.5KW
\t
Total Power
\t
15KW
\t
17KW
\t
22KW
\t
Machine Size
\t
L4500* W1900*H2950MM
\t
L4500*W2100*H2950MM
\t
L4500 * W2300*H2950MM
\t
Machine Weight
\t
4500Kgs
\t
5000Kgs
\t
5500Kgs
Certifications


CE Certificate

Our Service

Warranty

* 1 year warranty base on export date
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*In Vietnam,Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.

Packing & Delivery


Machine need one 20'' container to load.
