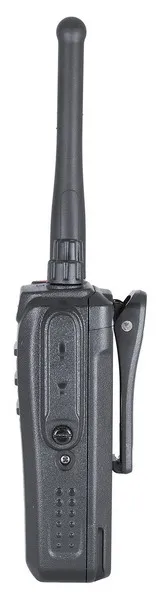

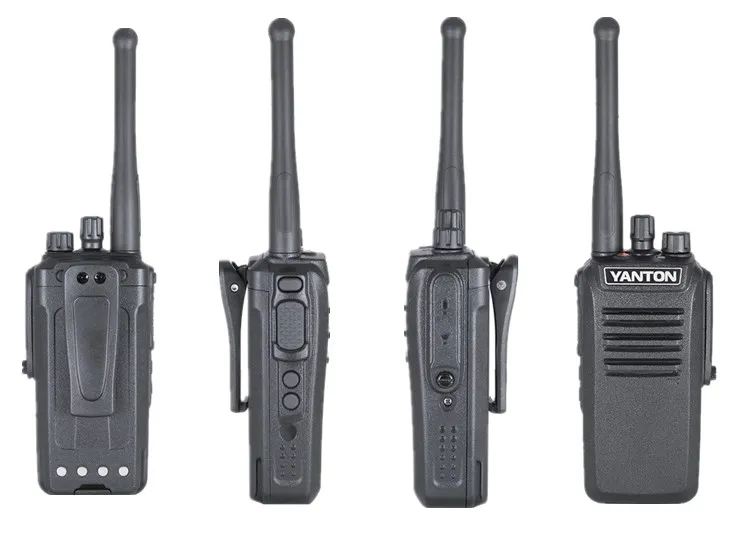

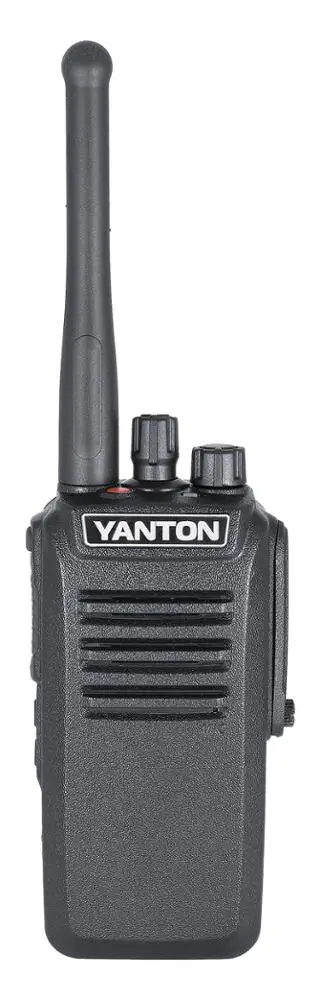

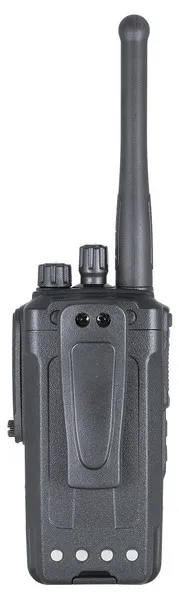

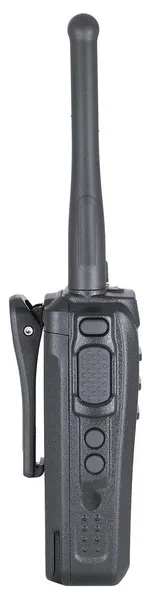

YANTON T 850 single band 10 watt long range 16 channels high battery portable radio

Share on (60836254909):


Price:

Quantity:


Product Overview

Description


\t\t\t\t\t\t\t\t\tHot Sale \t\t\t\t\t\t\t
Product Description

YANTON T-850 single band 10 watt long range 16 channels high battery portable radio

◊16channels
◊ 10W/5W/2W Power Switch with Side-key operation
◊ Chinese/English Voice Announcement
◊ Wide/Narrow Bandwidth Selection 12.5KHz/25KHz
◊ CTCSS&DCS non-standard code
◊ Battery Saver
◊ Low Battery Alert
◊ Check battery capacity by handheld operation and will annouce the capacity in current status
◊ VOX on/off, VOX level setting, VOX delay time setting

◊ DTMF/PTT ID
◊ Busy Channel Lockout

◊ Scan, Auto scan, Priority Channel Scan, Scan Add, Scan Delete
◊ TX Power Level Adjustment by hand operation
◊ Monitor / Monitor Momentary
◊ Squelch level report, Squelch level adjustment
◊ TOT function
◊ Emergency Alarm
◊ 2 Tone
◊ Remote Kill,Stun,Activate&Revive
◊ Tail Tone Eliminate
◊ Auto Power Off
◊ Wire Clone
◊ PC Software Program

\t
GENERAL
\t
Frequency Range
\t
136-174MHz/400-480MHz
\t
Operating Temperature
\t
-20℃ to +55℃
\t
Frequency Combination
\t
please lock frequency synthesize
\t
Frequency Stability
\t
±2.5ppm
\t
Memory Channel
\t
16
\t
Working voltage
\t
7.4V
\t
Antenna Impedance
\t
50Ω
\t
Operating Mode
\t
simplex of co-frequency or alien
\t
Dimensions
\t
122*60*38mm
\t
Weight
\t
232g
\t
TRANSMIT PART
\t
RF power
\t
10w
\t
Modulate Mode
\t
F3E
\t
Max.Freq.Deviation
\t
≤5KHz
\t
Remain Wave Radiation
\t
<-60dB
\t
Transmitting Current
\t
≤1000mA
\t
RECEIVER PART
\t
Sensitivity
\t
<0.20uV (12dB SINAD)
\t
Squeich Sensitivity
\t
<0.20uV
\t
Intermodulation Antijamming
\t
50dB
\t
Audio Power output
\t
500mW
\t
Receiving Current
\t
≤100mA
\t
Squelch Stangby
\t
20mA
