Digital Ph Meter PH Analysis Instrument PH Online Controller

Product Overview

Description





Digital Ph Meter PH Analysis Instrument PH Online Controller

♦ Part one: Frotec PH Controller Description

1.Brief introduction and Technical Specification



PH ORP controller : PH or ORP control meter for water treatment

Features :
On-line panel mount PH/ORP monitor

Display in MV,PH

Simulate Function, Isolated 4-20mA current output
Relay control output. Hi, Lo, On, Off
Automatic temperature compensation

Technical Parameter:
Sensor input range:    0.00 ~ 14.00 PH

Accuracy  :         0.02PH

Stability:          ± 0.1PH
Display:          Back light 3.5-bit LCD
Temperature comp.:    Automatic programmable compensation standard Temperature: 25C
Electrode:        0.05cm-1 sanitary grade stainless steel 316L electrode,1/2" thread
Cable length:        10m or others(5~30m)
Current output:      Isolated 4-20mA current output Environmental conditions:  Temperature: 0~50C; Humidity: ≤ 85%RH
Control output :    Relay control output, Hi,Lo,on,off

Power supply :  AC 220V ±10% 50HZ

Environmental conditions :  temperature : 0~50°c; Humidity : ≤85%RH

Dimensions:        96 × 96 × 130mm (height × Width × Depth)
Panel cut-out    92X92mm

Installation        Cut-out Fit-In

 voltage:             24V and 220V(note this, you can choose the voltage)

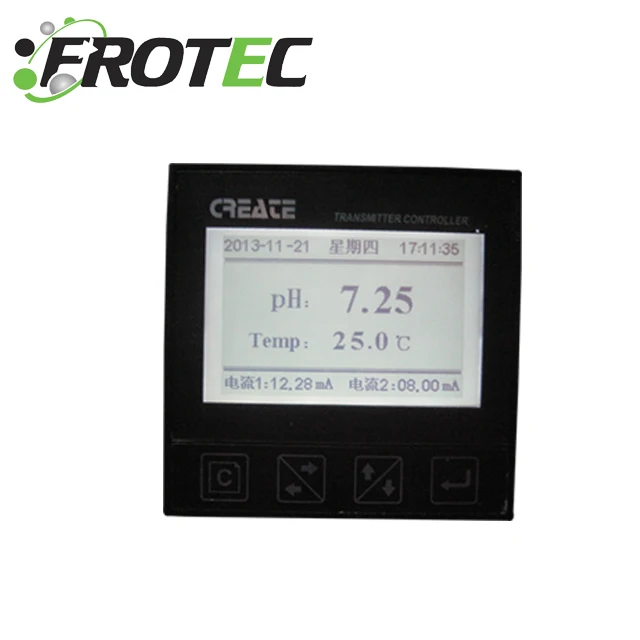

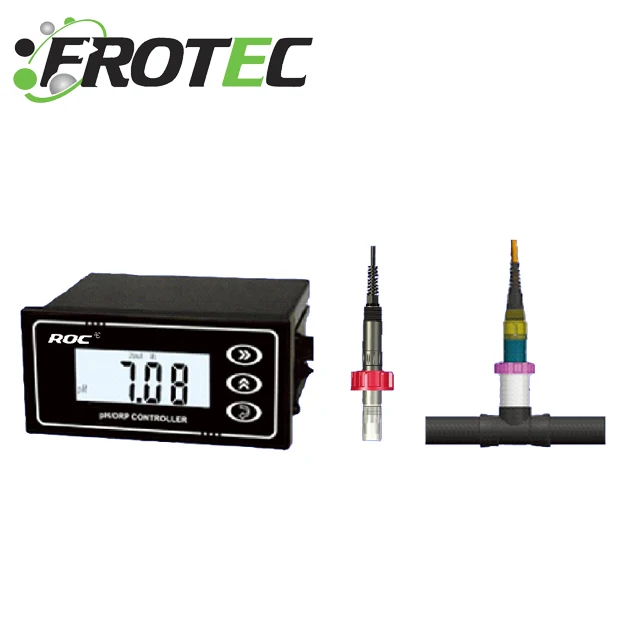

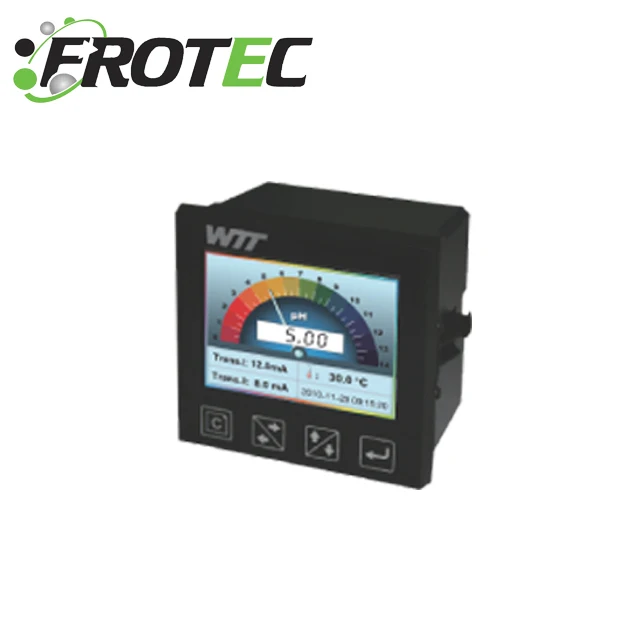

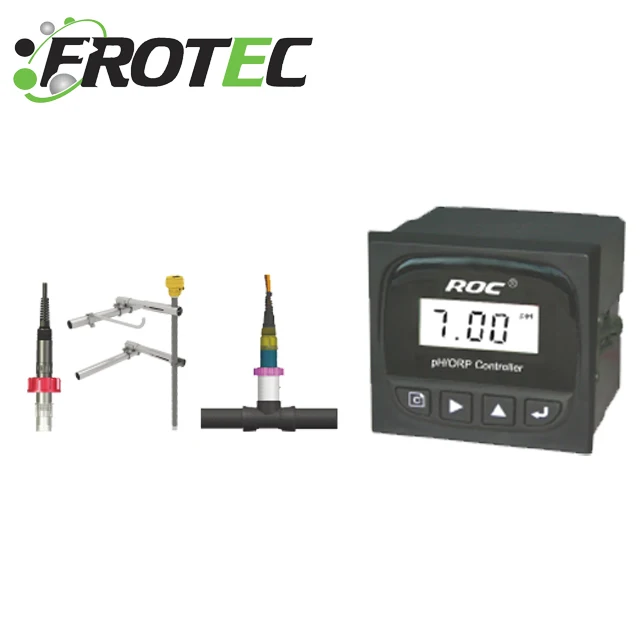

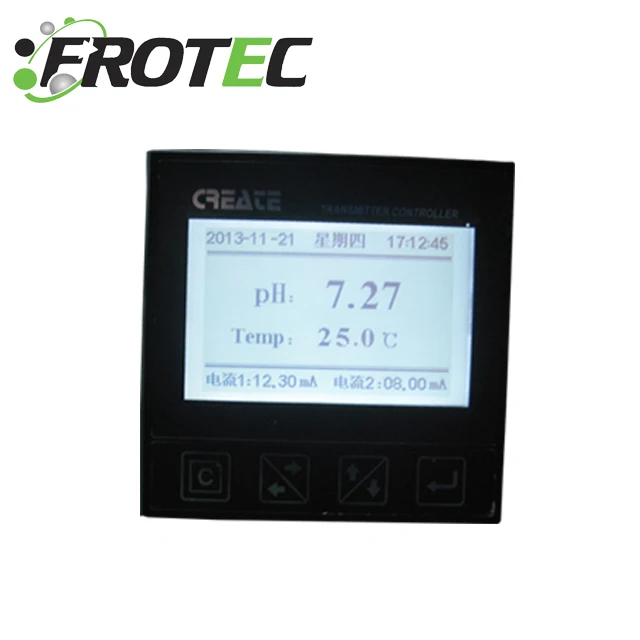

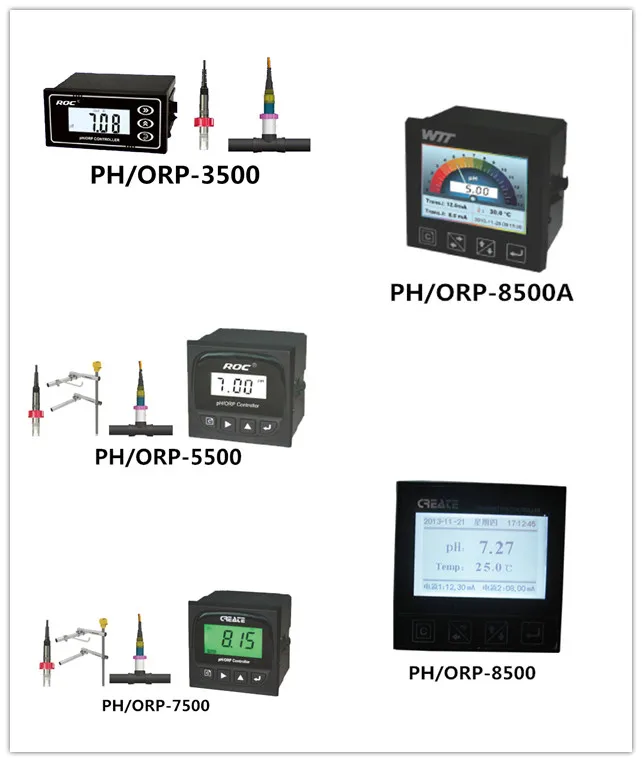

2. Product Show

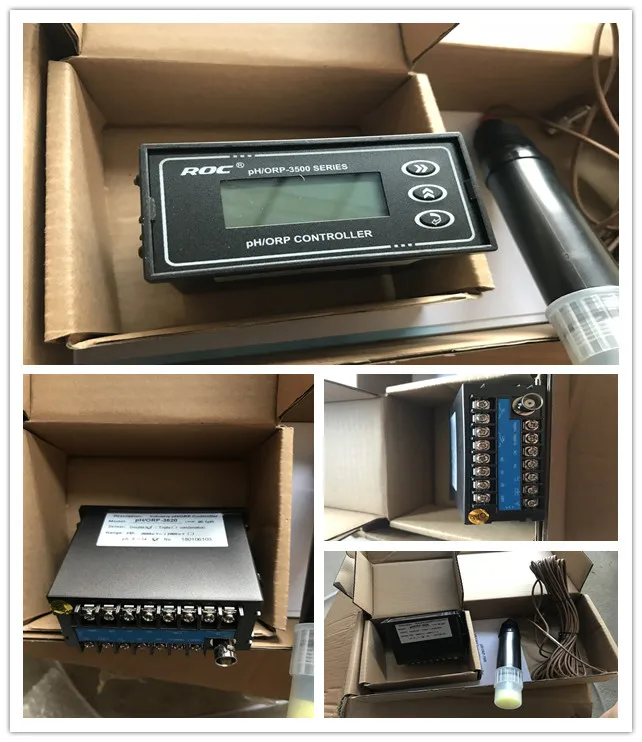

♦ Part two: Frotec PH Controller Packaging

♦ Part three: Frotec Serivce

 1. Our Service

Welcome to your inquiry,you are promised to get our quotation withing 24 hours

We are pleased to send you a sample on you confirm

We promise that we will implement your order on time

You are promised to get the best quality at the best price with the best service

 2.FAQ

 a.OEM service available for filter cartridge?

Yes,  OEM service is available, but the Frotec brand price better than OEM

 b.Payment Term

We can accept  L/C, T/T, Western Union, MoneyGram and paypal

 c.Certicification

We had passed ISO9001

 d.Shipping

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.

For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.

 e. Lead  time

The normal lead time is 7-15 days, which depends on your quantity.



♦ Part four: Frotec Advantage Products

Ion Exchange Resin	FRP Tank	PP Pleated Filter Cartridge
Reverse Osmosis Membrane	FRP RO Membrane Housing	Ro Water Purification Plant
