Product Overview
Description
Product Description

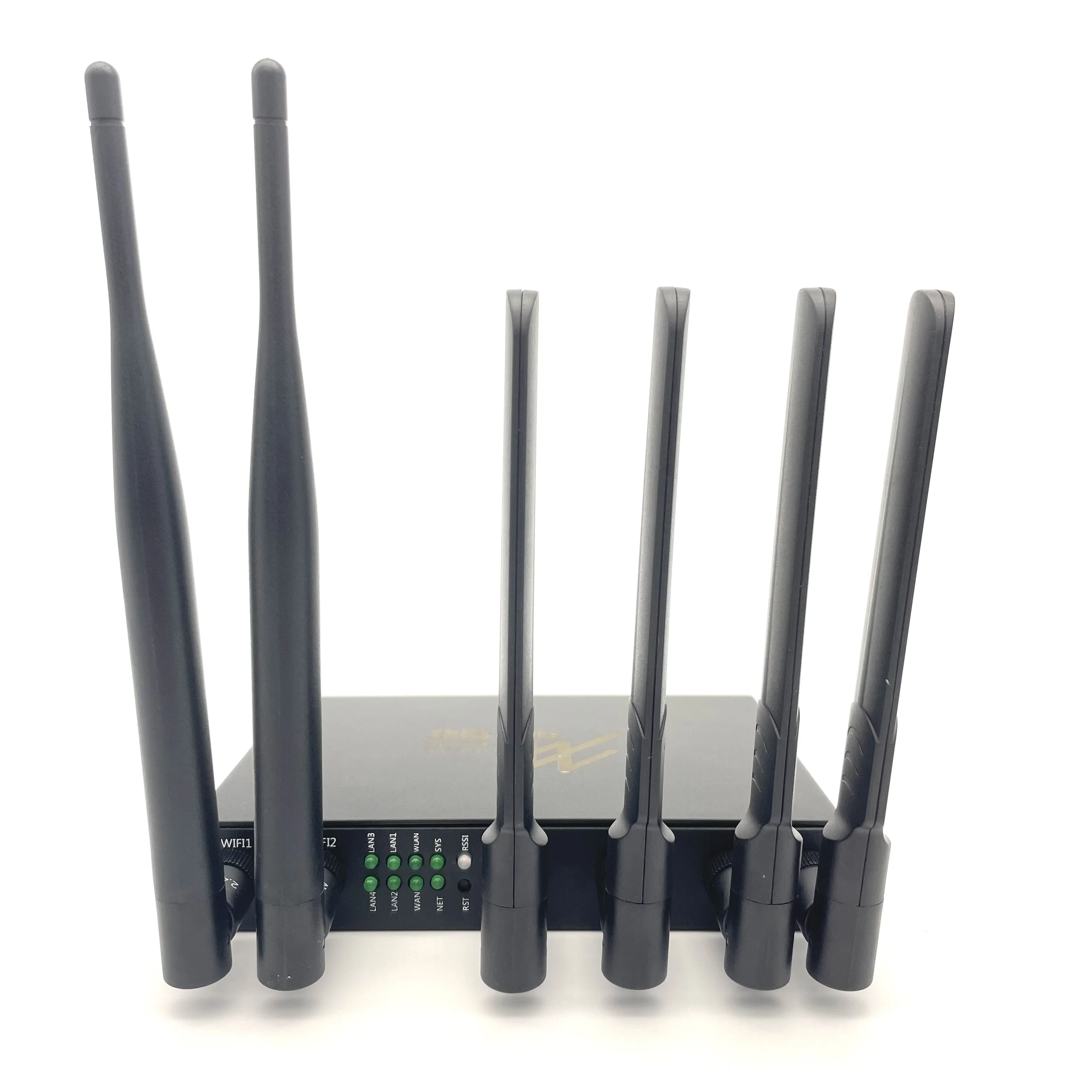

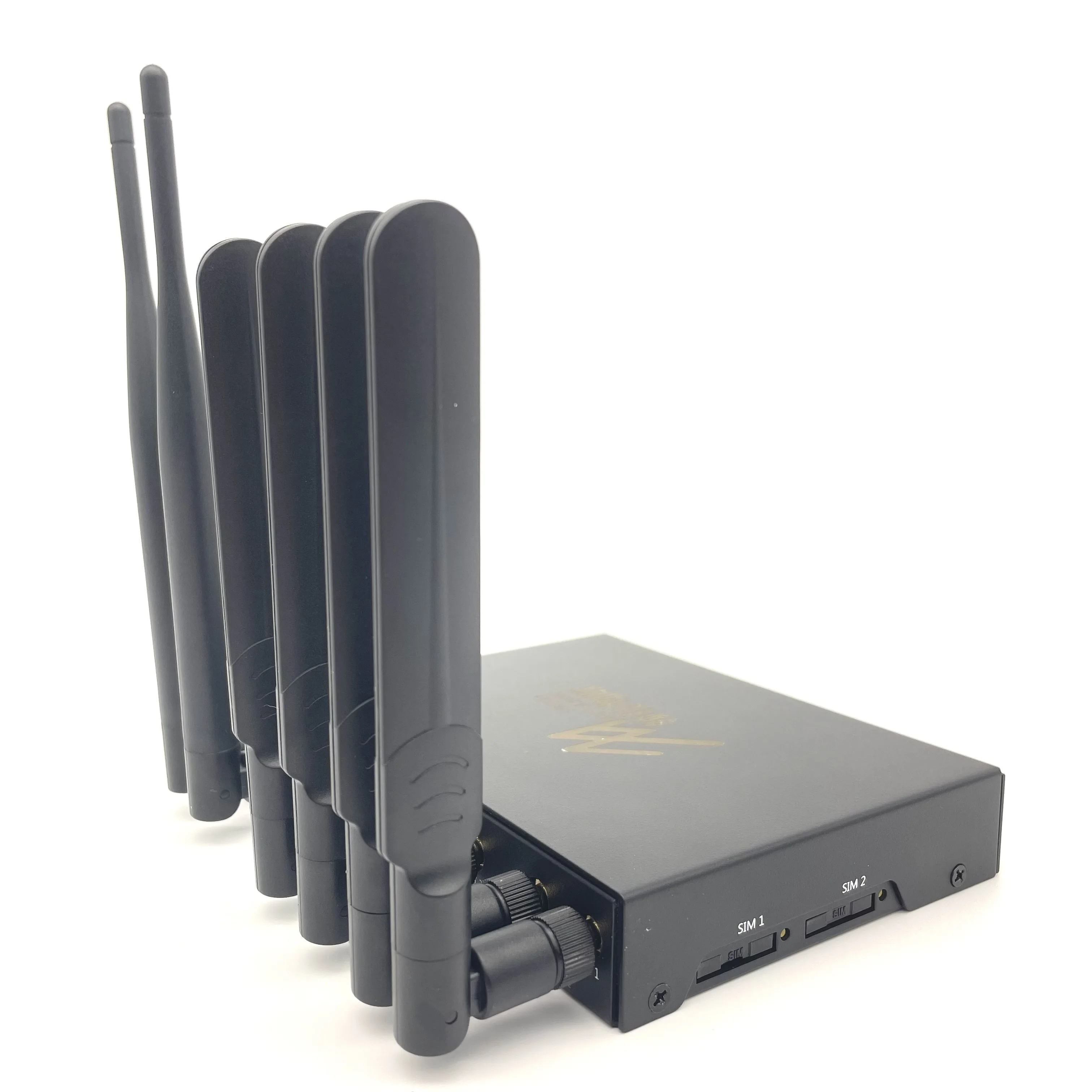

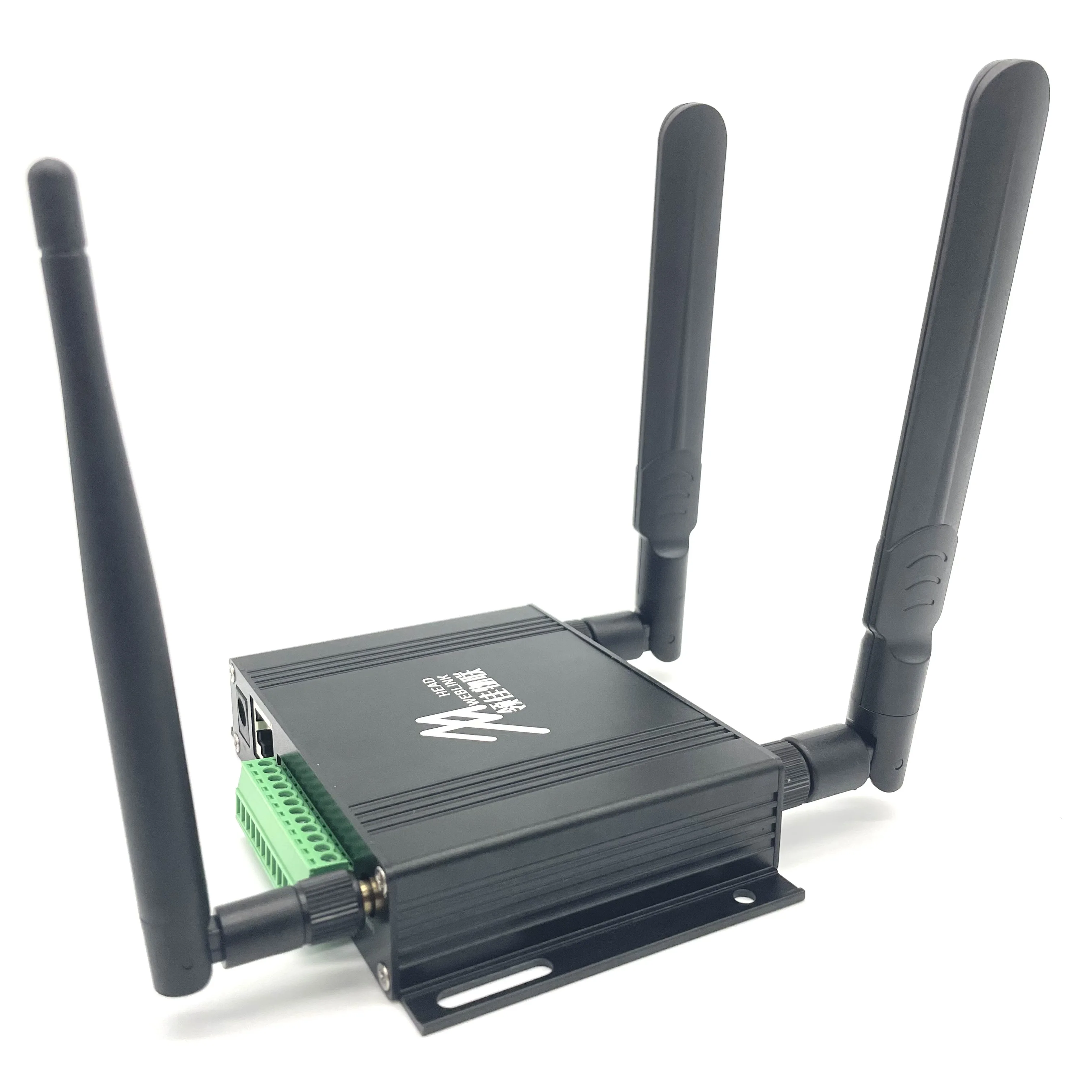

1200Mbps data rate 6 port wireless netgear router 4g industrial wifi router VPN

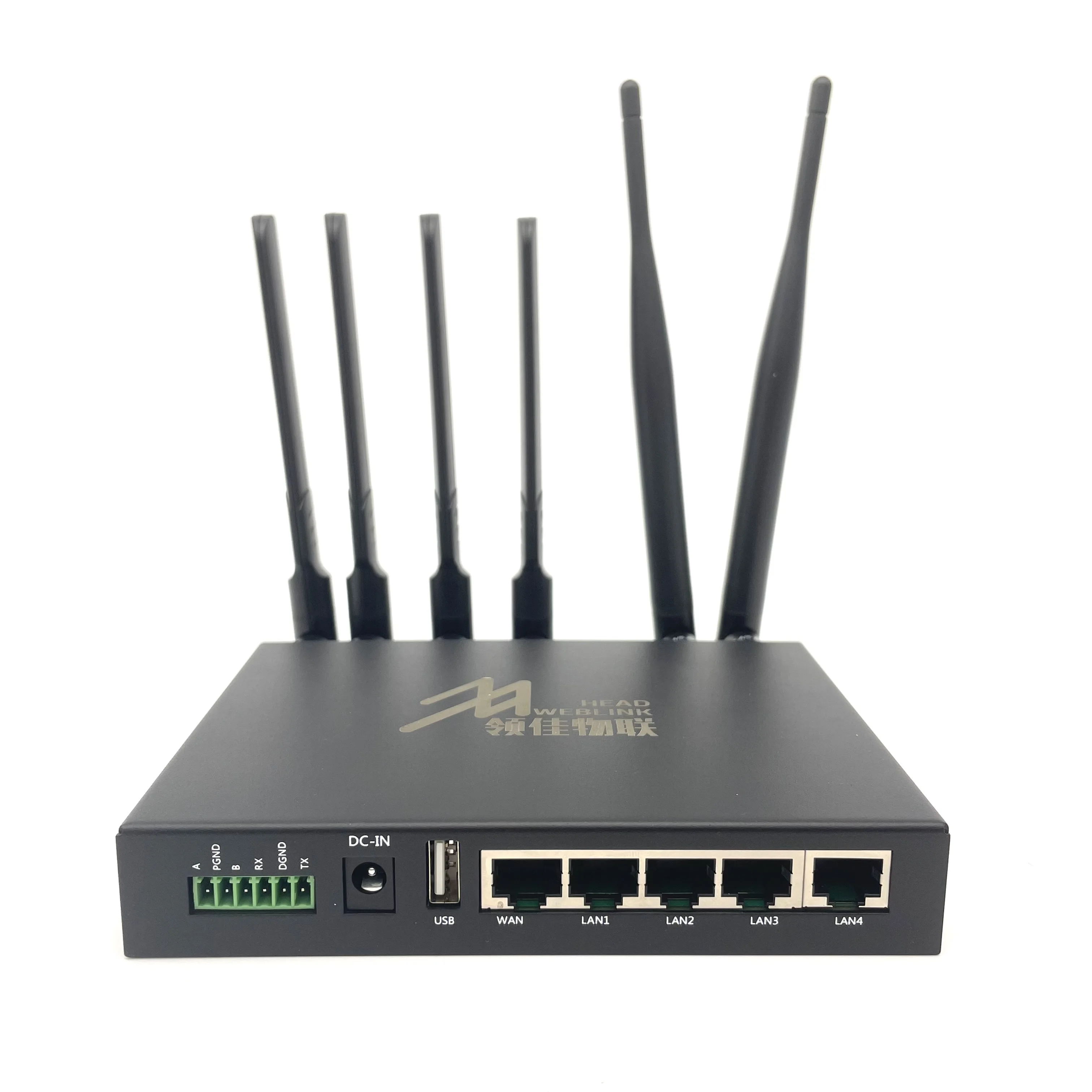

HDRM200 six LAN ports industrial Gigabit router integrated machine,is designed for global market.It provides 4G LTE/WIFI/GPS/SD storage function 2.4G/5.8G WIFI. It provides stable and reliable data connection for user device such as RTU, Broadband, Intelligent Transportation, Financial self-service terminal, Express cabinet , Power Ammeter and other remote device management application. In order to achieve permanent online, some key feature such as watch-dog function, wide temperature and multiple RF band/mode are suppored by HDRM200 industrial router,making it can be used in any environment of worldwide .Provides one WAN port, four fast Ethernet ports, one Gigabit Lan port. Supports VLAN feature.
Main Specification
• 3G/4G LTE data transmission;
• Power-on automatic network dialing;
• Built-in watchdog, system crashes self-recovery;
• Built-in link maintenance mechanism, data link dropped from self-recovery
• 2*2 4G/WIFI MIMO antenna;
• Supports 3G/4G LTE,WIFI funtion;
• Supports GPS funtion;
• Firmware version: Linux or Openwrt
• One WAN,Five LAN(1 Gbit LAN & 4 LAN/100Mbps) ports, Support VLAN,LAN Ethernet port.
• One console port, One USB port,RS232 or RS485 Interface,4 line GPIOs;(Optional)
• SD data storage (Optional);

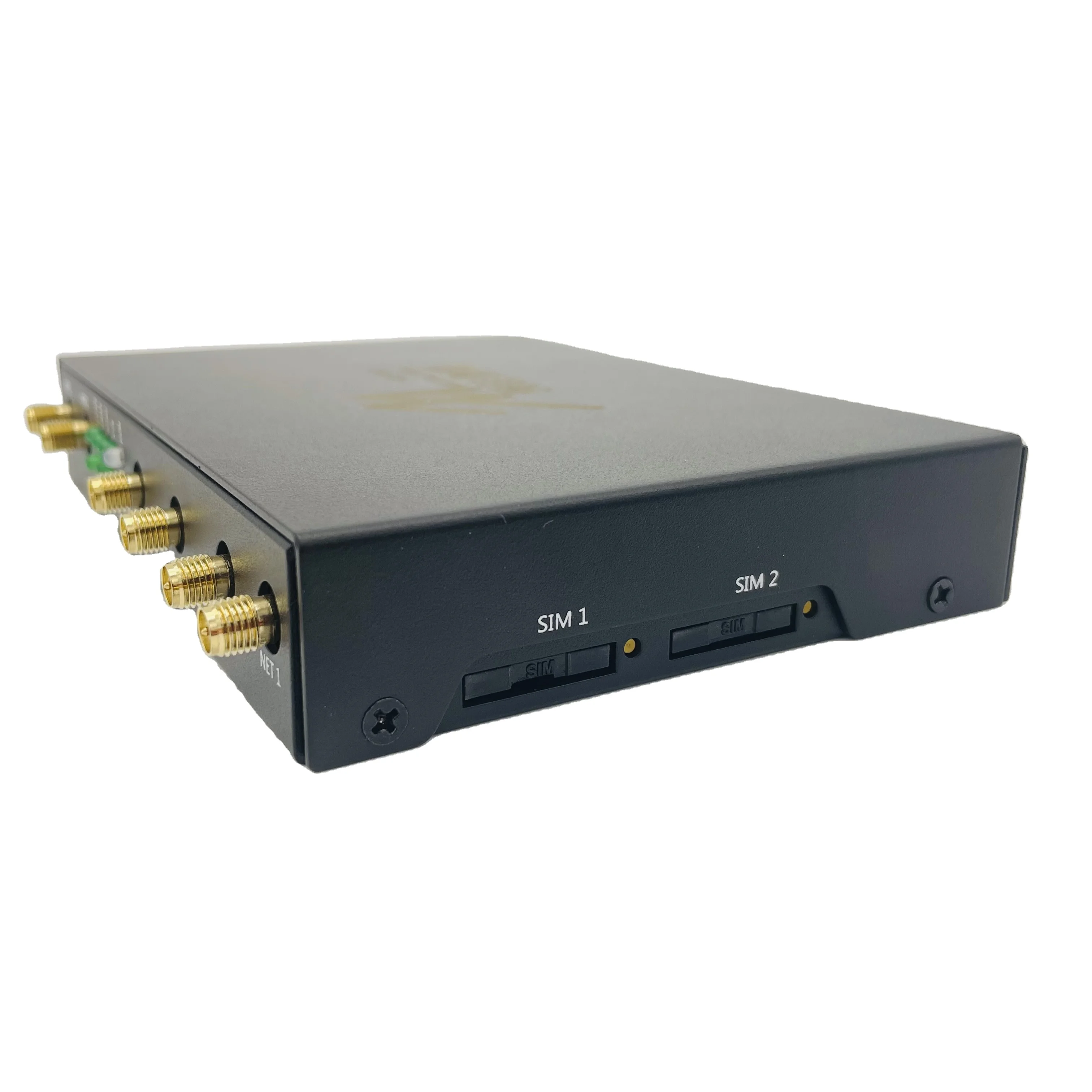

• With two SIM card slots;
• Remote management platform;
• Supports wifi 802.11AC, 1.2Gbit
• Supports 50 WiFi users sharing
ITEM | Product specification |
CPU | MTK7620A+7612E+85735 |
MEMORY | FLASH 16MByte, DDR2 64MByte |
Embedded system | Linux or Openwrt |
Network | FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X |
WIFI | WIFI 802.11 AC, 1Gbitbps |
Data rate | 4G LTE. CAT 3, CAT 4, CAT 6 , Download 100M~300Mbps , 50Mbps WCDMA HSPA+: DL 42Mbps, Upload Rate 5.76Mbps GPRS DL/Upload Rate 85.6Kbps |
WIFI Tx Power | 14 dBm(11g),17 dBm(11b),14dBm(11n) |
WIFI Rx Sensitivity | <-70 dBm@54Mpbs |
GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W) | |
GPS | GPS/GLONASS,Protocol: NMEA |
WIFI Frequency | 2.4GHz/5.8GHz dual frequency bands |
5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/ B12(17)/B13/B14/B20/B25/B26/B28/ B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 DL 4×4 MIMO: 5G NR: n1/n2/n3/n7/n41/n66/n77/n78/n79 LTE: B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42 /B43/B48/B66 DL 256QAM UL 64QAM WCDMA: B1/B2/B3/B4/B5/B8/B9/B19 LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz Version E. LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 Version A. LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 Version AF. LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Version V. LTE FDD: B4/B13 EC25-AF: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Version J LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 Version AU. LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 Version AUT. LTE FDD: B1/B3/B5/B7/B28 WCDMA: B1/B5 Version AUTL. LTE FDD: B3/B7/B28 Version EU. LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 Version EC. LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 | |
Item | Product specification |

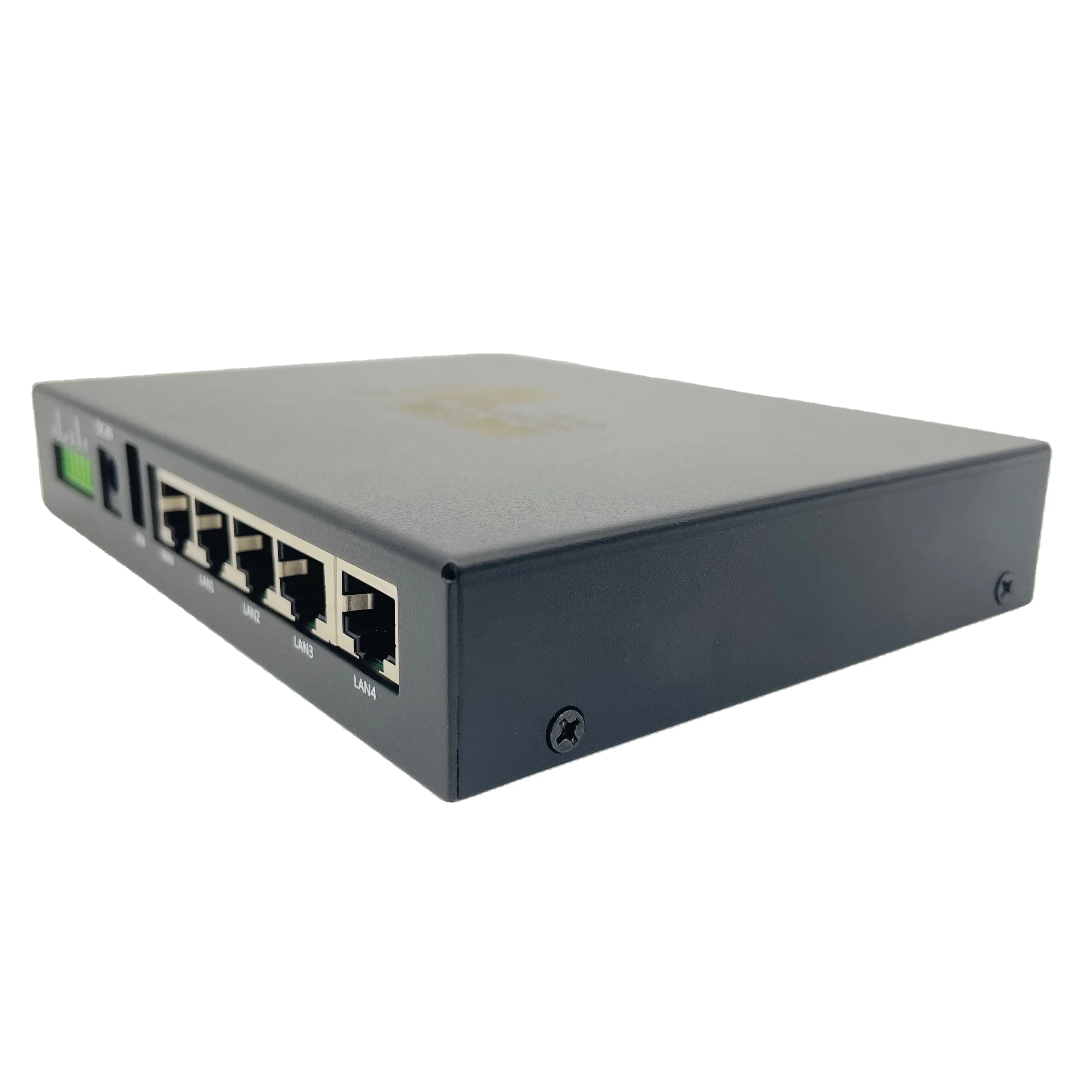

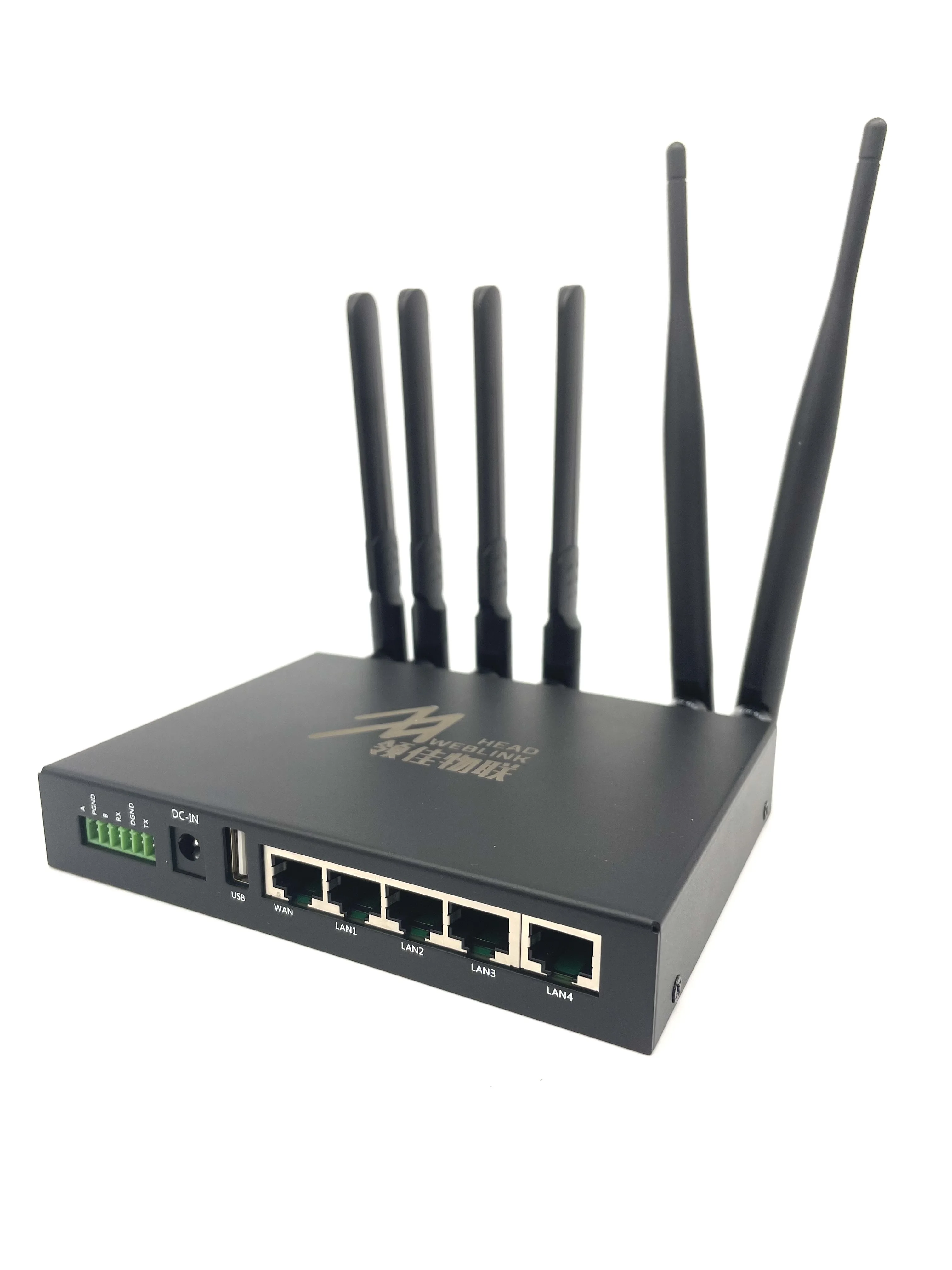

Hardware interface | 1*WAN, 1* LAN 1Gbps, 4*LAN 10/100Mbps |
Storage memory | Support SD data storage |
RF | High gain WIFI, 4G LTE, GPS antenna |
Security Encryption | Support WEP,WPA,WPA2 encryption ways |
Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP |
Advertising push | Support portal protocol, User login interface jump |
Data traffic management | Support Traffic monitoring and bandwidth limitation |
LED Indicator | "SYS", "Net", "WAN", "LAN",RSSI |
SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
Key button | Reset, WPS |
Standard Power | DC input: DC 12V/1A |
Power Supply | DC input: DC 5~48V |
Working current | 2A (Max Current) |
Temperature | Operating Temperature -40~+80ºC Storage Temperature -45~+85ºC |
Environment humidty | 95% |
Case | Black steel case |
Weight | 225g |
Our Company
Head Weblink Corporation Founded in 2008, as the leading provider of 2G/3G/4G LTE CPE/WIFI industrial router and systems solutions, we have experienced technical teams and professional implementation of industry solutions. and independently developed 4G wireless router,4G CPE,4G ODU,4G DTU ,tracker, traveling recorder, DVR, streaming media mirror and other high-quality terminal products.Our products and solutions are widely used in finance, transportation, telecom, electricity, power meter, water conservancy and other industry.

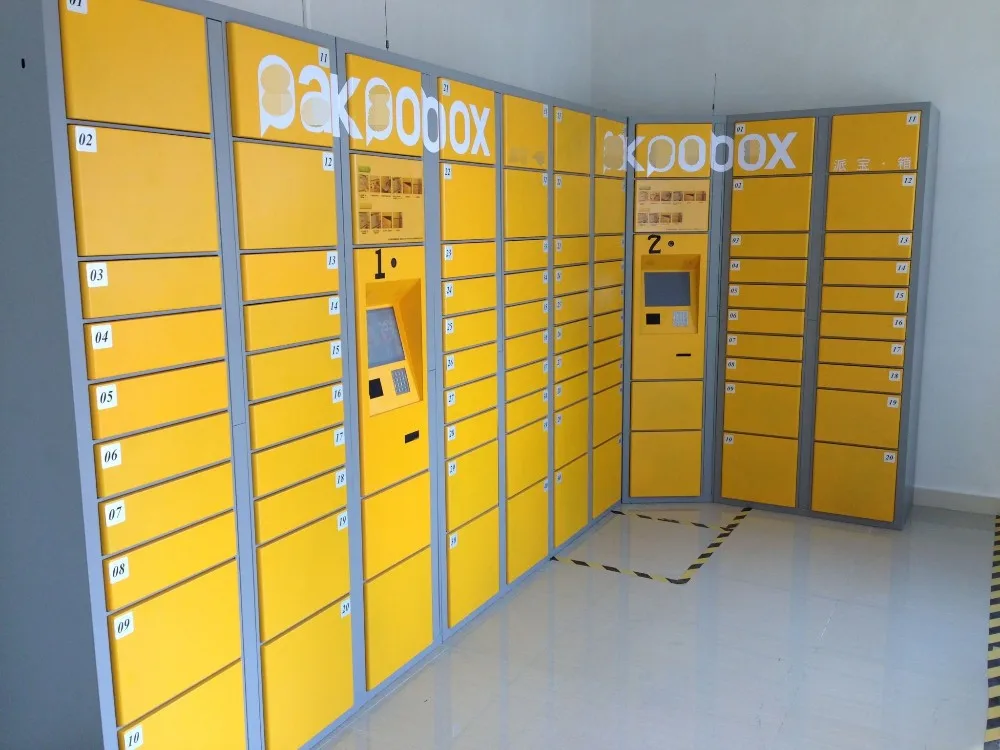

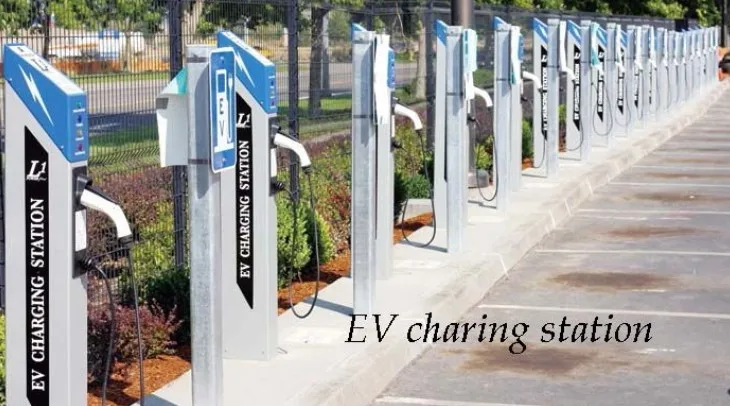

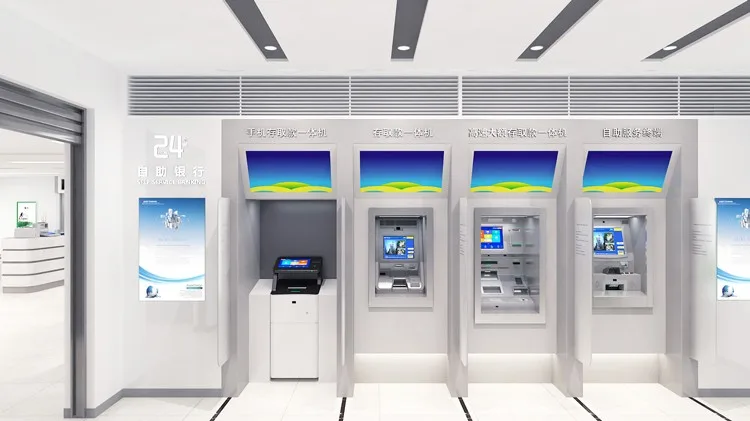

Industry Application

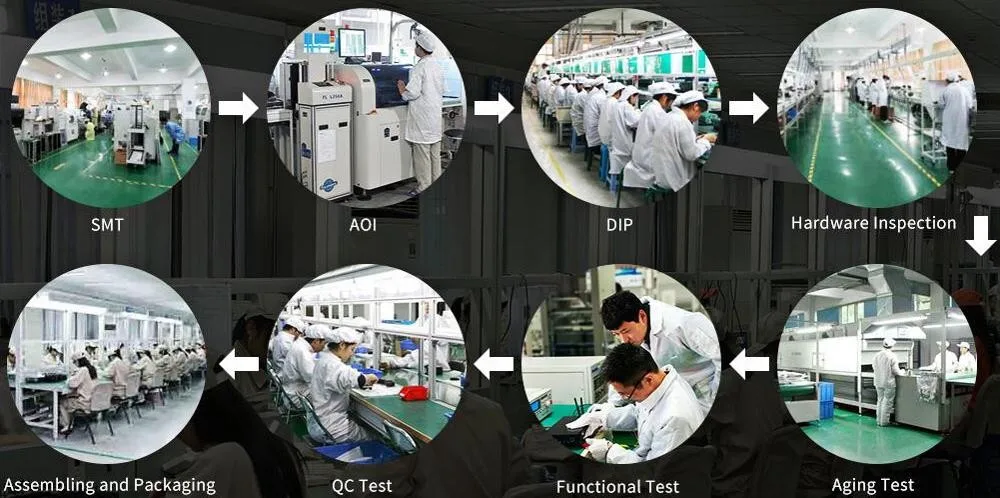

Production
