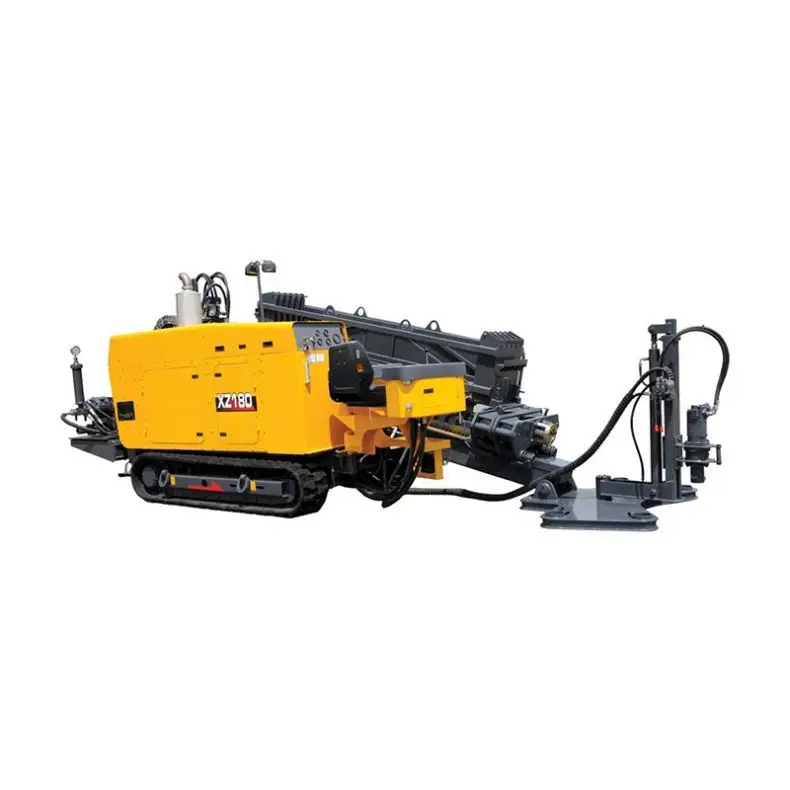

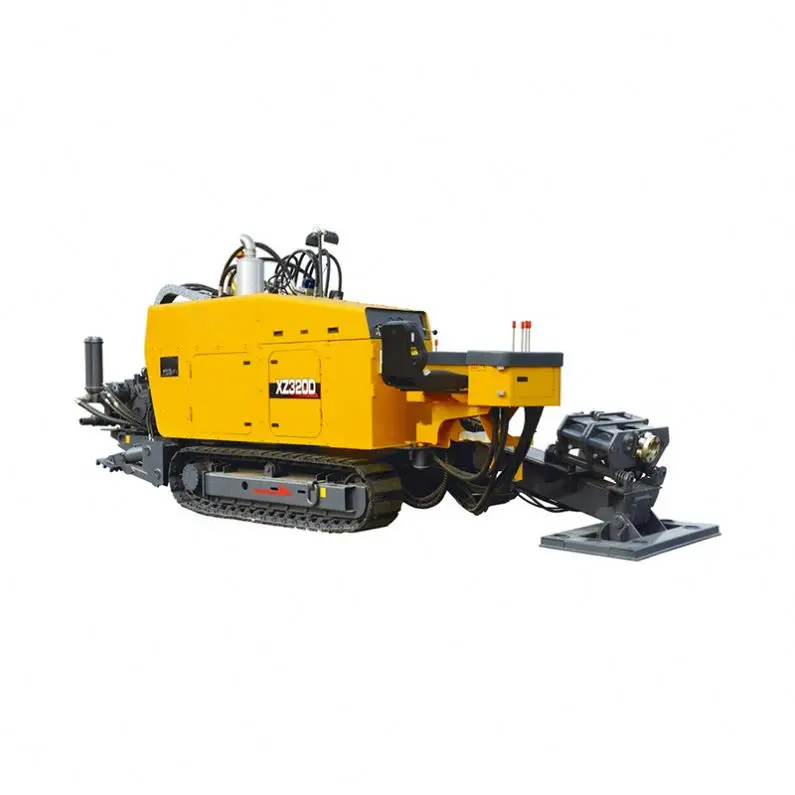

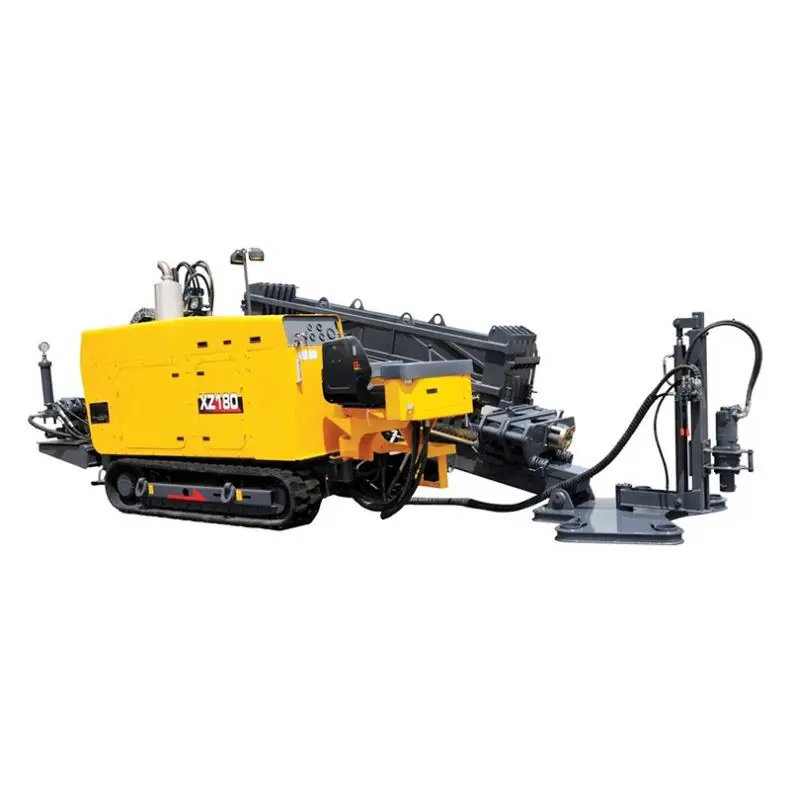

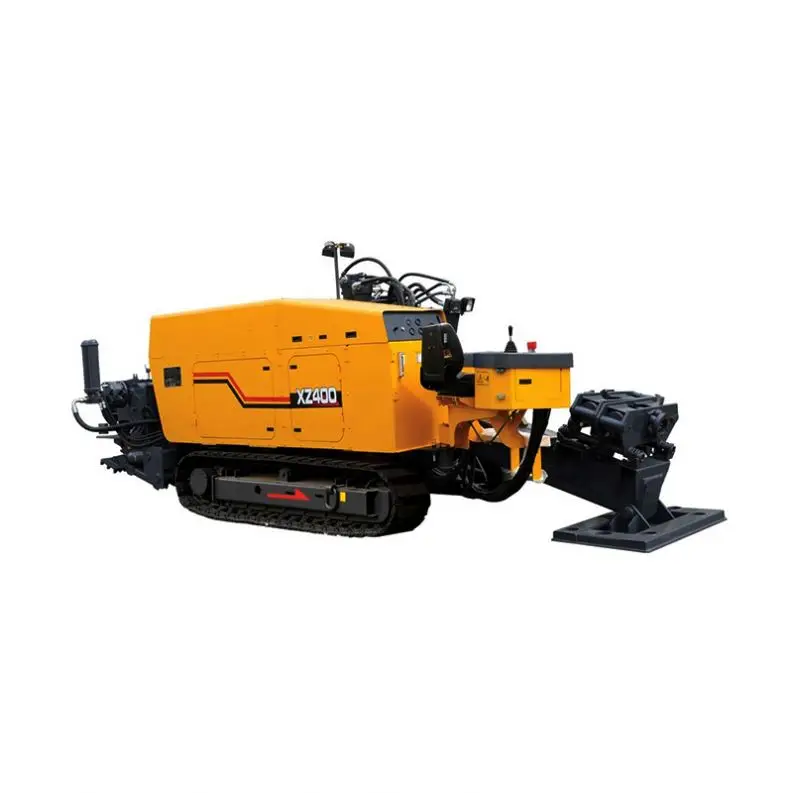

25 ton HDD horizontal directional drilling 2019 EVANGEL
Product Description
Features of 25 ton HDD horizontal directional drilling 2019 EVANGEL
XZ Series Horizontal Directional Drills are mainly used in the trenchless piping construction and
replacement of the underground pipe. Horizontal Directional Drill, HDD model is XZ130, XZ160,
XZ160A, XZ280 with Shangchai D4114ZG engine, 93~140kw power.
Paraments of 25 ton HDD horizontal directional drilling 2019 EVANGEL
Model | XZ160A | XZ280 |
Engine | Shangchai D4114ZG | Shangchai D6114ZG |
Rated power | 100kw/2400rpm | 140kw/2300rpm |
Max.pullback/thrusting | 160/100KN | 280/280KN |
Spindle torque (max) | 5000N.m | 10000N.m |
Spindle speed | 0~145r/min | 0~120r/min |
Bore diameter (max) | 300m | 400m |
Backreaming dismeter | 600mm | 750mm |
Tubing length (single) | 3m | 3m |
Tubing diameter | 60mm | 73mm |
Entry angle | 10~23° | 10~23° |
Mud flow rate (max) | 160L/min | 250L/min |
Mud pressure (max) | 100bar | 80bar |
Overall weight | 6100kg | 12500kg |
Dimension (L×W×H) | 5700×1820×2400mm | 7208×2200×2450mm |
