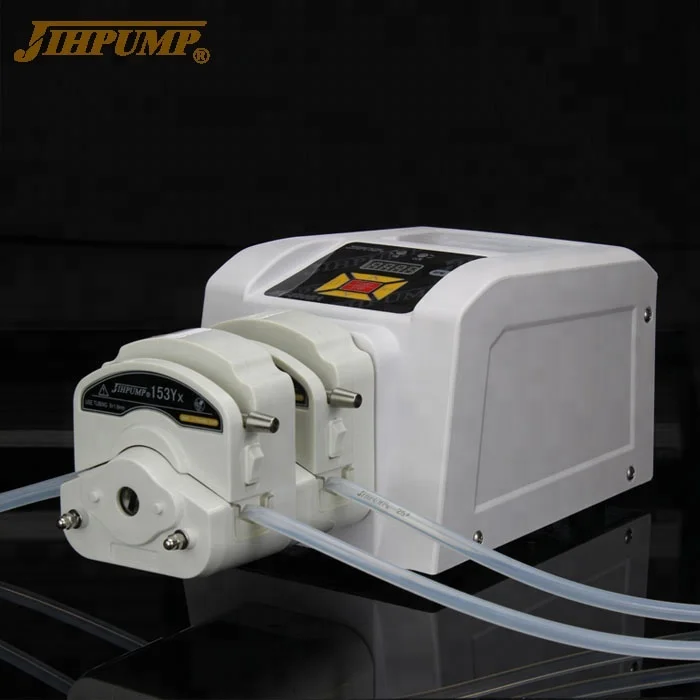

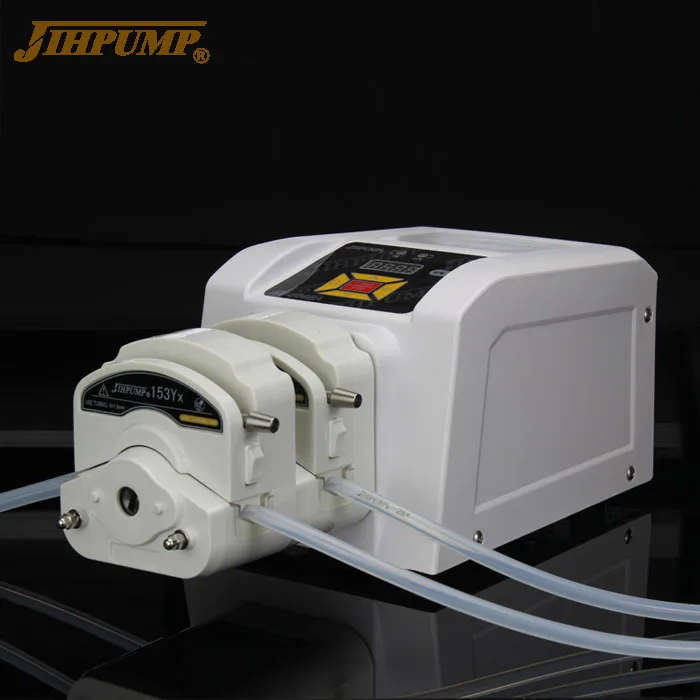

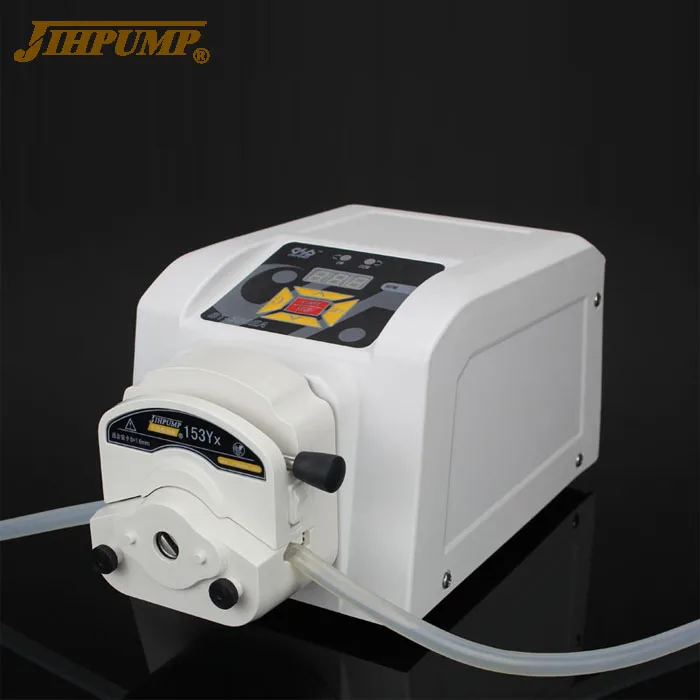

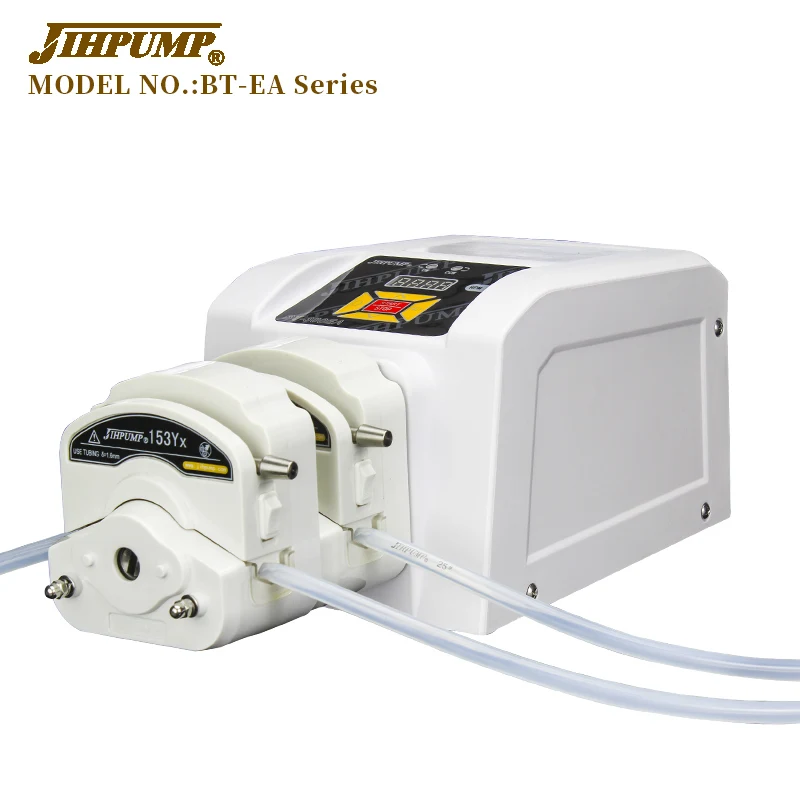

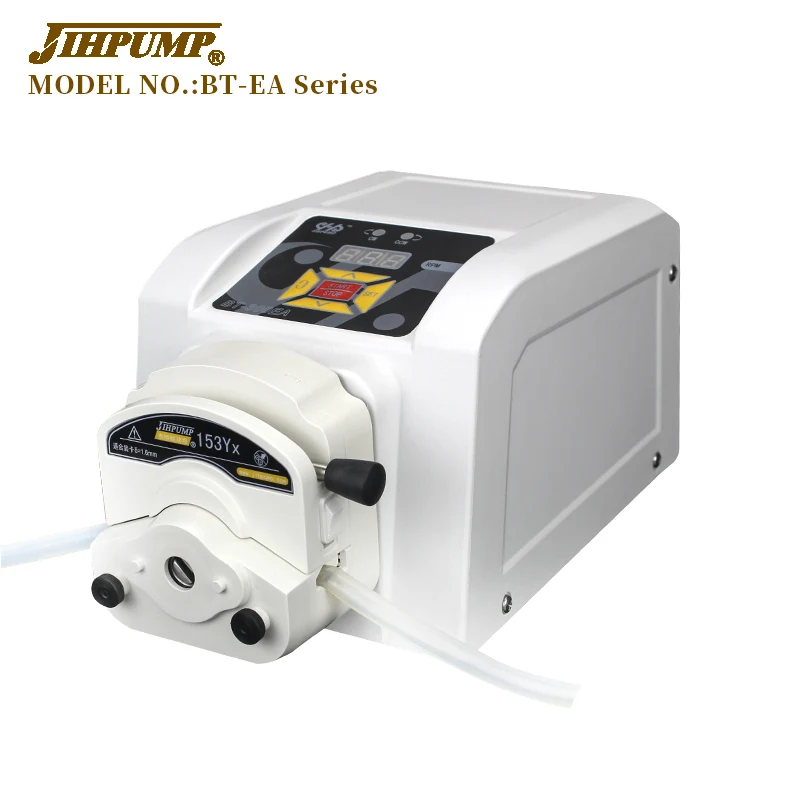

JIHPUMP 110v 220v Small Dual Peristaltic Pump Water Liquid Transfer Dosing Hose Pumps Pumping Machine Controller Market Price

Pump Head Series

Pictures

Tube(ID*wall,mm)

Flow rate(ml/min)  (Single channel)

153Yx

14#(1.6*1.6)

0.03-145

16#(3.1*1.6)

0.08-515

25#(4.8*1.6)

0.17-1080

17#(6.4*1.6)

0.3-1770

18#(7.9*1.6)

0.4-2135

253Yx

15#(4.8*2.4)

0.2-1085

24#(6.4*2.4)

0.3-1695

35#(7.9*2.4)

0.4-2640

36#(9.6×2.4)

0.5-3365

Tube Type

Characters

Silicone tube

1.with high transparency, smooth inner wall and high cleanliness;

2.Applicable to most organic solvents, tolerate acid and alkali within 30% concentration;

3.Suitable for higher viscosity liquid;300~500hours life.

Coleparmer Chem-Durance

1.not absorb moisture in the fluid;

2.Excellent resistance to aqueous, butanol,  potassium hydroxide, sulfuric acid;

3.operati ng temperature range -60 to 74 degrees,  1000 hours life.

Norprene A-60-F

1.Food process tube for critical processing applications in the food, dairy and cosmetic industries;

2. Resistant to general chemicals, acids, alkalis, etc;

3.Operating temperature range -59 °C ~ 135 °C, 1,000 hours life.

Norprene A-60-G

1.Applicable to soap and disinfectant dispensing, printing ink transfer, and etc;

2.Black, opaque, low permeability to oxygen, carbon dioxide, nitrogen, etc;

3. Operating temperature range -59 °C ~ 135 °C, life can reach 1,000 hours.

Pharmed BPT

1. Working temperature range -51 °C ~ 132 °C, life can reach 1,000 hours;

2.Strong resistance to common chemicals, acids, alkalis and oxidants;

3.Almost compatible with all commercial detergents and disinfectants.

Parts Name

Pictures

Specifications

Foot Switch

Foot switch is a common accessory, apply for start and stop control instead of key operation. According to the pump performance, generally can provide level and pulse two control methods.

Anti-floating Countersunk Head

Made of 304 stainless steel;
The countersunk head is to draw the tube inlet down to the low level of the liquid, to ensure that the tube can fully suck up the liquid.

Filling Needle

Filling needle is the necessary;

accessories on peristaltic pump for filling and dispensing, to prevent liquid drip and to ensure filling accuracy.

One-way valve filling needle

One-way valve filling needle to prevent reflux;
Suitable for all kinds of filling equipment.
