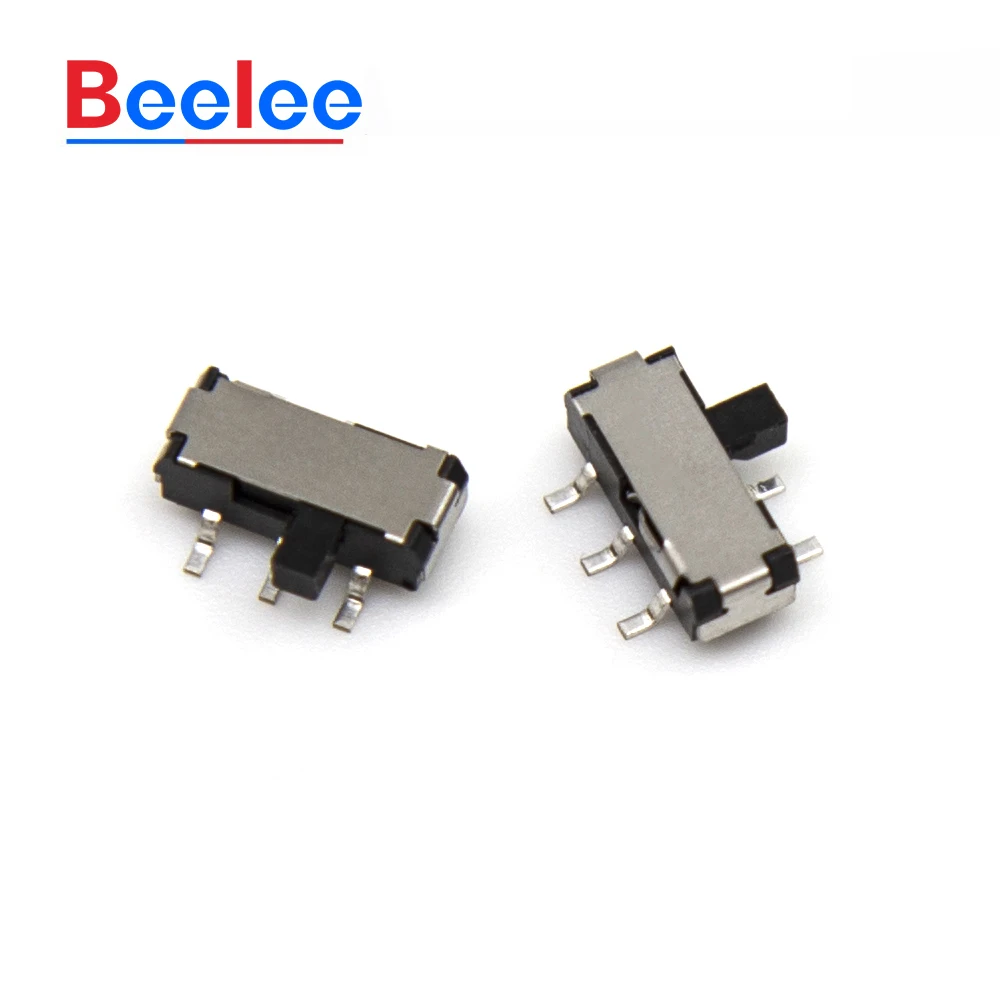

0.3A mini size low profile right angle slide switch
- Category: >>>
- Supplier: Dongguan Bailing Electronics Co. Ltd.
Share on (60836391487):
Product Overview
Description

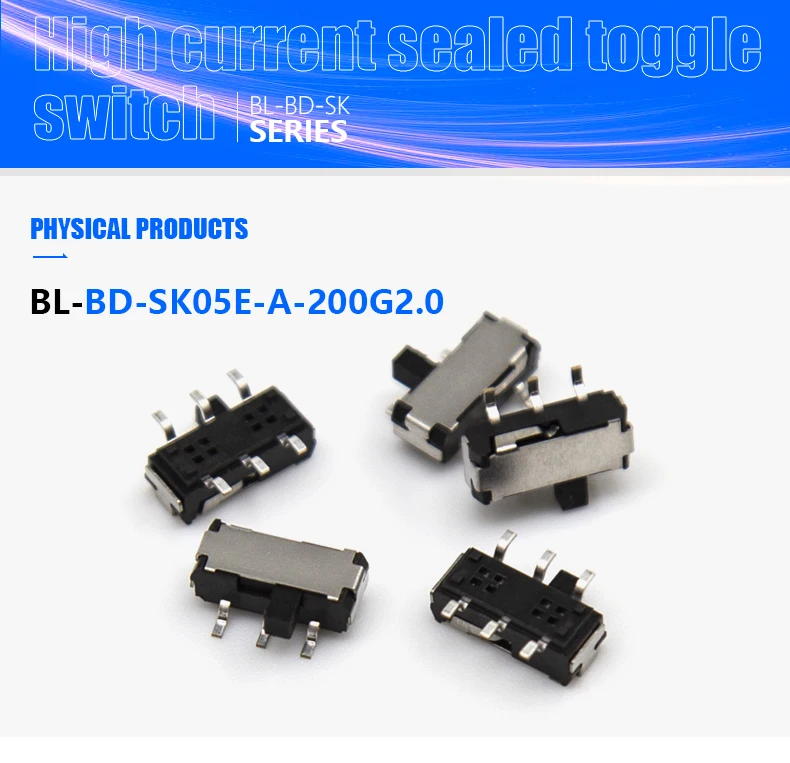

01.The BL-BD-SK05E-A-200G2.0 is a Horizontal toggle switch,The circuit is connected or disconnected by moving its actuators (switch handles).
02.Apply force (500gf) to the tip in either direction for 1 min. No cracks, grooves, etc. are found in the rows.Toggle switch requirements: to meet the mechanical, electrical properties.
03.It has intelligent functions such as delay, broadening, external synchronization, anti-interference, high reliability, stable working area and self-diagnosis.

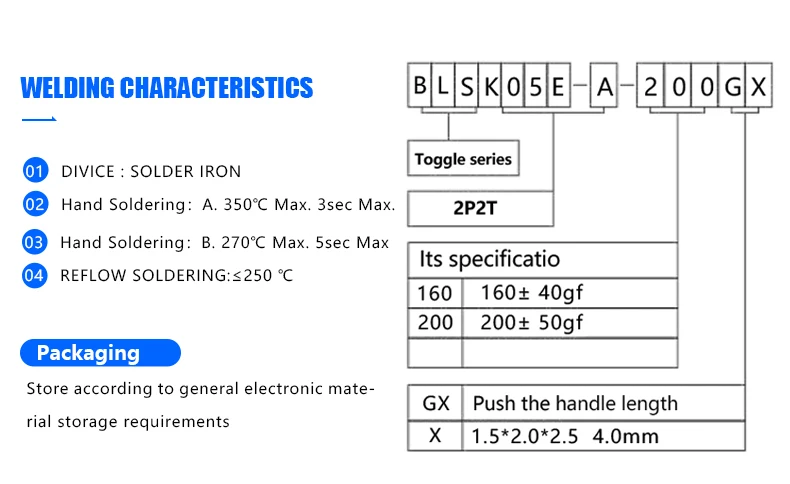

04.Avoid using water-soluble fluxes when soldering tin, which will adversely affect the metals and other materials that make up the toggle switch.
| Contact resistance | 100mΩ MAX. |
| Insulation impedance | 50mΩ Min. |
| OPERATING FORCE | 200gf±50gf |
| RELATIVE HUMIDITY | 45% TO 85% |
| Temperature range | Operating: -10℃~+50℃ |
| Pull force of terminal | 500gf for 1 minute |
| Service life | 7,000-10,000 Cycles |
