Nema 23 planetary gearbox

Share on (60836421888):


Price:

Quantity:


Product Overview

Description


1 .png



Nema 23 planetary gearbox

Product Description

2  specs.png

Series

PLE, PLF, PLS, PLX, WPLE, WPLF

Gearbox outline size (mm)

40, 60, 80, 90, 142, 160, 190, 242

Stage

Single stage

Two stage

Three stage

Ratio

3:1, 4:1, 5:1, 7:1, 8:1, 10:1

12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1

64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1

Rated input speed (rpm)

3500

3500

3500

Max input speed (rpm)

6000

6000

6000

Efficiency (%)

96

94

90

Lowest backlash (arcmin)

3

6

8

Noise (dB)

≤62

≤62

≤62

Life (h)

30000

Lubrication

Lifetime lubrication

Level of protection

IP65

3  images.png

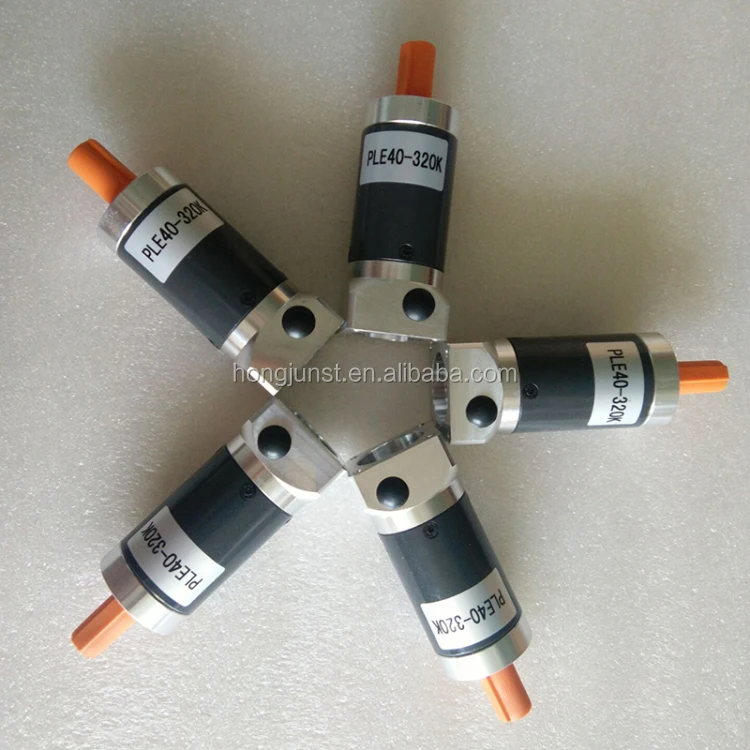

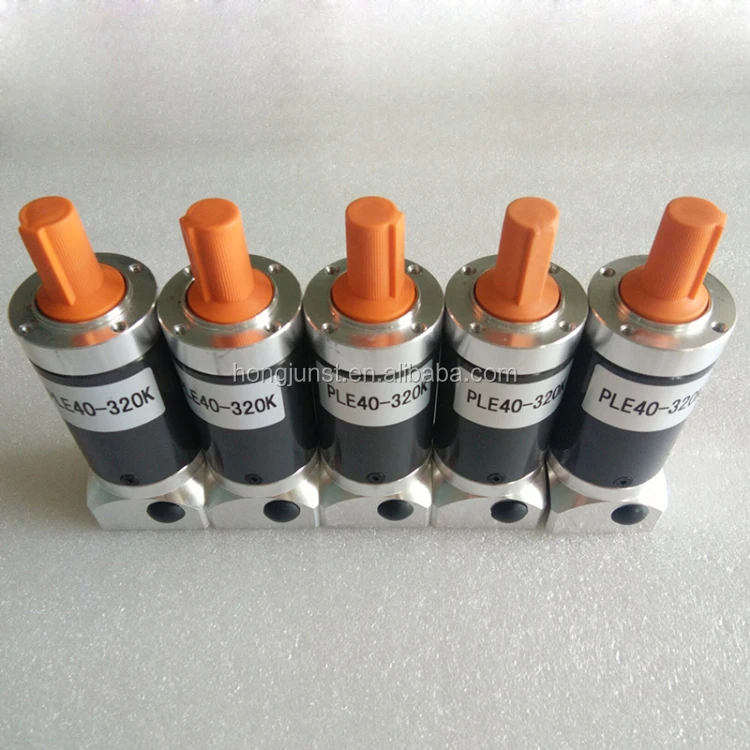

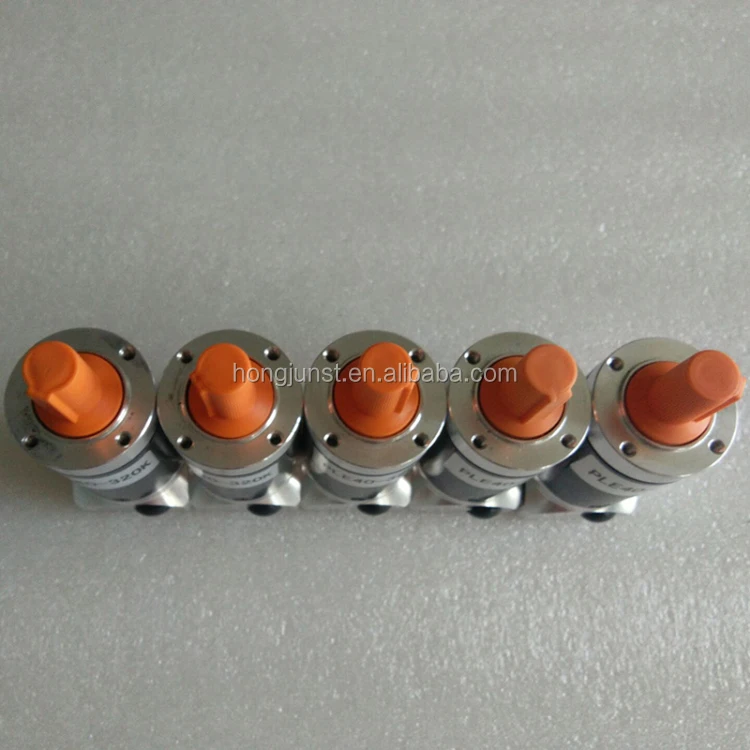

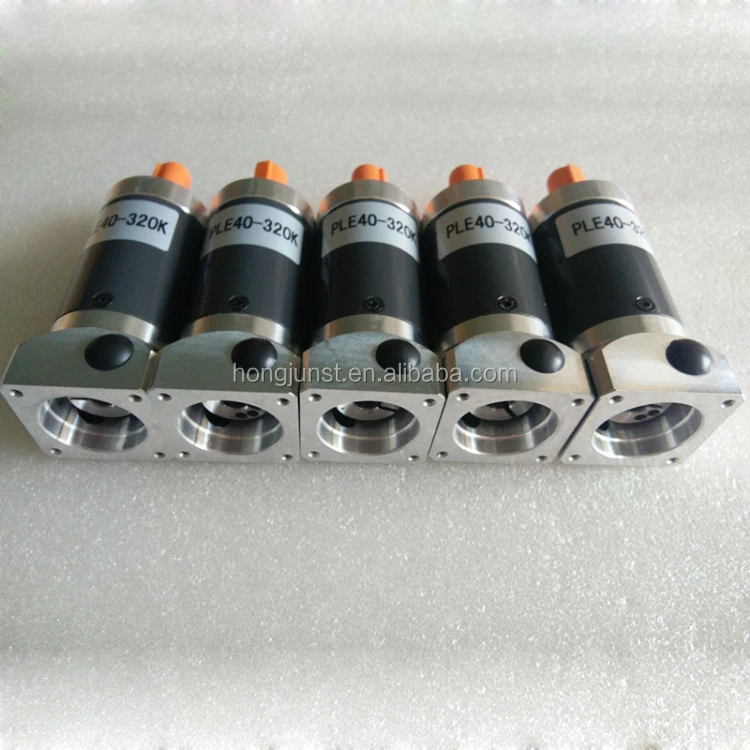

160 to 1 gearbox.jpg256 1 gearbox planetary.jpg320 1 gearbox planetary.jpg200 to 1 ratio gearbox.jpg

Related Products


Compay Profile

    As one of the most professional planetary gearbox manufacture in China, Hongjun Science and Technology Co. Ltd. has been specializing in this field for over 10 year. Our factory, which has very proven technique of producing planetary gear box, has pretty strong research and development ability. Since our decades of hardworking, nowadays we have developed long term business relationship with many customers from all over the world. In Europe, our reducers are widely used to replace famous brand precision planetary gearbox, such as NEUGART, to build new cnc machines, machinery arms and robots, because of our good quality and price.




Packaging & Shipping

   Generally, our small planetary gearbox are packaged with carton, big one will be packaged with wooden case. All reducers will be protected with soft material inside the box. We can also accept customized packaging method.

   Samples planetary reducer will be shipped in 5 days. Bulk order lead time is up to the quantity.

About the shipping method, we support DHL, TNT, FedEx, EMS, UPS door to door, and also by sea, by air.




Our Services

 1.  On receiving Inquiries or any other messages from customers, we promise to reply in several hours. We're on line for customers for a very long time every day;

2.  We supply our customers not only standard planetary gearbox, but also customized reducers;

3.  After receiving payment, we'll arrange production at once. When production has been finished, goods will be shipped with well and proper packaging soon.

4.  We promise to give all our customers perfect after-sales services.
