02351825 S5300 Gigabit Switch LS S5324TP SI DC

  Quidway S5300 series gigabit switches (hereinafter referred to as the S5300s) are new generation Ethernet

gigabit switches developed by Huawei to meet the requirements for high-bandwidth access and Ethernet multiserviceconvergence, providing powerful Ethernet functions for carriers and enterprise customers. Based on the newgeneration high-performance hardware and Huawei Versatile Routing Platform (VRP) software, the S5300 featureslarge capacity and gigabit interfaces of high density, provides 10G uplinks, meeting customers' requirements for the 1G and 10G uplink devices of high density. The S5300 can meet the requirements of multiple scenarios such as service convergence on campus networks and intranets, the access to the IDC at a rate of 1000 Mbit/s, and theaccess to computers at a rate of 1000 Mbit/s on intranets.

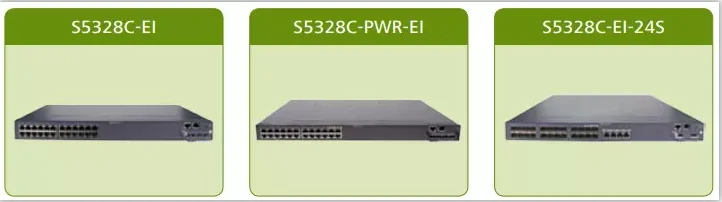

The S5300 is a case-shaped device with a chassis of 1 U high. The S5300 series are classified into SI (standard) and EI (enhanced) models. The S5300 of the SI version supports Layer 2 functions and basic Layer 3 functions, and the S5300 of the EI version supports complicated routing protocols and rich service features. The models of the S5300 consist of S5324TP-SI, S5328C-SI, S5328C-EI, S5328C-EI-24S, S5348TP-SI, S5352C-SI, S5352C-EI, S5324TPPWR-SI, S5328C-PWR-SI, S5328C-PWR-EI, S5348TP-PWR-SI, S5352C-PWR-SI, and S5352C-PWR-EI.

Huawei S5300 Series Switches Specifications

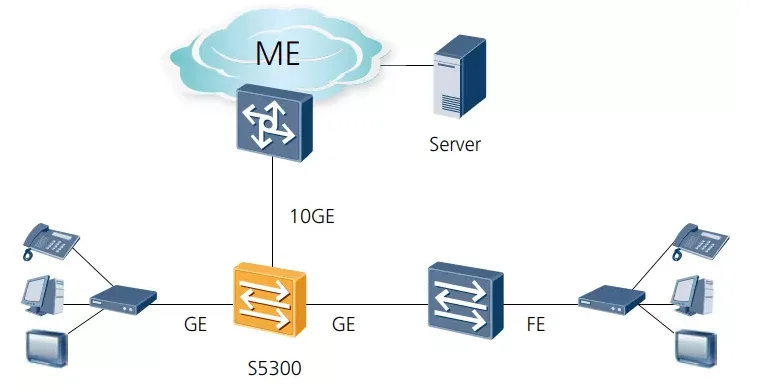

Application on Large-Scale Enterprise Networks
The S5300HI functions as the access device and aggregation device on large-scale enterprise networks and improves network reliability by link binding, dual-homing, and ringing

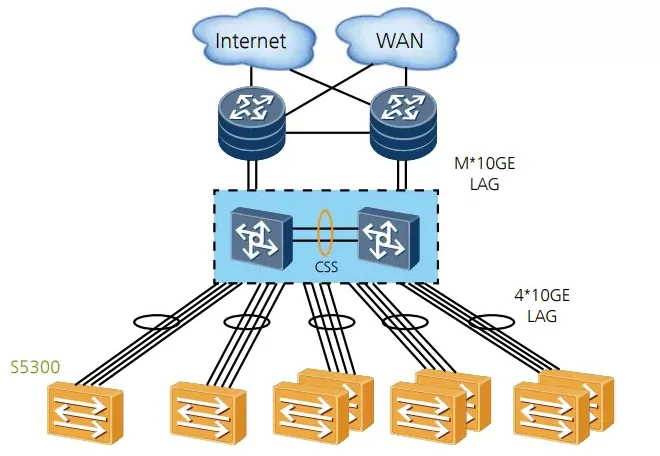

Application in Data Centers
The S5300 can be used in a data center to access the gigabit server and connect to upper-layer devices by link aggregation. If multiple servers are available, you can use the stacking technology to improve network reliabilit.

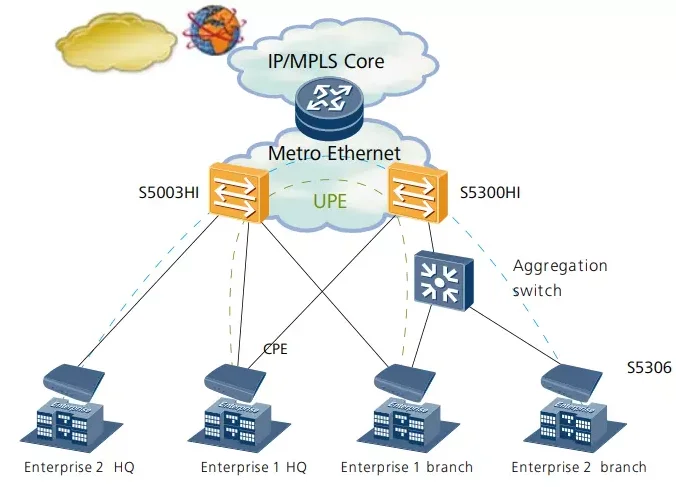

CPE and UPE
The S5306TP-LI can be used as a CPE switch and the S5300HI can be used as a UPE switch.
The S5306 and the S5300HI can provide high-quality leased line for enterprises by using powerful hardware OAM.

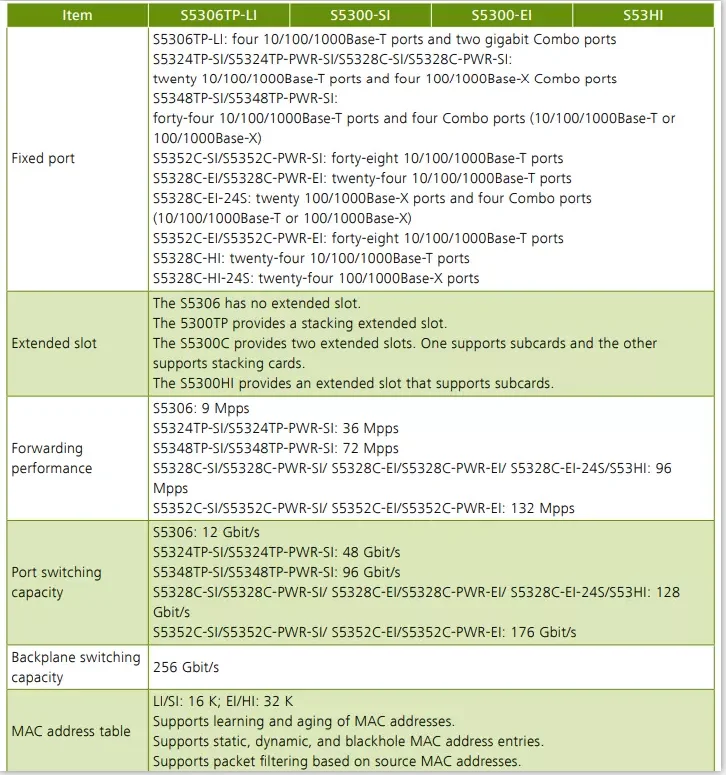

Specifications

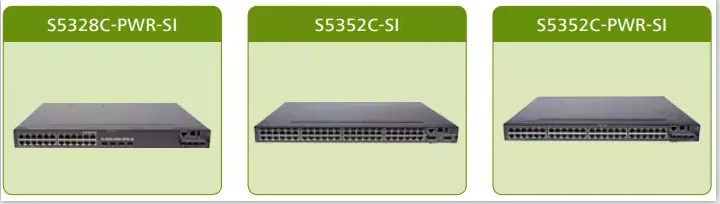

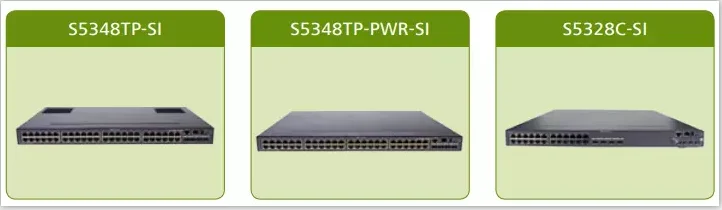

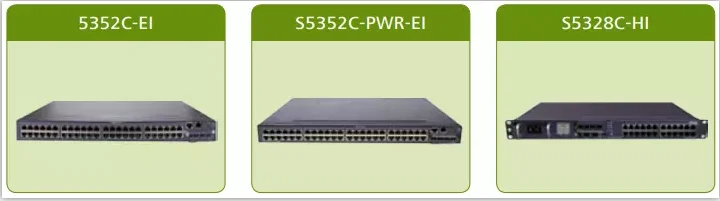

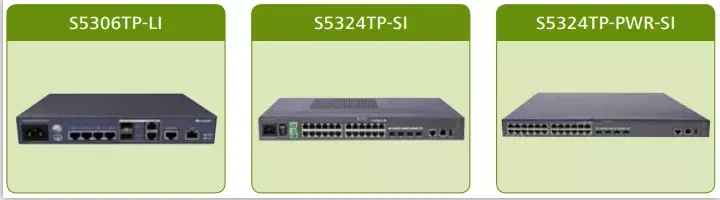

 S5300 Series Switches Basic Configuration

S5306TP-LI-AC
S5328-HI
5S5324-HI-24S
S5324TP-SI-AC (input voltage: 220 V AC)
S5324TP-SI-DC (input voltage: –48 V DC)
S5328C-SI (supports two pluggable power supplies, with the input voltage of 220 V AC or –48 V DC)
S5328C-EI (supports two pluggable power supplies, with the input voltage of 220 V AC or –48 V DC)
S5328C-EI-24S (supports two pluggable power supplies, with the input voltage of 220 V AC or –48 V DC)
S5348TP-SI-AC (input voltage: 220 V AC)
S5348TP-SI-DC (input voltage: –48 V DC)
S5352C-SI (supports two pluggable power supplies, with the input voltage of 220 V AC or –48 V DC)
S5352C-EI (supports two pluggable power supplies, with the input voltage of 220 V AC or –48 V DC)
S5348TP-PWR-SI (supports two pluggable AC power supplies and PoE power supplies, with the input voltage of 220 V)
S5348TP-PWR-SI (supports two pluggable AC power supplies and PoE supplies, with the input voltage of 220 V)
S5328C-PWR-SI (supports two pluggable AC power supplies and PoE supplies, with the input voltage of 220 V)
S5328C-PWR-EI (supports two pluggable AC power supplies and PoE supplies, with the input voltage of 220 V)
S5352C-PWR-SI (supports two pluggable AC power supplies and PoE supplies, with the input voltage of 220V)
S5352C-PWR-EI (supports two pluggable AC power supplies and PoE supplies, with the input voltage of 220 V)
