Tree Branch Movable Mobile Shredder Wood Chipper with Low price and high quality
- Category: >>>
- Supplier: Zhengzhou Yufeng Heavy Machinery Co. Ltd.
Share on (60836436168):
Product Overview
Description
Tree Branch Movable Mobile Shredder Wood Chipper with Low price and high quality
Product Description
Diesel wood chipper can crush wood branches which diameter up to 180mm or 7 inches. The final chips size is about 20-50mm so that you can't make pellets or briquette directly. Now, you have to use hammer mill, then make pellets or briquette. And the wood chipper just can crush the hard material, can't crush corn stalk, grass, maize etc.
We have two types wood chipper: fixed and mobile wood chipper machine. You can choose the equipment according to your need. And the knives can be adjusted to produce different sizes, depending on what the wood chip will be used for.
The diesel type wood chippers can be with 18HP, 22HP, 30HP, 40HP, 50HP . Electric motors also can be installed to the main chipper.

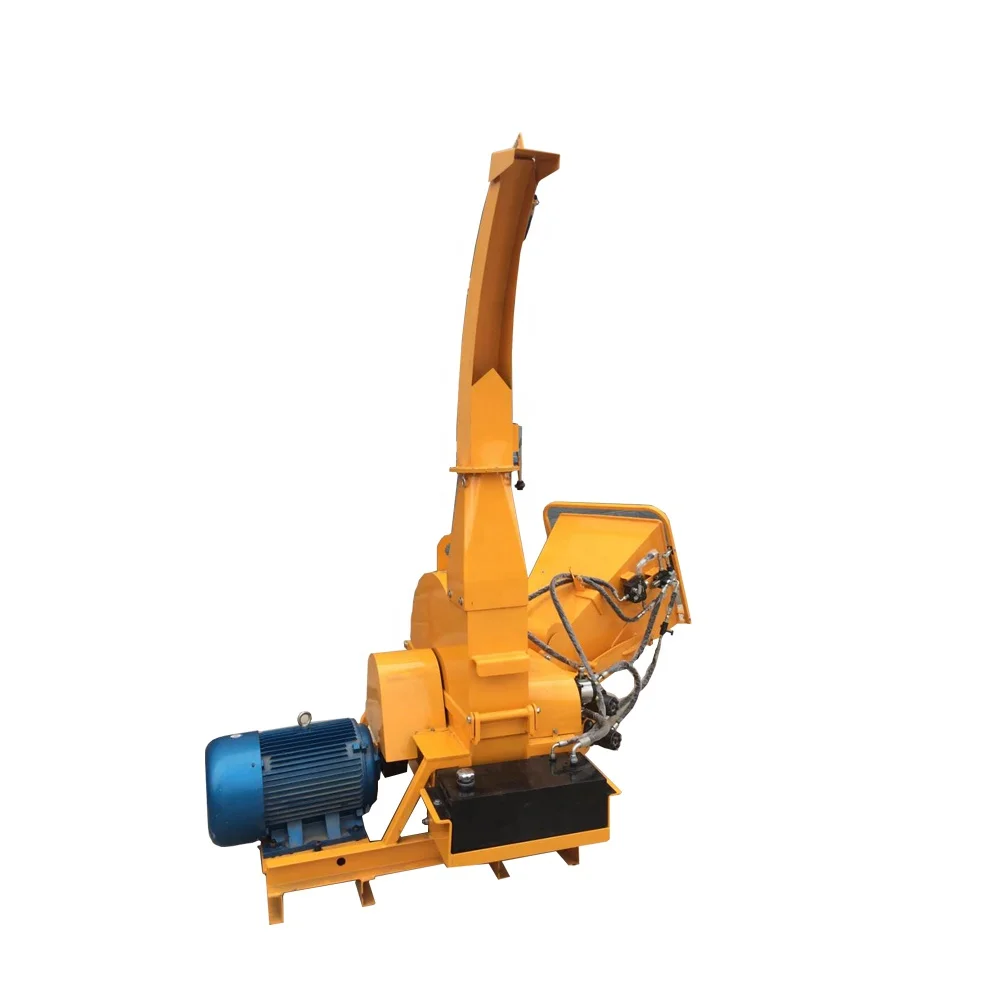

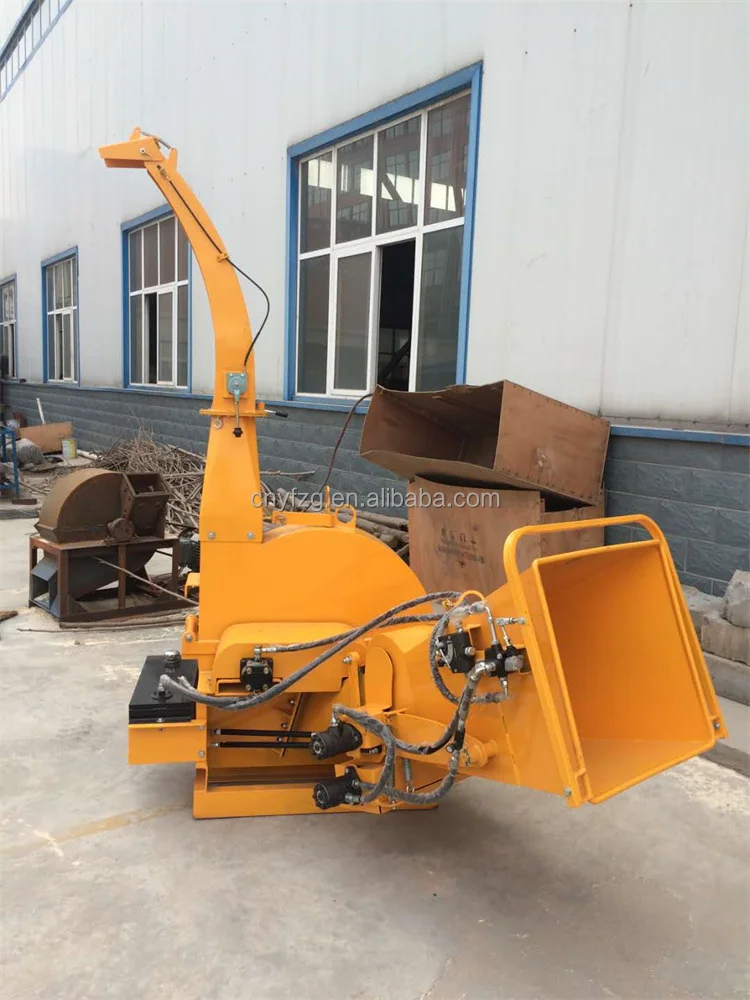

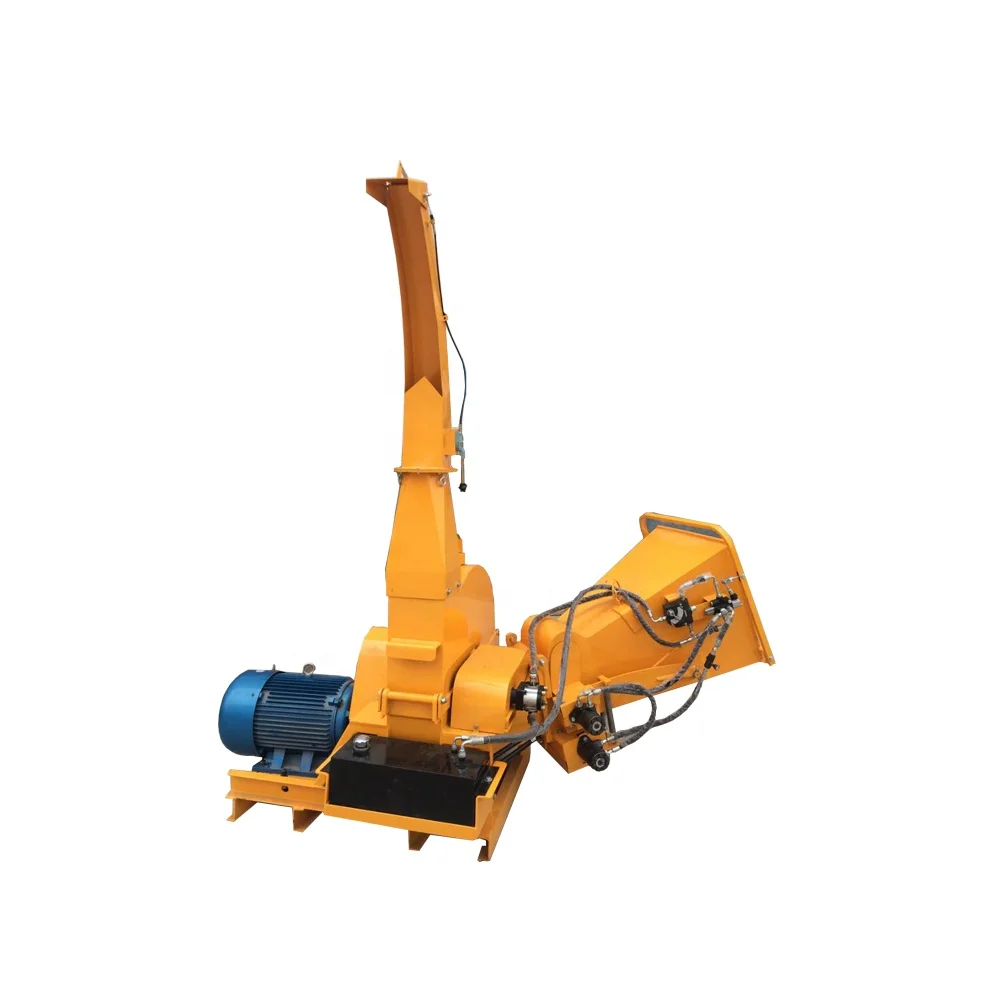

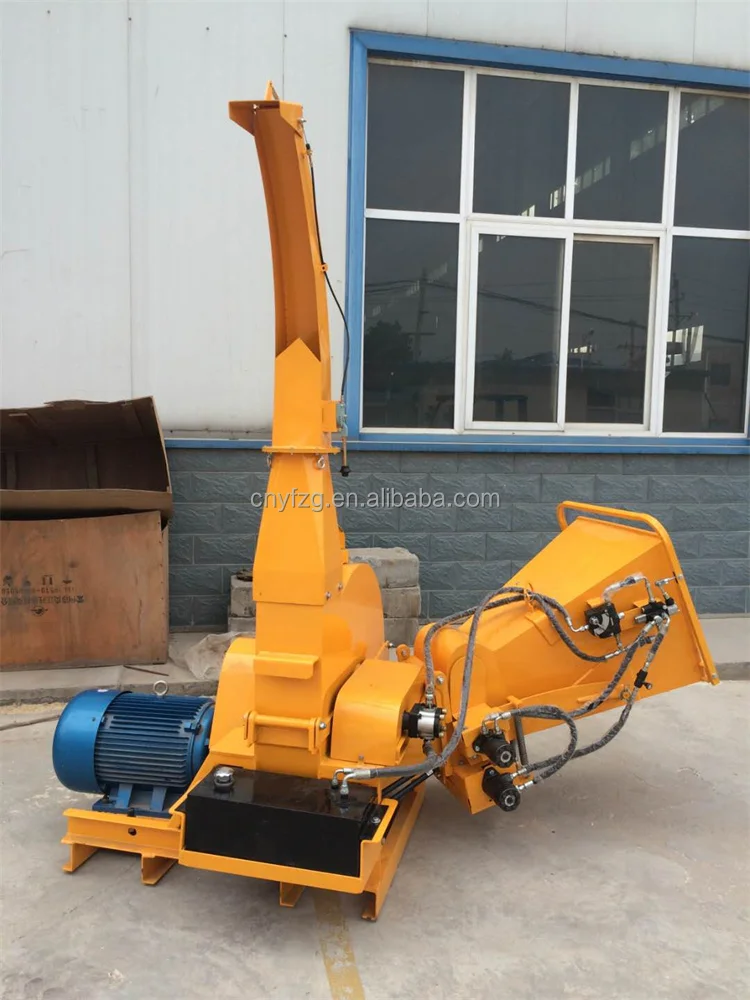

Fixed wood chipper machine:

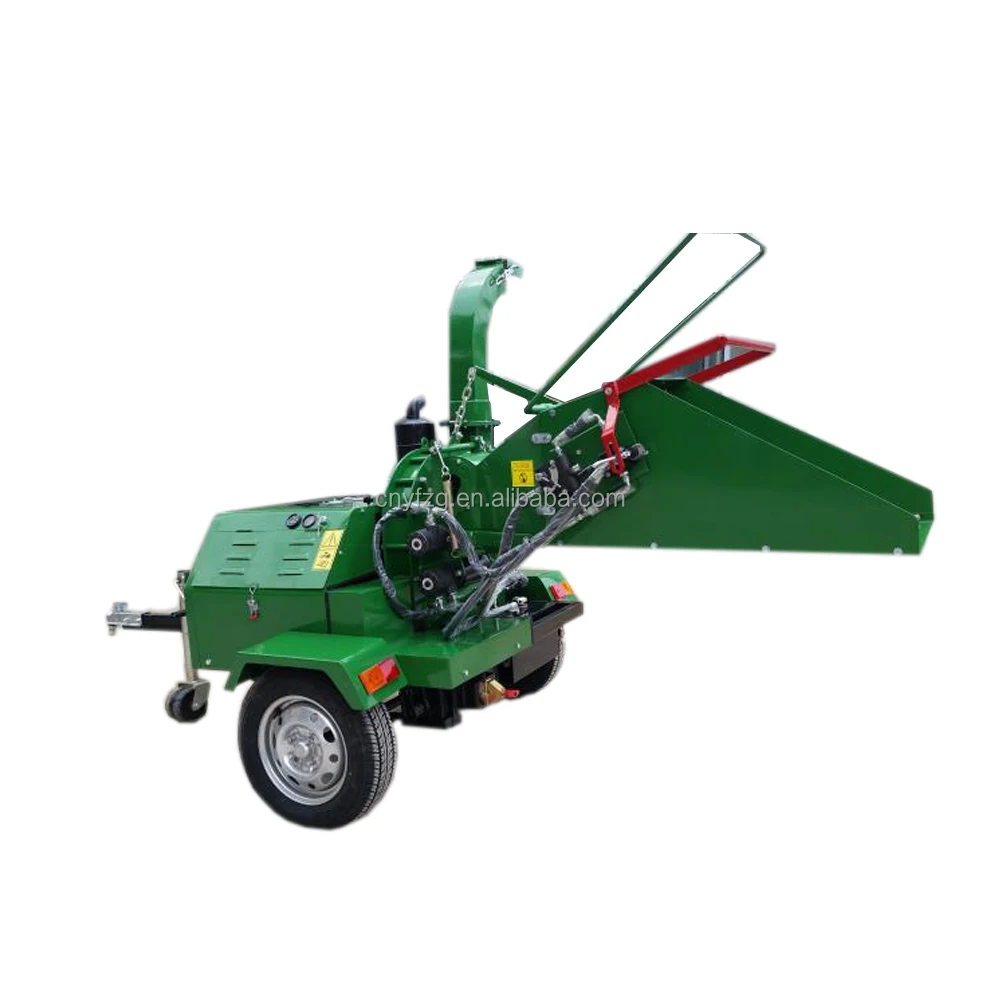

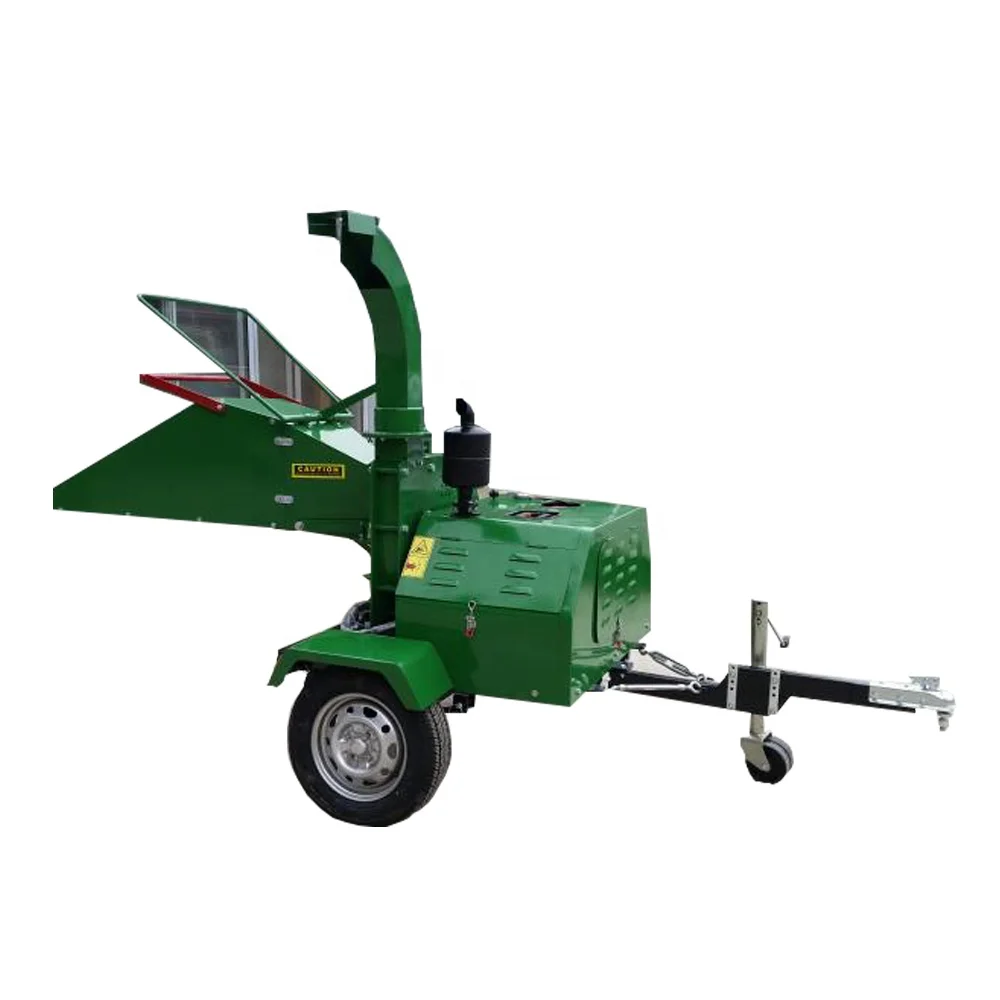

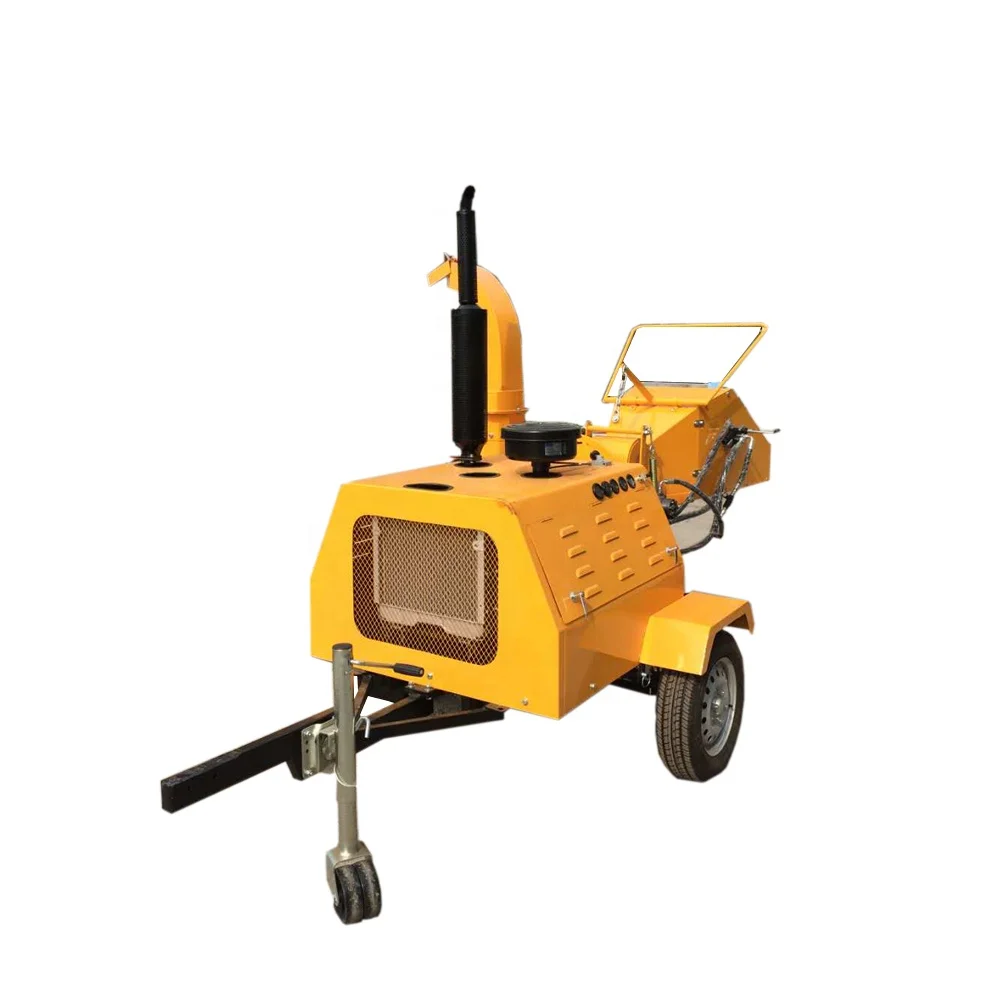

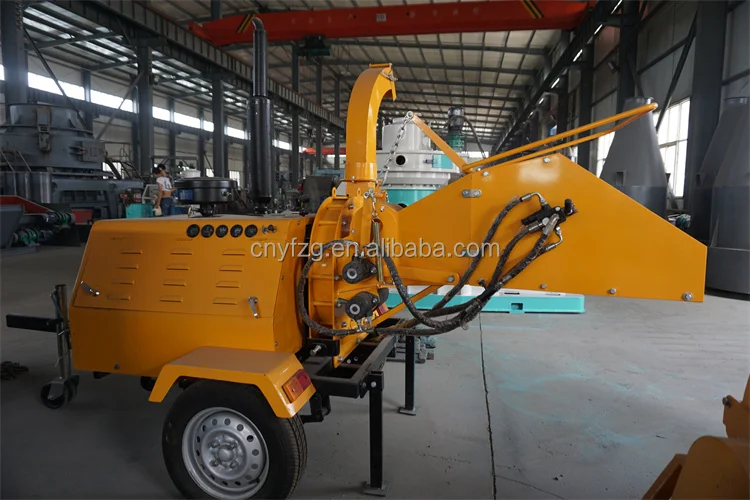

Mobile wood chipper machine:
Features
1.CE approved.
2.Hydraulic feeding system, can feed forward, reverese and stop.
3.Double hydraulic device optional.
4.360 degrees discharge hood.
5.Round flywheel house, easy to change blades.
6.Big frame, jockey wheel, turning lights optional.
7.Double hydraulic feeding system optional.
Technical Parameters
| model | 40hp / 50hp | 18hp / 22hp |
| max. dia. of feeding | 8" | 8" |
| power | Changchai 40hp / 50hp,4 cylinder,2000rpm | Changchai 18hp / 22hp,1 cylinder,2000rpm) |
| flywheel diameter | 600mm | 600mm |
| flywheel turning speed | 1025rpm | |
| feeding system | hydraulic feeding, adjustable speed stop-reverse-forward function | reduction box feeding with clutch only forward function |
| blade quantity | 2 (or 4 , not to be recommended) | |
| sawdust measurement | thickness<4mm | |
| feeding outlet rotation angle | 360 degree | |
| weight | 780kg(with packages) | 570kg |
| working efficiency | 8-9cbm /h | 7-8cbm /h |
| volume of tank | 26l | / |

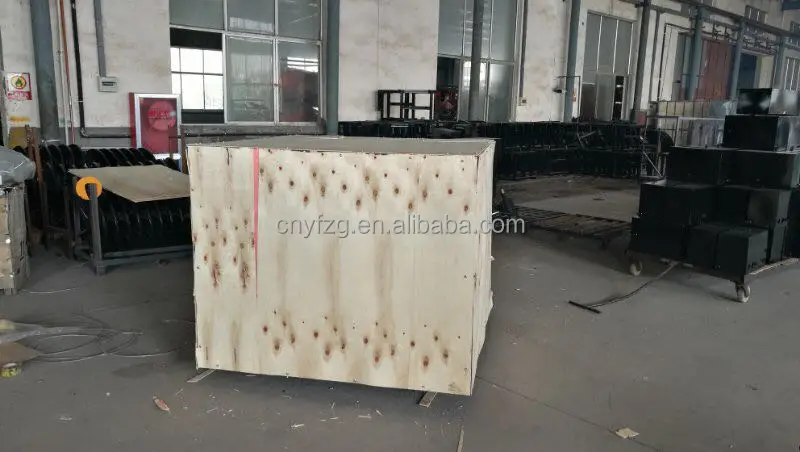

| package dimensions (l×b×h) (mm) | 1730×1360×1360(axle on machine) 1730×1080×1360(without axle) | 1350×1360×1360(axle on machine) 1350×1080×1360(without axle) |
| 1 container | 40gp container can load 20 sets | 40gp container can load 24 sets |

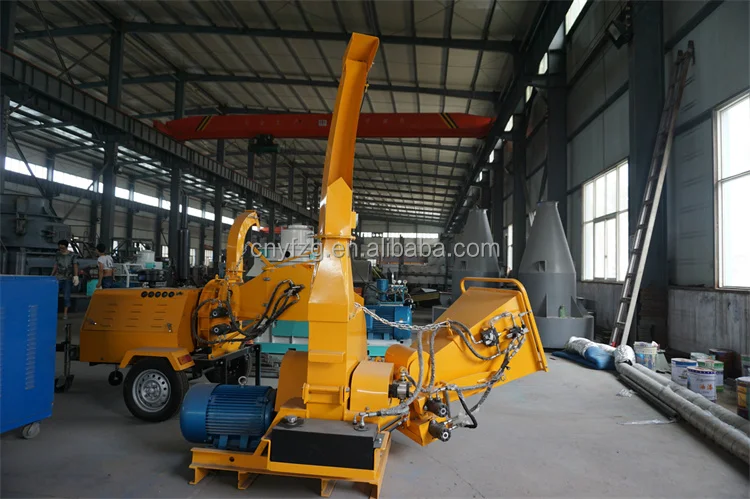

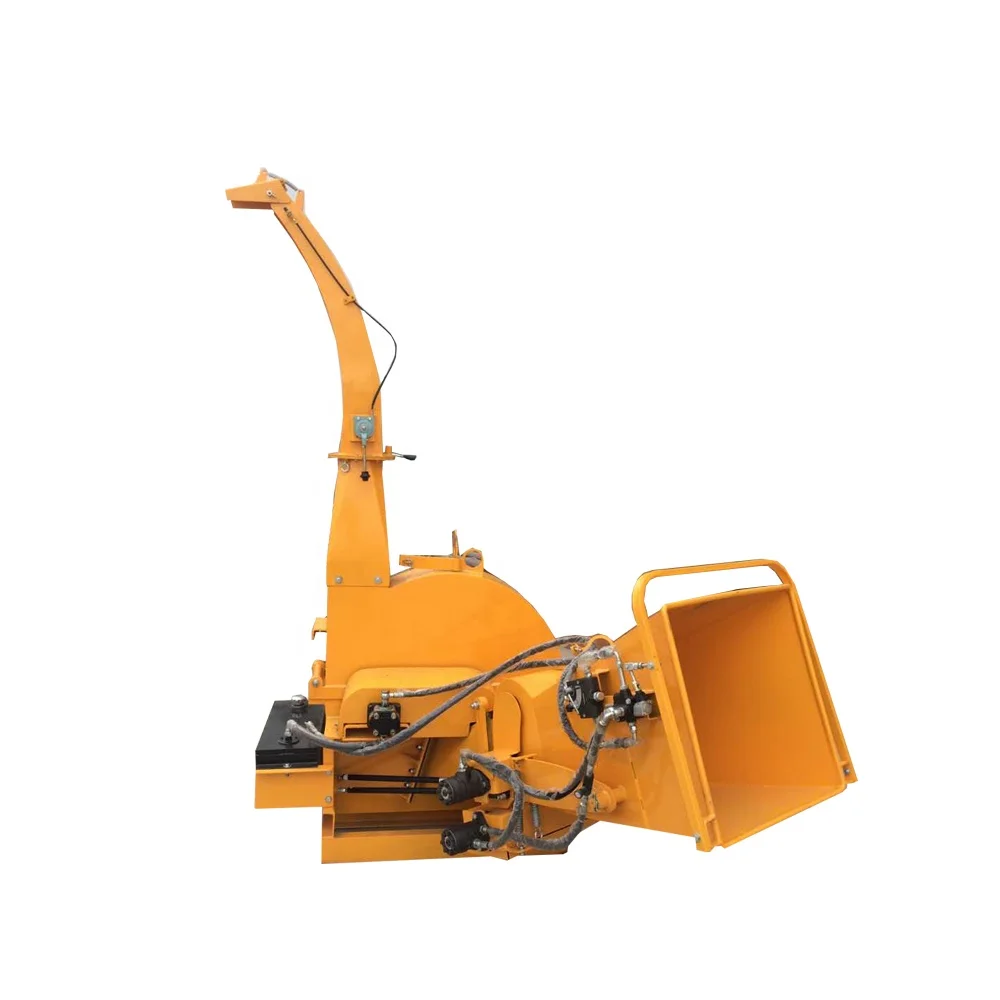

More photos
Our Services
Pre-sale
1. Depending on customer's requirement, we insist on "making profit at lowest investment" and gives best solution as per the customer's special demand.
2. Design the most reasonable project and maximum customers' profit.
3.Provide engineers to scene to plan work site if the customer needed.
4. Provide equipment list, design drawing, construction drawing, equipment install drawing.
After Sale's Service:
a.1 year warranty ,if the machine break is by quality detect not personal reason or natural disaster ;
c. Easy break spare parts not include .Engineer installation abroad and teach you master the skill to produce wood pellet;
c. Supply you the spare parts with favorable price all the machine life time;
d. Caring service, carefully manufacture and desirable price make customers at ease.
