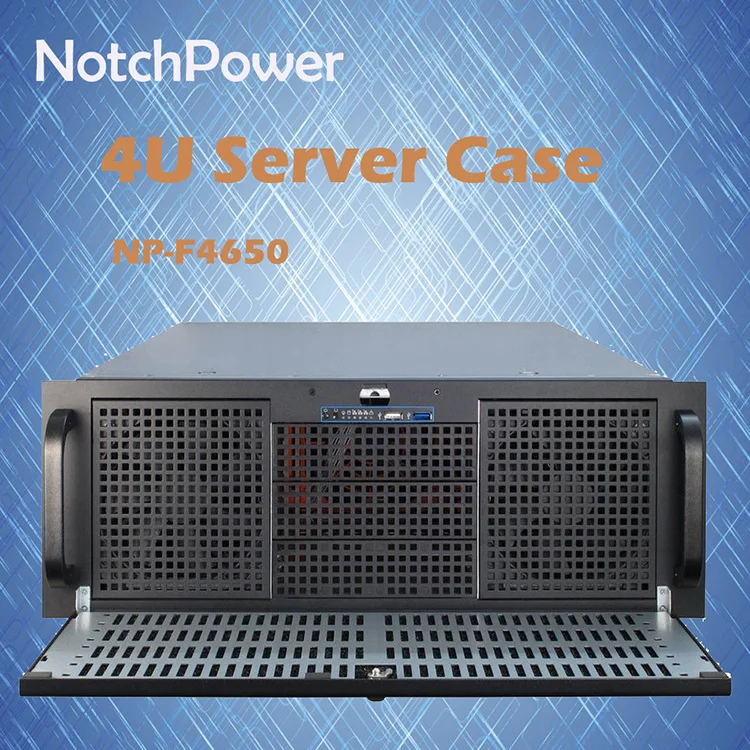

4u custom server chasis industrial server ipc chassis
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen,Shangzhi,Xinke,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
| Model | NP-F4650 | |
| Form Factor | 4U Rackmount Server case | |
| Material | Metal material | SGCC |
| Metal thickness | 1.2mm | |
| Panel material | Metal | |
| Handle material | Metal | |
| M/B support | EEB (12″ x 13″), microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″) | |
| CPU support | DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel) | |
| Size | D*W*H(mm) | 650 x 482 x 176 |
| D*W*H(inch) | 25.5 x 19 x 7 | |

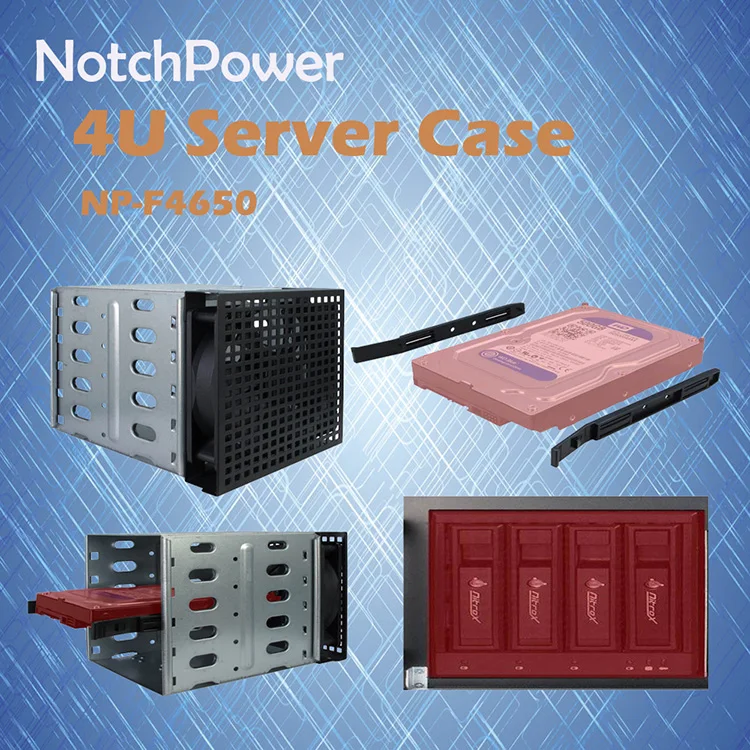

| Drive Bay | External 5.25" bays | 3 |
| Internal 3.5" | 11 | |
| Internal 2.5" | 4 | |
| Power Supply support | ATX power supply,Mini-redundant power supply, 2U redundant power supply | |
| Front panel | Control button | Power ON/OFF x 1, system reset x 1 |
| Indicator | Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1 | |
| Ports | USB 2.0 x 1 , USB3.0 x 1 | |
| Expansion | Riser Slot | 7 |
| Hot-swap Backplane | Mini SAS 6.0GB/s | NO |
| SATA | NO | |
| System cooling(optional) | Front | 2x 120mm (standard) |
| Middel | 3x 120mm ball bearing fans PWM (hot-pluggable) | |
| Rear | 2x 80mm (standard) | |
| Net weight | 13.9kg | |
| Gross weight | 16.5kg | |
| Packing size | D*W*H(mm) | 830*555*240 |
| D*W*H(inch) | 32.7*21.8*9.4 | |
| Packing Material | Polyfoam with carton box | |
| Environment Temperature | 0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating) | |
| Relative Humidity | 5% to 95%,non-condensing | |
| Vibration ( 5-500 Hz ) | 1 Grms (Operating), 2 G (Non-Operating) | |
| Shock | 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating) | |
