Stainless Steel Plate Mirror Etching Ti Black Finish stainless steel sheet PVD coating machine
- Category: >>>
- Supplier: Qingdao Ubu Vacuum Equipments Corp. Ltd.
Share on (60836440828):
Product Overview
Description
Product Description
Large stainless steel sheet and pipe PVD coating machine works in a vacuum chamber, by ion plating, by a gas discharge from the part of the evaporated material in the evaporation material particles or gas ion bombardment, while the vaporized material or reactant is deposited on the substrate. The glow discharge ion plating phenomenon, plasma and vacuum evaporation techniques combine the three, not only can significantly improve the quality of the film, but also expanded the scope of application of the film. The advantage is that the film adhesion, and good diffraction extensive membrane and so on. Multi-arc ion plating and ion plating in general has a big difference. Multi-arc ion plating arc discharge is used, rather than the conventional glow discharge ion plating deposition. Simply put, the principle of multi-arc ion plating is used as the cathode target evaporation source, target and by arc discharge between the anode of the housing, so that the target evaporation, thereby forming a plasma in space, the matrix deposition.
Applications: can plating stainless steel, chrome, titanium, tungsten and other metal films can also be alloy plating film or compounds, such as TiN TiAlN CrN film, horizontal multi-arc ion plating machine is mainly for large metal parts decorative film or functional film coating, suitable for stainless steel plate, stainless steel pipe, stainless steel doors and other surface coatings.
Features:
1. Equipment cryogenic ion secondary source, direct temperature without heating cold plating film, energy saving, productivity;
2. The maximum size of such devices to achieve the vacuum chamber 5000X10000MM ( length );
3. Is on a large plate, pipe plating all kinds of decorative and functional film film film will be selected device.
Low-temperature ion assisted deposition source :
1. Large area of plasma discharge, high ionization effects, improve bond strength, particularly strong adhesion;
2. The ion distribution, greatly improves the stability and uniformity of the film;
3. The ionization effect is good, no heating direct plating layer, removing the traditional heating device, saving more than 30%, saving more than 10% coating time, increase efficiency and achieve low-temperature coating;
4. Play ionization effect, whether it is metal -plated parts, non-ferrous metal products, non-metallic plating or coating directly;
5. The ionization effect is good, or whether it is all kinds of non-ferrous metal products, stainless steel products (such as copper, aluminum, zinc, magnesium, etc. ) directly without water plating plating layer;
6. Is on a large plate, pipe plating all kinds of decorative and functional film film film will be selected device.
Technical Parameters
Mode | LH-1800 | LH-2000 | LH-3000 | LHW-2000 | LHW-3000 | LHW-4000 | LHW-5000 |
Vacuum chamber dimension | 1800x2000 | 2000x2000 | 3000x3000 | 2000x6000 | 3000x6000 | 4000x8000 | 5000x10000 |
Vacuum system | Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump | ||||||
Coating system | arc evaporation source,coating auxiliary ion dedicated power supply | ||||||
Inflation system | Mass flow meter | Mass flow meter | Mass flow meter | Mass flow meter | Mass flow meter | Mass flow meter | Mass flow meter |
Control mode | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic |
Ultimate vacuum | 5.0x10-4Pa | 5.0x10-4Pa | 5.0x10-4Pa | 5.0x10-4Pa | 5.0x10-4Pa | 5.0x10-4Pa | 5.0x10-4Pa |
Remark | Above machine parameters for your reference only, specific according to customers' special requirement of practical process design. | ||||||

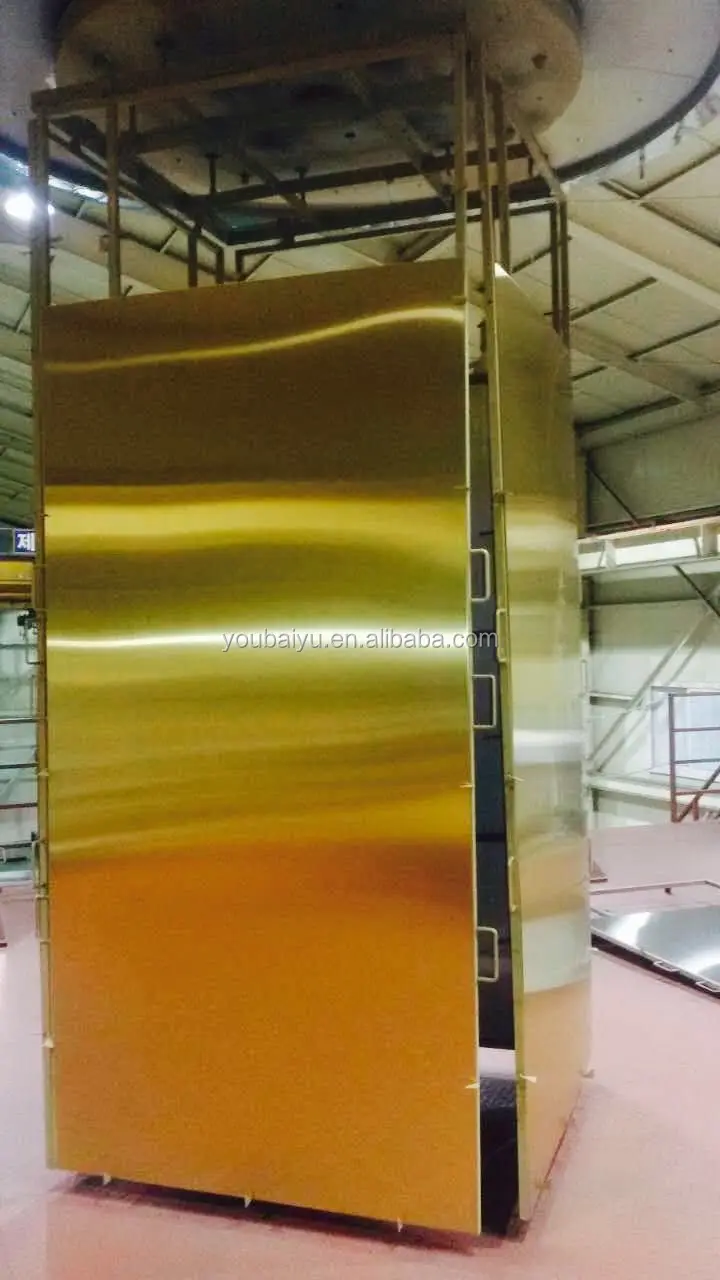

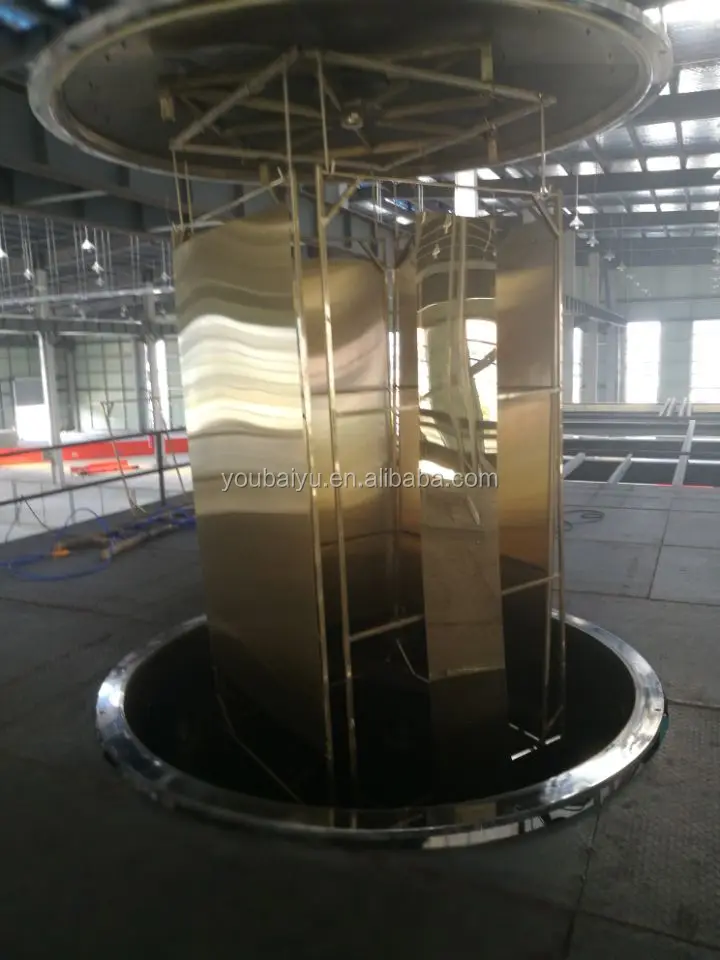

This machine is used to coat Stainless steel door and Elevator door with various colors and films.

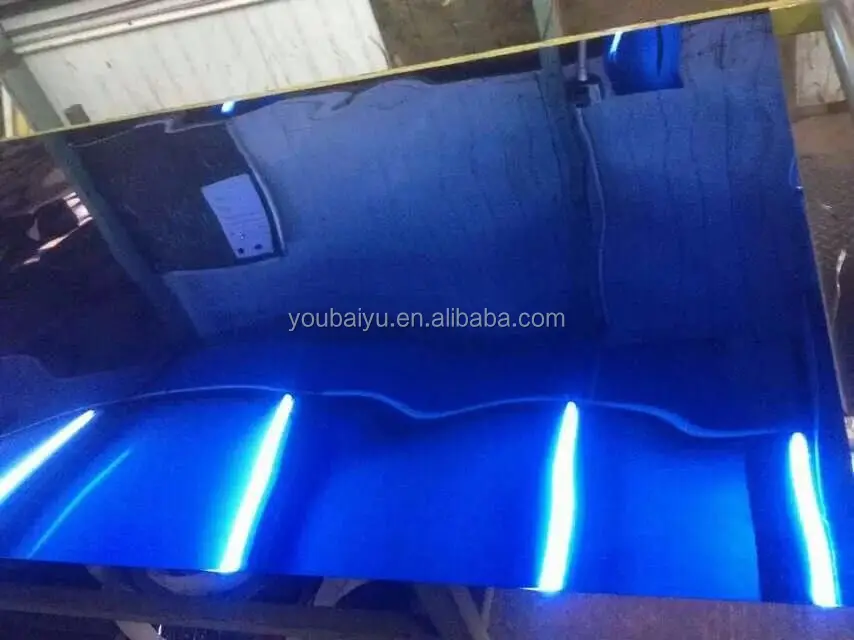

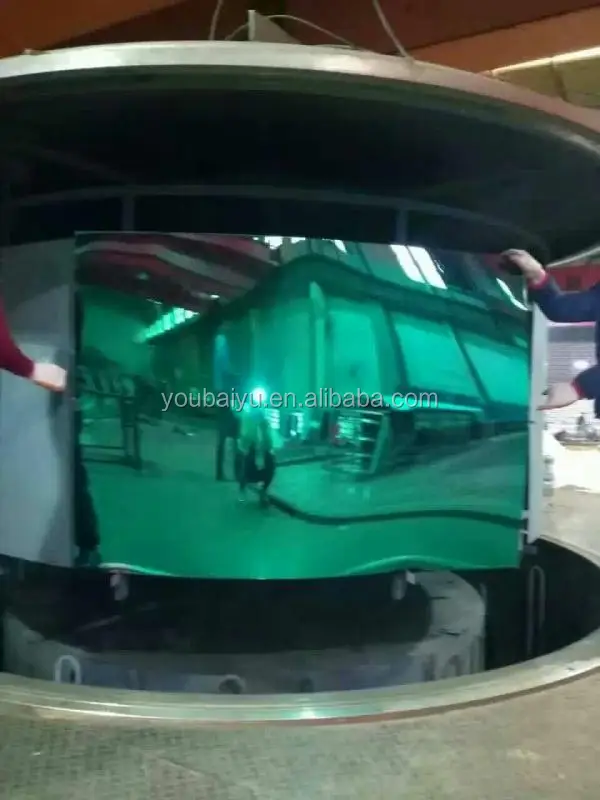

Finished Products

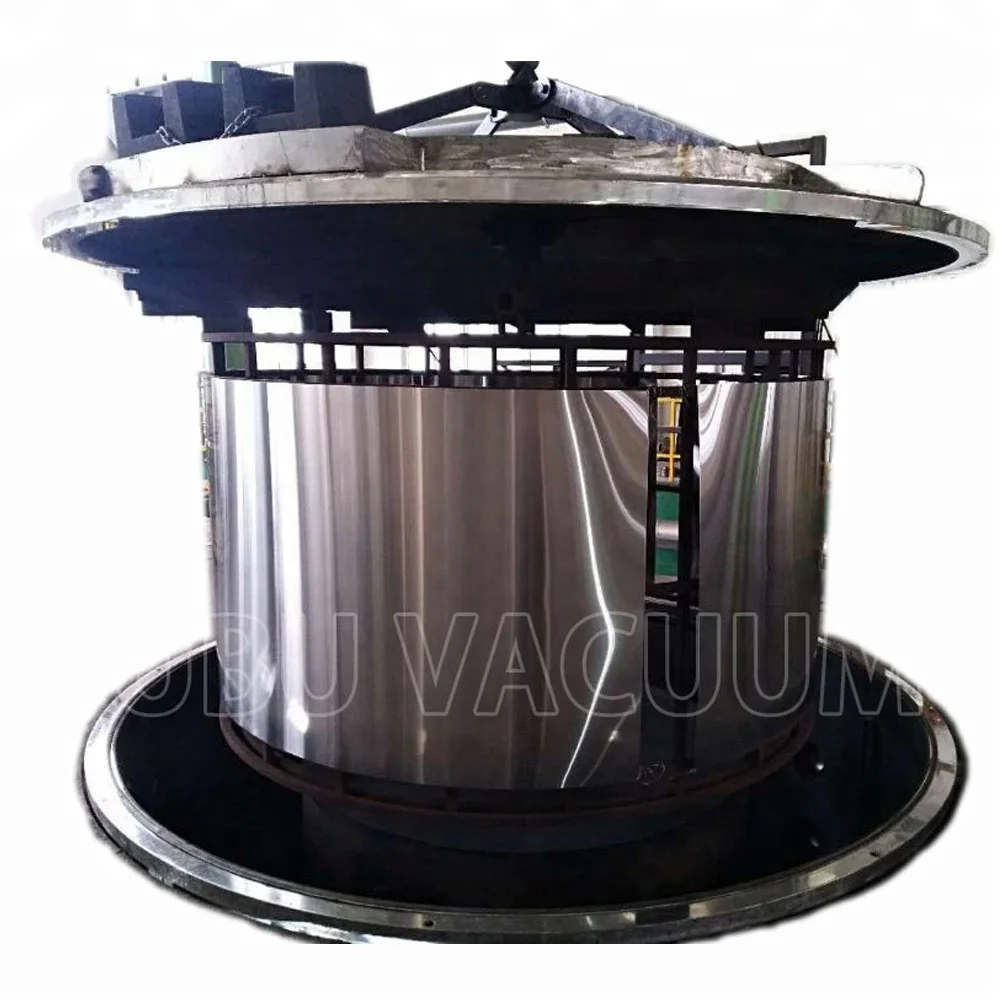

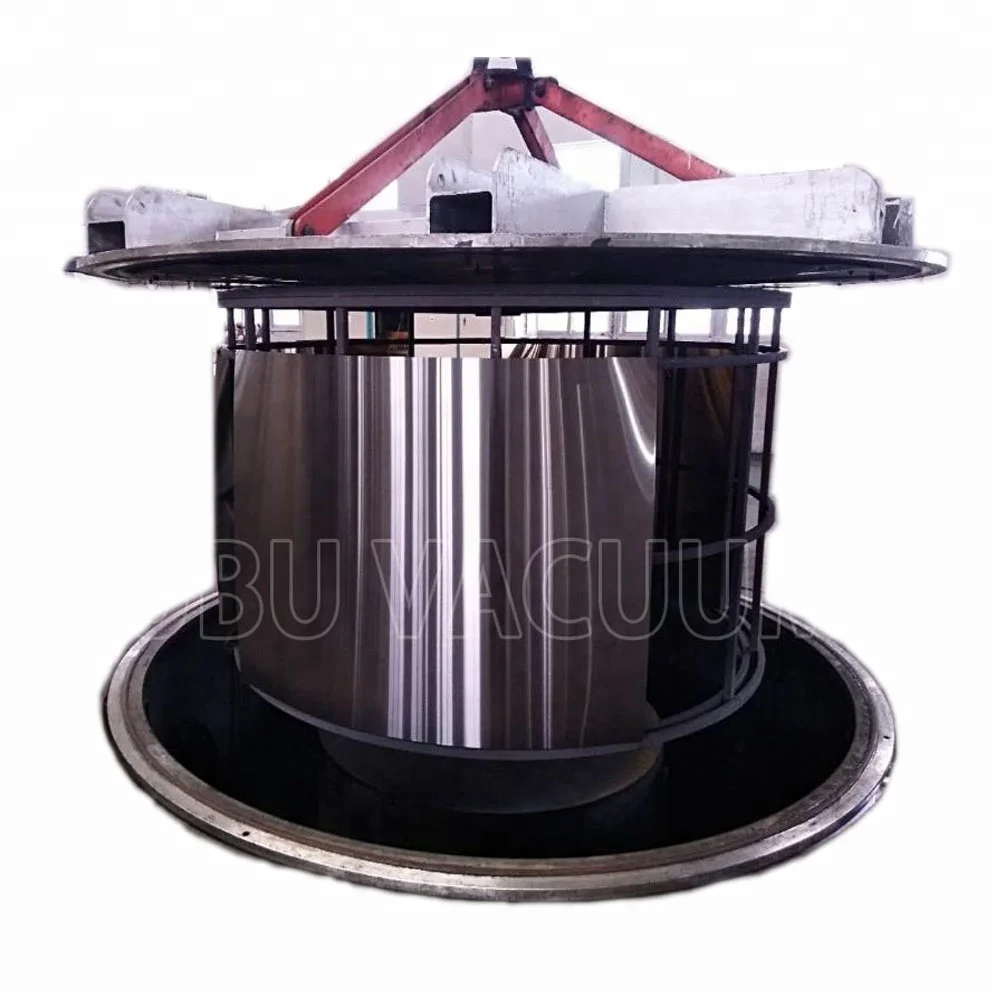

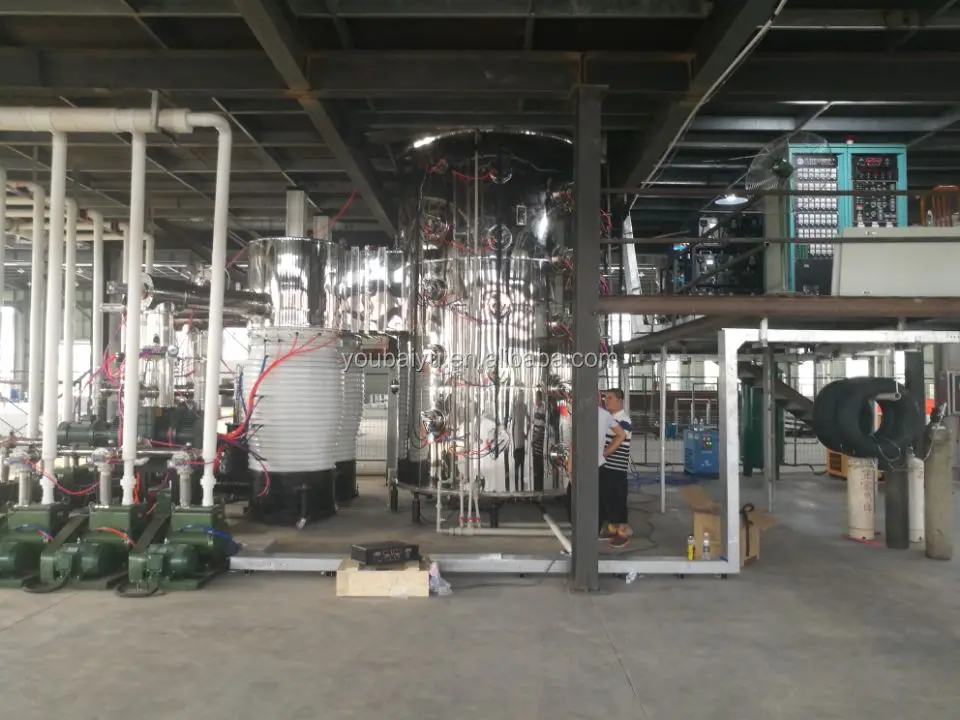

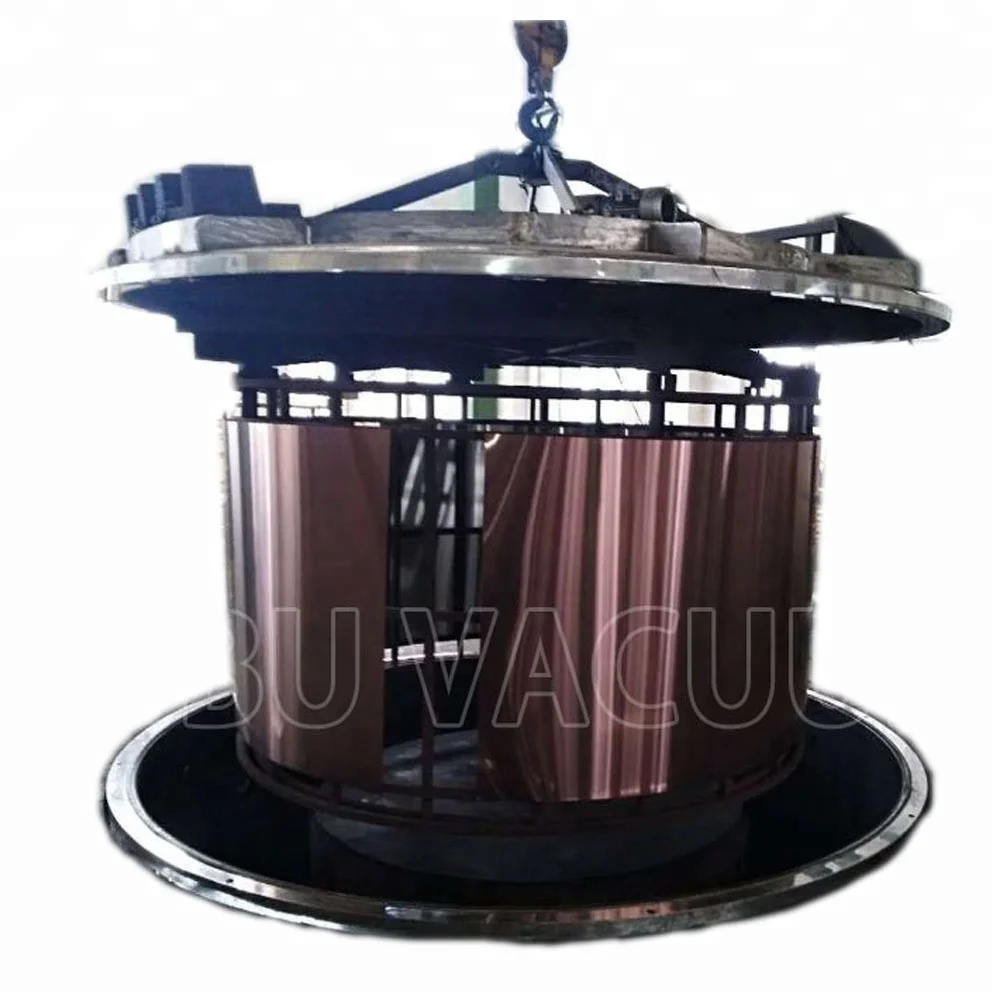

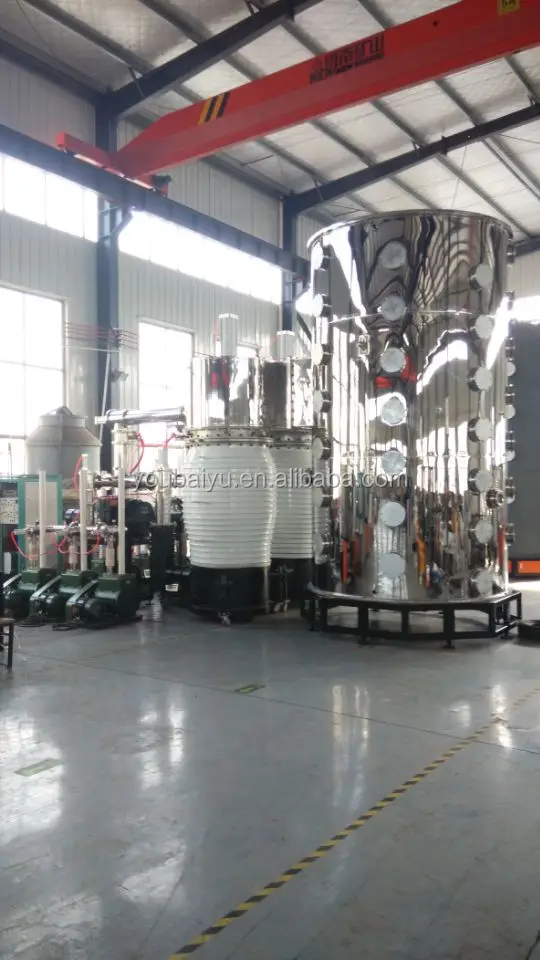

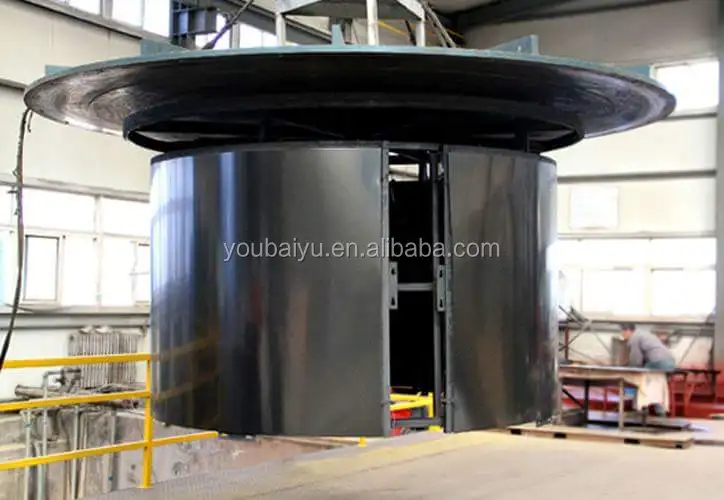

PVD coating machine
Packaging & Shipping
High quality strong Plywood cases packaging and transportation by sea .
Factory packaging with lami-nated packaging ,good structural strength,good
stability,have qualitative light ,intensity is high, has the good elasticity and
toughness.Resistance to impact and vibration.
Packing machine with waterproof,moistureproof,prevent scratch,com-pletely
dissolved in water,non-toxic pollution-free with laminated packing and
shipping.
Our Services
Before sales:
- Our engineers are ready to provide custom made design and recommendation for each customer's case.
- We provide professional consulting service for PVD coaters and lines.
- We also have set up good relations with the suppliers of relative consumables and parts for your needs.
After-sales
- We will send the engineers to your place for installation, fine tune and for operation training.
- We will provide troubleshooting service all lifetime.
- The warranty period of the machine is 1 year.
- We will contact you to ask for about the conditions of the machine in periodically.
- We also provide the service for further extension on your existing machine.
Hello sir/madam:
When you are going to send us an inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. dimension of your product
3. What is your desired productivity each batch.
4. What film do you want to coat on your products
5. What environment do your products be used.
The answers to the above question will help us a lot on designing or do the recommendation.
