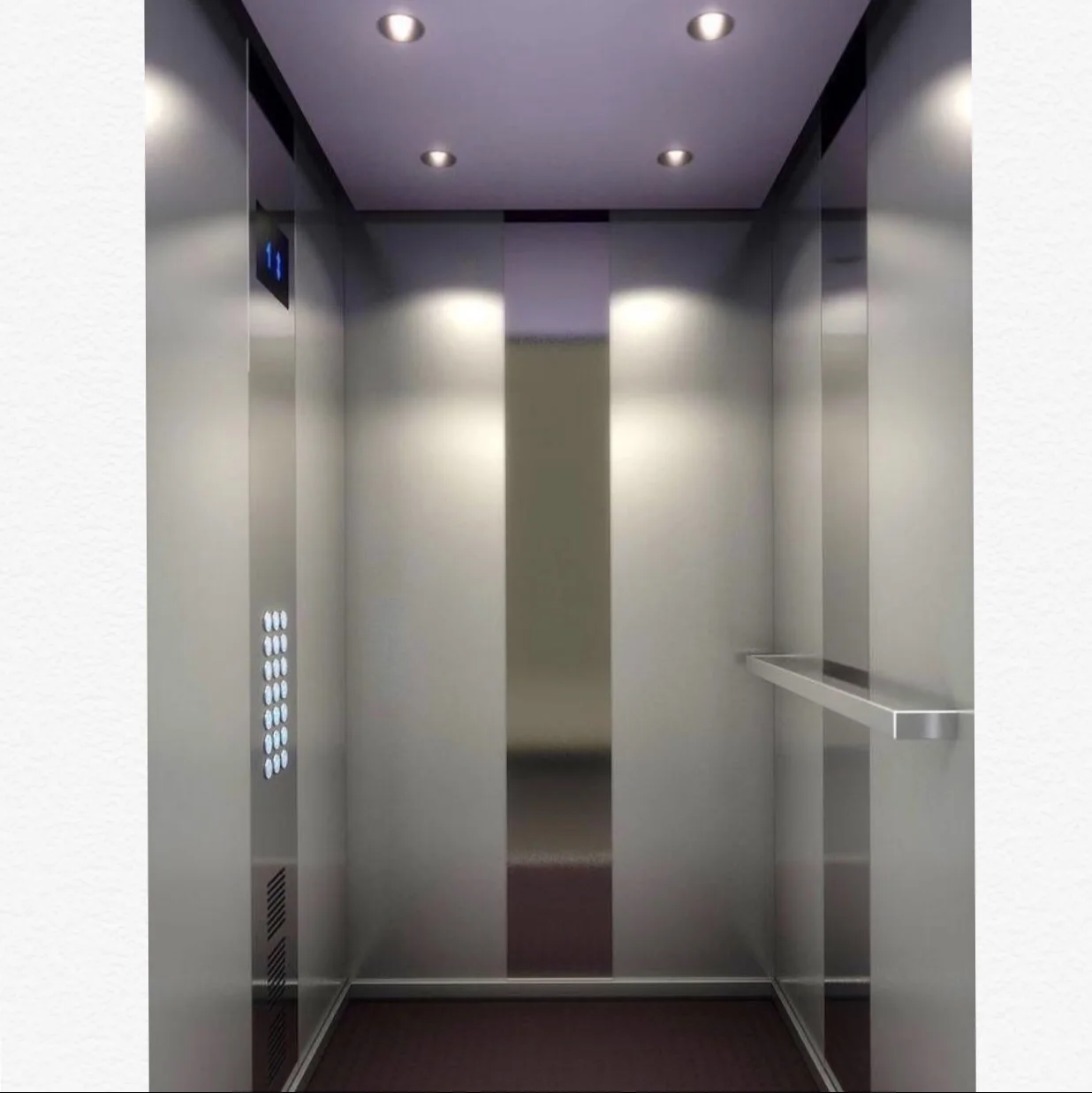

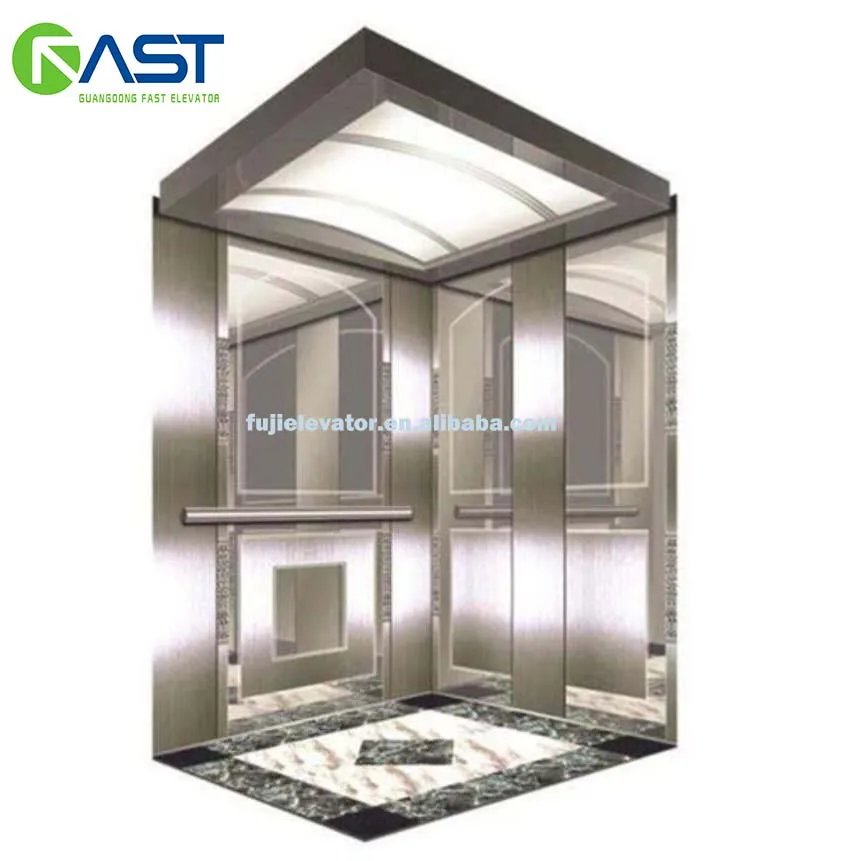

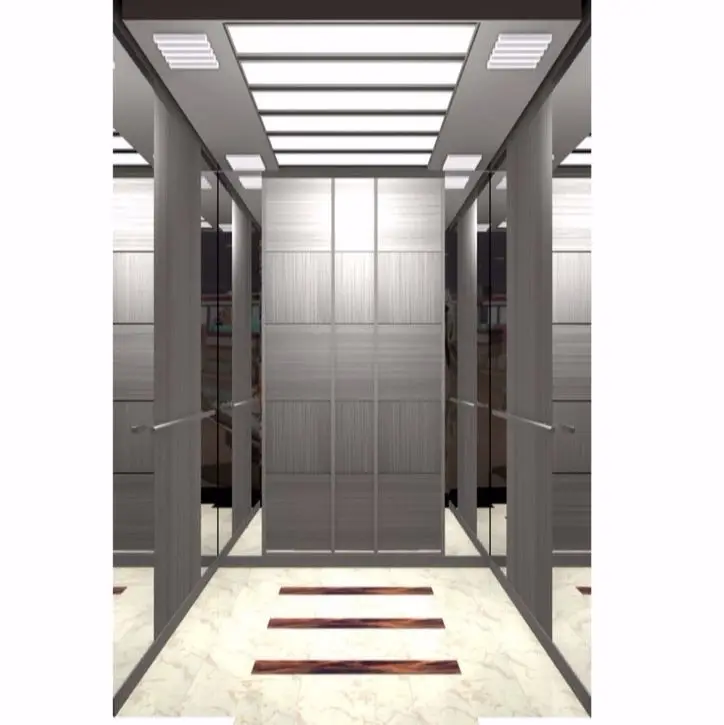

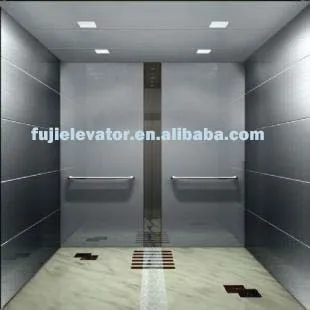

FAST Brand cabin design for Passenger Elevator
- Category: >>>
- Supplier: Guangdong Fast Elevator Co. Ltd.
Share on (60836442781):
Product Overview
Description
Specifications:
1. Double VVVF drive
2. Space-saving
3. Choice of optional functions
4. CE approved, ISO9000
Passenger elevators descriptions with small machine room and machine room less:
Small Machine Room Available Specifications
Persons | Rated Capacity(KG) | Rated Speed (m/s) | Model Number | Inner Dimension (mm) | Size of Door(mm) | Hoistway Size(mm) | Machine Room Dimension |
6 | 450 | 1.0-1.75 | FAK450 | 1300×950 | 700×2100 | 1800×1650 | 1800×2000×2500 |
8 | 630 | 1.0-1.75 | FAK630 | 1400×1100 | 800×2100 | 2000×1750 | 2000×2000×2500 |
10 | 800 | 1.0-3.0 | FAK800 | 1400×1350 | 800×2100 | 2000×2000 | 2000×2000×2500 |
12 | 900 | 1.0-3.0 | FAK900 | 1400×1500 | 900×2100 | 2000×2200 | 2000×2200×2500 |
13 | 1000 | 1.0-3.0 | FAK1000 | 1600×1400 | 900×2100 | 2200×2100 | 2200×2100×2500 |
15 | 1150 | 1.0-3.0 | FAK1150 | 1600×1600 | 900×2100 | 2200×2300 | 2200×2300×2500 |
16 | 1250 | 1.0-3.0 | FAK1250 | 1750×1600 | 1000×2100 | 2350×2300 | 2350×2300×2500 |
18 | 1350 | 1.0-3.0 | FAK1350 | 1800×1650 | 1000×2100 | 2400×2400 | 2400×2400×2500 |
21 | 1600 | 1.0-3.0 | FAK1600 | 1950×1750 | 1100×2100 | 2900×2300 | 2900×2300×2500 |
Persons | Loading Capacity (KG) | Speed (m/s) | Model Number | Inner Dimension (mm) | Net Door Size (mm) | Top Floor Height (mm) | Hoistway (mm) | Pit Depth |
6 | 450 | 1.0 | FAKU450 | 1200×1000 | 700×2100 | 4000 | 2050×1750 | 1600 |
1.5-1.75 | 4300 | 1600 | ||||||
2.0 | 4400 | 1800 | ||||||
8 | 630 | 1.0 | FAKU630 | 1400×1100 | 800×2100 | 4300 | 2250×1800 | 1600 |
1.5-1.75 | 4600 | 1600 | ||||||
2.0 | 4600 | 1800 | ||||||
10 | 800 | 1.0 | FAKU800 | 1400×1350 | 800×2100 | 4500 | 2250×1900 | 1600 |
1.5-1.75 | 4700 | 1700 | ||||||
2.0 | 4800 | 1800 | ||||||
13 | 1000 | 1.0 | FAKU1000 | 1600×1400 | 900×2100 | 4600 | 2450×2000 | 1600 |
1.5-1.75 | 4800 | 1800 | ||||||
2.0 | 5000 | 1900 | ||||||
16 | 1250 | 1.0 | FAKU1250 | 1750×1600 | 1000×2100 | 4700 | 2700×2100 | 1800 |
1.5-1.75 | 4900 | 1800 | ||||||
2.0 | 5200 | 2000 | ||||||
21 | 1600 | 1.0 | FAKU1600 | 1950×1750 | 1100×2100 | 4600 | 2800×2400 | 1600 |
1.5-1.75 | 4700 | 1800 | ||||||
2.0 | 5000 | 1800 |
Decoration:
1 elevator car decoration
2 operaion system
About FAST:
Certifications:
Project Show:
Packing:
