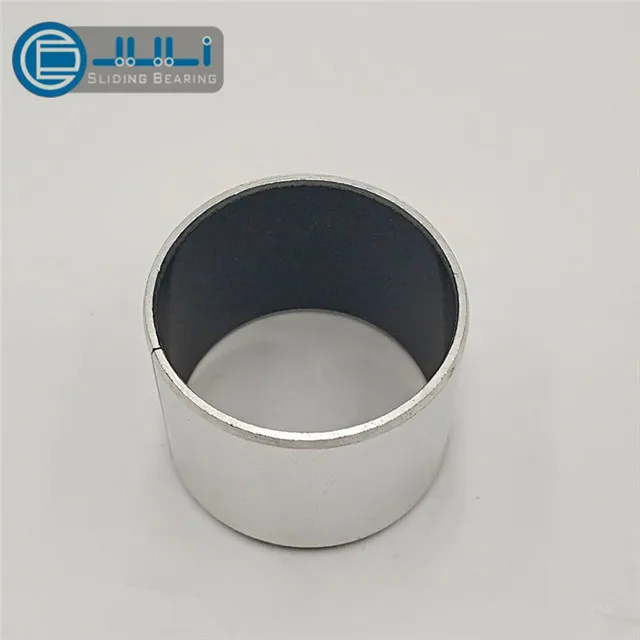

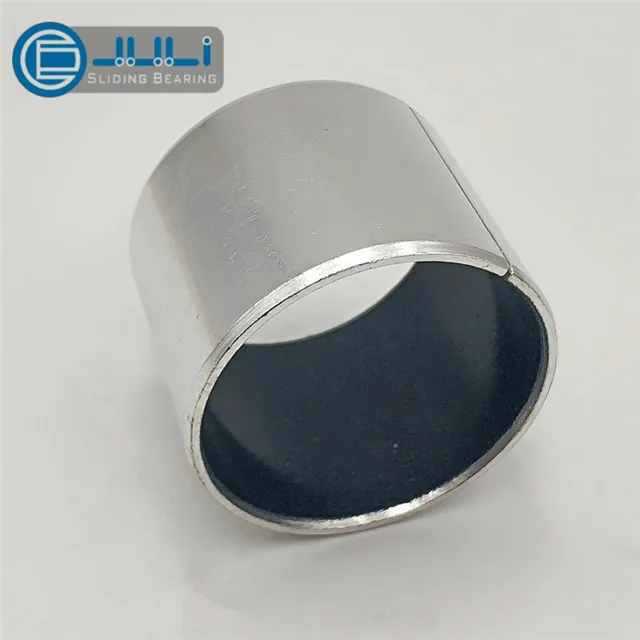

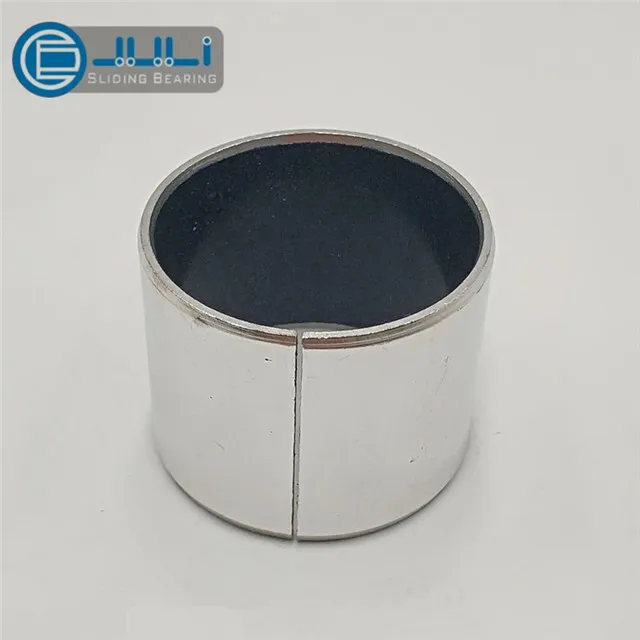

Manufacturer Direct Supply DU0808 PTFE DU bronze bushing bushing

Excellent sliding and wear behaviour, especially in case of rotating and oscillating movement, good shock absorption, very high load capacity, no water absorption

***Wrapped composite sliding bearing
***Carbon-steel / PTFE fibres fabric
***DIN 1494 / ISO 3547
***Maintentance-free
***Available on request

Max Move Load Capacity                                 100 N/mm2

Max Sliding Speed                                            dry 0.3 m/s   /  oil 1 m/s

Max PV Value Limit                                           3.25 N/mm ·m/s

Density                                                              8 g/cm3

Tensile Strength                                                >750 N/mm2

Elongation                                                         >12 %

Hardness                                                           210 HB

Working Temperature                                        - 40 ~ +200 ℃

Q: Are you trading company or manufacturer ?

A: We are  manufacturer.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. We also accept payment by L/C,D/A,D/P,and so on.
If you have another question, pls feel free to contact us as below:
