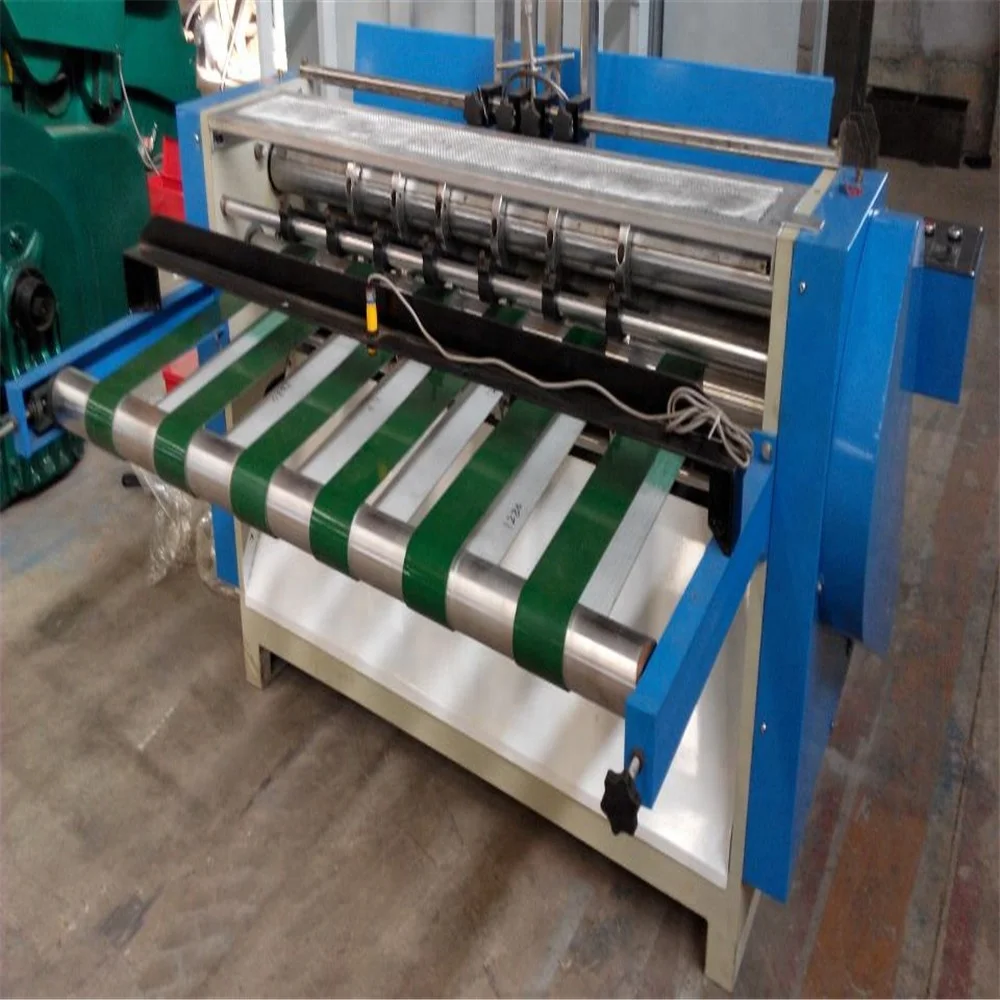

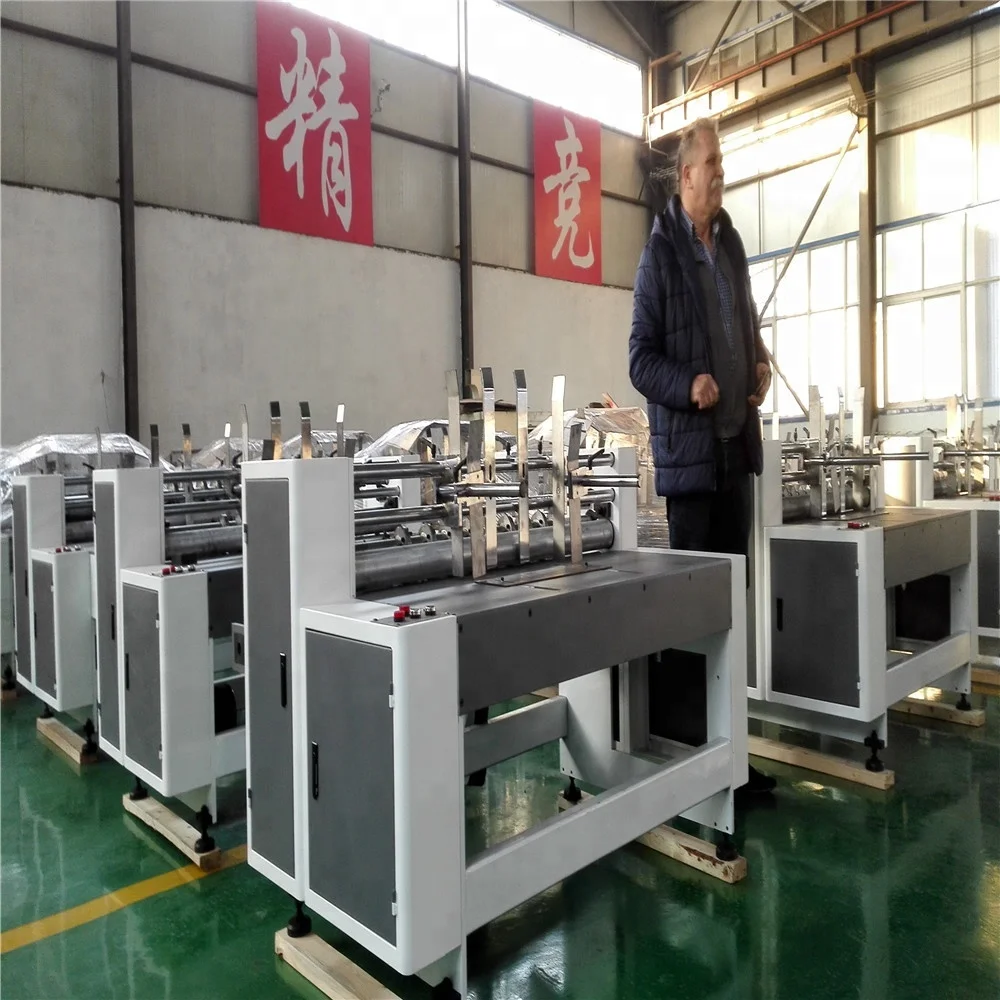

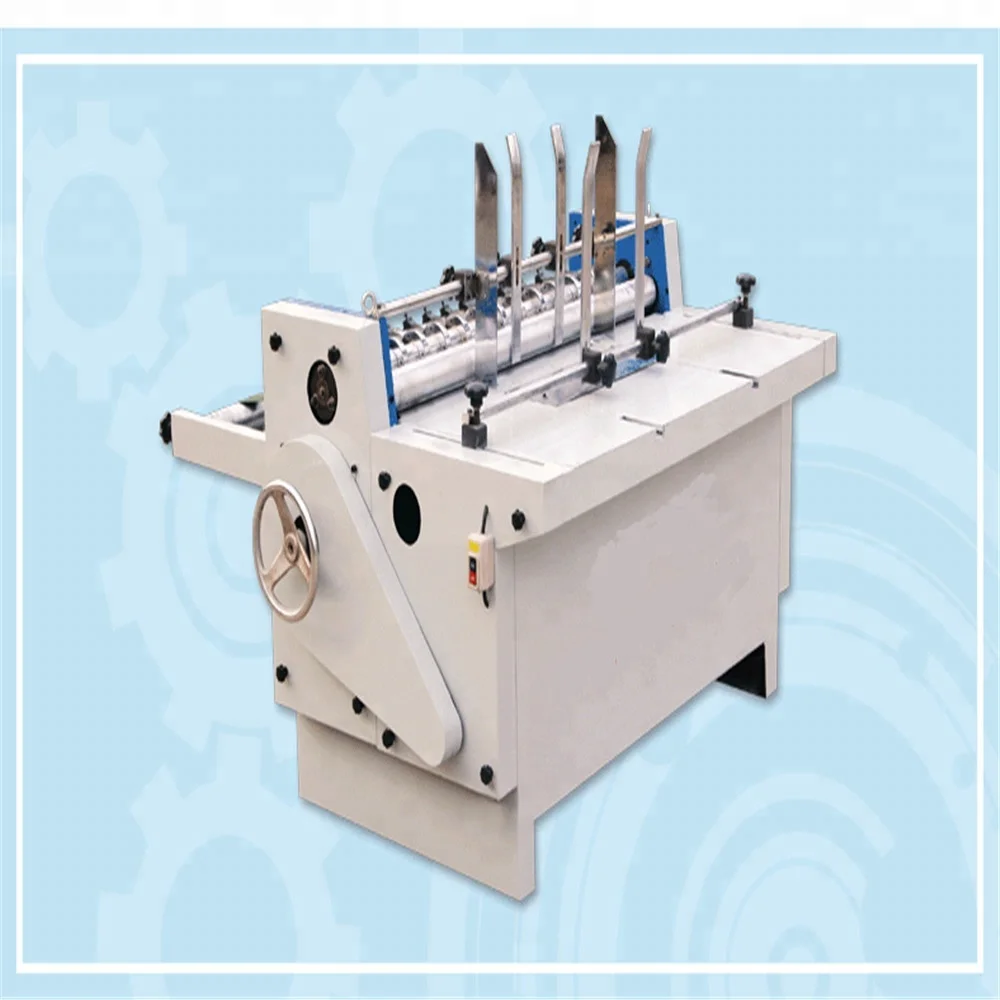

Easy operation corrugated automatic card board partition slotter machine
- Category: Other Packaging Machines >>>
- Supplier: Dongguang Canghai Packing Machine Co. Ltd.
Share on (60836452806):
Product Overview
Description
Product Description
Easy operation corrugated automatic card board partition slotter machine
Choose the corrugated paperboard which you want to process, adjust the side feeding baffle (1 in Picture A) . Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles (1 in Picture A) right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
Detailed Images

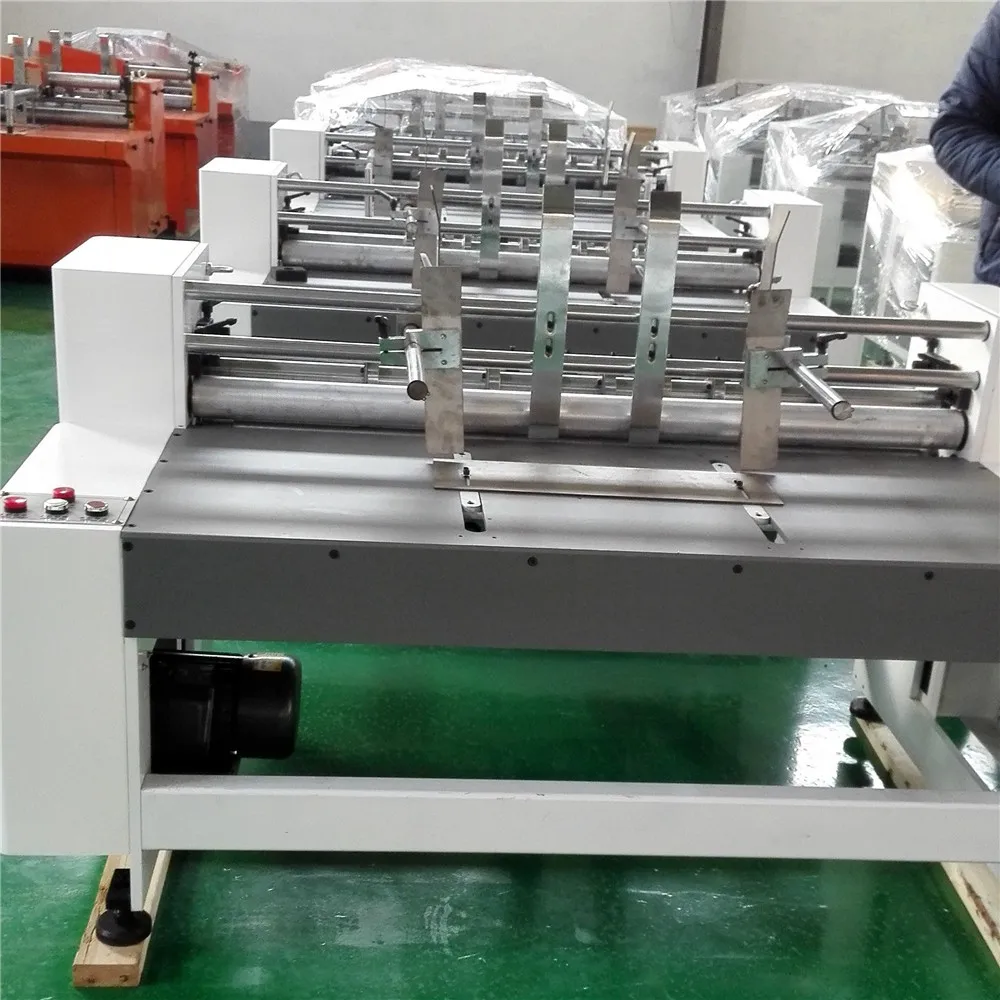

When the length of paperboard is big , can move the front feeding baffle right or left. Adjustment method : loose the screws in circle of below picture, move the two front feeding baffles , adjust the front feeding baffles to the suitable positions according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
Adjust the back feeding baffle , adjustment method : loose the screws in circle of below picture , move the two back feeding baffles forwards or backwards , adjust the suitable positions according to the width of paperboard , after finishing adjustment , tight the screw and fix the baffles .
Model | 1000 |
Machine max speed | 120 pieces/min |
Max feeding size (L×W) | 1000mm×300mm |
Min feeding size (L×W) | 100mm×75mm |
Min slotting distance | 45 mm |
Slotting number | 9 groups of slotting knives |
Slotting width | (Choose one according to the thickness of paperboard) |
Related Products
Packing & Delivery
Certifications

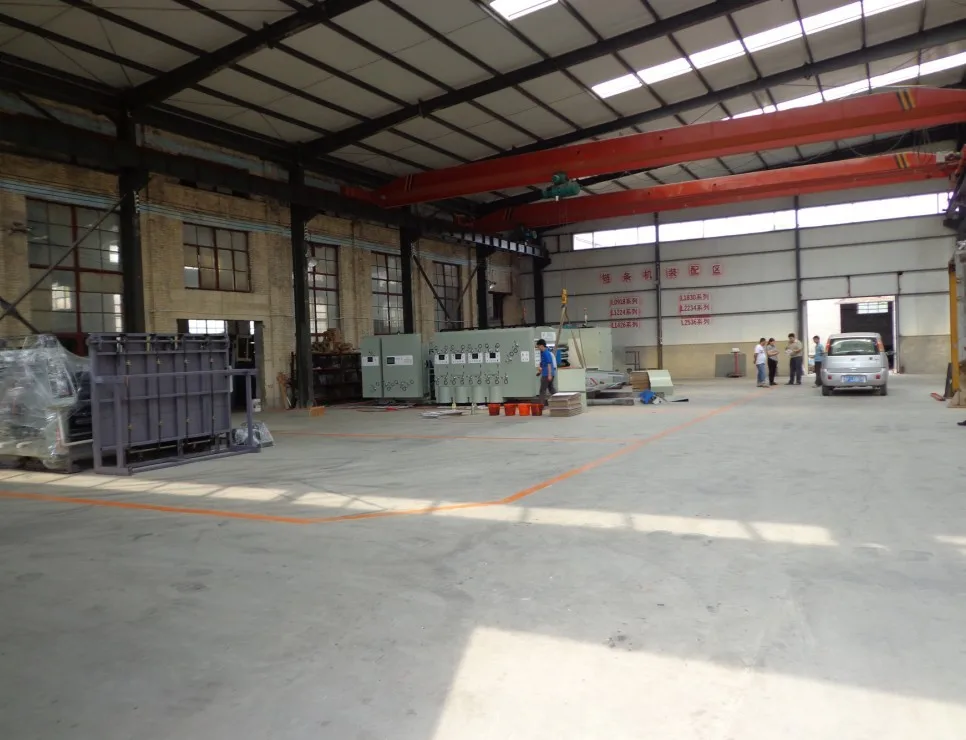

Our Company
