Product Overview

Description


 Cheap HMI 4.3 inch tft lcd display module without touch panel  wide voltage input easy to develop (CJS04307NTDCC01)



Product Description


Selling Point


Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)
RTC real-time clock
Embedded 4-wire touch panel controller
USB picture download
Multiple pages DDRAM
Color depth TFT: 65K colors
2/4GB flash
PWM for backlight
Management of datasheet file
Efficient development tool for PC, most development work can be done on the PC
Hardware acceleration, transferred image quickly


RS485 rs232 TTL interface 4.3 inch tft lcd module

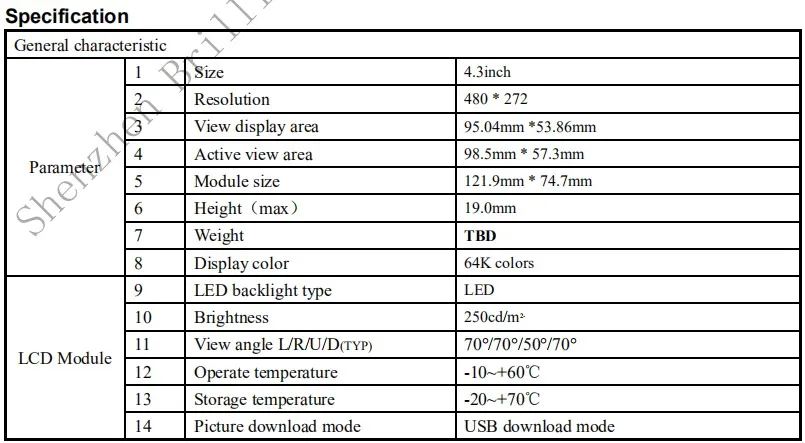

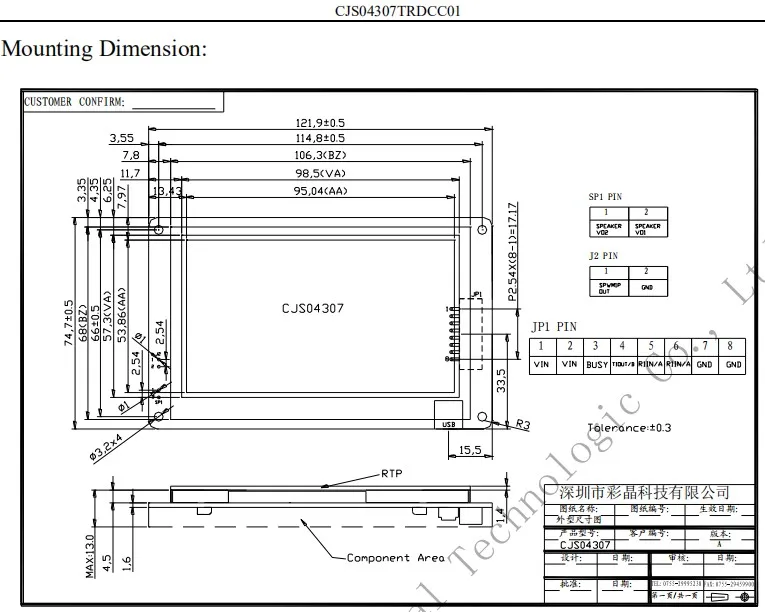

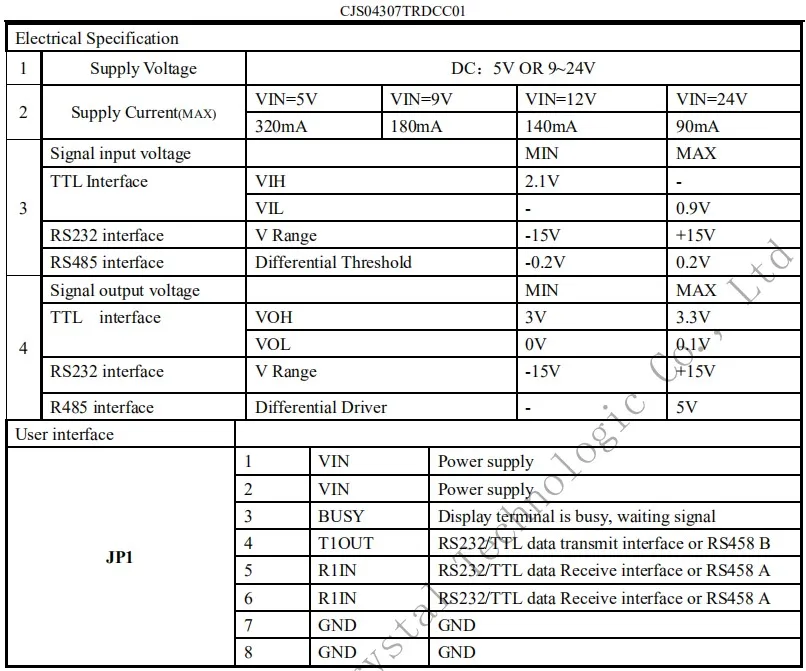

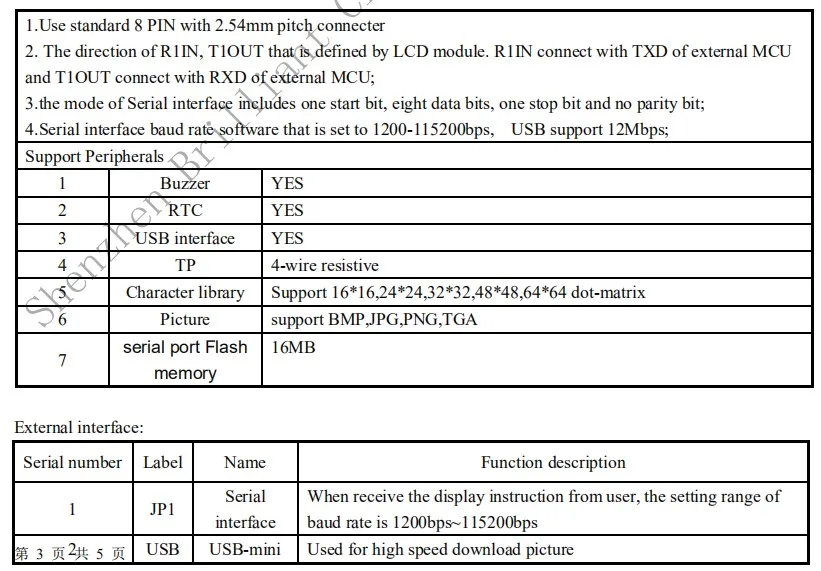

4.3 inch.JPG4.3 inch TFT.JPG4.3 inch TFT LCD.JPG4.3 inch display module.JPG








Product Certificates


Low cost serial port industrial 4.3 inch tft lcd display module support RS232 RS485 TTL USB port(CJS04307)


8 characters 2 lines lcd module certificates.png





Our Services


Our advantage and service


15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance


Free sample for some styles


Our equipment.png





Product usage


Shenzhen lcd module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .










Contact Us


Shenzhen Brilliant Crystal Technologic Co.,ltd


Bella Zou


Skype:cjsz2002


QQ:2829642402


cjsz2002#hotmail.com


Celand whatsapp:+86-15889302786


Tel:+86-0755-29485608


Website:www.cjlcd.com  & www.cj86.com


              https://szcmlcd.1688.com/





Related Product


RS485 rs232 TTL interface 4.3 inch tft lcd module l





























































































































Display contentModel No.Outline size
L x W x H (mm)		V.A
L x W(mm)		Dots Size
L x W(mm)		VOltage     Interface
480x272RGBCJS04301120.4x68.6x8.098.5x57.30.066x0.1985V/9V-26VRS232/RS485/TTL
800x480RGBCJS05001143.5x80.9x17.5109x65.80.045x0.1355V/9V-26VRS232/RS485/TTL
640x480RGBCJS05602143.5x105x17115.9x87.670.0588x0.17645V/9V-26VRS232/RS485/TTL
800x480RGBCJS07001190x112x18154.9x93.90.0635x0.19055V/9V-26VRS232/RS485/TTL
800x480RGBCJS07002190x112x18155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
1024x600RGBCJS07006190x106.6x37.5156.2x92.60.0635x0.19055V/9V-26RS232/RS485/TTL
800x480RGBCJS07008203x112x21155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
800x600RGBCJS08001199.4x148.9x15163.5x123.50.0675x0.20255V/9V-26VRS232/RS485/TTL
1024x768RGBCJS08003199.4x148.9x37.5163.5x123.50.0675x0.20255V/9V-26RS232/RS485/TTL
1280x800RGBCJS10101248x150.7x37.5219.46x138.10.0635x0.19055V/9V-26RS232/RS485/TTL
800x600RGBCJS10401247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
800x600RGBCJS10402247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
