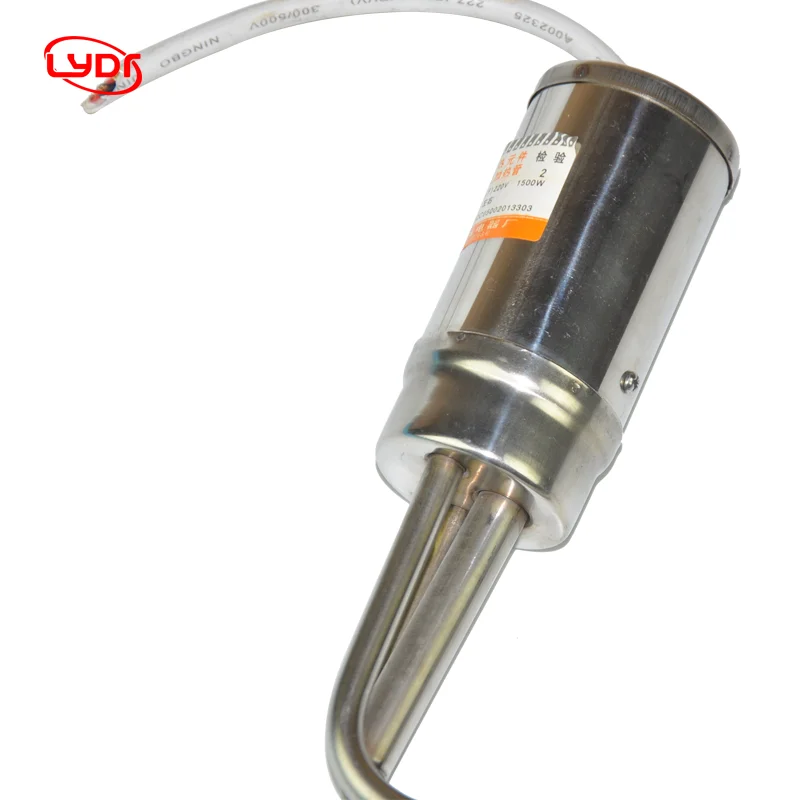

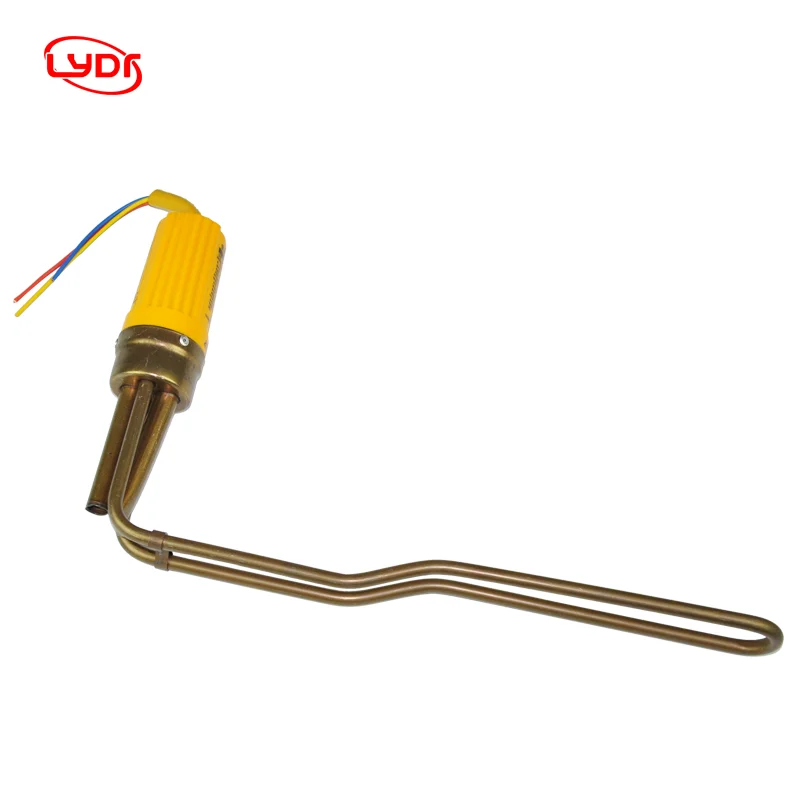

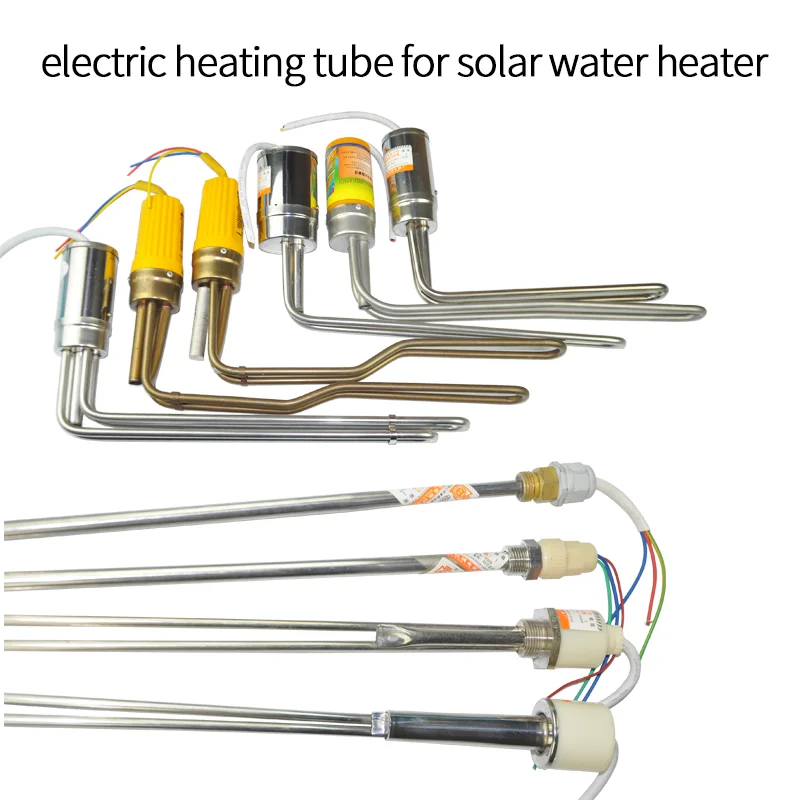

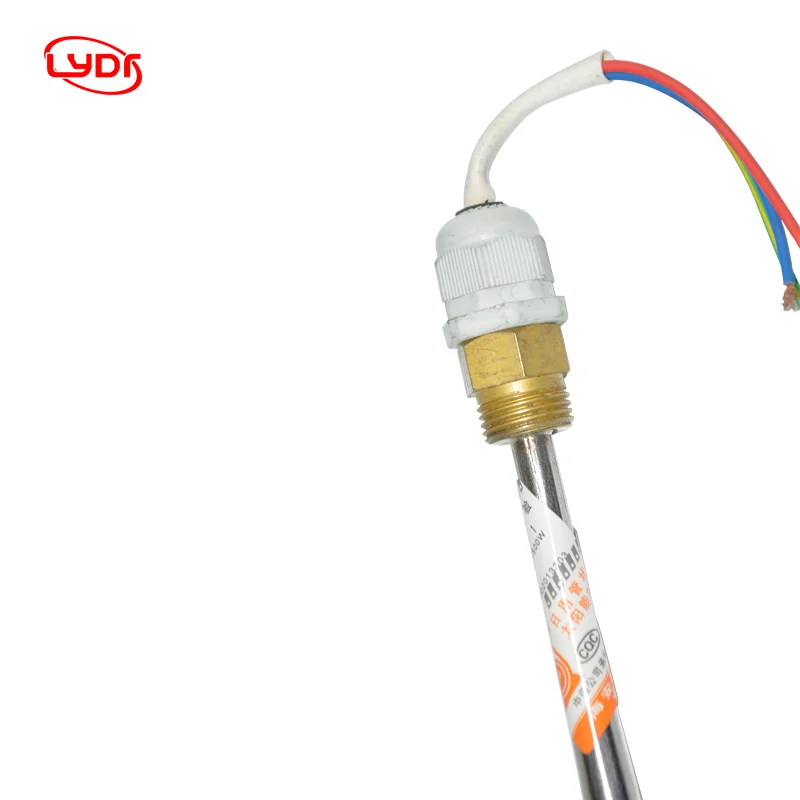

LYDR high efficiency electric heating element, tubular heater for solar water heater
LYDR high efficiency electric heating element, tubular heater for solar water heater
LYDR high efficiency electric heating element, tubular heater for solar water heater
LYDR high efficiency electric heating element, tubular heater for solar water heater
LYDR high efficiency electric heating element, tubular heater for solar water heater

LYDR high efficiency electric heating element, tubular heater for solar water heater

Share on (60836463569):


Price:

Quantity:


Product Overview

Description


Product Description

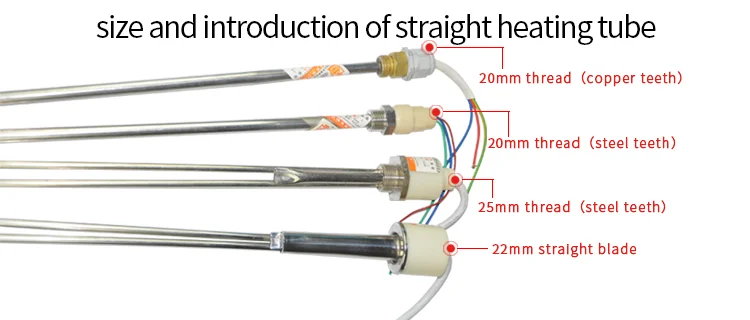

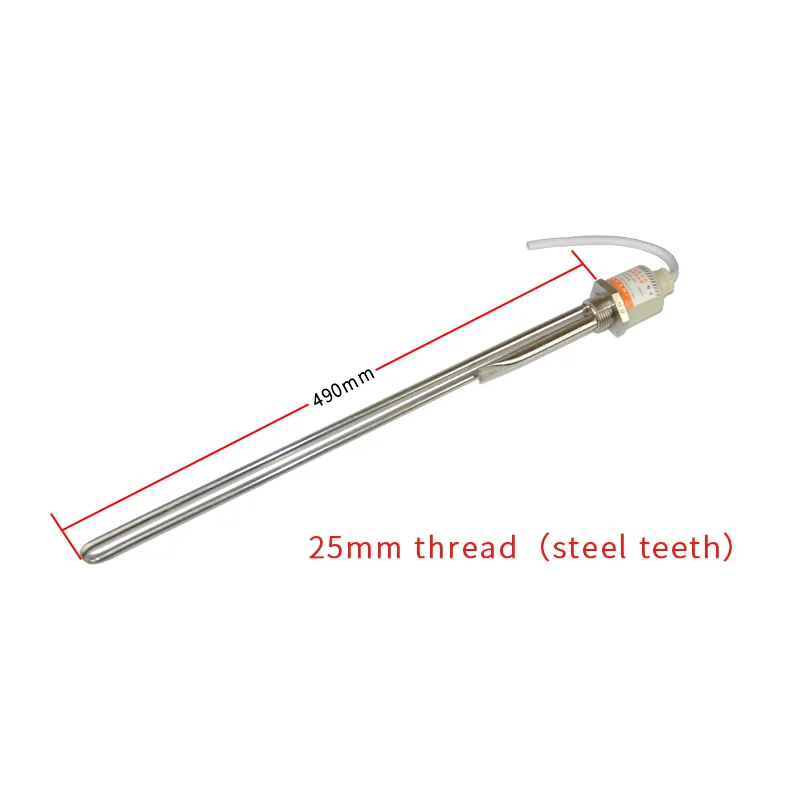

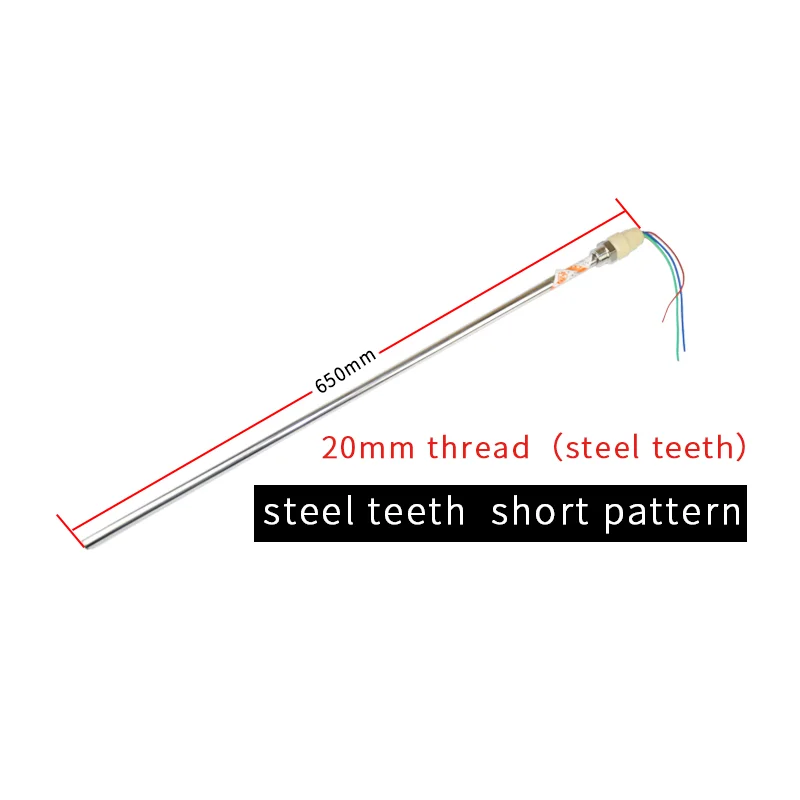

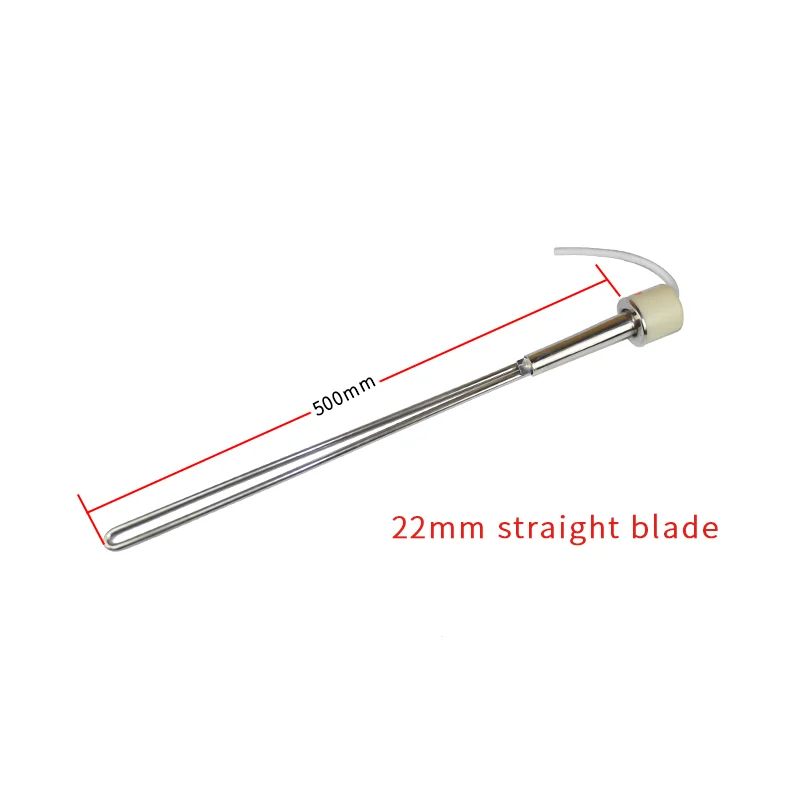

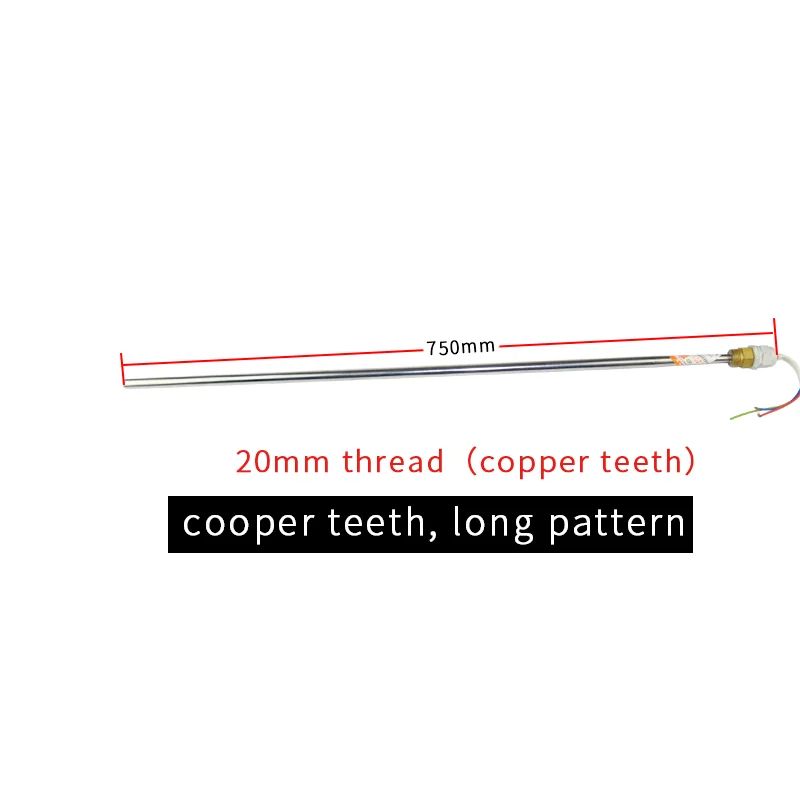

Electric heating tube

Tubular heaters are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time. Screw in tubular heaters are standardised for use in liquids like water. Finned tubular heaters are especially for air-heating-cabinets or tunnels. Infrared emitters can be used in vacuum as well as in surrounding atmosphere.

\t
Product Information
\t
Materials
\t
S304, Copper
\t
Power tolerance:
\t
+5%, -10%
\t
Pipe diameter:
\t
6.8-8mm
\t
Size tolerance:
\t
± 3mm
\t
Heater length:
\t
customized
\t
Cold pressure capacity:
\t
1500w/0.5mA/S
\t
Watt:
\t
1000-3000w
\t
Hot pressure capacity:
\t
1250w/0.5mA/S
\t
Volt:
\t
220v/380v
\t
Lead time
\t
15days
\t
Insulation material:
\t
High-purity Mgo
\t
Design Lifetime:
\t
10000+ h
\t
Resistance Heating Wire:
\t
NiCr,FeCr (Optional)
\t
Thermocouple Location:
\t
Disc End, Sheath, Center of Heater
\t
Working Frequency:
\t
50-60Hz
\t
Continuous Operating Temperature
\t
≤750℃
\t
MOQ:
\t
1000pcs
\t
Maximum Working Temperature
\t
Max 800℃
\t
Certification:
\t
CE,ROHS
\t
Insulation Resistance (cold)
\t
≥500MΩ

Main Features

1) Precision helical wound nickel-chromium resistance wire provides uniform thermal profile
2) Circumferential cold pin-to-wire fusion weld ensures robust connection for long heater life
3) Compacted, high purity MgO dielectric insulation extends resistance wire life at high temperatures
4) Recompacted bends provide longer life by ensuring insulation integrity
5) UL & CSA recognized elements assures safe and reliable performance

Advantages

1) Many sections, many lengths: Long-living heating elements for the use in air or tools. We can supply many different shapes, lengths and wattages with the option to be bent by yourselves.

2) Our products are up to the standard of CE, ROHS, and ISO9001.
3) tube heaters are easy to form and feature highest mechanic stability and electric properties at the same time
4) The advantage of heat pipes over many other heat-dissipation mechanisms is their great efficiency in transferring heat.
5) Provides convenient temperature sensor insertion and replacement


Order Guider

When you place order to us, please advise us the below information:

1) Drawings
2) Power,voltage,shape
3) Tube length
4) Working temperature
5) Material
6) Quantity
We can custom cartridge heaters specially (According to your size,voltage,power etc.)




Application

Applications


1) Plastic Processing machinery.
2) Water and Oil Heating Appliances.
3) Packaging machineries
4) Vending Machine.
5) Heating Chemical Solutions.
6) Ovens & Dryers
7) Kitchen equipments
8) Medical equipments

Categories
Hot Sale Products
About Us

Taizhou Liyuan Electric Appliance Co., Ltd was established in July, 2006, located in Taizhou, China, mainly occupied in the research & development, production and sales of electrical heater.
It is widely used in water heater, kitchen equipment, packaging machinery, aluminum extrusion machinery, ceramic machinery, chemical machinery, and plastic machinery. And, it is used for mould heating, electroplating, smelting, plastics, food medicine, breeding, drying production line heating and so on.
Our company relies on "scientific and technological innovation" to create the first-class brand LYDR , and we stick to the principles of "quality of survival, innovation and efficiency, integrity and development"during our production and
Here, we sincerely look forward to having the opportunity to cooperate together to create a more brilliant future in the electrical industry!

Certifications
Packing & Delivery
\t
Packing Information
\t
Carton size
\t
350(L)*350(W)*300(H)CM
\t
Packing Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request
FAQ

Q:How can I get a sample ?
A: If you are the first time to cooperate with us, the cost should be paid by you,after the order placed, we will return it back to you.

Q:What's your MOQ?
A: Normally 1000pcs per item, different styles are different MOQ,

Q:Can you add my logo on the tube ?
A:Yes,we can.

Q: What is your production time?
A: Normally 10-15 days, Production times vary based on the item you choose.

Q:What's your payment term?
A: We accept T/T (30% deposit in advance, balance before shipment) and L/C at sight, other payment terms can be negotiated.

Q: How is my order shipped?
A: By sea, by air or by express
