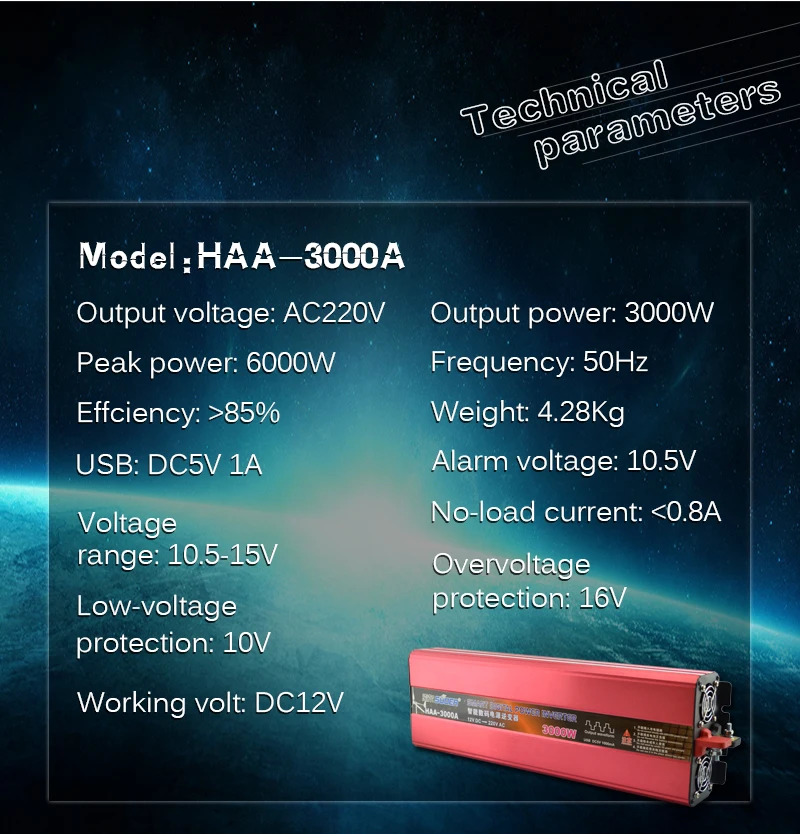

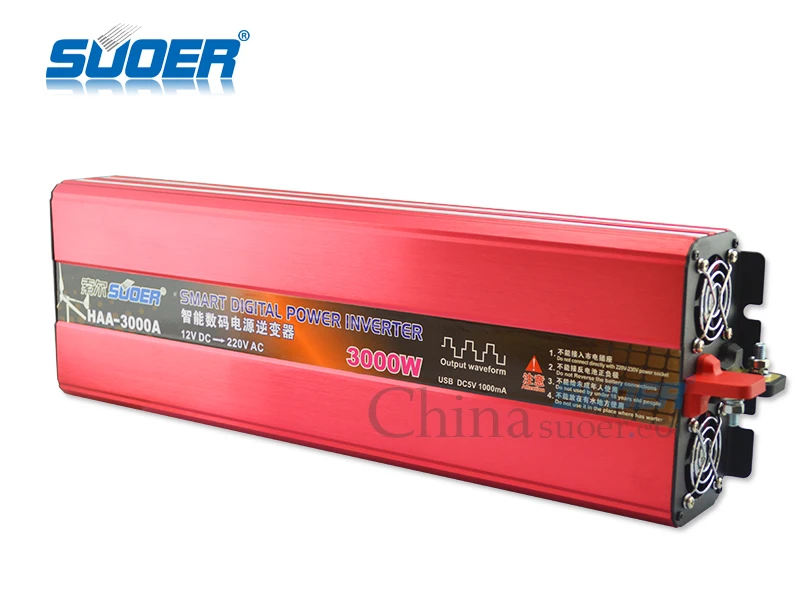

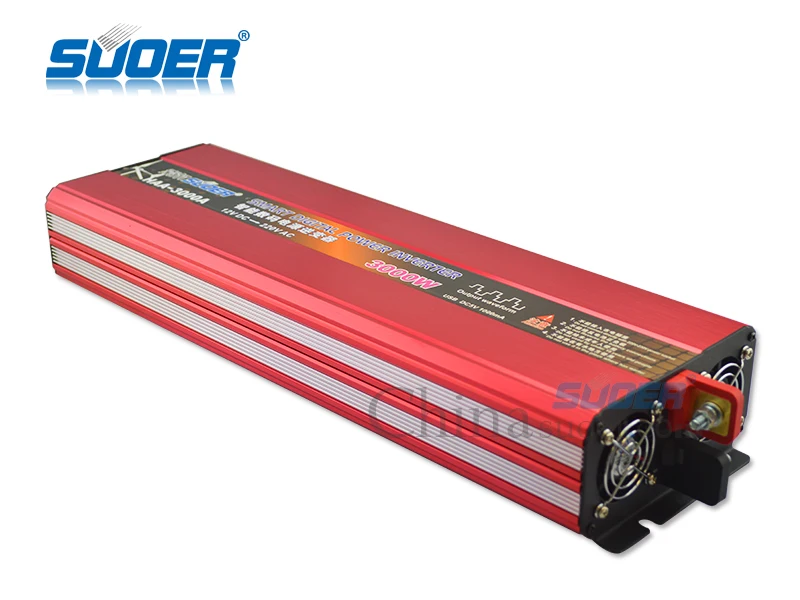

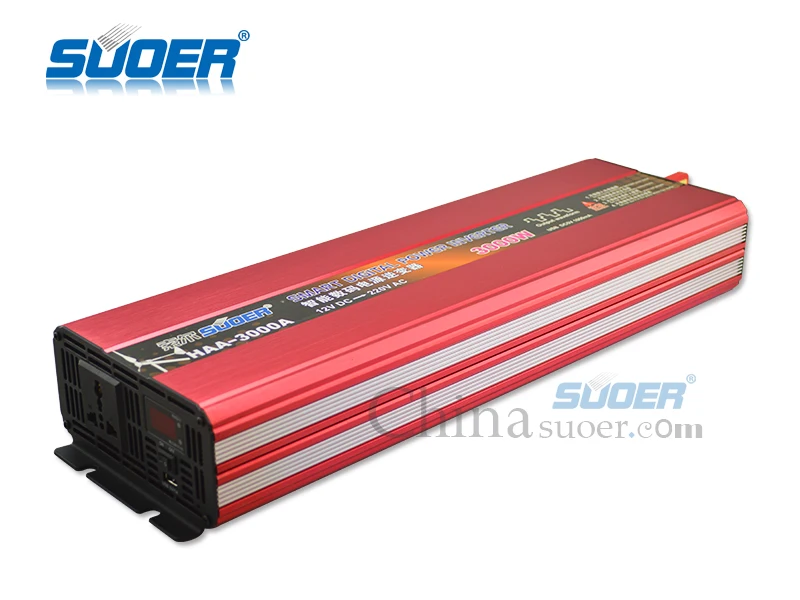

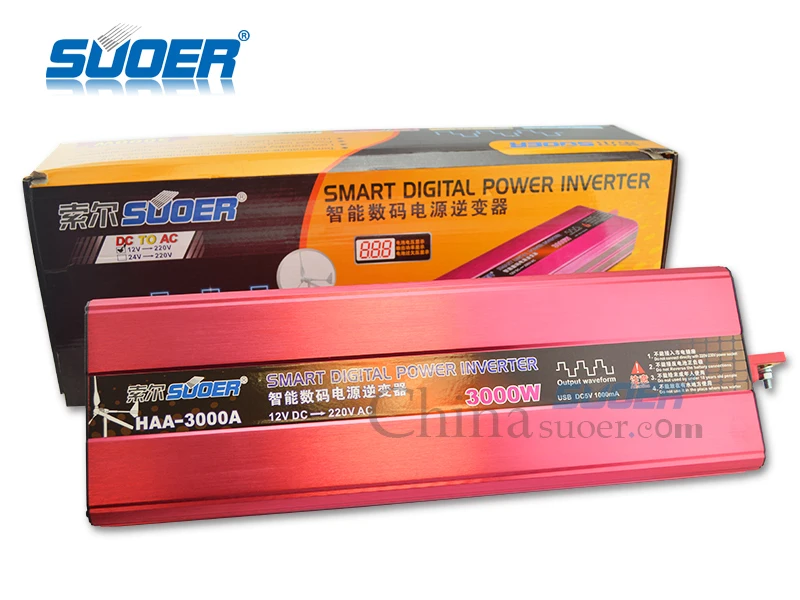

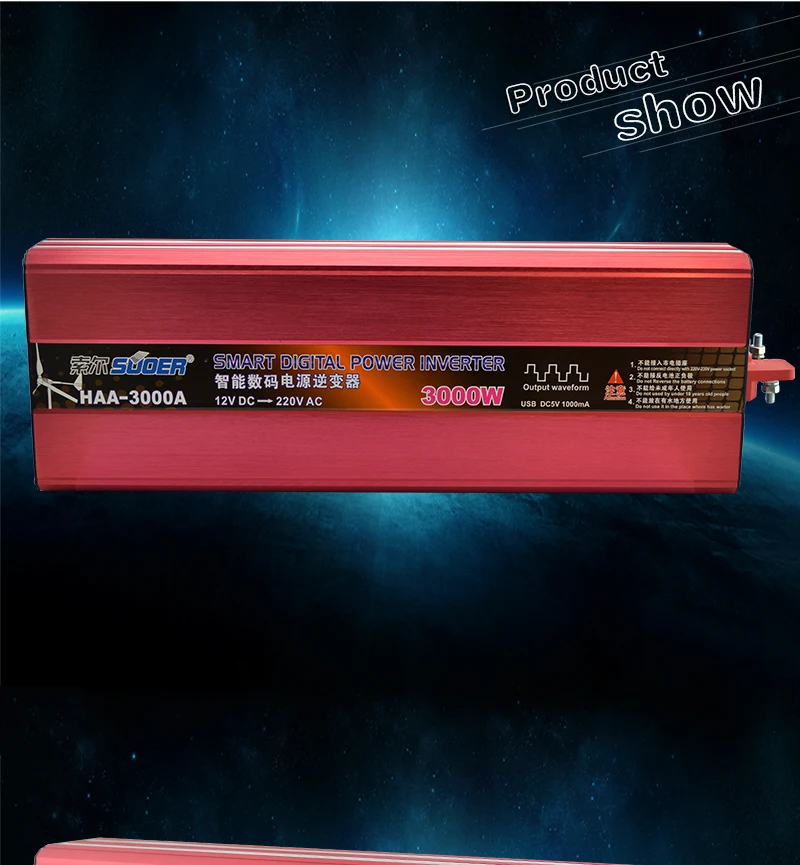

Model | HAA-1000A | HAA-1000B | HAA-2000A | HAA-2000B | HAA-3000A | HAA-3000B | |
| Output power | 1000W | 2000W | 3000W | ||||
| Frequency | 50Hz(or 60Hz) | ||||||
| I N P U T | No-load current | <0.5A | <0.3A | <0.5A | <0.3A | <0.8A | <0.5A |
| Voltage range | 10.5-15V | 21-30V | 10.5-15V | 21-30V | 10.5-15V | 21-30V | |
| Low-voltage protection | 10V | 20.5V | 10V | 20.5V | 10V | 20.5V | |
| O U T P U T | Peak power | 2000W | 4000W | 6000W | |||
| USB | DC 5V 1A | ||||||
| Output voltage | AC 220V(or 110V) | ||||||
| Alarm Voltage | 10.5V | 21V | 21V | 10.5V | 21V | 10.5V | |
| Over-voltage protection | 16V | 31V | 16V | 31V | 16V | 31V | |
| G.W./CTN | 10KG | 15.85KG | 20.6KG | ||||
| Efficiency | 70%-80% | ||||||
| Size/CTN | 40.5*30*28.5CM | 42*40.5*28.5CM | 55*40.5*28.5CM | ||||

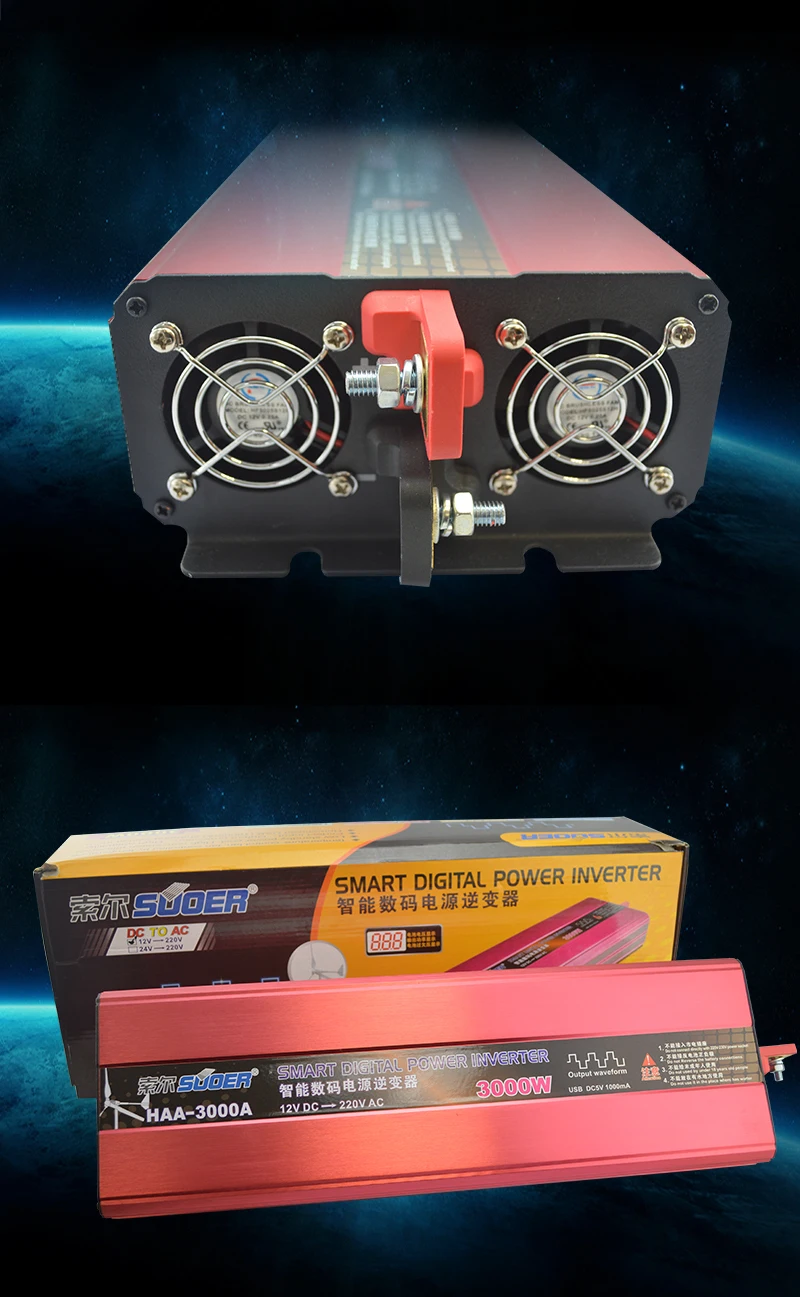

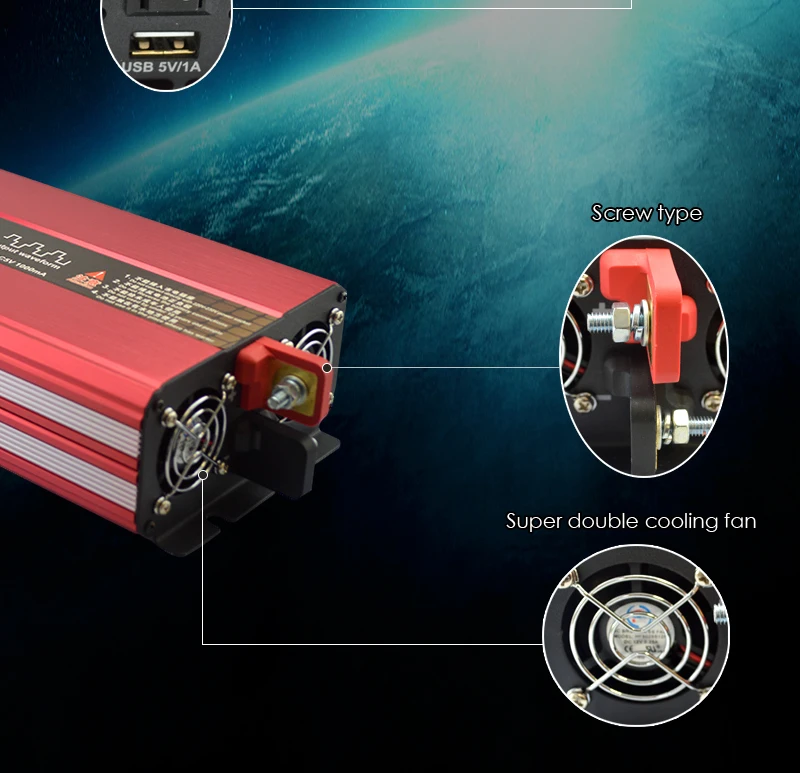

1. The smart fan is controlled by th load,and it won’t work if the output side is not connected to load.
2. Low standby power cost,high conversion efficiency.
3. Perfect input and output protection,high reliability.

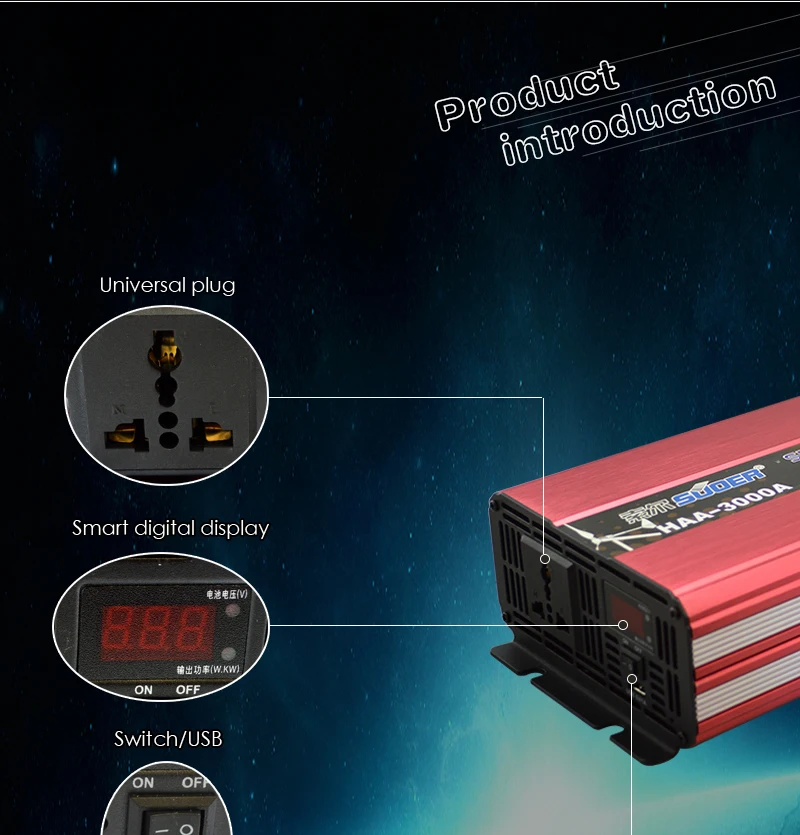

4.DC 5v USB output

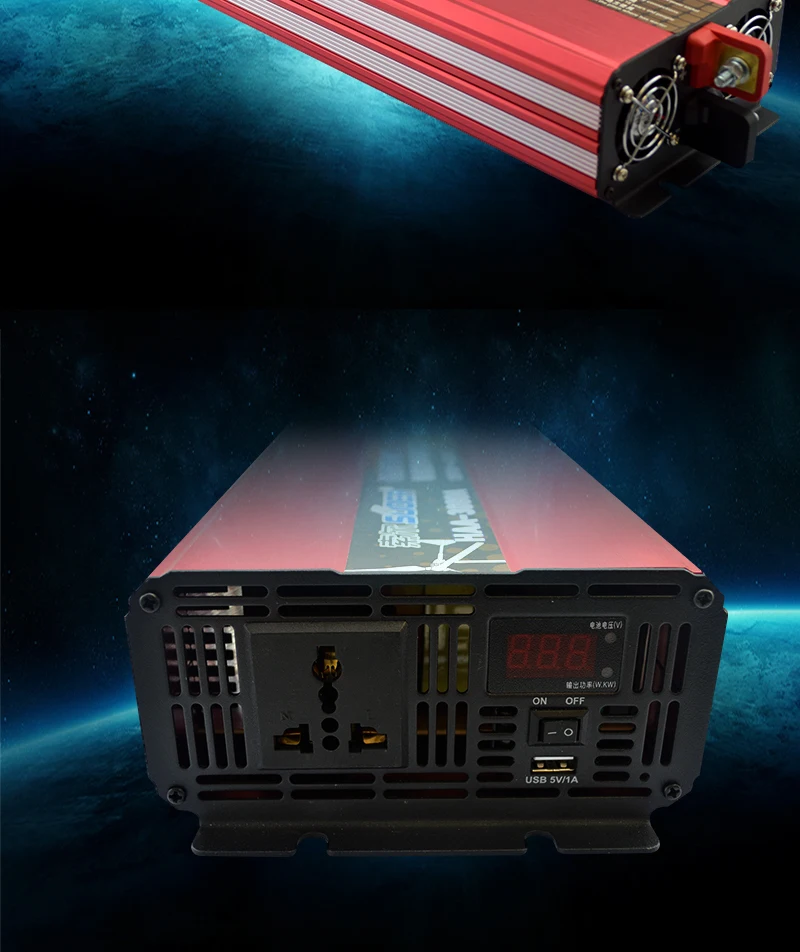

5. Displays the power value and battery voltage.
6. Battery low voltage protection,it will induce the alarm when the battery capacity is low and the device will shut down automatically,the LED displays “UL”,the user must reopen the power switch and restart inverter power supply.
7. Overload and short circuit protection,the device will shut down automatically if there appears overload or short circuit,the user must reopen the power switch and resupply the power.
8. Shell temperature protection,the device will shut down safely if the temperature is too high.
9. Micro inverter has advanced anti-jamming technology,soft start circuit and convenient operating mode.The soft start circuit can increase the output voltage step by step and avoid start failure.
10. Micro inverter also has the function of instantaneous output voltage dropping and fast recovery.It can decrease the instant overload when starting up.




APPLICATION
1. Micro solar power inverter is designed for home use
2. It can convert DC 12V/24V of portable power supply to AC 110V/220V/230V
3. It works for almost all the household electrical resistive appliances such as MP3/MP4 player,cell phone, laptop, emergency light, electric blanket, electric shaver, electric cooker,CD/DVD player,XBOX/PS4 game player, ordinary electric lamps, bulb,fluoresent light, rice cooker,electric iron,desktop computer, LCD TV, electric fans, cell phone chargers, electric iron , drinking fountain,hair dryer and so on.
(Note:Only pure sine wave inverter can run sensitive electric appliances that are including refrigerator, washing machine,microwave oven, induction cooker, electric drill,compressor,air conditioner,mercury lamp and so on)







Q:May I take some samples to test before placing the order ?
A: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
Q: How long can you offer the samples?
A: 1~5 days after the deposit payment is confirmed.
Q: What's your payment terms for sample?
A: You can pay via T/T.
Q:What’s the price terms can you offer for us?
A: We can accept EXW, FOB, CIF and so on.
Q: Do you have any certifications for your products?
A: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
Q: Where is your main market for your products?
A: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
Q: What's your payment terms for sample?
A: You can pay via T/T.
