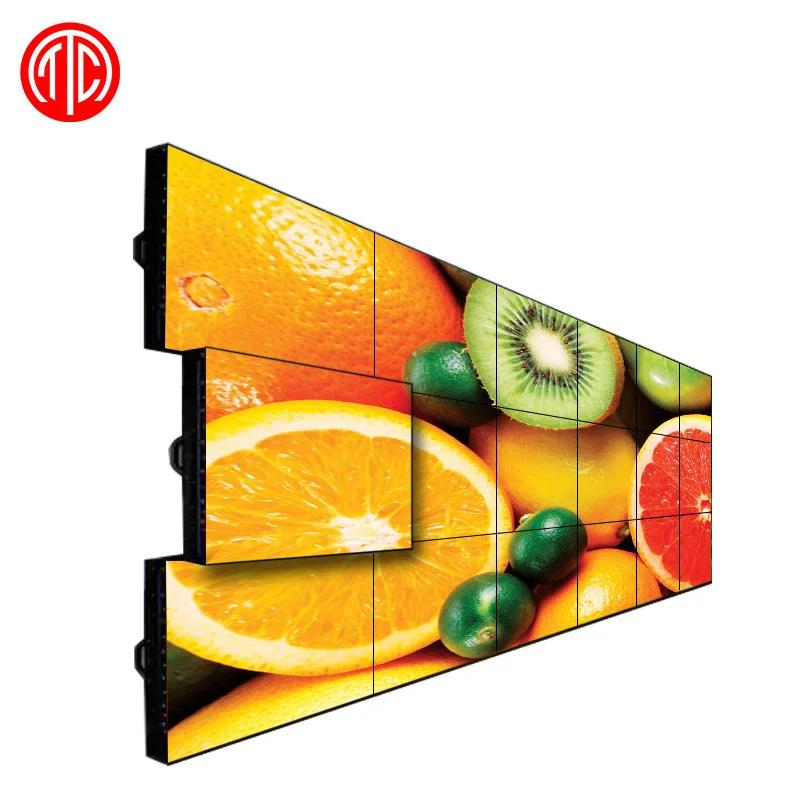

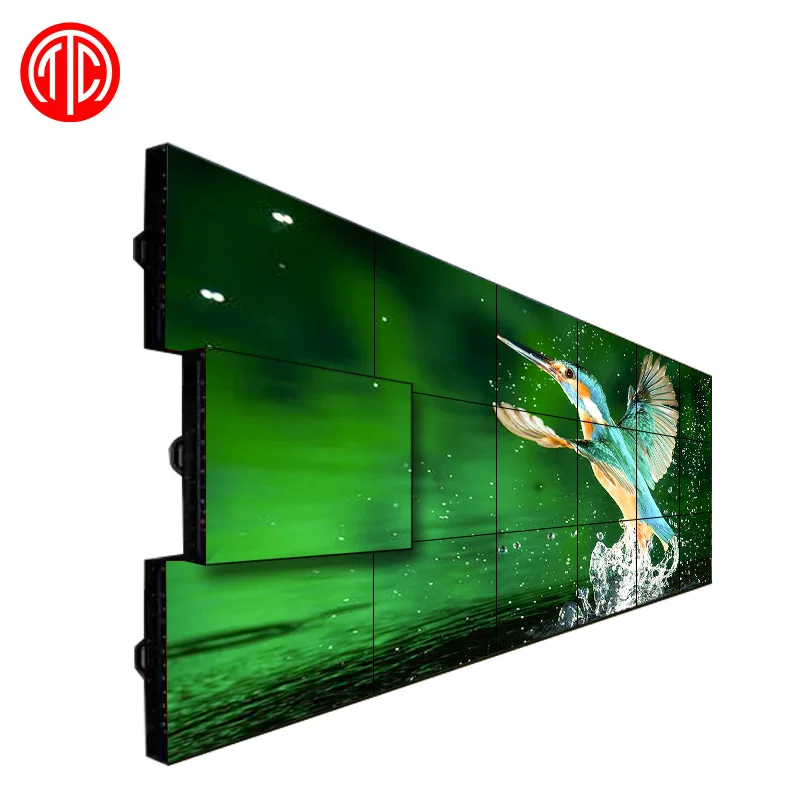

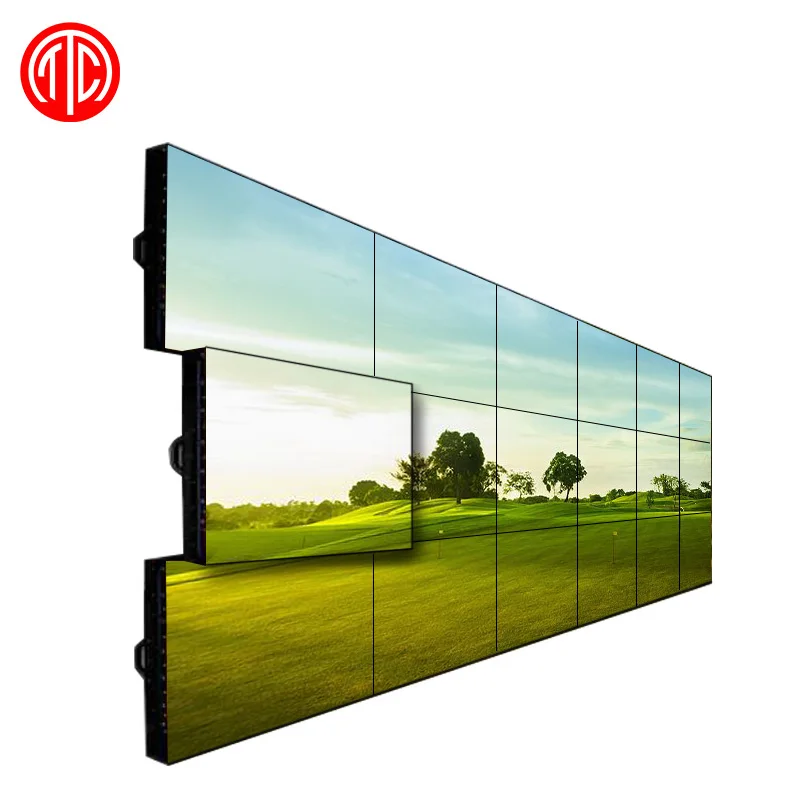

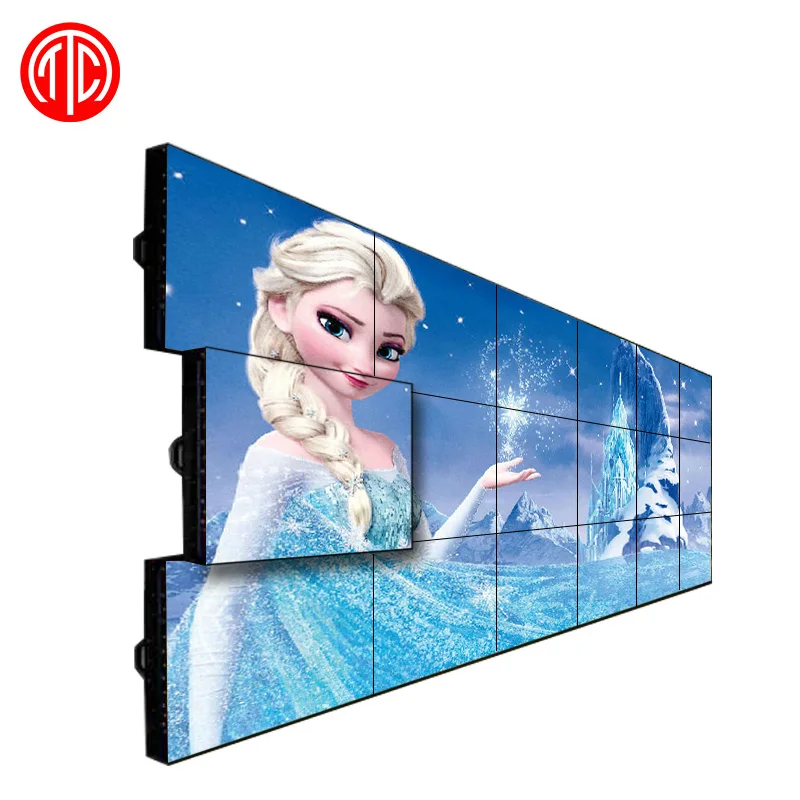

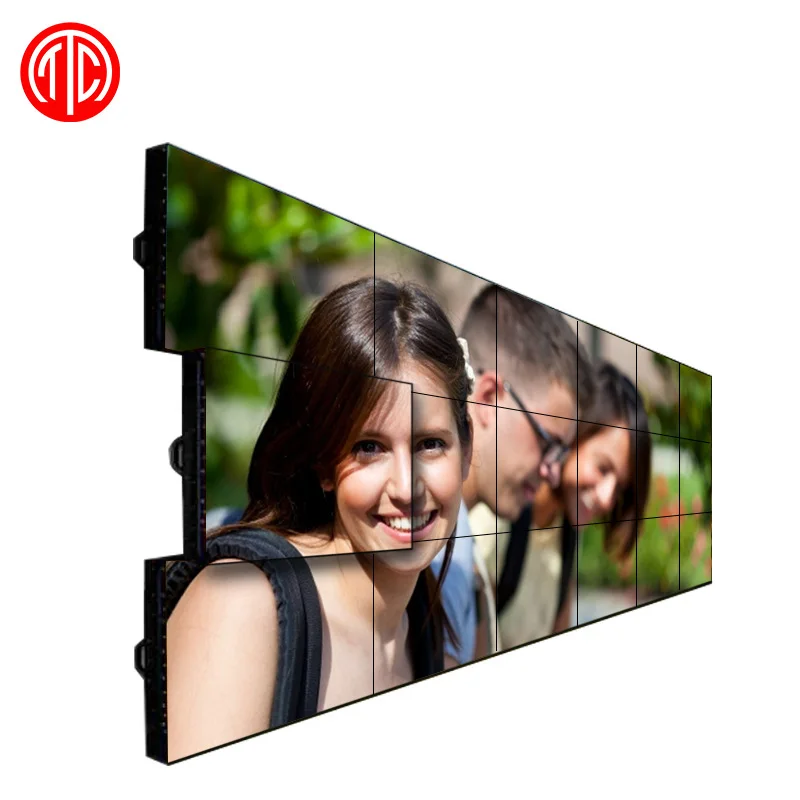

2018 Multiple advertising 4k led video wall tv display, 3*3 Multi screen DID lcd video wall

Panel

Panel Size

55 inch  LCD Screen (with narrow bezel 3.9/mm)

Aspect Ratio

16:09

Max Resolution Support

1920×1080(H×V)

Color

8Bit,16.7M

Brightness (nits)

500

Contrast

4000:01

Visual Angle (H/V)

178°(H) / 178°(V)

Response Time

6ms

Life(hrs)

>60,000(hrs)

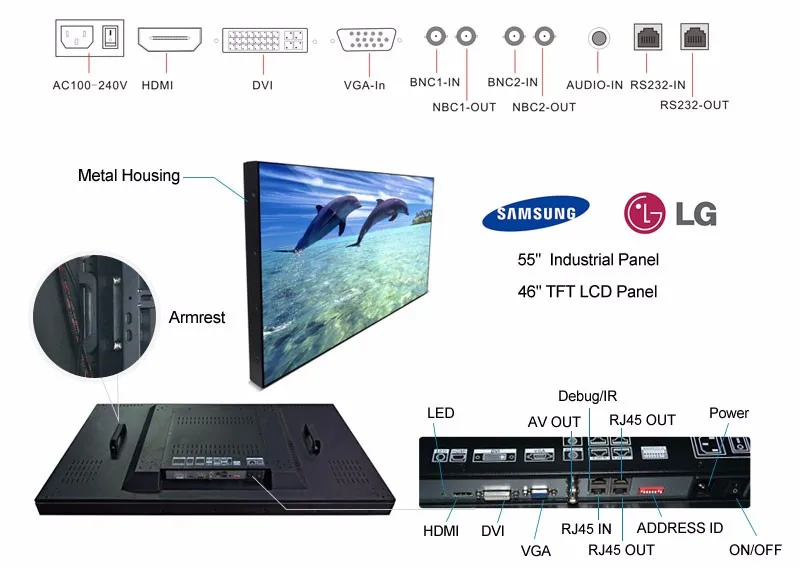

Input and output

DVI

1

HDM1

1

D-15 RGB Input(VGA)

1

YUV/YPbPR

1(3xBNC)

S-(YC)

1(2xBNC)

Composite Video Input/(AV)

3(3xBNC)

Composite Video Output

2(2xBNC)

AUDIO INPUT

1

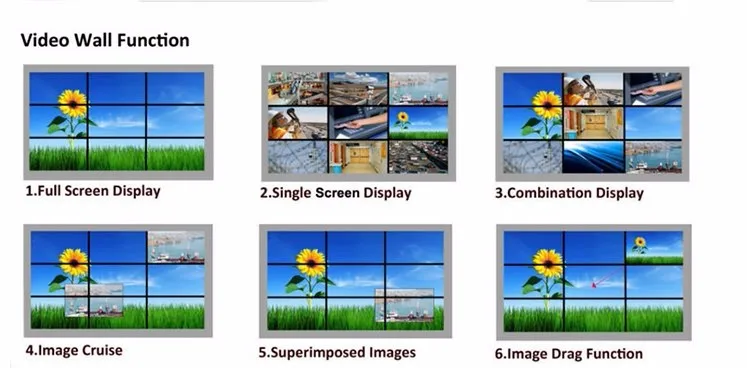

Split Screen

Support Picture in Picture(PIP/POP/PAP)

Power

Power Supply

AC100V~240V

Maximum Power Consumption

230W

Standby Power Consumption

<=3W

Working Temperature

0°C~50°C

Working Humidity

20%-80%

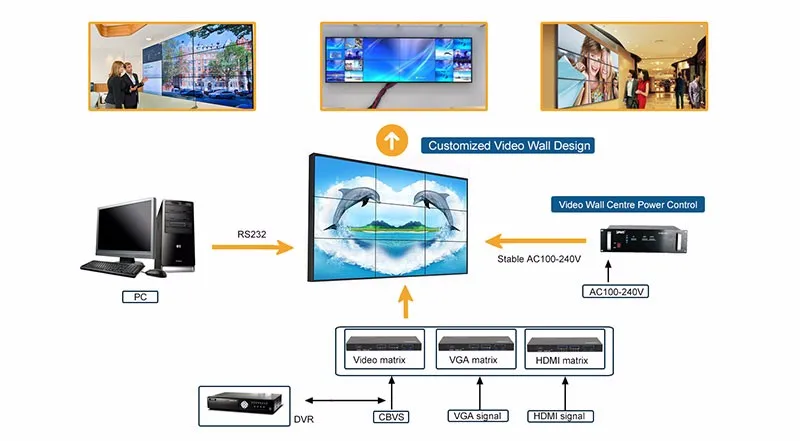

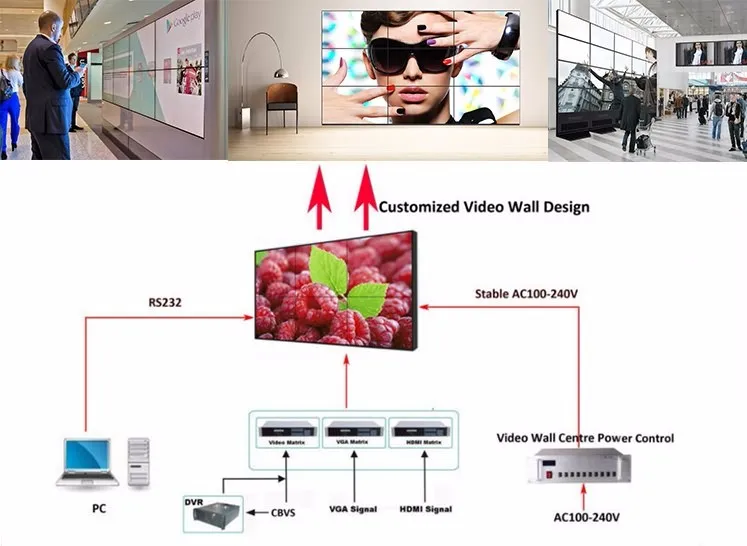

Video Wall Processor Controller

Model No.

MV-P817W

DVI in

1

HDM1 in

1

VGA in

1

Composite Video Input/(AV)

1(BNC)

Composite Video Output

1(BNC)

Control signal input and loop out

RS232(RJ45-8)

Split Screen

Sport Picture in Picture (PIP/POP)

power consumption

Max 300W,according to different Screen models

Dimension

338×295×60(mm)

Weight

 3.5-4.0kg
