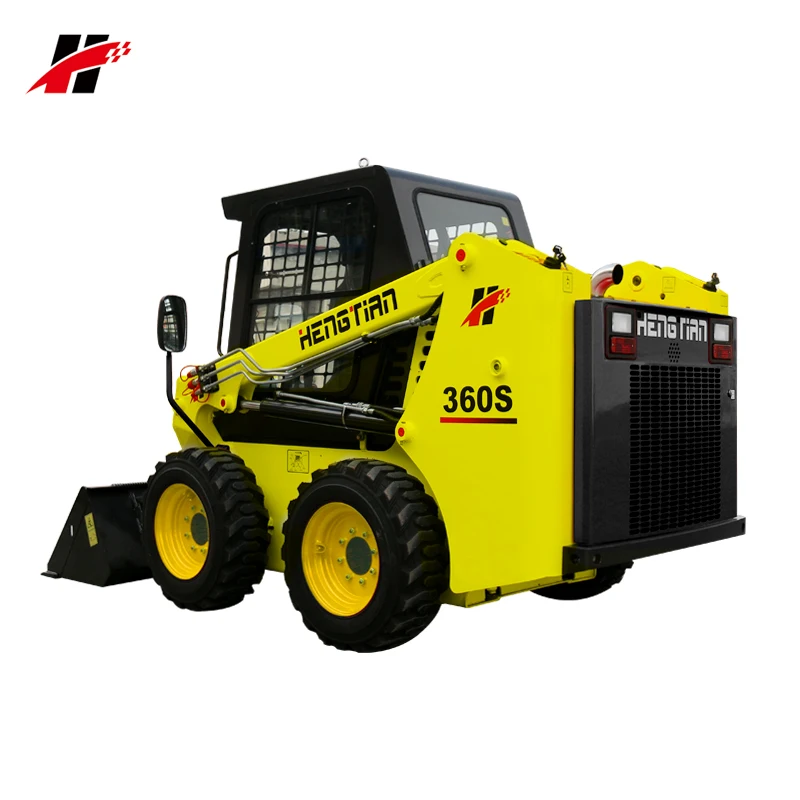

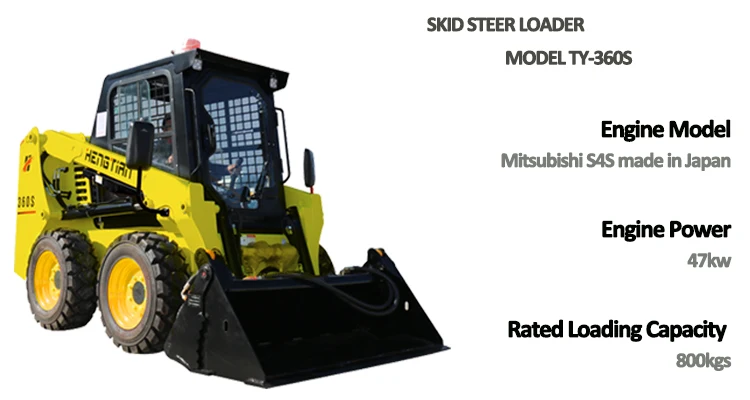

mini loaders 800 kg skid steer loader hi tech sunrise

                        MODEL
  ITEM

TY360S

Engine

Xinchai 498 engine

Bore × Stroke(mm)

98X105

Rated power(KW)

36.8

Rotating speed (rpm)

2650

Number of cylinders

4

Max. torque (N.M)

160

Displacement (L)

2.67

Emission standards

EPA

Chain type

100H

Tightness of chain

Adjustable

Speed-std (km/h)

12.2

Speed-high (km/h)

Optional

Tubeless tire

10-16.5

Solid tire optional

31X10-16

Rated load(kg)

800

Max. load(kg)

1600

Lifting type

Radial

Breakout force, curl(Kn)

17.8

Breakout force, lift(Kn)

21.6

Total cycle time (S)

9.1

Bucket capacity (m³)

0.45

Bucket automatic levelling

Optional

System pressure(bar)

210

Std hydraulic pump output flow (L/min)

80

High flow pump output(L/min)

-

FOPS & ROPS standard cab

std

A/C

std

Fuel tank (L)

90

Kerb weight with bucket(kg)

2780

Controls

1

1. Mechanical joystick control:Direction and speed controlled by two hand levers; Arm lift and down controlled by left foot pedal; Bucket tilt and curl controlled by right foot pedal; Attachment controlled by electrical switch.
2. Hydraulic joystick control:Direction and speed controlled by left joystick; Loader working controlled by right joystick; Attachment controlled by electrical switch.
