Sino howo a7 6x4 10 wheeler 420hp tipper truck / dumper with cheaper price
- Category: >>>
- Supplier: Jinan Hainuoer Trading Co. Ltd.
Share on (60836527712):
Product Overview
Description
Product Description

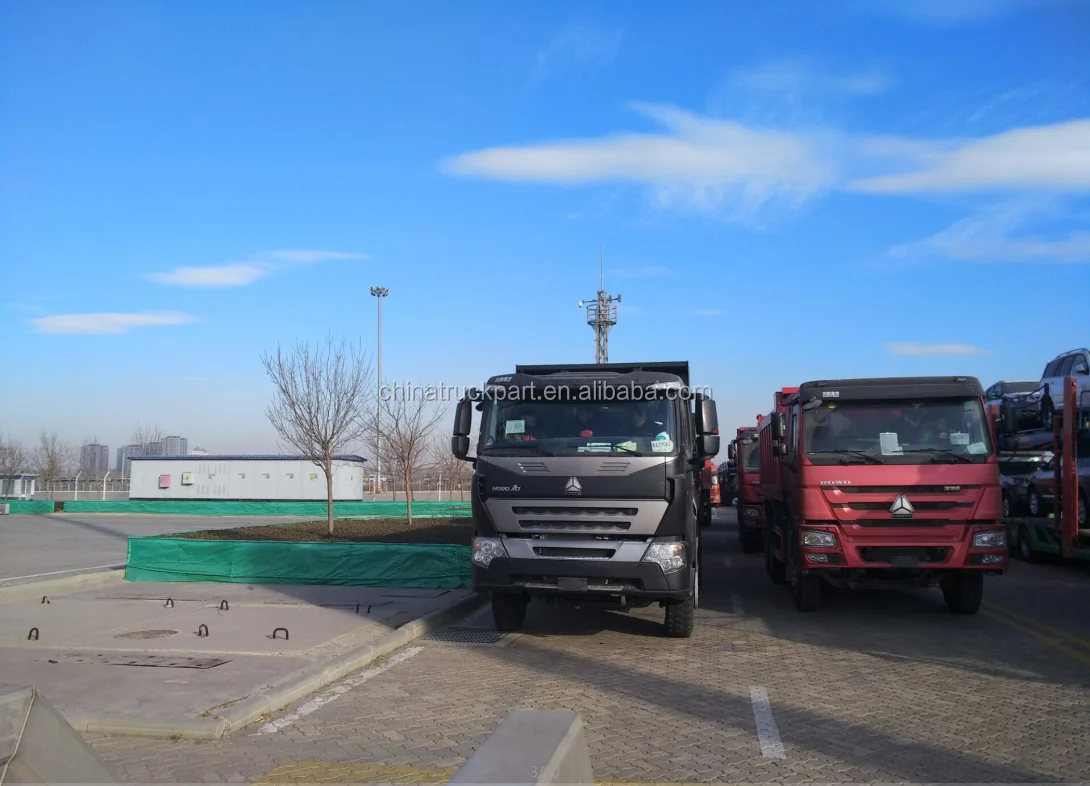

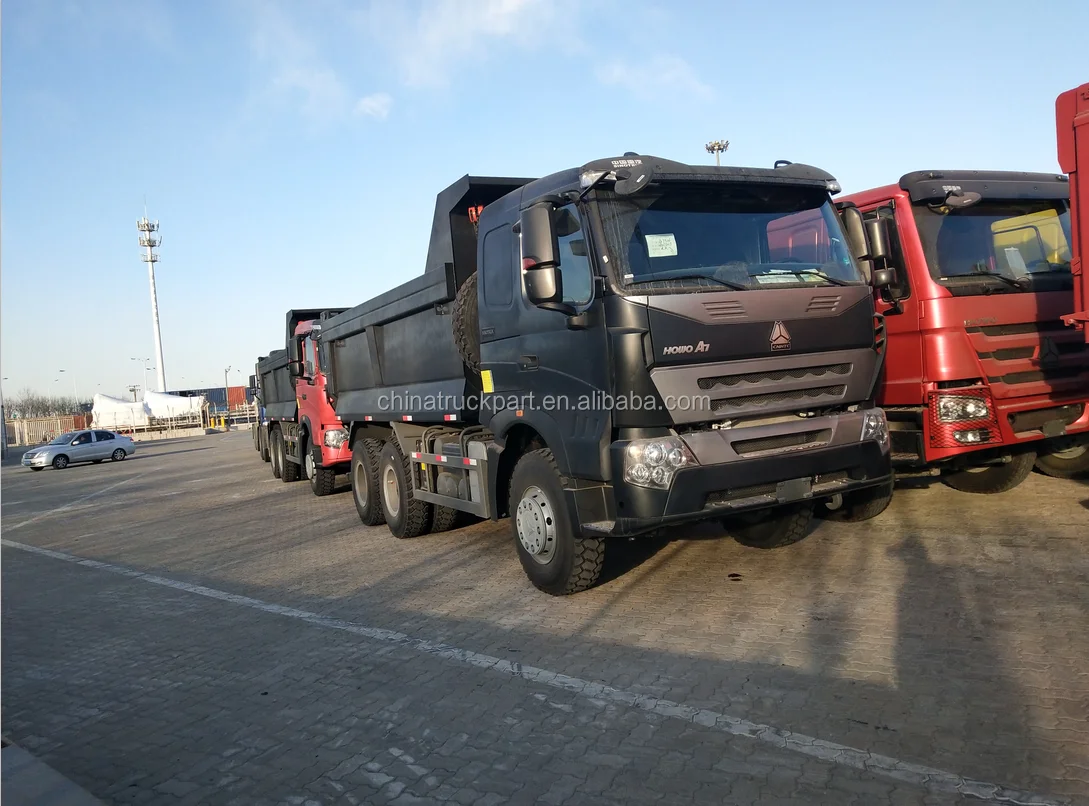

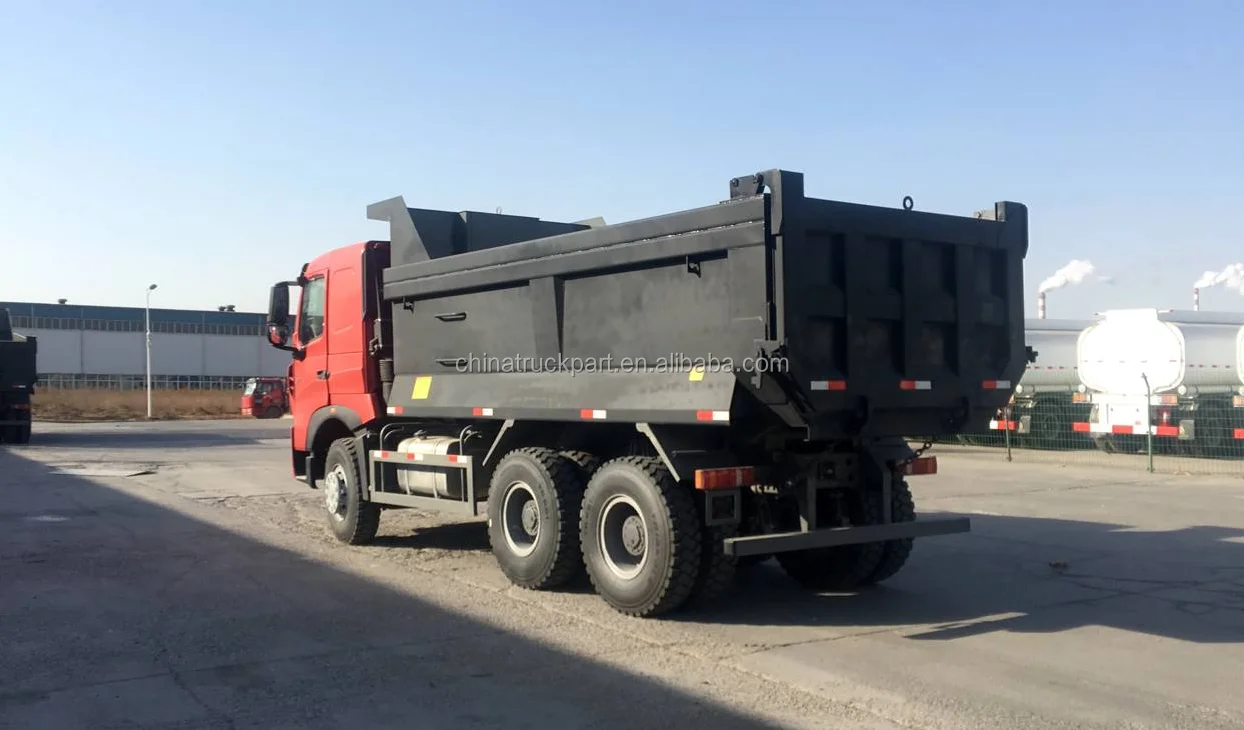

HOWO A7 6X4 10 WHEELS 420HP TIPPER TRUCK
ZZ3257N3647N1 (6X4) | |||||||
Cab | Model | A7-P/ A7-W | |||||

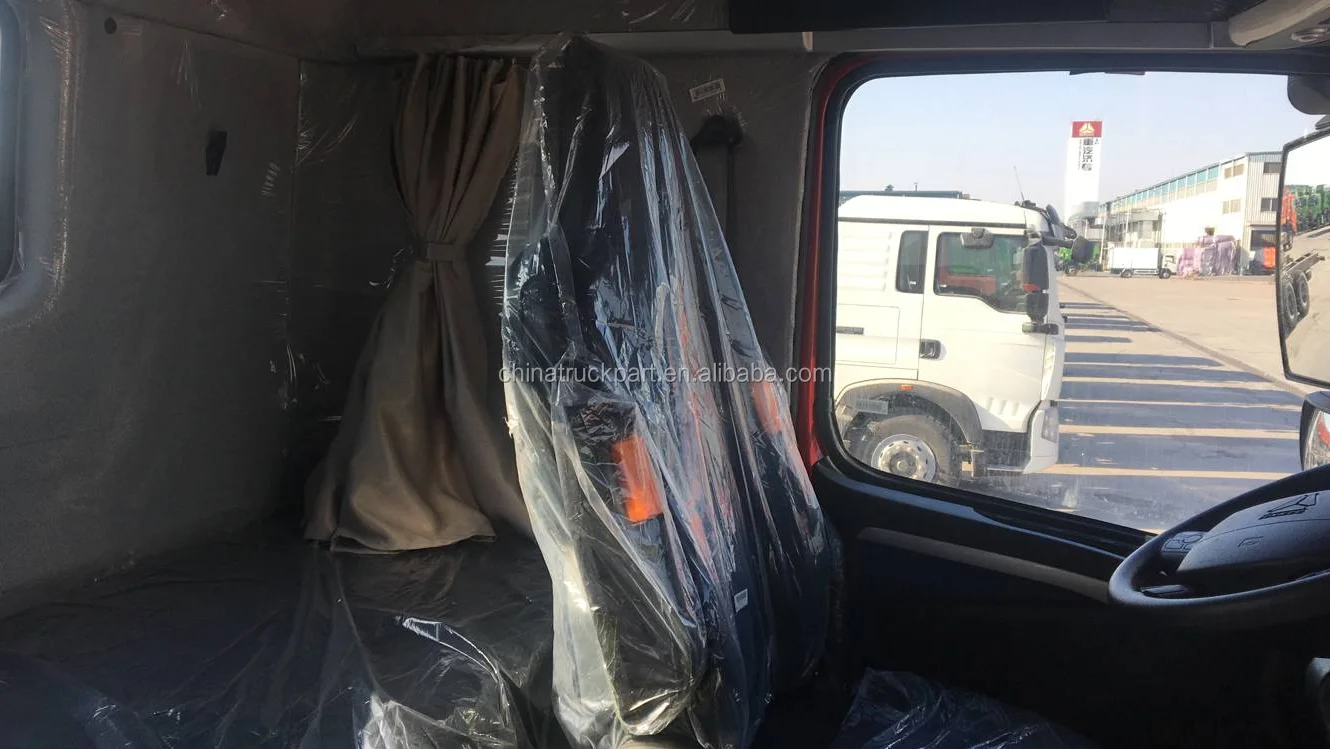

Type | Low floor extended Cab, four-Suspension , air Suspension + shock absorber + transverse stabilizer, splited single berth, air Suspension driver seat , up/down and front/back adjustable steering wheel, BEHR Euro-style integral a/c heater fan, VDO instrument , CAN bus and electronics control system, double-locking safety belt, electric lifting glass and rearview mirror , three locks combined in one , exterior sun visor , upper /side deflector guide , electronic manual accelerator . | ||||||
Engine | Model |
| WD615.47 | D10.38 | D12.42 | ||
Rated Power kw/rpm |
| 273/2200 | 276/2000 | 309/2000 | |||
Maximum Torque Nm/rpm |
| 1500/1100-1600 | 1560/1200-1500 | 1820/1100-1500 | |||
Displacement L |
| 9.726 | 9.726 | 11.596 | |||
Type | Six cylinders inline, supercharge intercooler , mid-supercharger , e-control high pressure and common rail | ||||||
Clutch | Φ430diaphragm spring clutch, Hydraulic control air assister | ||||||
Transmission | SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft , auxiliary transmission with planetary reduction. Standard is HW19710, HW19710T with synchronizer is optional. | ||||||
Front Axle | HF9, rated load of 9t, disc-type or drum-type; | ||||||
Rear Drive Axle | HC16 double reduction (speed ratio 4.42;4.8; 5.73); | ||||||
Suspension | Front and rear leaf spring suspension +shock absorber +transverse stabilizer | ||||||
Steering System | ZF8098 steering gear , ZF steering oil pump , system pressure 18MPa | ||||||
Braking System | Service brake : dual-circuit air pressure brake : spring storage energy without air ; auxiliary brake : EVB +Engine exhaust braking .With ABS and optional auto clearance adjusting arm. | ||||||
Electrical System | CAN bus control, voltage : 24V ;generator :2240W ; starter :7.5kW ; battery : 12V/165Ah, 2 pieces | ||||||
Tyre | 315/80R22.5 ; 12.00R20 optional | ||||||
Tank Volume L | 400L standard | ||||||
Kerb Weight (vehicle/chassis) kg | 6800 | 6800 | 6800 | ||||
Gross Mass kg | 18000 | 18000 | 18000 | ||||
Dump box dimension (L*W*H) mm | 5200X2300X1500 | 5400X2300X1500 | 5600X2300X1500 | ||||
External Dimension (L*W*H) mm | 8250x2560x3560 | 8450x2560x3560 | 8650x2560x3560 | ||||
Wheel Base mm | |||||||
Front/rear overhang mm | 1500/1739 | 1500/1739 | 1500/1739 | ||||
Wheel Track (front/rear) mm | 2022/2041 | 2022/2041 | 2022/2041 | ||||
Approach/departure angle (vehicle/chassis) | 16/26 | 16/26 | 16/26 | ||||
Maximum Speed km/h | 78 | 78 | 78 | ||||

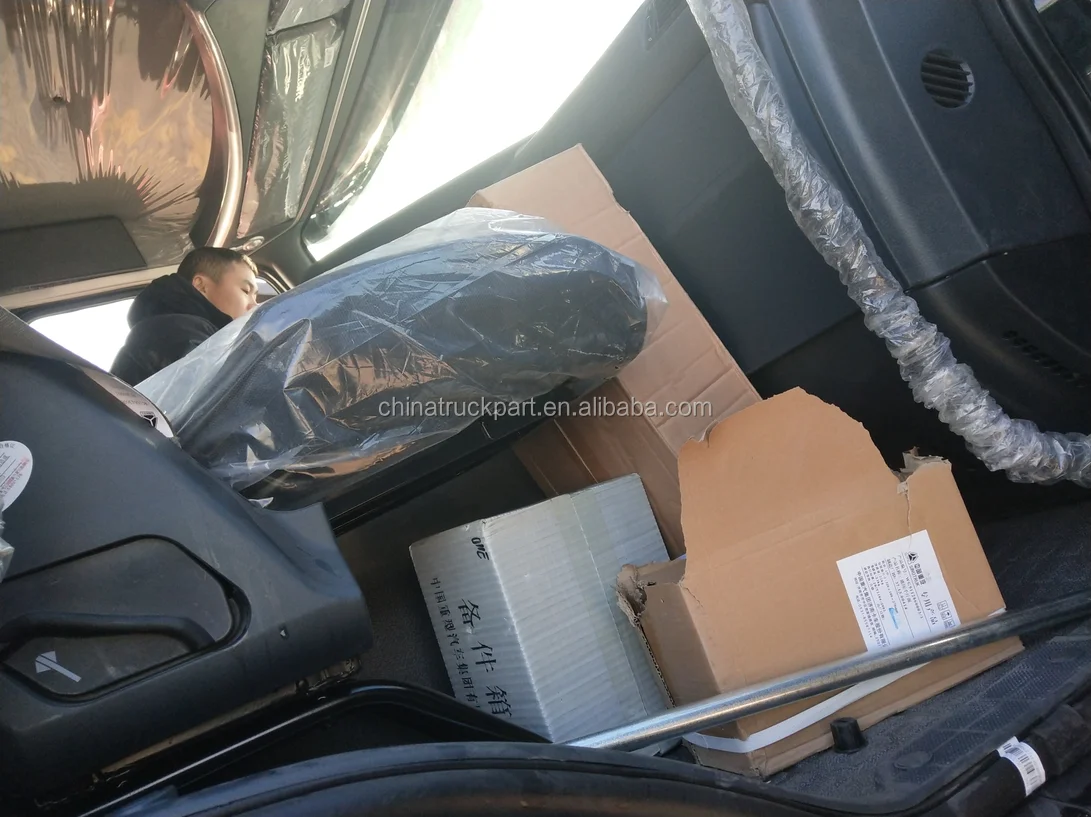

Packaging & Shipping
Our Services
ü We can offer you the high quality trucks and spare parts at reasonable price. |
ü We own strong teams in technology that could help you solve problem quickly. |
ü We can do the designs according to your special requirement and ideas. |
ü We also supply spare parts (original, OEM, and replacement) for all types of trucks |
ü We cooperate with efficient logistics which ensure the goods reach you timely and safely. |
ü We are rich experienced team and could provide good after-sales service. |
Company Information
We Jinan Hainuoer Trading CO., LTD established in 1990 which engages in SINOTRUK trucks and spare parts for more than 25 years. We are authorized distributor by SINOTRUK factory exporting dump truck, tractor truck, cargo truck, concrete mixer truck, tank truck, garbage truck, semi-trailer, excavator, truck crane and other heavy duty equipments.
We own strong teams in technical and sales field, so that we could deal with all kinds of truck problems with shortest time for our client.
Hope to establish good and long-term business relationship with you.
Order Process

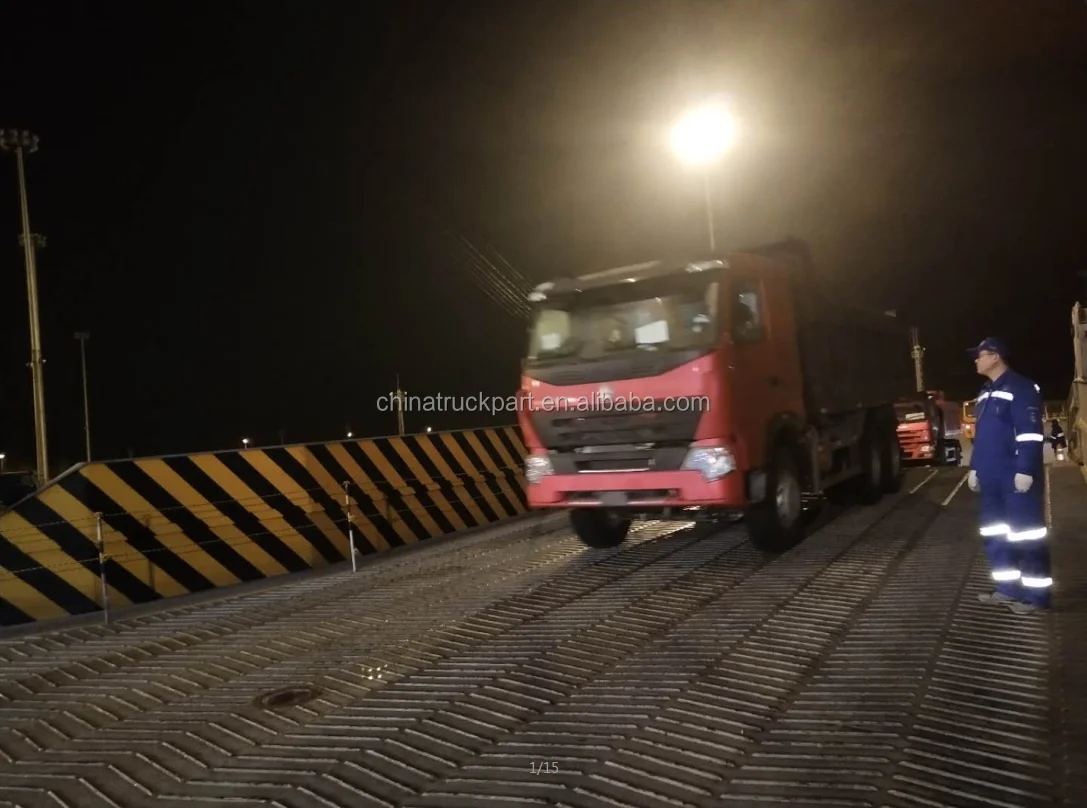

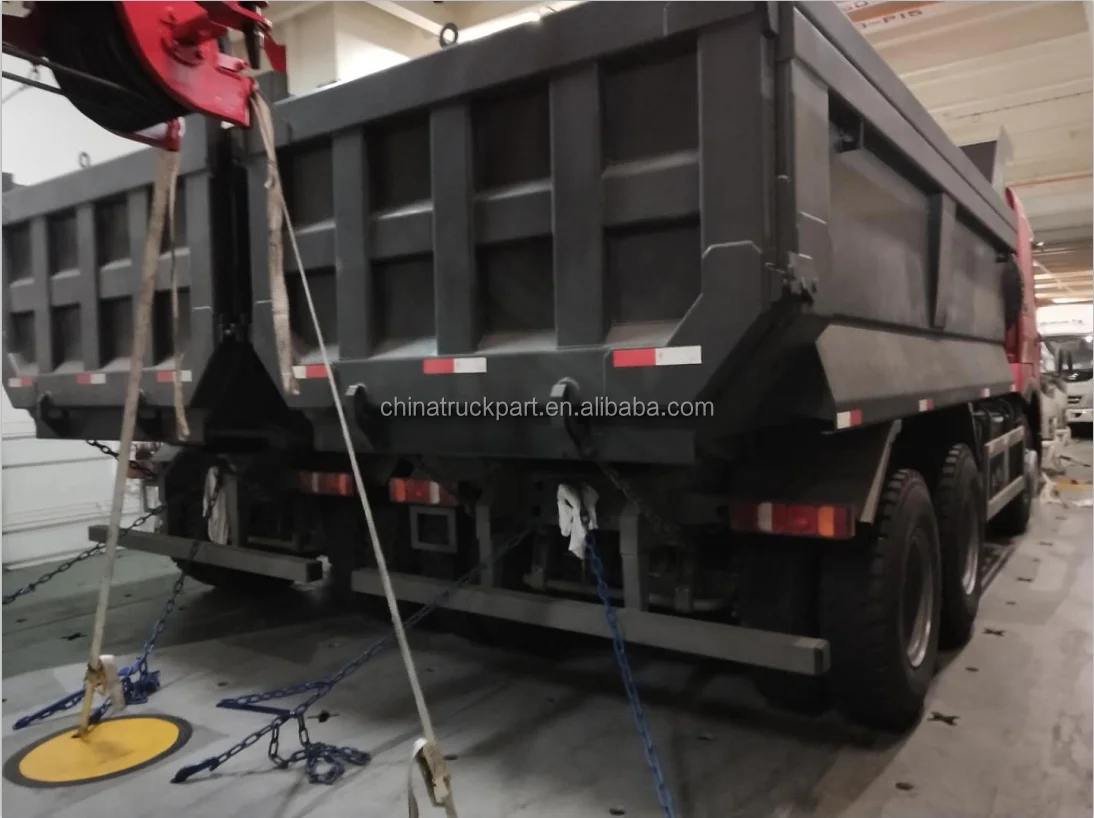

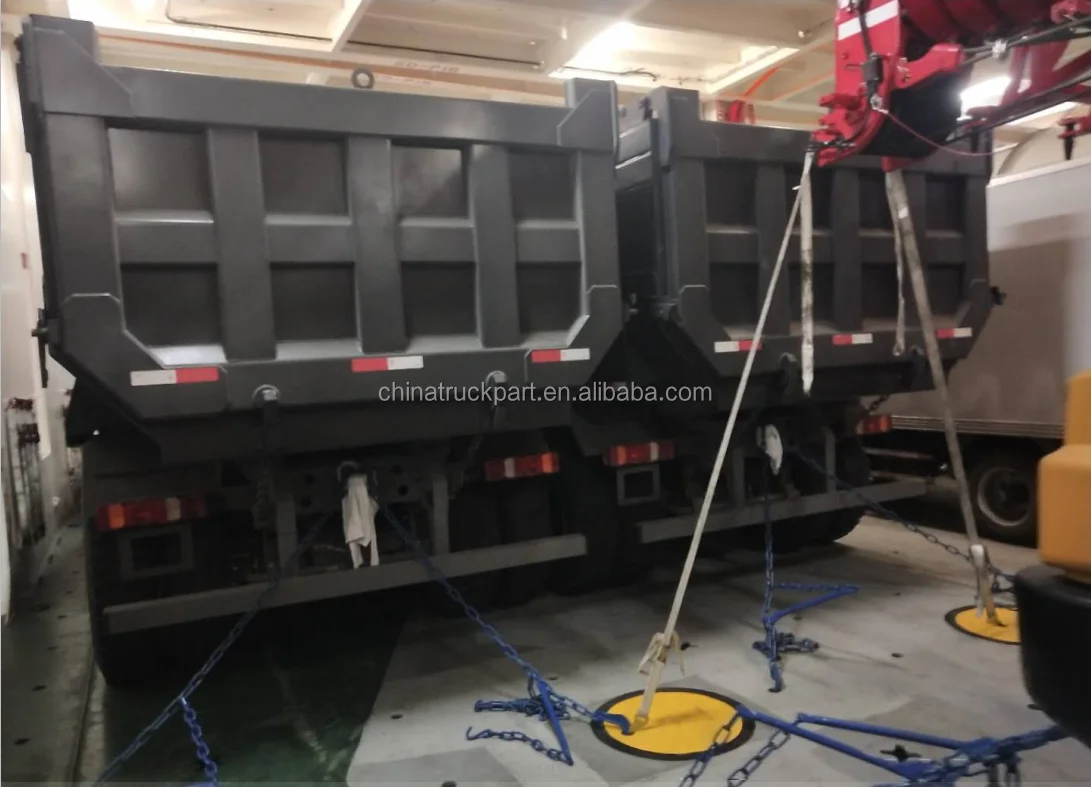

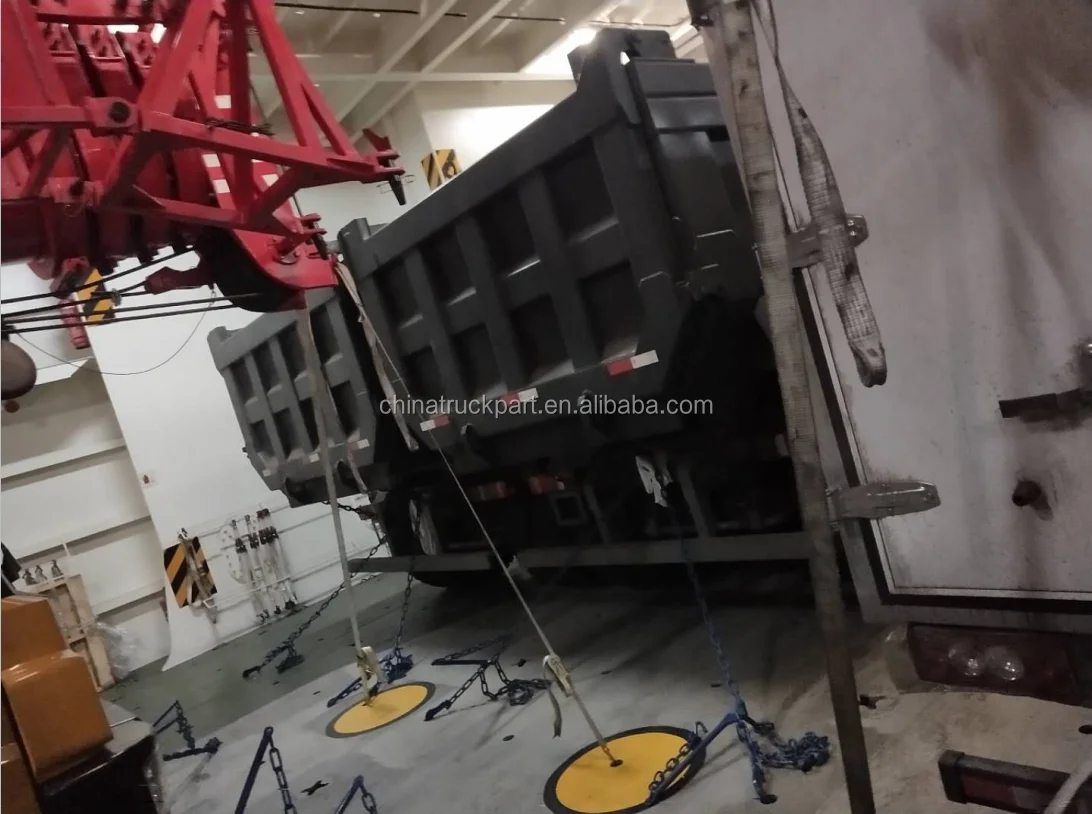

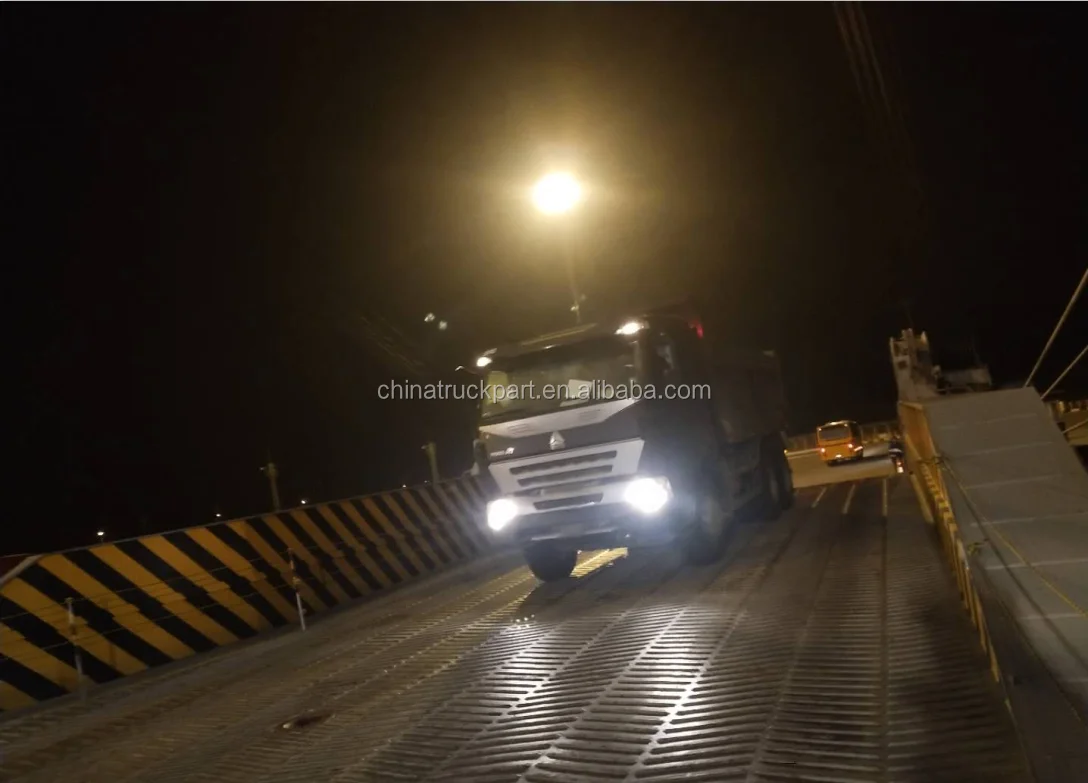

Shiped to customers by RO-RO vessel
FAQ
Q1:Why do you choose us?
A1: We are official authorized by CNHTC to export SINOTRUK trucks,and we are willing to provide the High Quality, Reasonable Price, and Perfect Service.
Q2: How about the quality of your truck?
A2: Our trucks have passed the ISO, CCC, SGS, BV, SONCAP and CONTECNA qualification certification, quality is 100% guaranteed.
Q3: How about your company's service?
A3: Our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q4: Is there any advantages of your price?
A4: We have been doing trucks and truck parts for more than 25 years,we can provide guarantees for reasonable price and good quality.
Welcome your inquiry and waiting for our good cooperation!
Contact person: Ally
Email: howo(@)howo.hk
Tel: +86 15806668898
