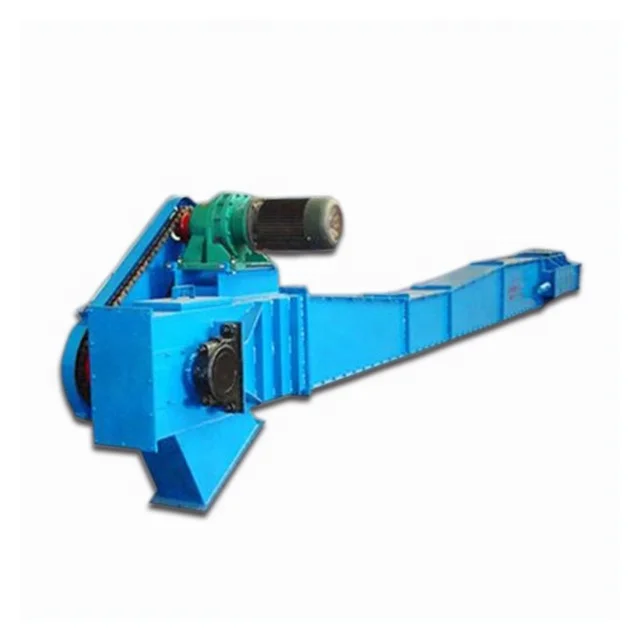

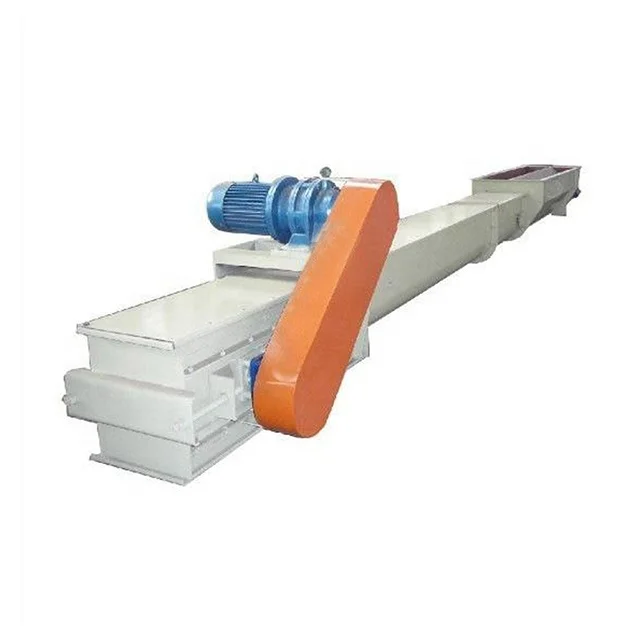

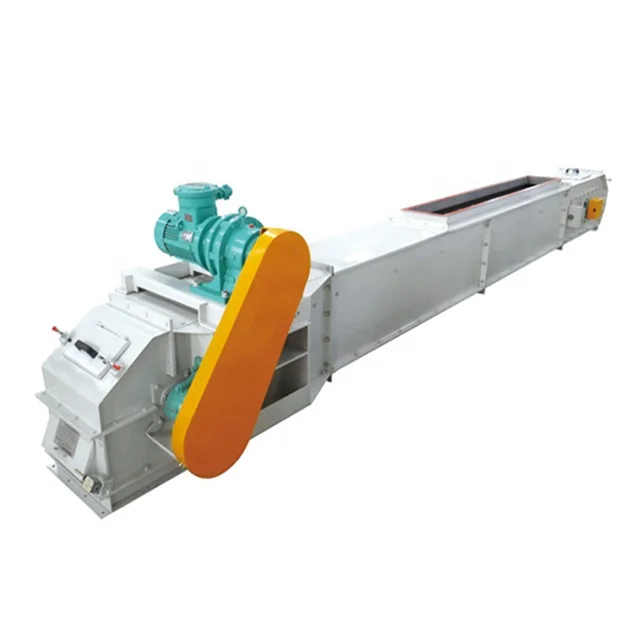

Grain Drag Chain Scraper Conveyor System for Bulk Material
- Category: >>>
- Supplier: Henan Yingda Heavy Industry Co. Ltd.
Share on (60836546136):
Product Overview
Description

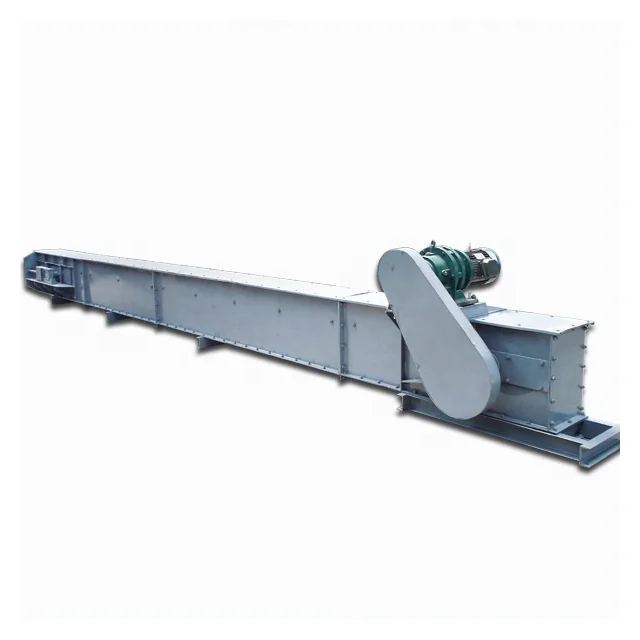

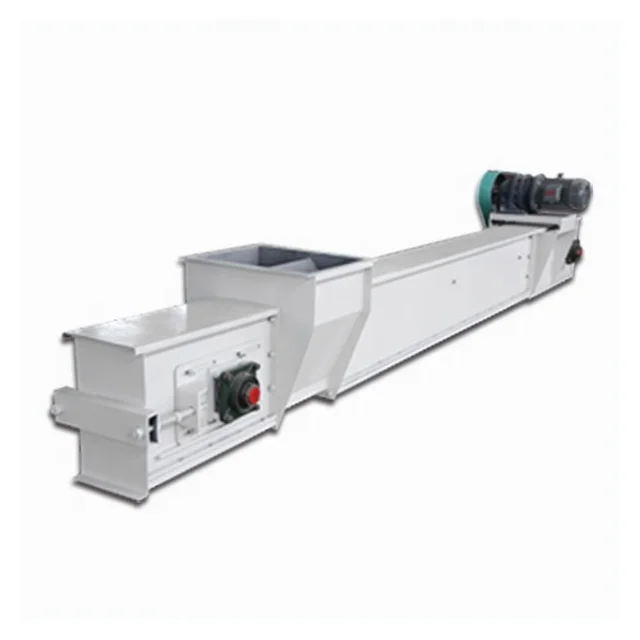

Grain Drag Chain Scraper Conveyor System for Bulk Material
Chain Scraper Conveyor is full sealed conveying equipment, widely used for transporting powder and small granular material, Such as: Cement powder, Coal, Chemical fertilizer, Grain and Calcium carbonate etc. Chain Scraper Conveyor can be used to transported bulk material horizontally and sloping transported material.
PRODUCT SHOW
TECHNICAL PARAMETER
The parameter above is just for reference, it can be customized by different requirement.
Model | Shell width (mm) | Ideal size (mm) | Max slant angle | Speed (m/min) | Max humidity | ||||||
10 | 12 | 13.5 | 15 | 16 | 20 | 25 | |||||
Capacity (m3/h) | |||||||||||
FU150 | 150 | <4 |
≤15° | 6-9 |
|
| 9-13 |
| 12-18 | 15-23 |
≤5% |
FU200 | 200 | <5 | 12-16 |
|
| 18-24 |
| 24-32 | 30-40 | ||
FU270 | 270 | <7 | 21-30 | 25-36 | 28-40 | 31-45 | 34-48 | 42-60 | 52-75 | ||
FU350 | 350 | <9 |
| 40-56 |
| 54-75 |
| 72-100 | 90-125 | ||
FU410 | 410 | <11 |
| 55-80 |
| 70-100 |
| 75-130 | 705-150 | ||
FU500 | 500 | <13 |
| 80-110 |
| 105-145 |
| 140-200 | 160-225 | ||

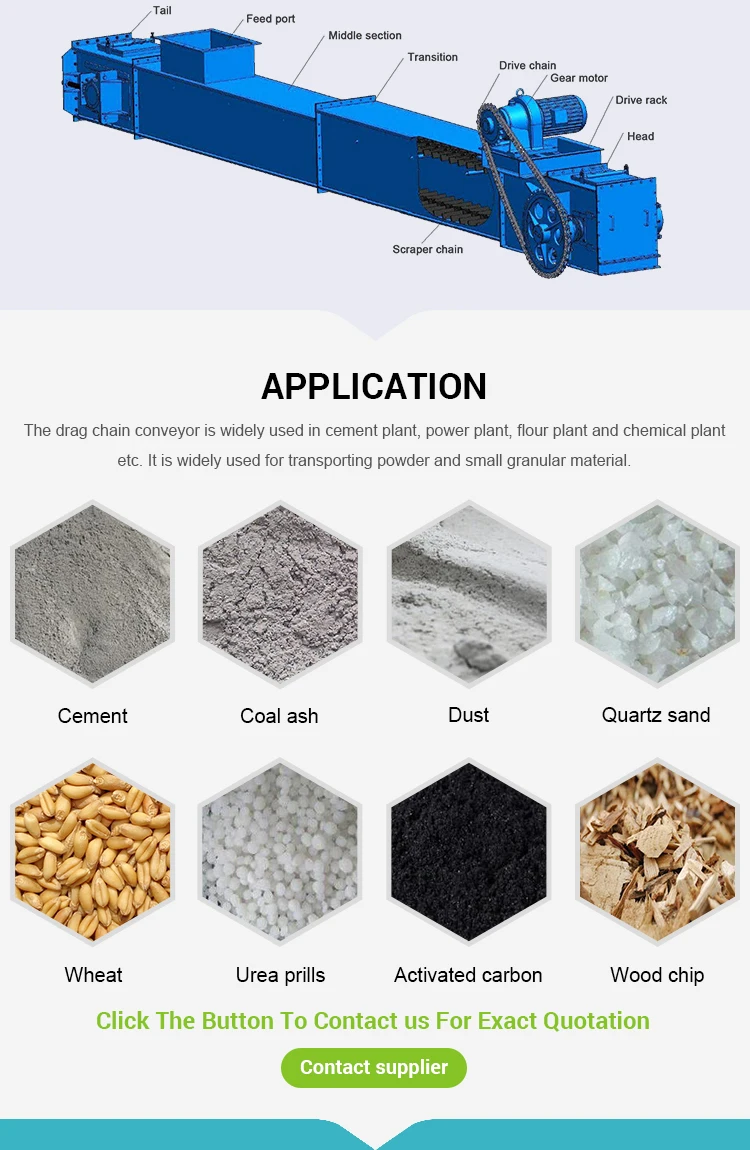

WORKING PRINCIPLE
PACKING&SHIPPING
HENAN PROVINCE YINGDA MACHINERY
MANUFACTURING CO.,LTD
About Yingda:
Henan Province Yingda Machinery Manufacturing Co., Ltd is professional manufacturer for bucket elevator and conveyors in China. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Chain conveyors: FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.
5. Apron feeders: Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.
6. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
7. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
1. What's material will be transported by Chain Scraper Conveyor?
Cement, sand, limestone, grain? And its max. temperature, lump size and density.
2. What's capacity of Chain Scraper Conveyor that you want?
20t/h, 50t/h, 100t/h?
3. How is length outside diameter Chain Scraper Conveyor?
4. What's tilt angle of Chain Scraper Conveyor?
5. Other speical require?
Like hot material, SEW gearbox, Siemens motor.
6. It's better if you have layout drawing or sketch.
