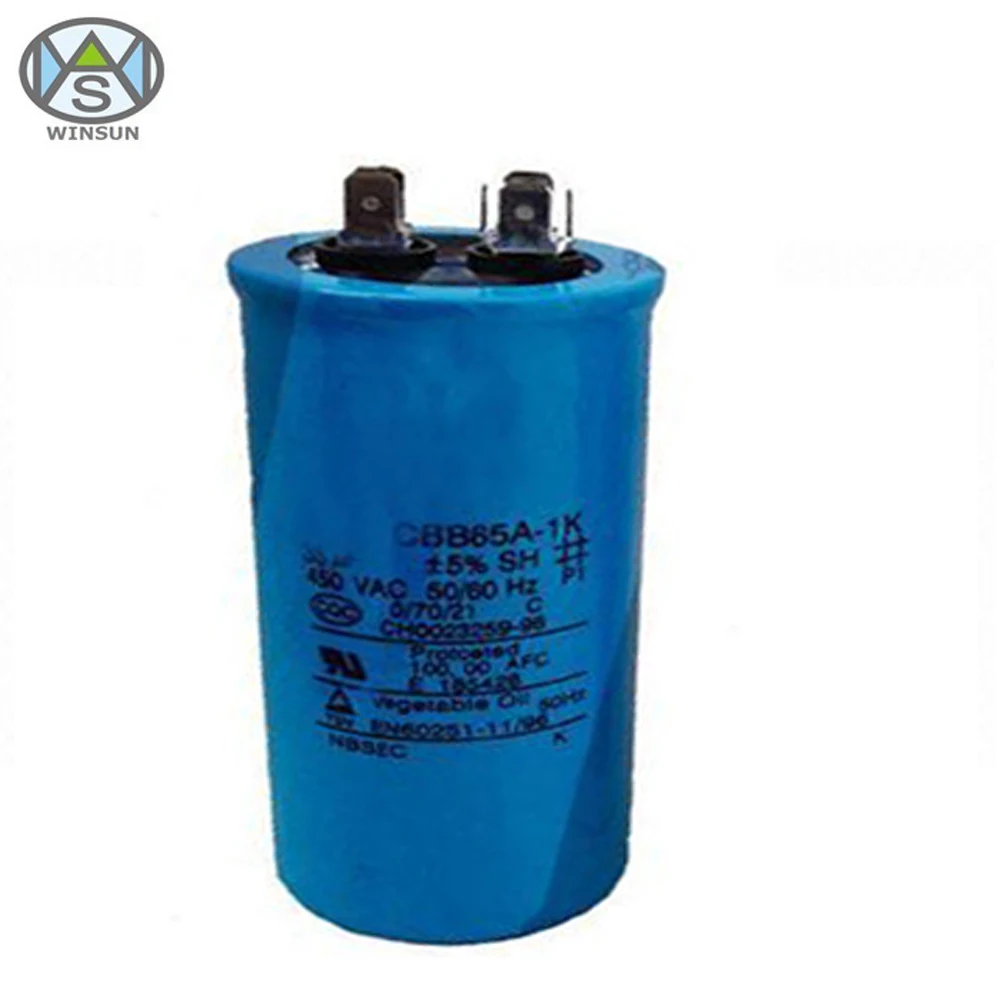

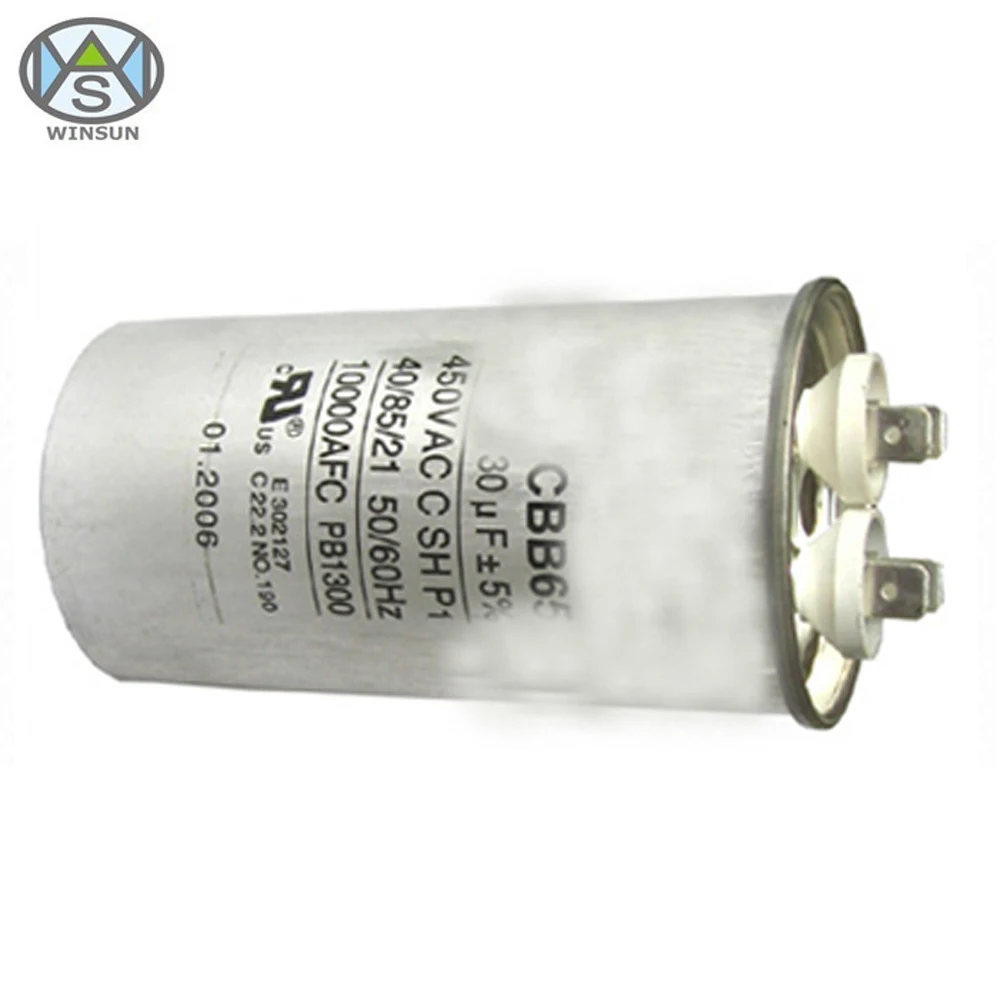

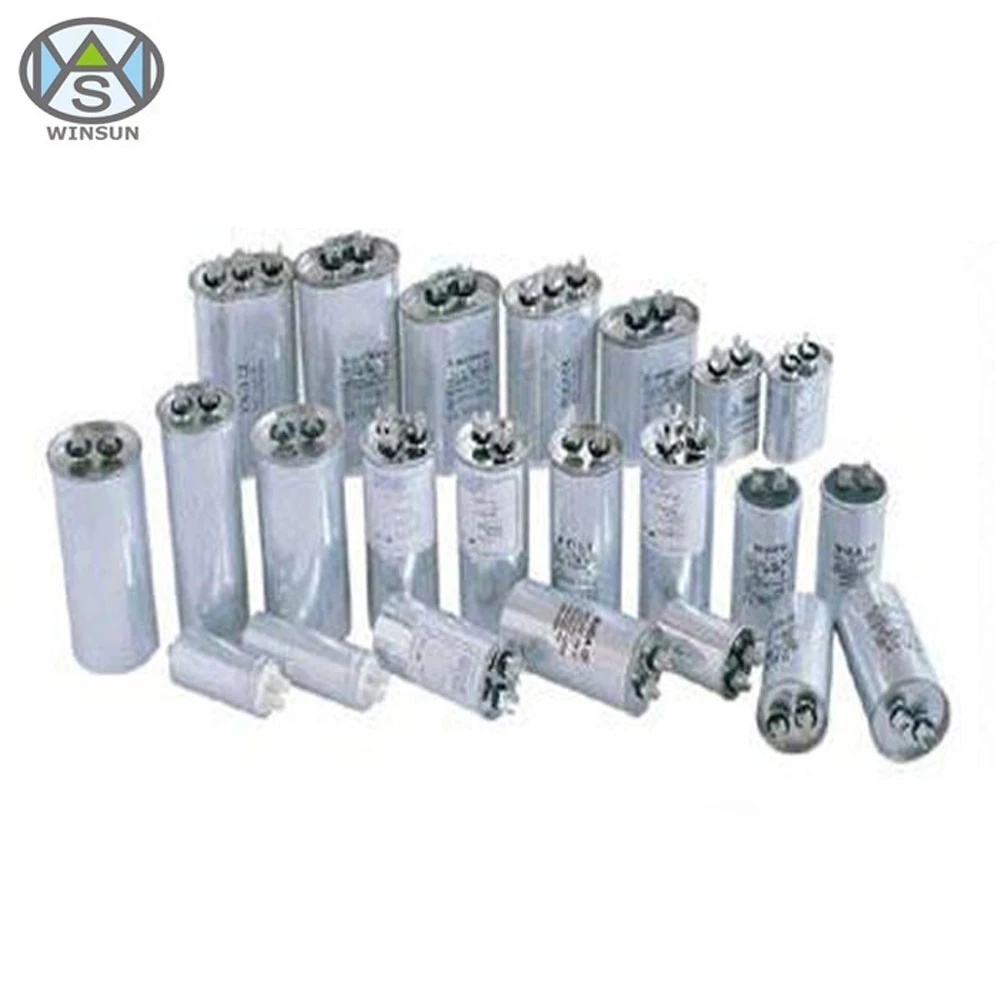

CBB65 AC Capacitor Metallized Polypropylene Motor Run Capacitor

Product Overview

Description

CBB65 AC Metallized Polypropylene Motor Run Capacitor





Description:
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.



Feature:
*Voltage range:AC 200V~AC1200V
*Capacitance range: 1uf~120uf
*Tolerance: +/-5%, +/-10%
*Climate type:40/70/21 or 40/85/21
*I.R:≥3000S(MΩ@µF)
*Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)
*Standard:IEC 60252-1:2001



Application requirements:
*Altitude:≤2000m
*Residual voltage in application :less than 10% of rated voltage.
*Allowed maximum voltage: less than 1.1 times of rated voltage
*Permissible maximum current: less than 1.3 times of rated current



Application:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.



CBB65 Dimensional specification (mm)
Rated voltage (VAC)	Nominal capacitance (uF)	Size (mm)
		D	H
200,250,370,400,440,	1,2,3,4,5,7.5,10,12.5,15,17,20,22.5,	40,45,50,55,	60,65,70,75,80,85,90,
4,506,007,001,200	25,30,35,40,45,50,55,60,70,80,100,120	60,63.5,	95,100,105,110,115,
	25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5…	52*32,71*45	120,125,135,138
Note:  1,Other capacitance and dimension serials can be specified in compliance with customer's request.                                                                                                                                                                                   2, Terminal forms can be made in conformity to the requirements of agreements with customers.





Payment and Shipping:

1, Lead time about 3~5 days.

2, Payment: T/T; Western union; Paypal .

3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect





 Company profile:

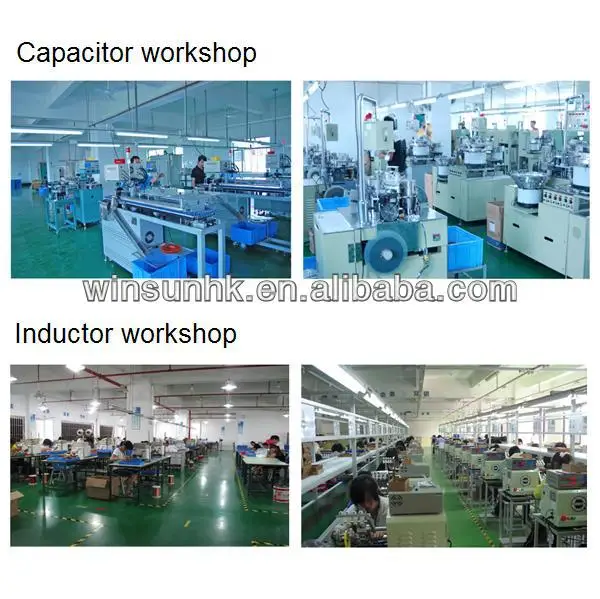

    Winsun Technology,located in Shenzhen, Belongs to Hong Kong winsun group company, is the top professional Electronic Component. The founder of Shenzhen manufactory has about 20years experience in Electronic Component. We have 20000sqm capacitor and inductor workshop, 300workers, automatic production line, Daily production capacitor and inductor of 3000Kpcs. we are also the agent of world-renowned brands of electronic components.

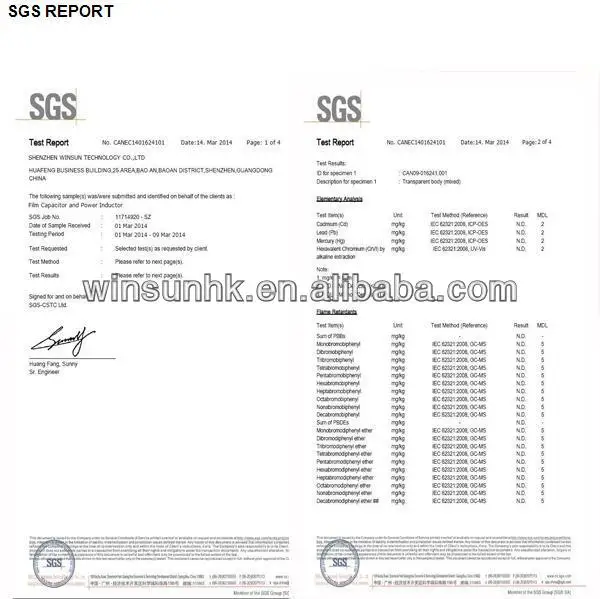

Our product have passed ISO9001:2000, ROHS, 3C, CE, UL quality authentication, which ensure our products keeping steps with the international quality. We will provide our clients with high cost-performance ration products. We can make un-common product per customers requirements. Our main marketing is America, Canada, brazil, Australia, Iran, Ukraine etc.

Your need is our mission. We firmly believe our quality of service and support are the keys to keep long business relationship with you. Welcome to visited our factory!
